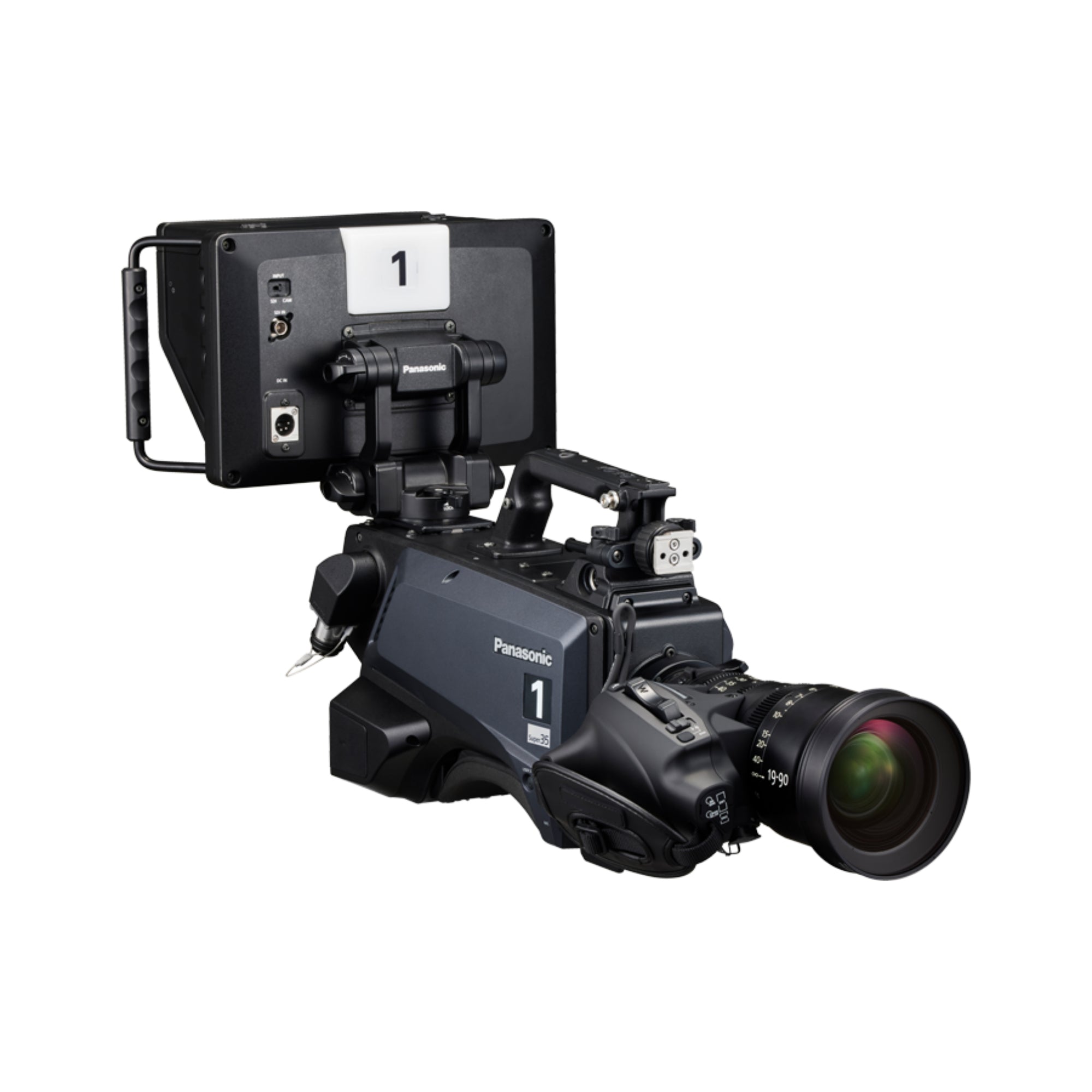

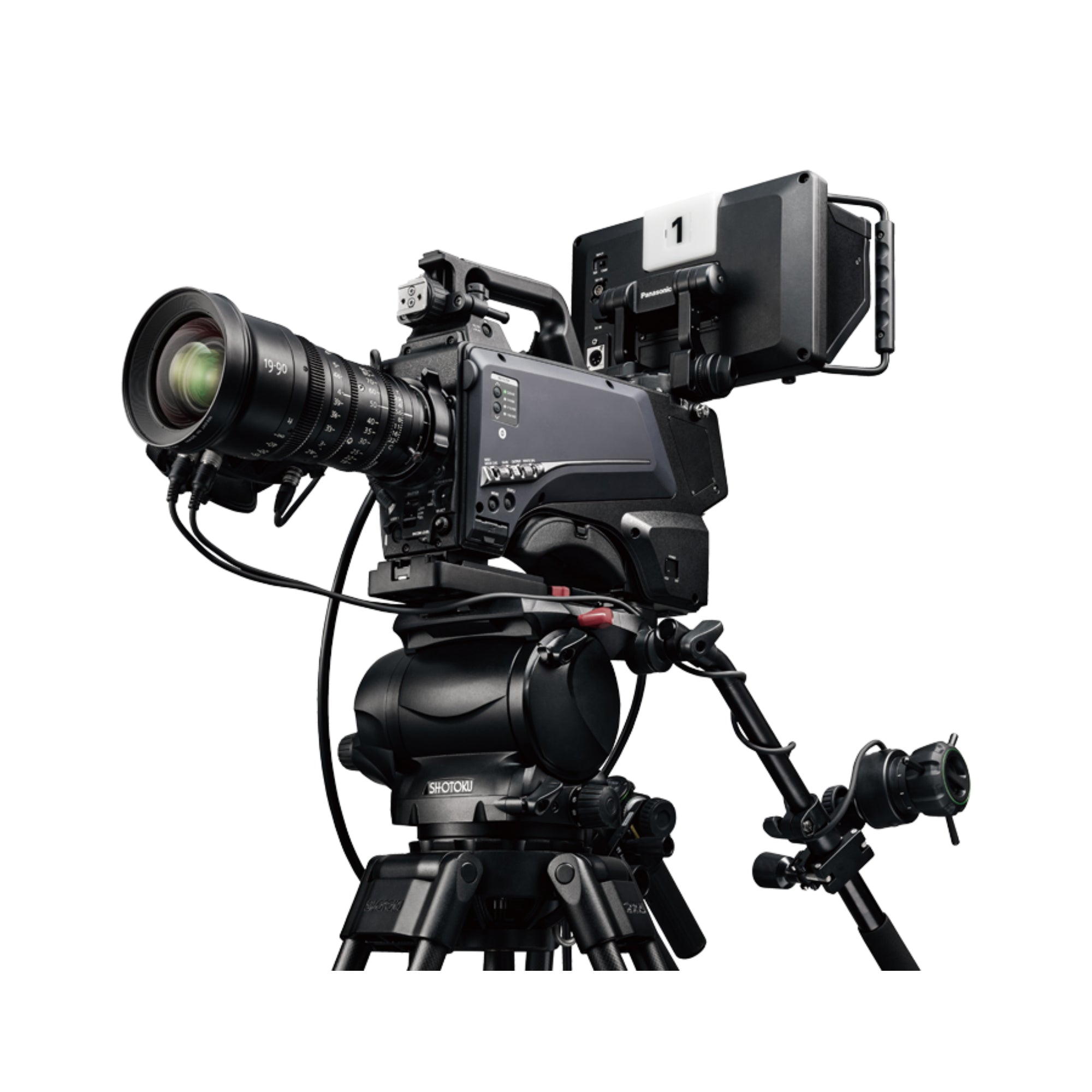

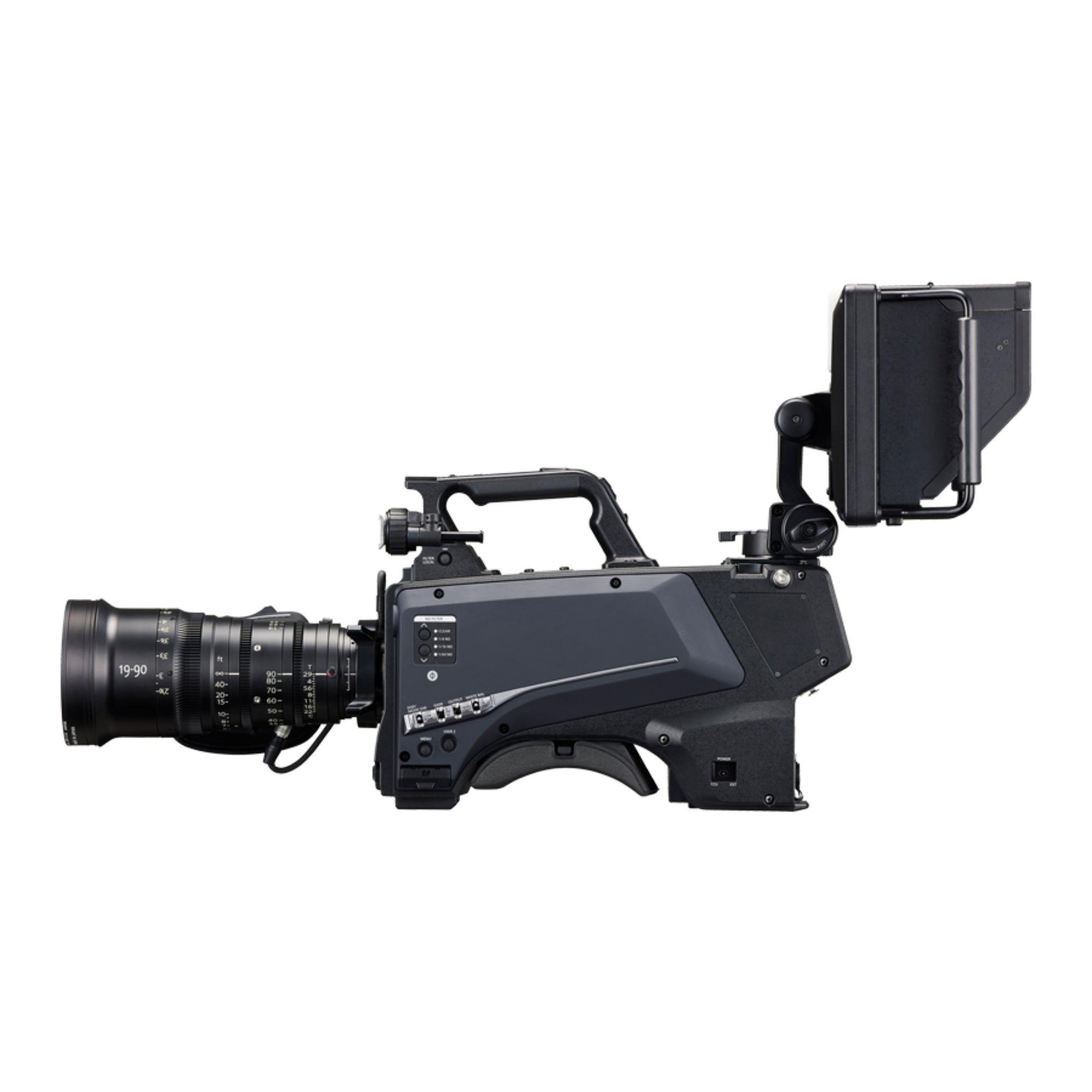

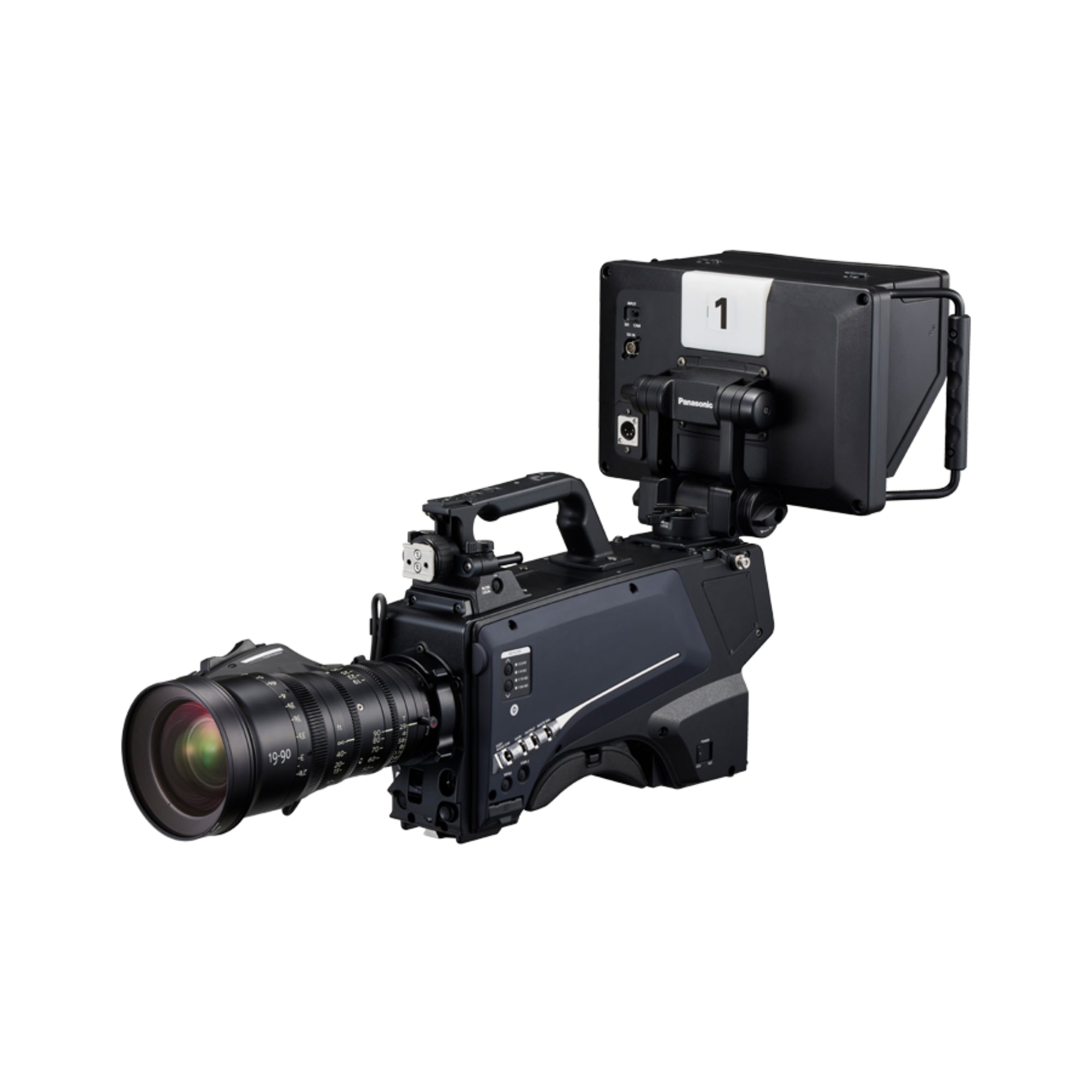

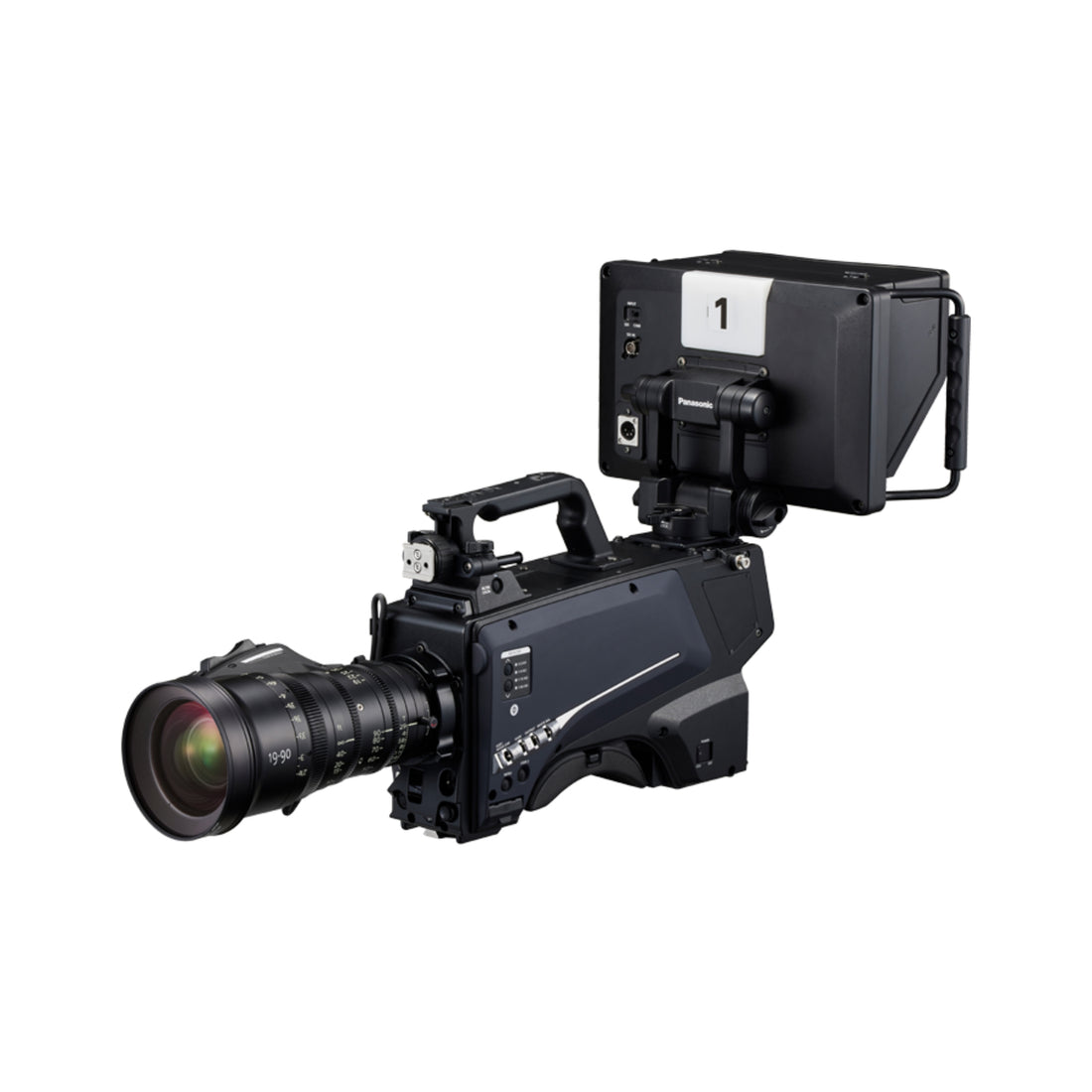

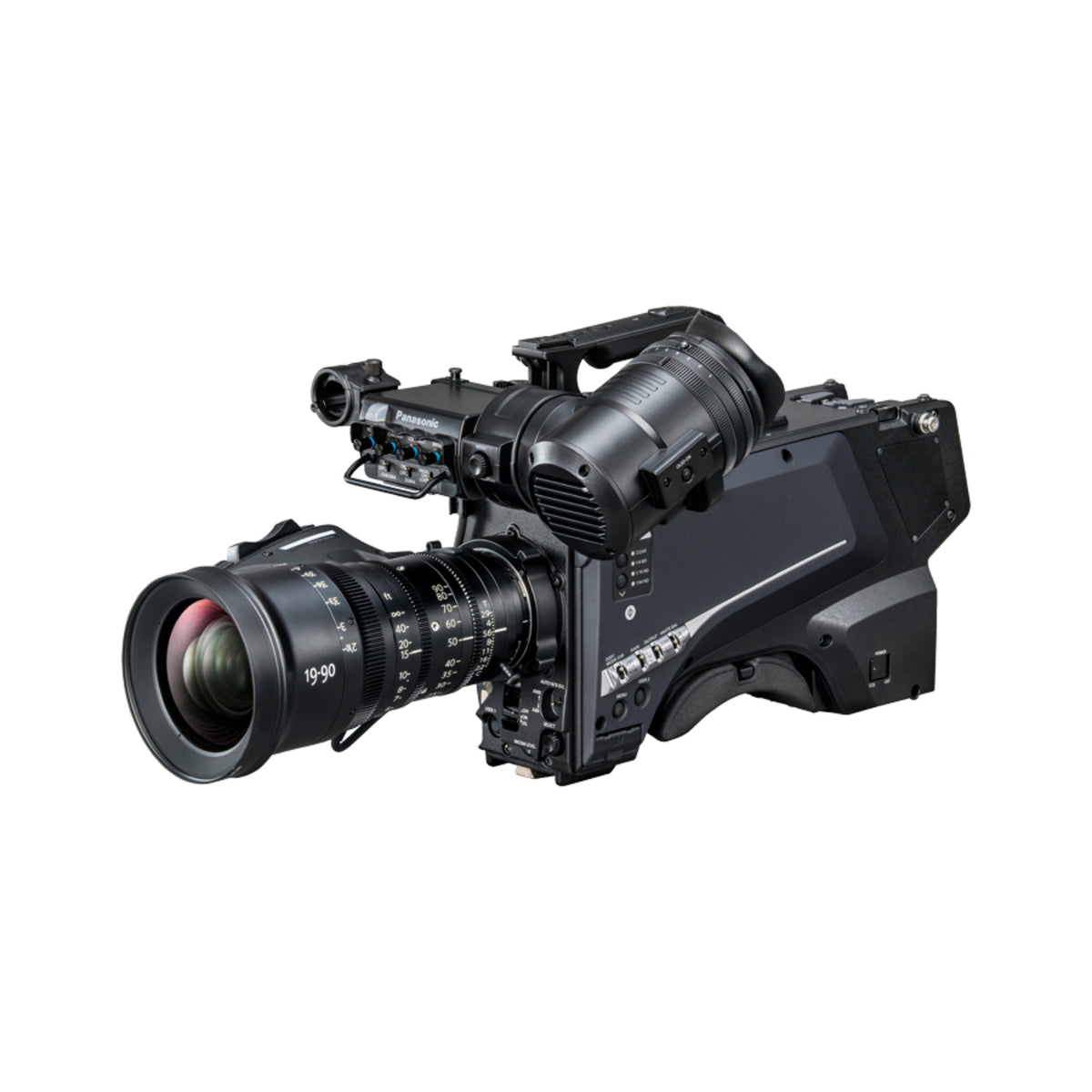

Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount

Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount is a Super 35 studio camera body designed for cinematic broadcast production. It combines a 5.7K Super 35 sensor with 12G-SDI output capability, internal ND filtration, professional audio connectivity, and optical fiber integration for studio control workflows.

This is a studio-ready camera platform built for environments where cinematic depth meets traditional broadcast infrastructure — including CCU operation, intercom, return video, and prompter workflows.

Highlights

• 5.7K Super 35 mm sensor (17.25 million pixels)
• PL lens mount for professional cinema lenses
• 12G-SDI main output (SDI OUT1)
• Internal ND filters: Clear, 1/4, 1/16, 1/64
• Optical fiber terminal for studio CCU integration

5 Quick Reasons

• Single-cable 4K output via 12G-SDI simplifies routing
• Flexible AUX BNC terminal configurable as GL/RET IN, HD TRUNK, or PROMPTER
• Dual XLR audio inputs with MIC/LINE/+48V support
• Super 35 cinematic look inside a broadcast system architecture
• Fiber-ready studio operation for control room integration

Quick Specs & Uses

• Sensor: 5.7K Super 35 mm, 17.25 MP

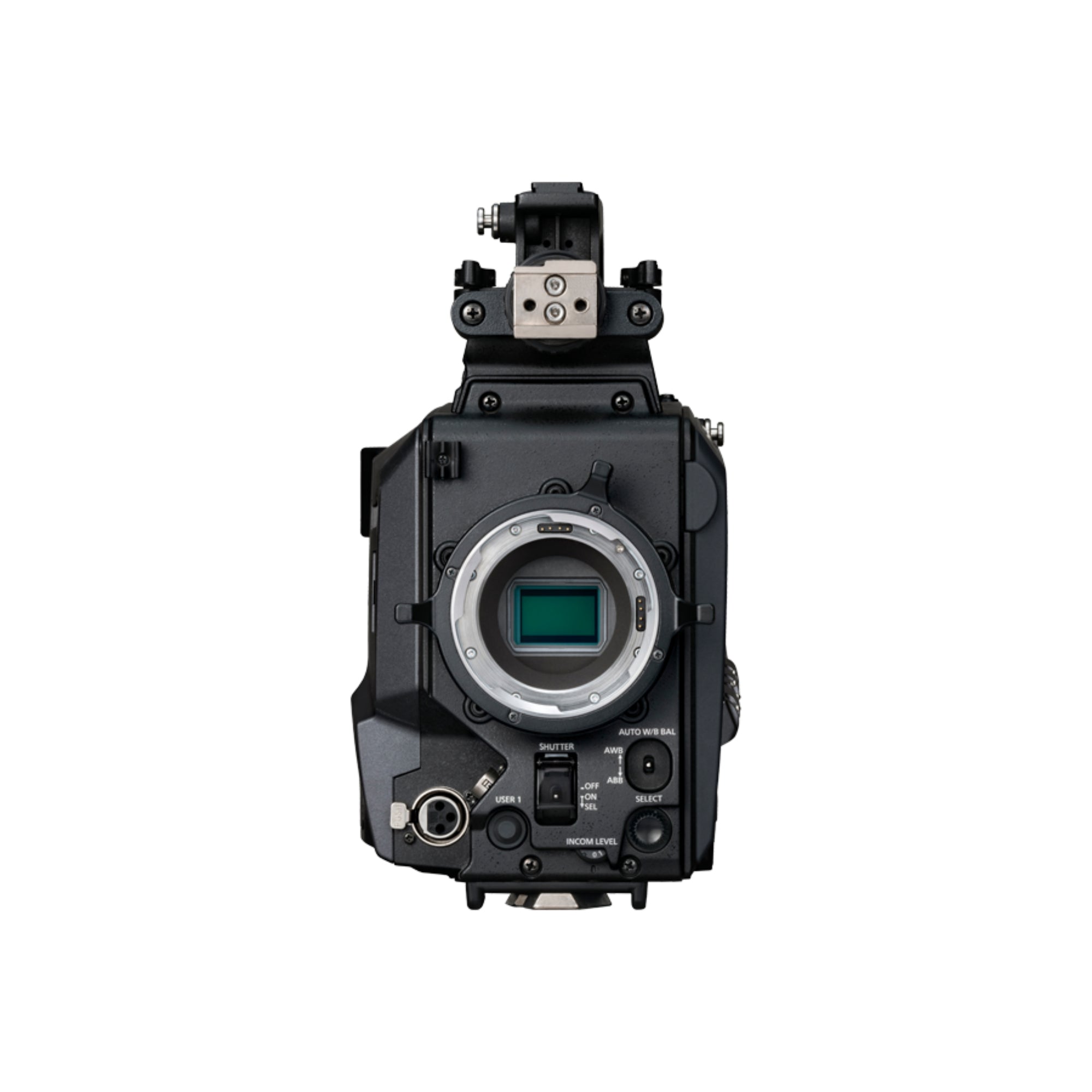

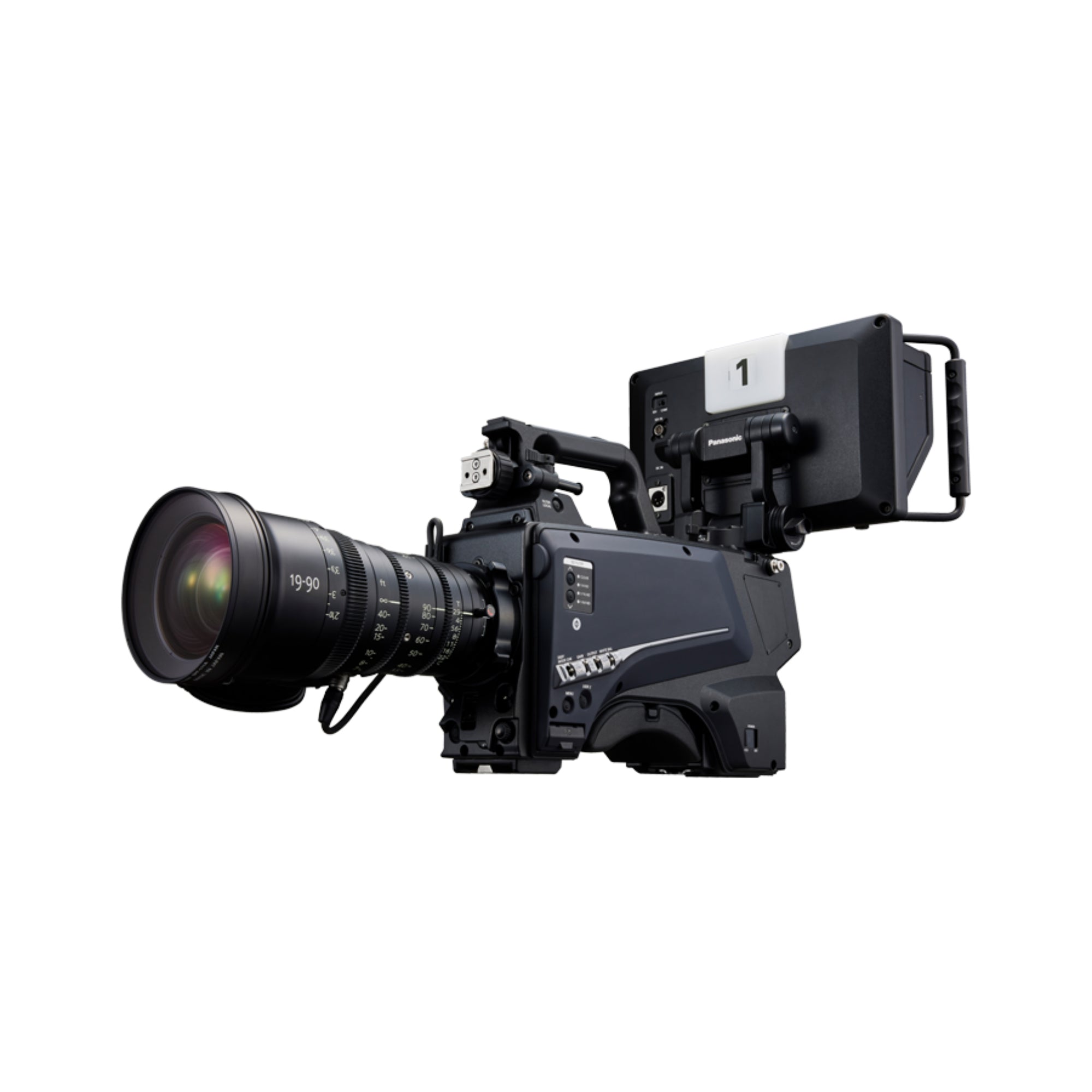

• Lens Mount: 35mm PL Mount
• Resolution Formats: 3840×2160 (59.94p/50p/29.97p/25p/23.98p) and 1920×1080 (59.94p/50p/29.97p/25p/23.98p)
• Gain: 0 to 36 dB (3 dB steps)
• Shutter: Up to 1/2000 sec (mode dependent)

Video Input / Output

• SDI OUT1: BNC ×1 (12G/6G/3G/1.5G-SDI, 0.8 V[p-p], 75Ω)
• SDI OUT2: BNC ×1 (3G/1.5G-SDI, 0.8 V[p-p], 75Ω)
• AUX Terminal: BNC ×1 (menu selectable)
• AUX as GL/RET IN: 3G/1.5G-SDI
• AUX as HD TRUNK: 3G/1.5G-SDI
• AUX as PROMPTER: VBS signal 1 V[p-p], 75Ω

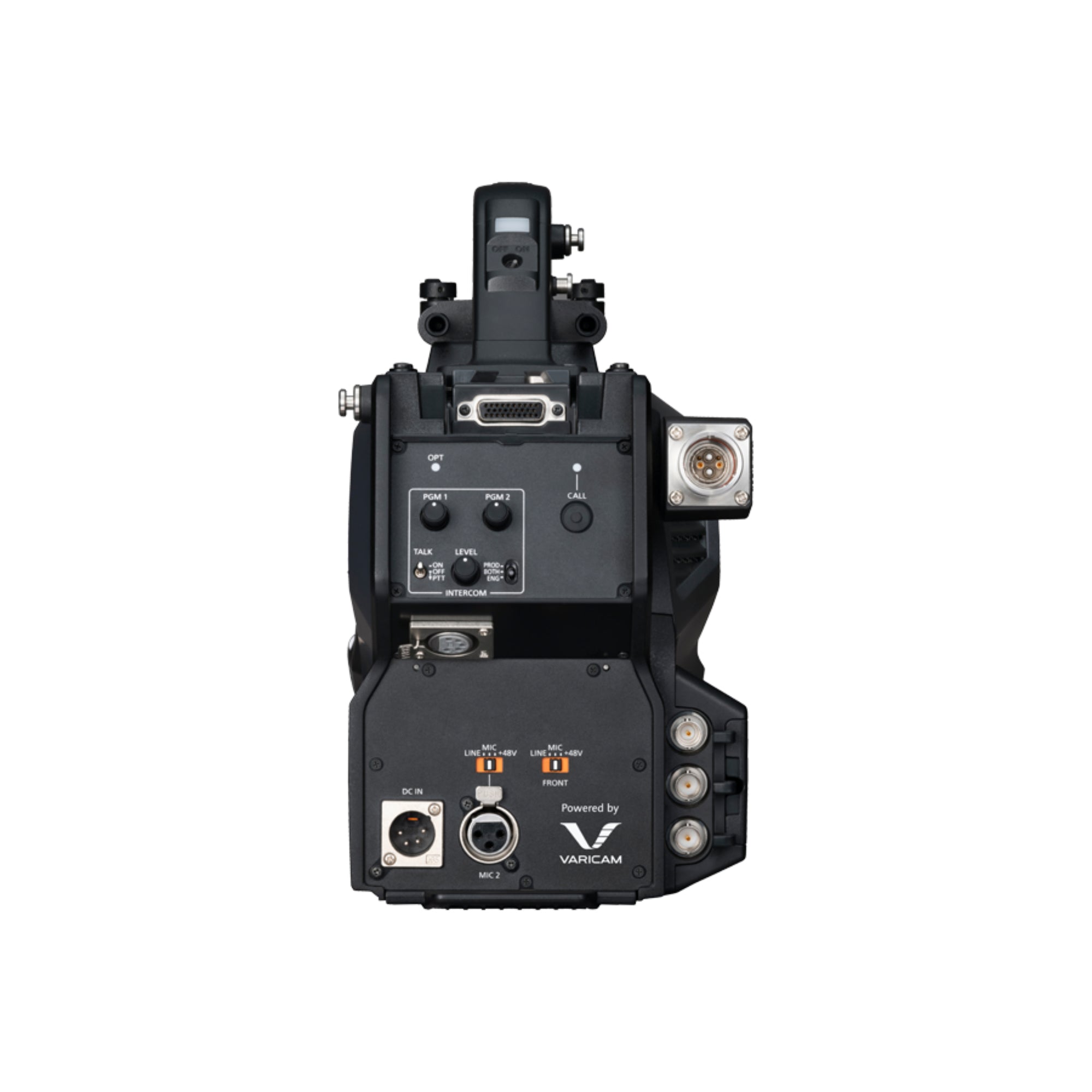

Audio & Intercom

• MIC 2: XLR ×1 (3-pin female), MIC/LINE/+48V selectable
• Front MIC: XLR ×1 (3-pin female), MIC/LINE/+48V selectable
• Intercom: XLR ×1 (5-pin female)

Other I/O

• OPT FIBER: Optical composite connector ×1
• LENS: 12-pin ×1
• VF: 20-pin ×1
• VF (rear): 29-pin ×1
• DC IN: XLR ×1 (4-pin), DC 12 V
• LAN: RJ-45 ×1

Power & Environmental

• Power Supply: DC 12 V (external) / AC 240 V 50/60 Hz (with supported CCU) / DC 190 V (with supported HCU)
• Power Consumption: 82 W max (12 V operation) / 92 W max (with CCU)
• Operating Temperature: -10°C to 45°C (preheating required at 0°C or below)
• Storage Temperature: -20°C to 60°C
• Operating Humidity: 85% RH or less
• Weight: Approx. 4.2 kg (body only)
• Dimensions: 151 × 267 × 389 mm (excluding protrusions)

System Characteristics

• AUX BNC port function must be configured in the camera menu.
• Preheating is required when operating at 0°C (32°F) or below.
• Designed for integration with fiber-based studio control systems.
• PL mount requires compatible cinema lenses.
• Audio input levels must be configured appropriately (LINE 0 dBu or MIC selectable).

What’s In The Box

1 x Panasonic AK-PLV100GSJ 4K CINELIVE Studio Camera with PL Mount
