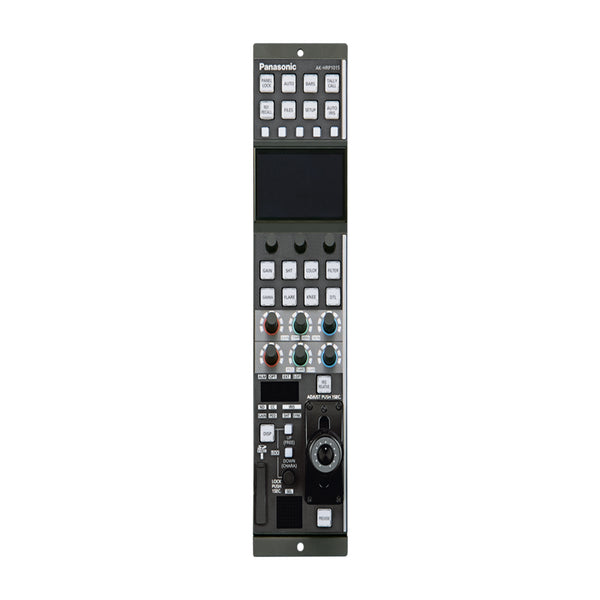

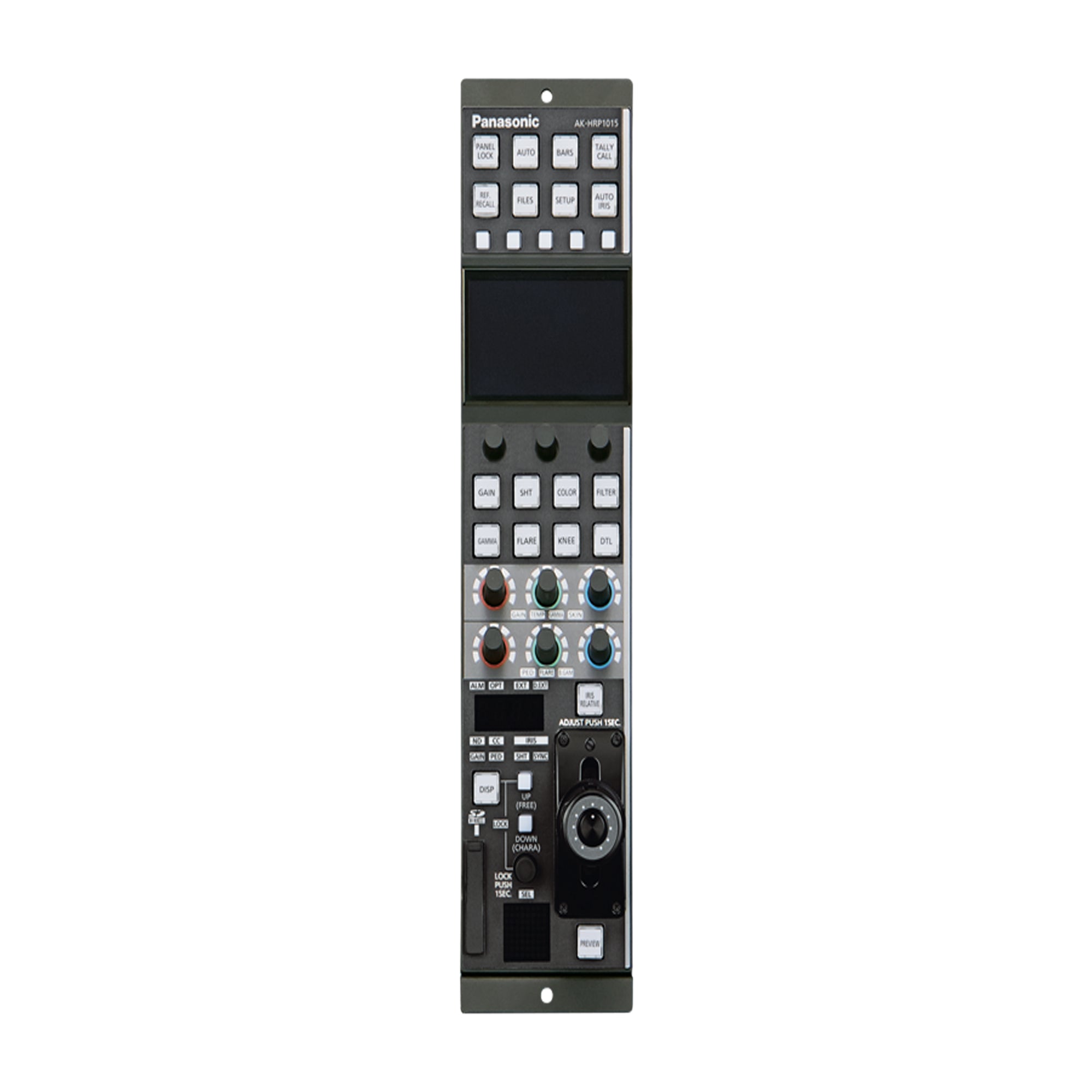

Panasonic AK-HRP1015GJ Remote Operation Panel (ROP)

Panasonic AK-HRP1015GJ is a camera/CCU control unit designed around practical install details: flexible power, published current draw, and defined cable-length limits. It supports 12 V DC operation (including a 10 to 16 V DC supply range when powered from the camera) and also supports PoE power in the 42 to 57 V DC range. For planning cable runs, the specs call out 20 m when connected to a camera and 50 m when connected to a CCU.

Highlights

• Dual power support: 12 V DC (10–16 V range) or PoE 42–57 V DC
• Lower current draw on PoE: 0.11 A vs 0.44 A on 10–16 V DC
• Camera/CCU control signals for camera and CCU control workflows
• Defined cable planning limits: 20 m to camera, 50 m to CCU
• Compact footprint with listed size and weight for cart, rack-top, or bench integration

Quick Specs & Uses

• Model: AK-HRP1015GJ
• Power supply: 12 V DC (camera supply range 10–16 V DC), or PoE 42–57 V DC
• Power consumption (current): 0.44 A (10–16 V DC), 0.11 A (PoE)
• Operating temperature: 0 to 40°C (32 to 104°F)
• Humidity: 90% or less
• Storage temperature: -20 to 60°C (-4 to 140°F)
• Weight: approx. 1.5 kg (3.3 lb)
• Dimensions (W x H x D): 82 x 355 x 124.4 mm (3-1/4 x 14 x 4-7/8 in)

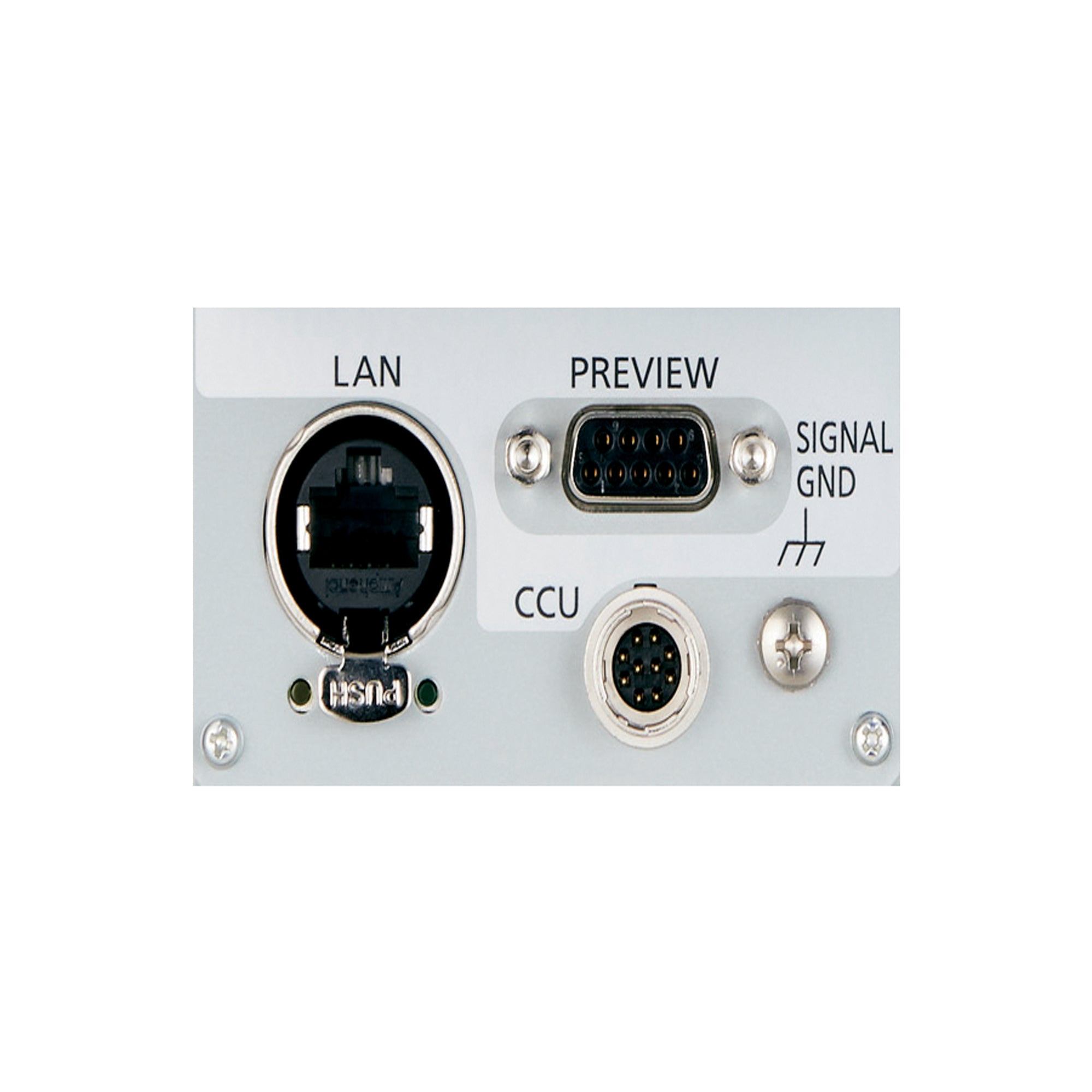

• Camera/CCU control: control signals (camera, CCU control); power states listed as 16 V DC (when CCU connected)* and 12 V DC (when camera connected)*
• Maximum cable length: 20 m (camera connected), 50 m (CCU connected)

Why It Helps

In a real control setup, the hard part is usually not the button-pushing; it’s planning power and cable runs so the system behaves predictably. AK-HRP1015GJ gives you both power options (DC or PoE) and publishes the current draw for each, which makes it easier to budget power and avoid surprises. The cable-length limits are also clearly stated, so you can lay out camera and CCU placement with confidence.

System Characteristics

• Choose the power method early (DC vs PoE) so that current draw and supply planning stay. clean
• Use the published run limits as planning numbers: 20 m to camera, 50 m. to CCU
• PoE current draw is listed lower (0.11 A) than the 10–16 V DC draw (0.44 A)
• Keep the environment within 0–40°C and 90% humidity or less for stable op.eration
• Use the physical dimensions and weight for practical placement on carts or control su.rfaces

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
