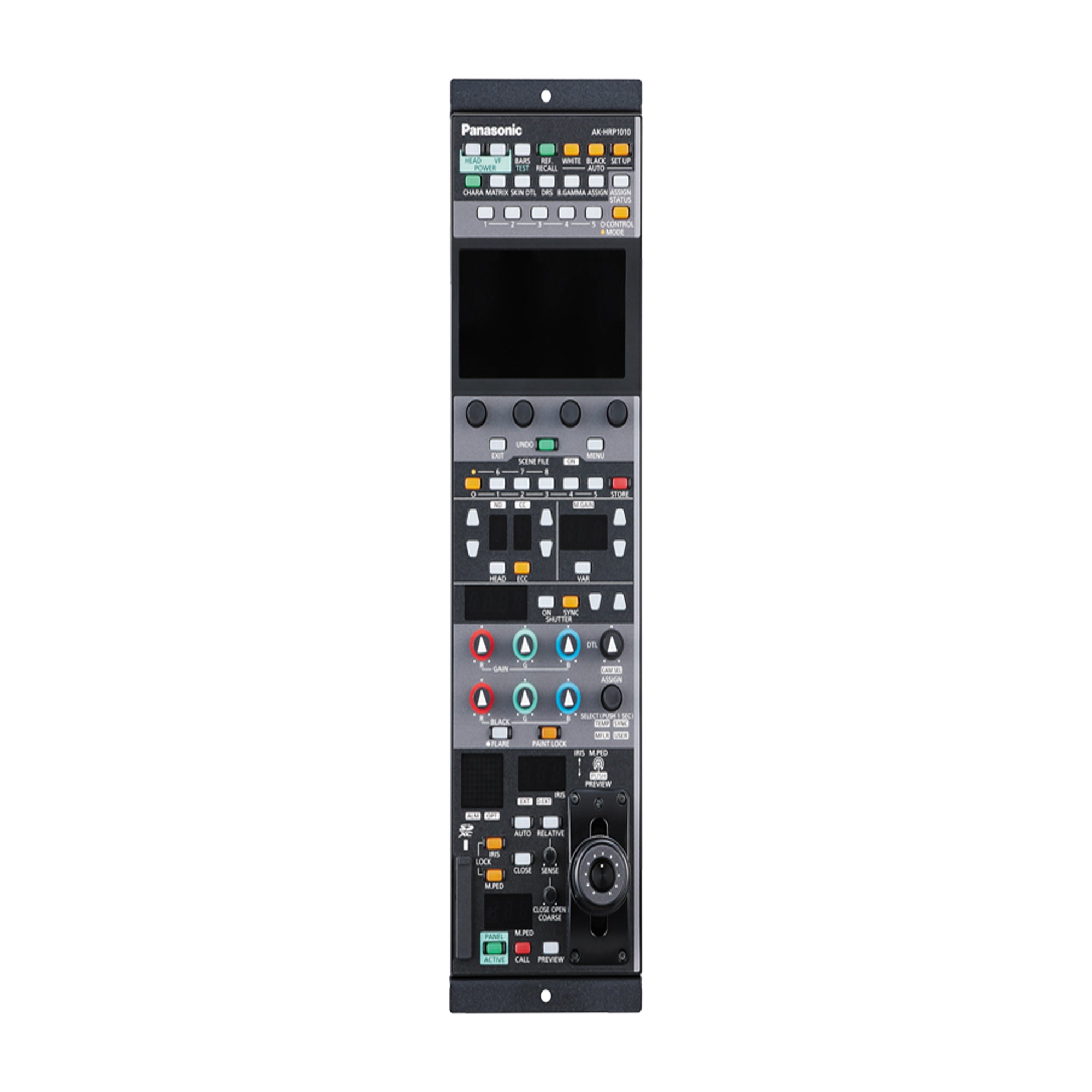

Panasonic AK-HRP1010GJ Remote Operation Panel (1/4 Rack)

Panasonic AK-HRP1010GJ is a control-panel style unit built for camera and CCU control with flexible power options and clear, local monitoring. It supports 12 V DC operation (including 10 to 16 V DC supply ranges when powered from camera/CCU) and also accepts PoE power in the 42 to 57 V DC range. For practical field and studio wiring, the listed maximum cable lengths are 20 m when connected to a camera and 50 m when connected to a CCU.

Highlights

• Dual power paths with 12 V DC support and 42–57 V DC PoE power capability
• Camera/CCU control with dedicated control signals for camera and CCU operation

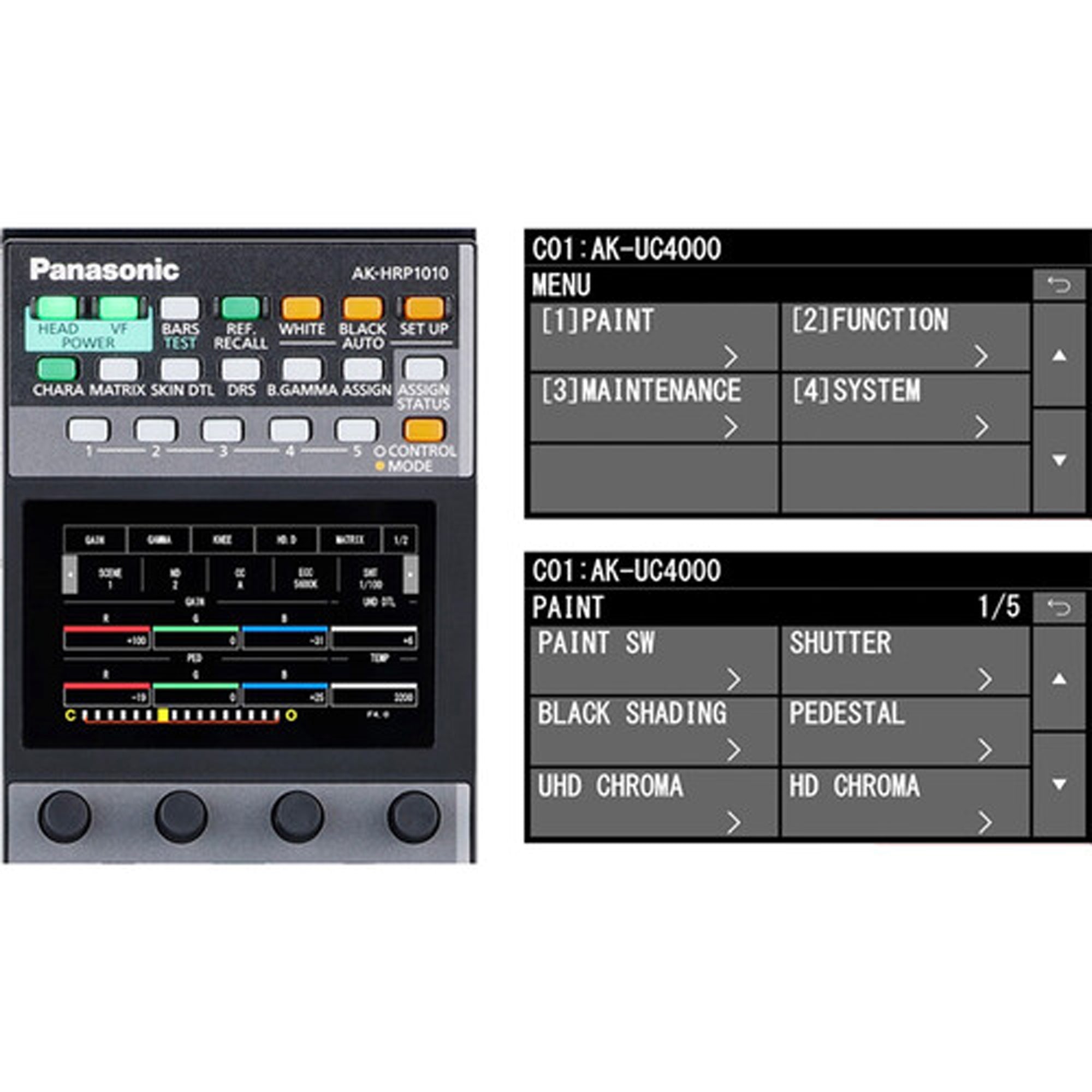

• Touch-enabled LCD color monitor for local viewing and control interaction
• Defined cable limits: 20 m (camera) and 50 m (CCU)
• Clear I/O including CCU 10-pin, PREVIEW 9-pin, and LAN RJ-45

Quick Specs & Uses

• Model: AK-HRP1010GJ
• Power supply options: 12 V DC (camera supply range 10–16 V DC) and PoE 42–57 V DC
• Current consumption: 0.9 A (10–16 V DC from camera/CCU) and 0.3 A (PoE)
• Operating temperature: 0 to 40°C (32 to 104°F)
• Storage temperature: -20 to 60°C (-4 to 140°F)
• Humidity: 90% or less
• Dimensions (W x H x D): 102 x 385 x 113 mm (4 x 15-3/16 x 4-7/16 in)
• Weight: approx. 1.7 kg (3.75 lb)
• Camera/CCU control: control signals plus power supply states listed as 16 V DC (when CCU connected) and 12 V DC (when camera connected)*
• Maximum cable length: 20 m (camera connected), 50 m (CCU connected)
• Monitor: LCD color monitor with touch panel support

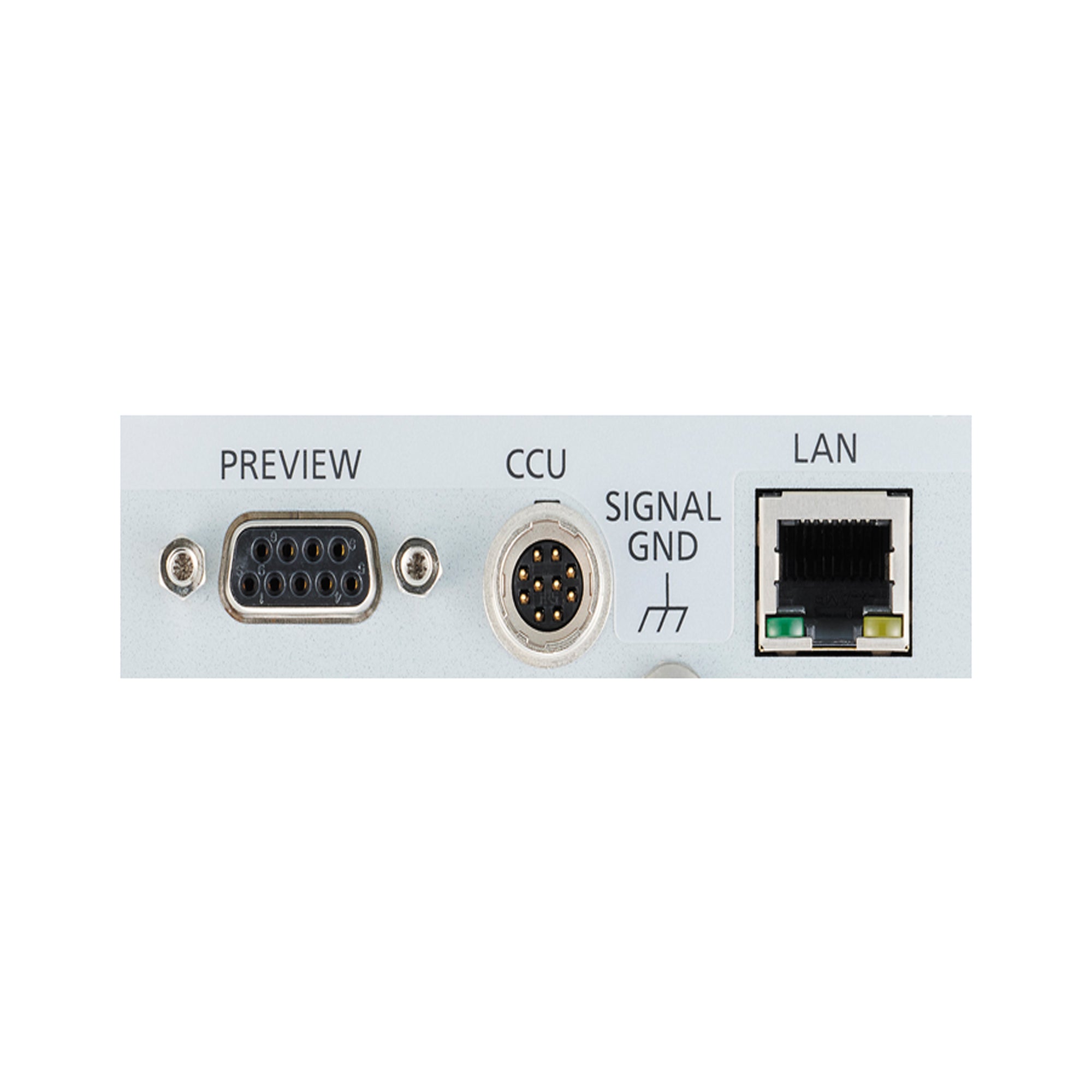

• I/O: <CCU> 10-pin male x 1, <PREVIEW> 9-pin female x 1, <LAN> RJ-45 x 1

Why It Helps

When you’re building a predictable camera control setup, the details that matter are power flexibility, cable planning, and reliable local feedback. AK-HRP1010GJ supports both DC power and PoE ranges called out in the specs, and it publishes maximum cable lengths so you can plan runs without guesswork. The onboard touch-capable LCD also makes it easier to work locally without relying on separate screens.

System Characteristics

• If you are planning cable runs, treat the published limits as hard planning numbers: 20 m to camera, 50 m to CCU
• Power is flexible, but it is still worth deciding early whether the install will be DC or PoE (42–57 V DC)
• The listed current draw differs by power method: 0.9 A on 10–16 V DC vs 0.3 A on PoE
• Keep the environment within 0–40°C and 90% humidity or less for stable operation
• Connector planning is straightforward: CCU 10-pin, PREVIEW 9-pin, plus LAN RJ-45 for network connection

What’s In The Box

1 x Panasonic - AK-HRP1010 Remote Operation Panel (1/4 Rack)
