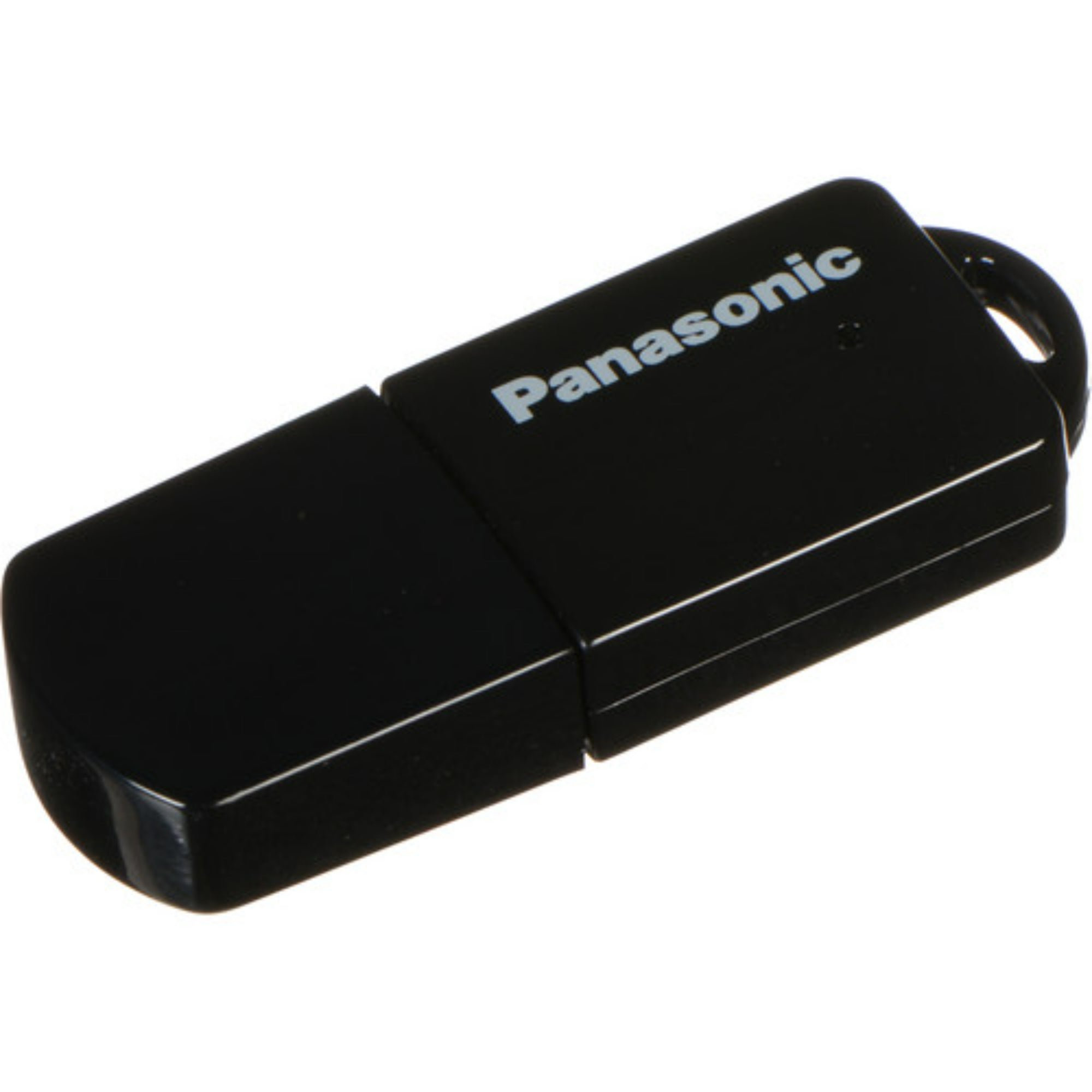

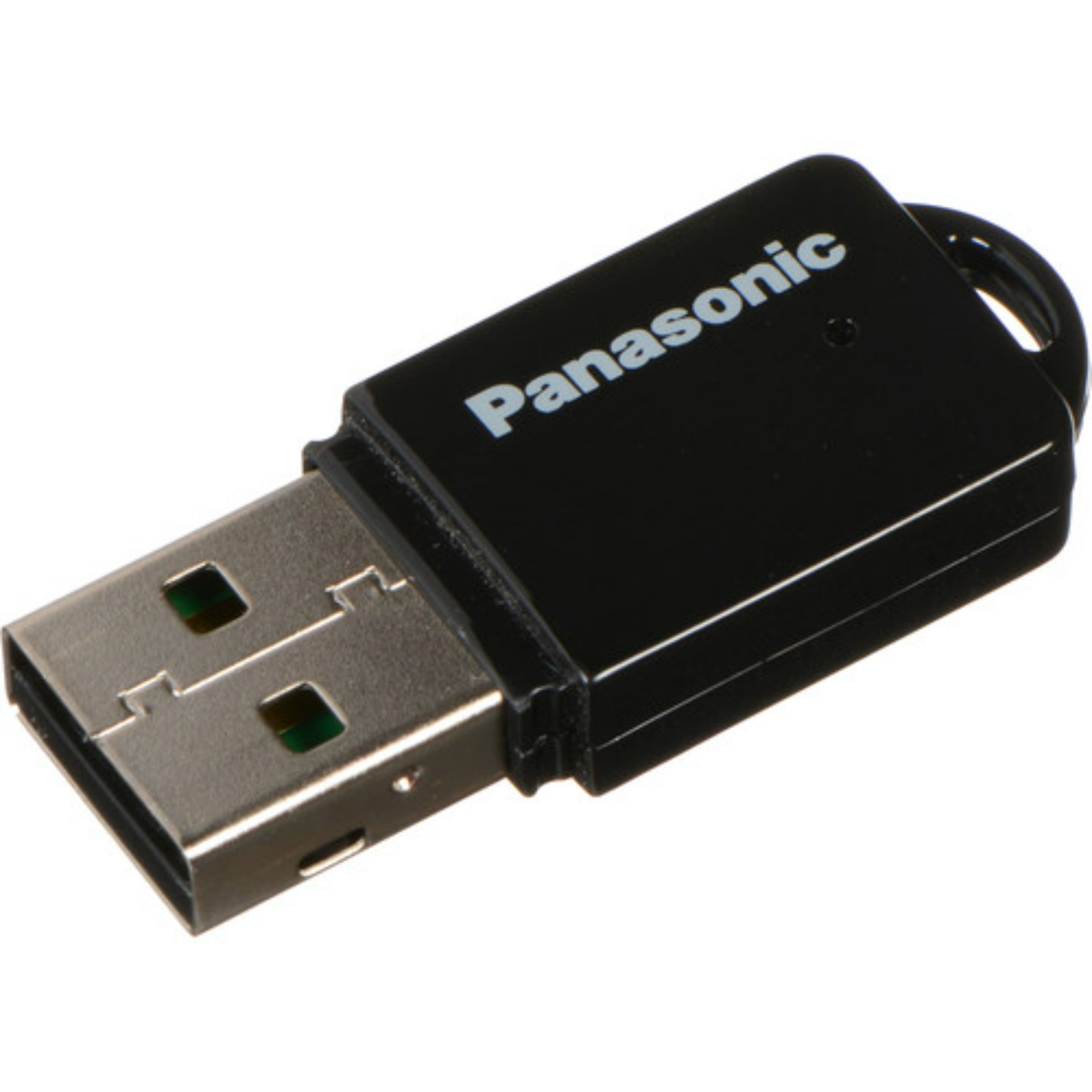

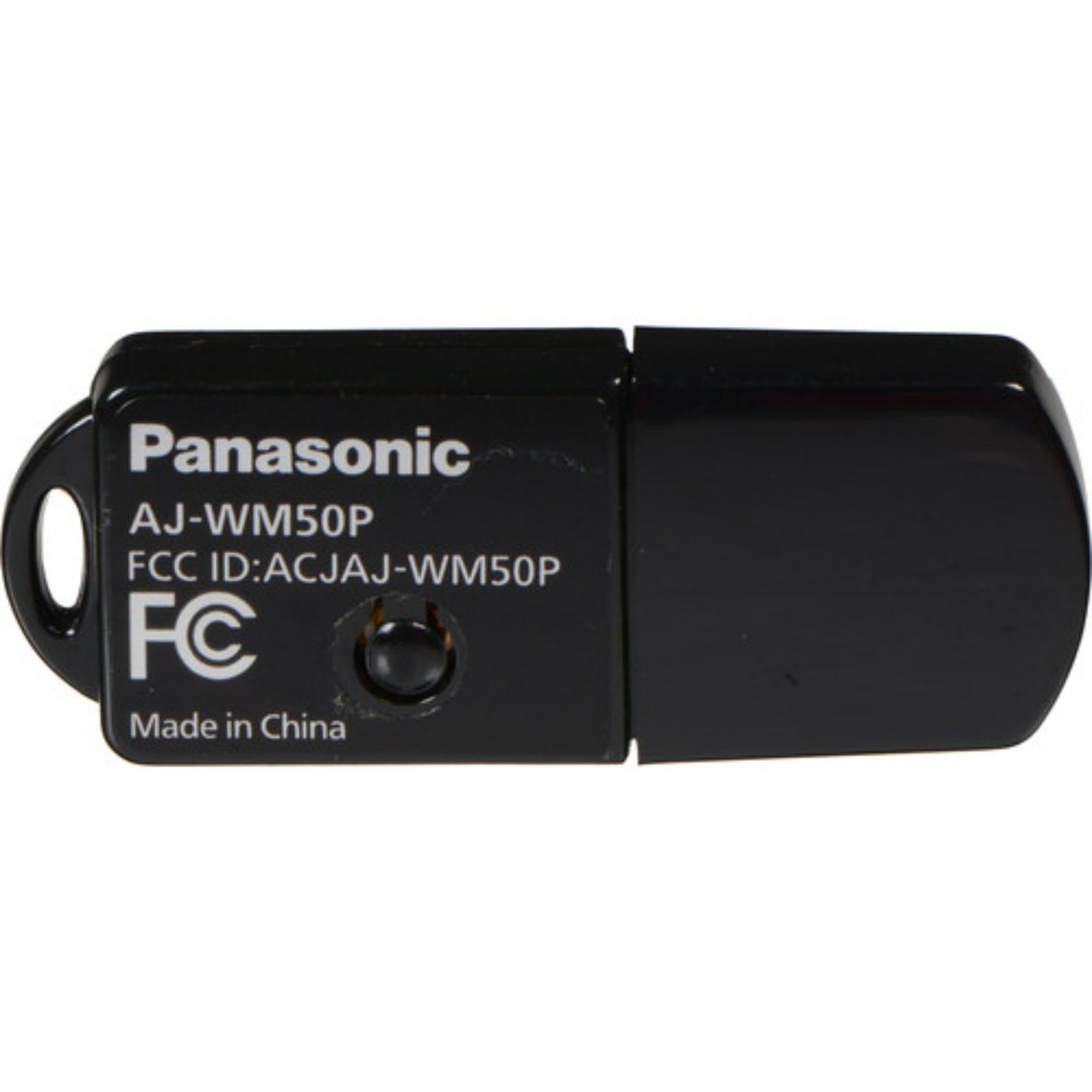

Panasonic AJ-WM50P Dual-Band Wireless Module

Panasonic AJ-WM50P Dual-Band Wireless Module adds Wi-Fi communication to supported Panasonic cameras so they can connect with iPads, iPhones, and PCs. In workflows using AJ-SFU3100 software, it can support proxy playback plus wireless handling of key production info like metadata input/display—useful when you want notes and reviews moving while the camera stays on the rig.

Highlights

• Dual-band operation on 2.4 GHz and 5.0 GHz
• 802.11 a/b/g/n/ac wireless support for modern networks
• Security options include WPA-PSK, WPA2-PSK, and WEP
• USB 2.0 bus power for simple integration without a separate PSU
• Ultra-compact build designed to stay out of the way on camera

Quick Specs & Uses

• Wireless standards: 802.11 a/b/g/n/ac
• Frequencies: 2412–2472 MHz (ch. 1–13) and 5250–5330 MHz
• Modes: Infrastructure Mode and Ad Hoc Mode
• Security: WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WEP (64/128-bit)
• Power: USB 2.0 bus power, under 2.5 W
• Size / weight: 0.6 x 0.3 x 1.6 in; 0.15 oz (4.3 g)
• Camera compatibility list (as provided): AJ-HPX3100, AJ-PX270, AJ-PX800, AJ-PX380, AJ-PG50, AG-DVX200

Why It Helps

On a real set, the win is fewer cable-dependent handoffs and faster decision loops. This module is built for getting camera-to-device communication online so proxy review and production data can move to the people who need it—without pulling the camera out of position.

System Characteristics

• If you need a direct device link, Ad Hoc mode is available alongside Infrastructure mode.
• Security support includes WPA/WPA2 plus WEP options for legacy environments.
• Because it’s USB bus-powered and under 2.5 W, it’s designed to be a low-overhead add-on.
• The physical footprint is small enough to keep rig clearance manageable in tight builds.
• For workflow features like proxy playback and metadata handling, the operation is described in connection with the AJ-SFU3100 software.

What’s In The Box

• 1 x Panasonic AJ-WM50P Dual-Band Wireless Module
• 1 x Module Holder
