Panasonic 2ME Production Switcher

The 2 M/E Production Switcher from Panasonic consists of main frame switcher, input/output connectors as well as processing engine; and a 2 M/E control panel which both come in a dual redundant power supply arrangement. The main frame provides 32 HD-SDI inputs, 16 output channels each mirrored on two SDI outputs, and the two DVI-D inputs for having best computer source integration. Another best functionality from the main frame is supporting video resolutions up to 1080p at 10-bit 4:2:2 in YUV color space, and up to 1080p 8-bit 4:4:4 in RGB color space. This product can work also with the VESA resolutions, up to 1600 x 1200 for a 4:3 aspect ratio output and 1920 x 1200 for a 16:10 output.

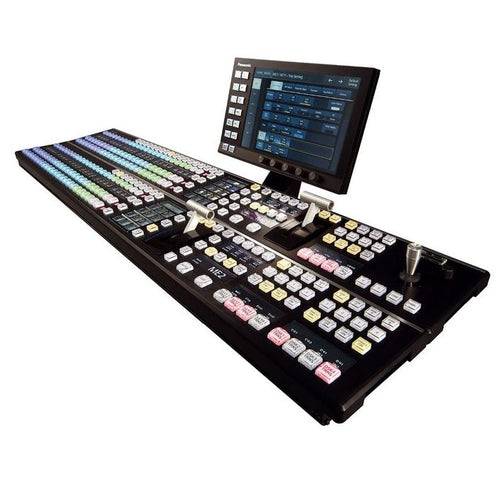

On the control panel, this 2 M/E Production Switcher features two sets of bus selector buttons, crosspoint buttons, T-bars, a joystick, transition keys, display panel, and more. Additionally, it also supports the optional AV‑HS60C3G touchscreen menu panel, which allows quick menu operation as well as control of other functions via physical buttons and rotary encoders.
