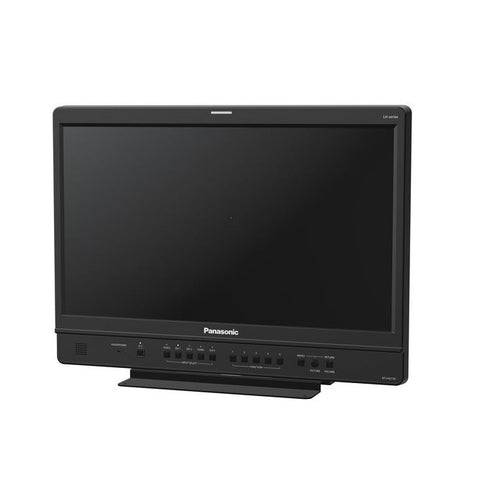

Panasonic 21.5” Full HD LCD Production Monitor

The 21.5” Full HD LCD Production Monitor from Panasonic is a high-performance and high-resolution IPS LCD panel made to handle the broad range of image production and broadcast challenges. This product has 1920 x 1080 resolution, 3D Look Up Table (LUT) color correction, 10-bit image processing engine, and wide viewing angles. Some broad varieties of interfaces are also included such as DVI-I inputs and 3G/HD/SD-SDI, Video. On the body, this product is made with aluminum die cast to make the durability last longer.

As to the contrast ratio, 21.5” Full HD LCD Production Monitor has 1000:1 and the brightness is at 250cd/m². With the 178° vertical and horizontal viewing angles; this product can provide exceptional imagery with remarkable color accuracy and minimal changes in brightness. Moreover, there is the 3D LUT with the six-pole color correction that includes a look-up table for each signal level and 10-bit image processing to each RGB color to balance the 6 coordinates axes of the 3 primary colors (RGB) and the complementary colors (CMY). As a result, it brings the color drifting at low light levels and maintaining the colors vividly natural. Additionally, there is the black model that works to process dark image areas in low-gradation scenes easier to be viewed.

The 21.5” Full HD LCD Production Monitor consists the 24p input that works best with 3D camera rigs. For the 3D assist functions, there are the top and bottom display in addition to side-by-side display (for a 2D view of various 3D checks including composition, convergence, color and luminance, focus and zoom position, and parallax); and a Focus-in-Red focus assists in emphasizing sharply focused image areas. Furthermore, there are the 2D assist features that are the in-monitor display; a Y-Map display to confirm a luminance level map; a Zebra display; and a two-window display, which allows for two separate HD/SDI inputs to be viewed simultaneously for comparing different signals. The two-window display can also be combined with advanced assist display functions, including Y MAP, which allows you to see the image at each luminance level in one window while looking at the standard image in the other window.

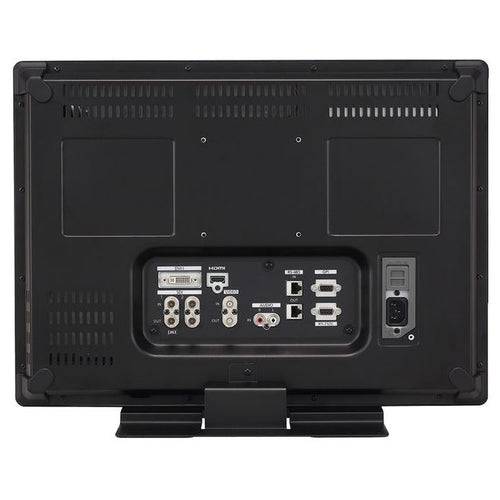

In general, this 21.5” Full HD LCD Production Monitor has more features. Other features include In-Monitor Display for text or Tally as well as on-screen displays for waveform, vectorscope, and audio levels. External remote control can be achieved via the RS-485, RS-232C or GPI remote terminals, and when using the RS-485 input, a loop-through connection allows control of multiple monitors. The front panel includes red, green and amber Tally lights as well as speakers and a headphone jack. A detachable stand is also included.
