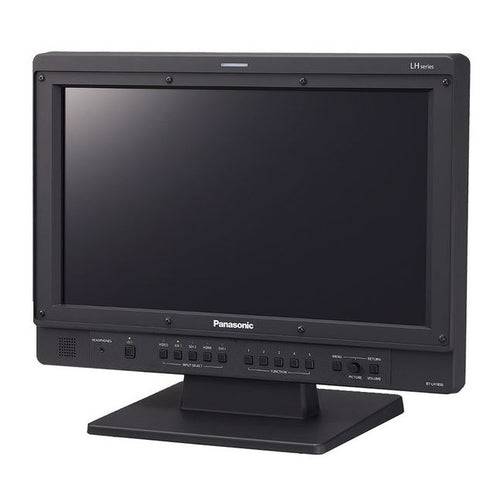

Panasonic 18.5" HD Production Monitor

The 18.5" HD Production Monitor from Panasonic is an HD/SD LCD production monitor with full 1366 x 768 resolution with plenty superior features, high-end quality output, and an extensive set of connections. Built with an eco-friendly panel and with a mercury-free LED backlight drawing only 22W of power which is more convenient than the previous LH model.

With the SD SDI or video input, this 18.5" HD Production Monitor provides users with the closed captions and the support for both closed captions standards. The caption standards are EIA/CEA-708 HD-SDI and EIA/CEA-608 SD-SDI. It is a unique privilege for users to have the display up to eight windows concurrently, in this product. As to the vectorscope; it can display all lines of the SDI input signal (Y/R/G/B). The pixel-to-pixel function can present input video without resizing it. In addition, this product has a still frame function that can freeze a frame and present it as a sub-screen. The time code display gives users a reliable display for the value of the VITC, LTC or the UB time code. Apart from that, users can also have the simple crosshatch overlay and can be displayed to check the tilt of the camera.

Obviously, the 18.5" HD Production Monitor is the perfect solution to the challenging tasks that the broadcasting industry has. Some ranges of markers can be displayed in certain categories: 4:3 and 16:9 ratios (including safe area), center, and aspect markers. The detail for the aspect markets are 4:3, 13:9, 14:9, CNSCO 2.39, CNSCO 2.35, 2:1, and VISTA in 16:9 mode. On the audio monitoring, the color audio level meter provides the dependable displays for the input level of the embedded audio clearly. This production monitor also features a waveform monitor for R/G/B signals and a 3D look-up table that generates authentic color hues and smooth gradation along with the quick-response motion images.
