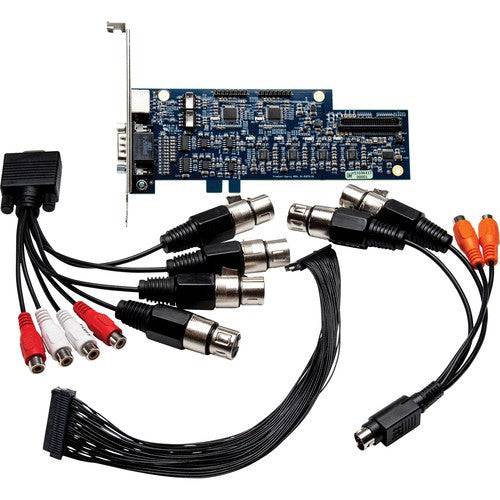

Osprey 800a Audio Expansion Card for 800e Series Cards

The Osprey 800a Audio Expansion Card is an audio input card that provides increased flexibility with up to four stereo channels of audio. The Osprey 800a is designed to work with most of the Osprey 800 series cards. Attach it to an Osprey 815e,820e, 825e or 845e for improved audio performance. The Osprey 800a is an audio expansion module created to increase the audio capabilities of the Osprey 816e, 820e, 825e, 840e and 845e.

Audio Inputs
• AES Digital Audio (2 stereo pair, 2x XLR)
• SPDIF Digital Audio (2 stereo pair, 2x RCA)
• Balanced analog audio (2 stereo pair, 4x XLR)
• Unbalanced analog audio (2 stereo pair, 4x RCA

Flexible Options
Supporting an additional two stereo channels of audio via XLR connectors, the Osprey 800a now provides greater flexibility for input audio signals. Plus, you can configure two additional stereo channels as either unbalanced, AES/EBU, or SPDIF.

Easy Expansion
The 800a can be purchased with an 800e Series capture card, or as a separate item to expand your existing product. It connects directly to the 800e Series requiring no PCIe connection of its own

Driver Support
Support for the 800a is already included in the drivers for the 800e series capture card so no additional drivers are needed.
