AJA OG-UDC 3G-SDI Up, Down, Cross-Converter Card with DashBoard Support

AJA OG-UDC 3G-SDI Up, Down, Cross-Converter Card with Dashboard Support is an openGear-based 10-bit broadcast-quality up, down, and cross converter designed to bridge SD, HD, and 3G-SDI video resolutions in high-density rack environments. It provides 3G-SDI input and output, a 10-bit HDMI output for monitoring, and balanced analog audio outputs, making it a practical format-normalization tool for facilities that need clean, predictable conversions inside an openGear frame.

Highlights

• Up, down, and cross conversion between SD, HD, and 3G-HD formats
• Broadcast-quality 10-bit processing with support for 1080p50/60
• 3G-SDI input and output, plus 10-bit HDMI v1.4a monitoring output
• 16-channel embedded SDI audio in/out with analog audio outputs
• openGear card with Dashboard control and local DIP-switch configuration

Quick Specs & Uses

• Video input: 1x 3G-SDI BNC (SMPTE-259/292/372/424)
• Video outputs: 1x 3G-SDI BNC, 1x HDMI v1.4a (10-bit)
• Supported video families: SD, HD, and 3G-HD
• Audio: 16-channel embedded SDI audio I/O, 8-channel HDMI audio, 2-channel balanced analog output
• Reference: Free Run or External Reference input

Key Technical Notes

• 3G-SDI Level A only: Level B is not supported
• Loss-of-input behavior: selectable Freeze, Black, or Mute
• Ancillary data handling: embedded audio passed; all other ANC data stripped
• Non-PCM audio: supported only when the source is in time with the selected reference
• Frame sync operation: non-PCM audio not supported during frame sync

Reference & Sync Support

• Reference sources: Free Run or External Reference
• Supported references: 1080i/1080p/720p tri-level sync, 625i/525i color black
• Termination: 75-ohm terminating

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames

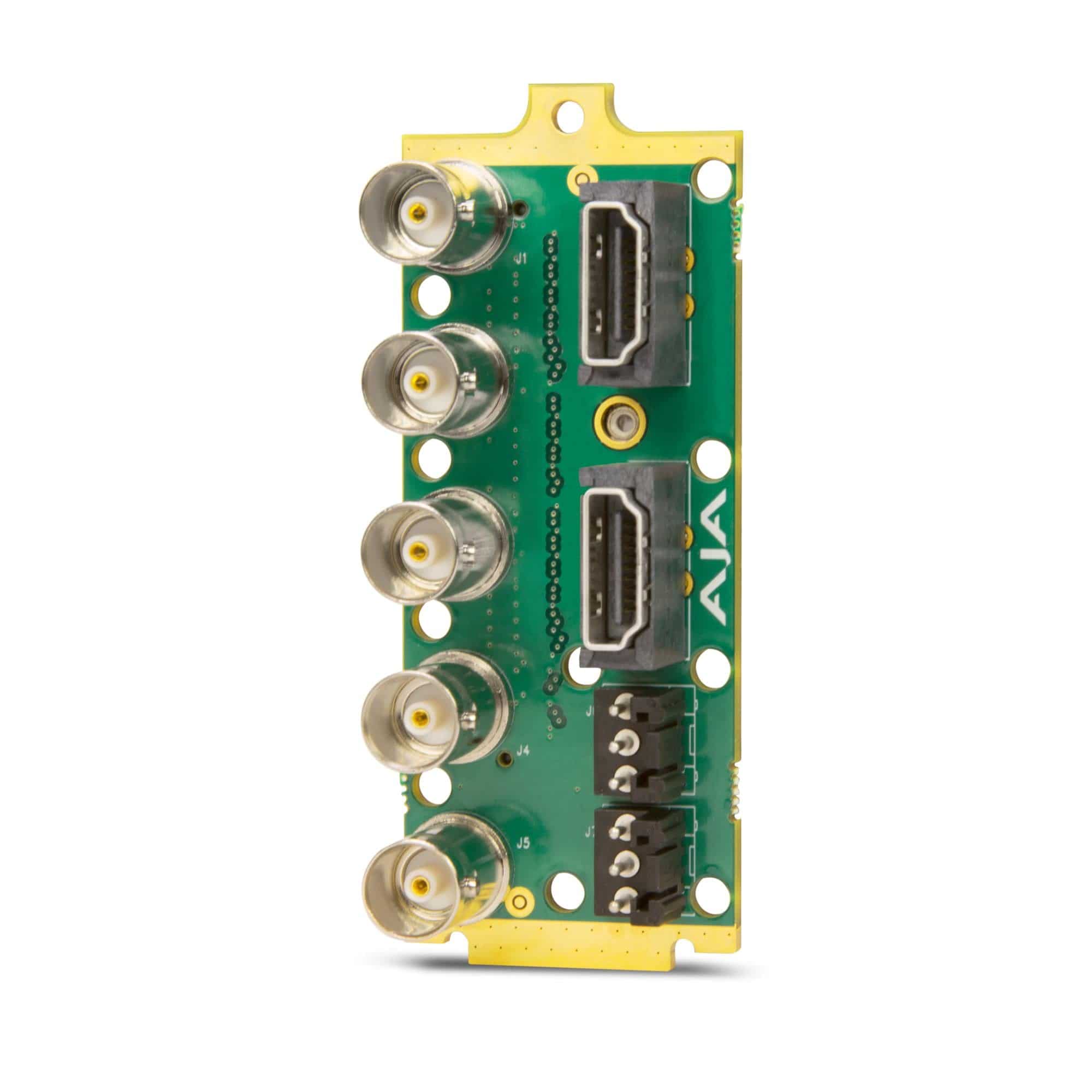

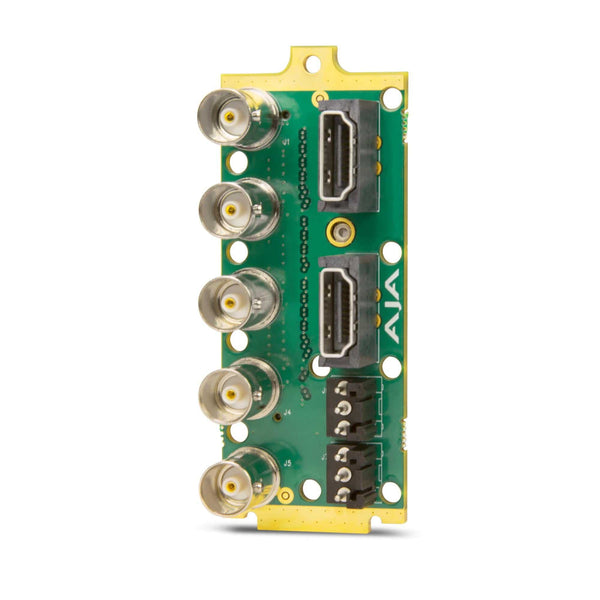

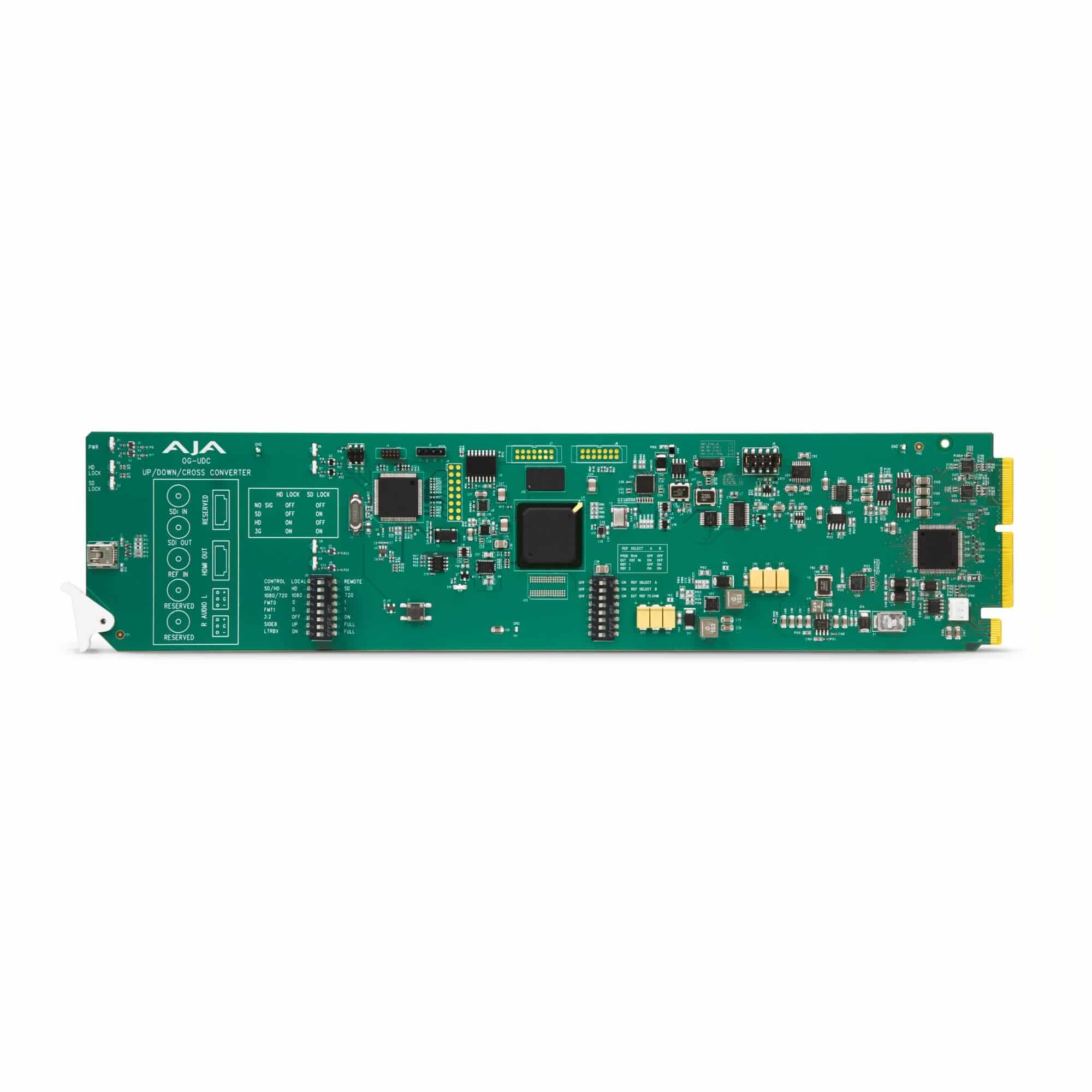

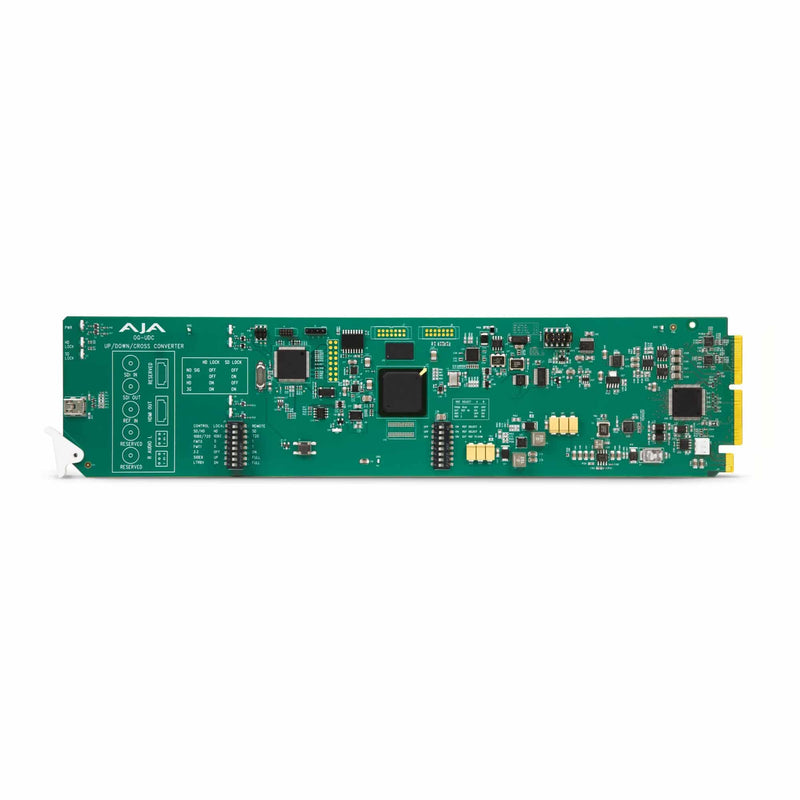

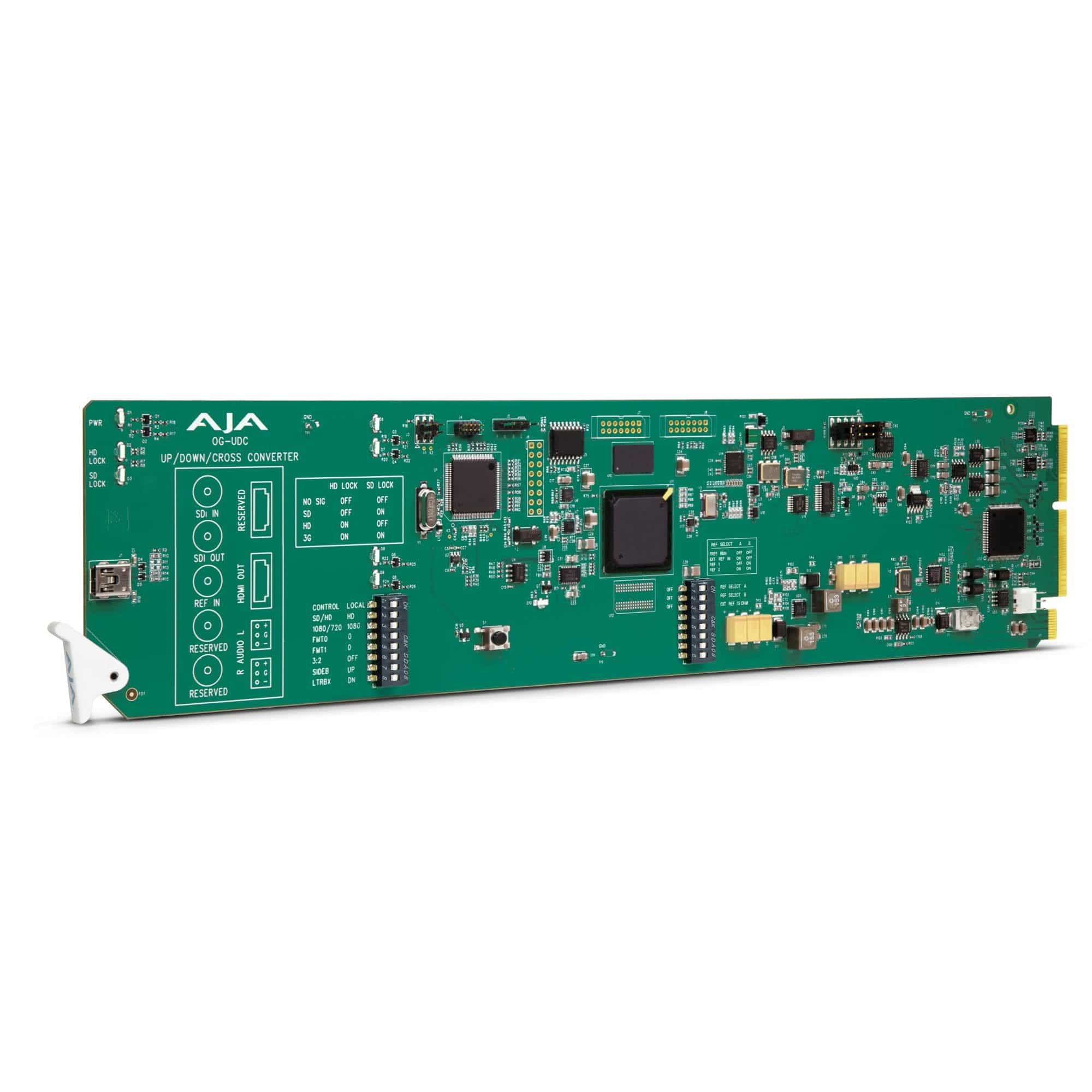

• Form factor: openGear front card with rear I/O; two slots required
• Power: openGear frame compatible, 7.0 W max per card
• Hot-swap capable
• Warranty: five-year warranty

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
