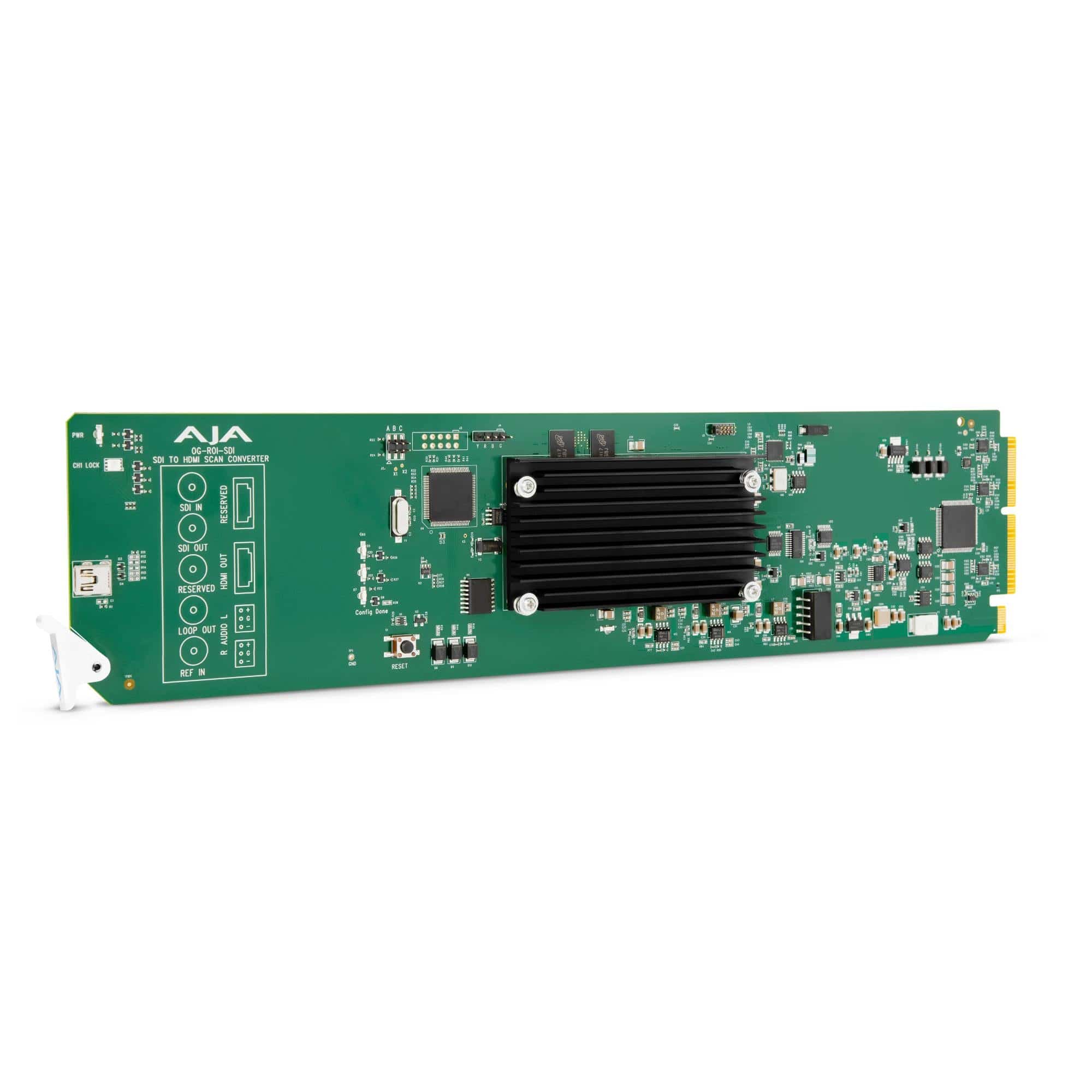

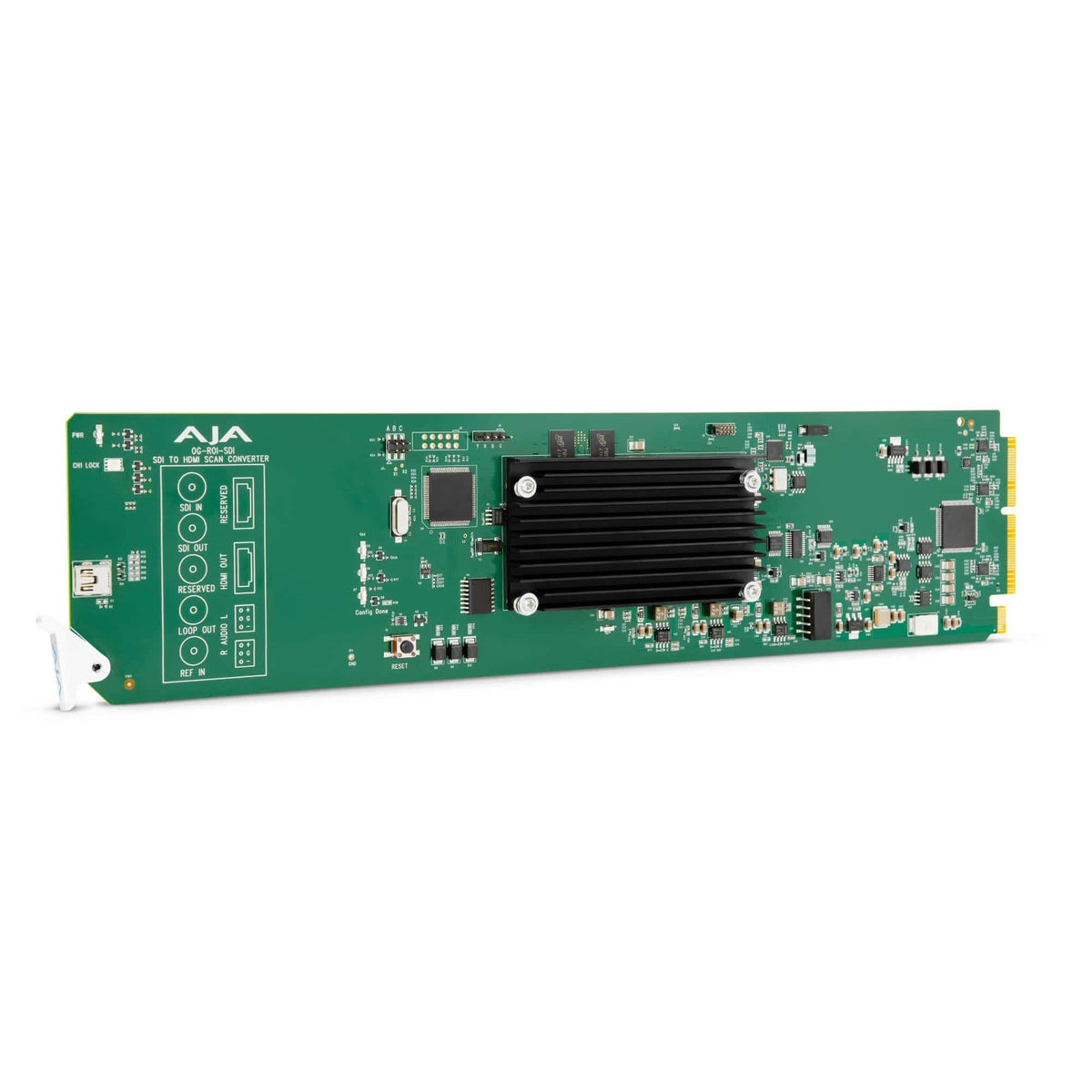

AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter

The AJA OG-ROI-SDI openGear 3G-SDI to 3G-SDI/HDMI Scan Converter is an openGear scan converter designed to take an SDI source and generate clean, properly processed 3G-SDI and HDMI baseband outputs. It’s built for situations where you need to extract, re-frame, and re-time a portion of an SDI feed using Region of Interest scaling, plus aspect ratio and frame rate conversion, without adding extra boxes or wasting rack space.

Highlights

• SDI to HDMI/3G-SDI conversion with SDI loop through
• Region of Interest scaling for precise framing and clean extractions
• Up, down, and cross conversion with aspect ratio and frame rate conversion
• Dual baseband outputs: 3G-SDI and HDMI 1.4
• Remote configuration via Ross Dashboard over Ethernet

Quick Specs & Uses

• Input: 1x 3G-SDI BNC (SMPTE-259/292/424)

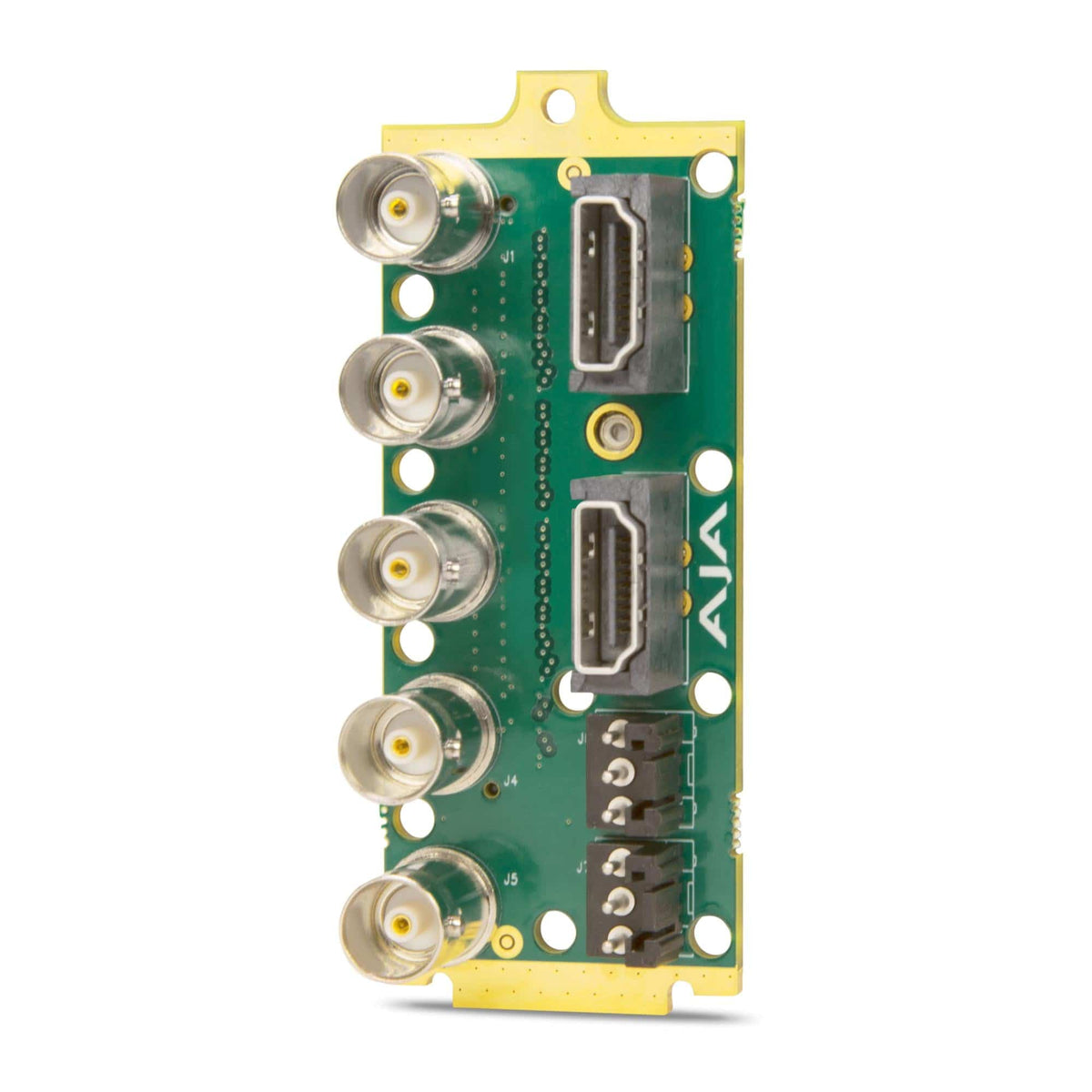

• Outputs: 1x 3G-SDI BNC (loop through), 1x 3G-SDI BNC, 1x HDMI Type A (HDMI v1.4)
• Max input formats: accepts SDI formats up to 1920 x 1080p at 60 Hz
• Audio: 24-bit embedded SDI audio input/output (16-channel), HDMI up to 8-channel, plus 2-channel balanced analog outputs
• Supported families: SD, HD, and 3G formats (see format lists below)

Why It Helps

When you need a clean extraction or a reframed version of an SDI feed, simple pass-through converters fall apart fast. OG-ROI-SDI gives you the tools to scale a region of the image, match aspect ratios, and convert frame rates so the output behaves like proper video. The result is a stable 3G-SDI and HDMI output you can route, monitor, or feed downstream without redesigning your rack.

Key Technical Notes

• Geometry tools: image H/V flip and 90-degree rotation
• Interlace/progressive handling: conversion between deinterlaced and progressive signals
• Loss of input behavior: selectable Black, Freeze, or Mute
• Genlock/reference options: Reference Input, SDI Input, or Free Run (supports tri-level sync and color black refs)

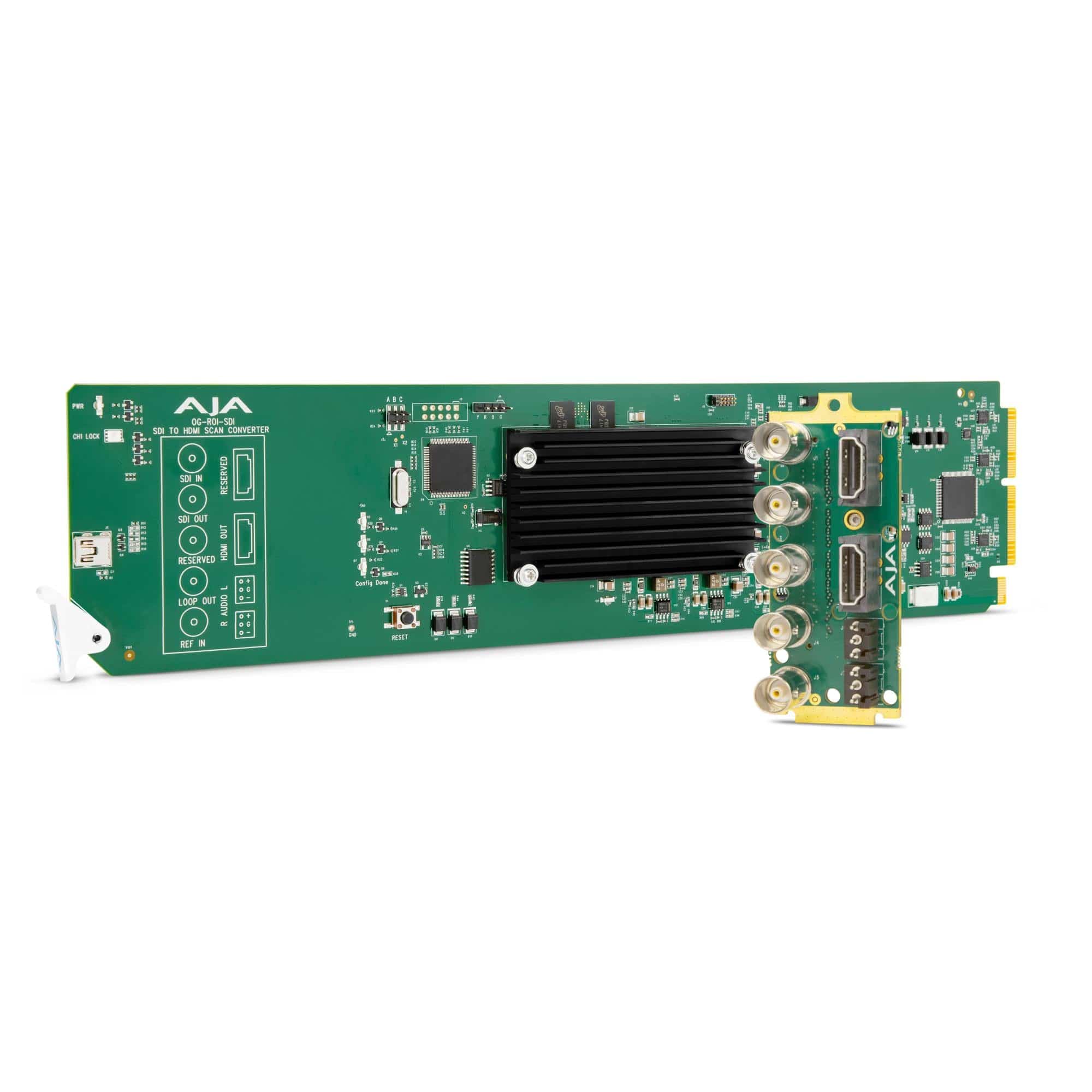

• System requirements: two openGear slots per card; rear I/O card included; hot-swappable

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Power: openGear frame compatible, 7.0 W max per card
• Warranty: five-year warranty
• Operating environment: 0 to 40 C (32 to 104 F), 10-90% RH noncondensing
• Storage: -40 to 60 C (-40 to 140 F); altitude <3,000 m (<10,000 ft)

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
