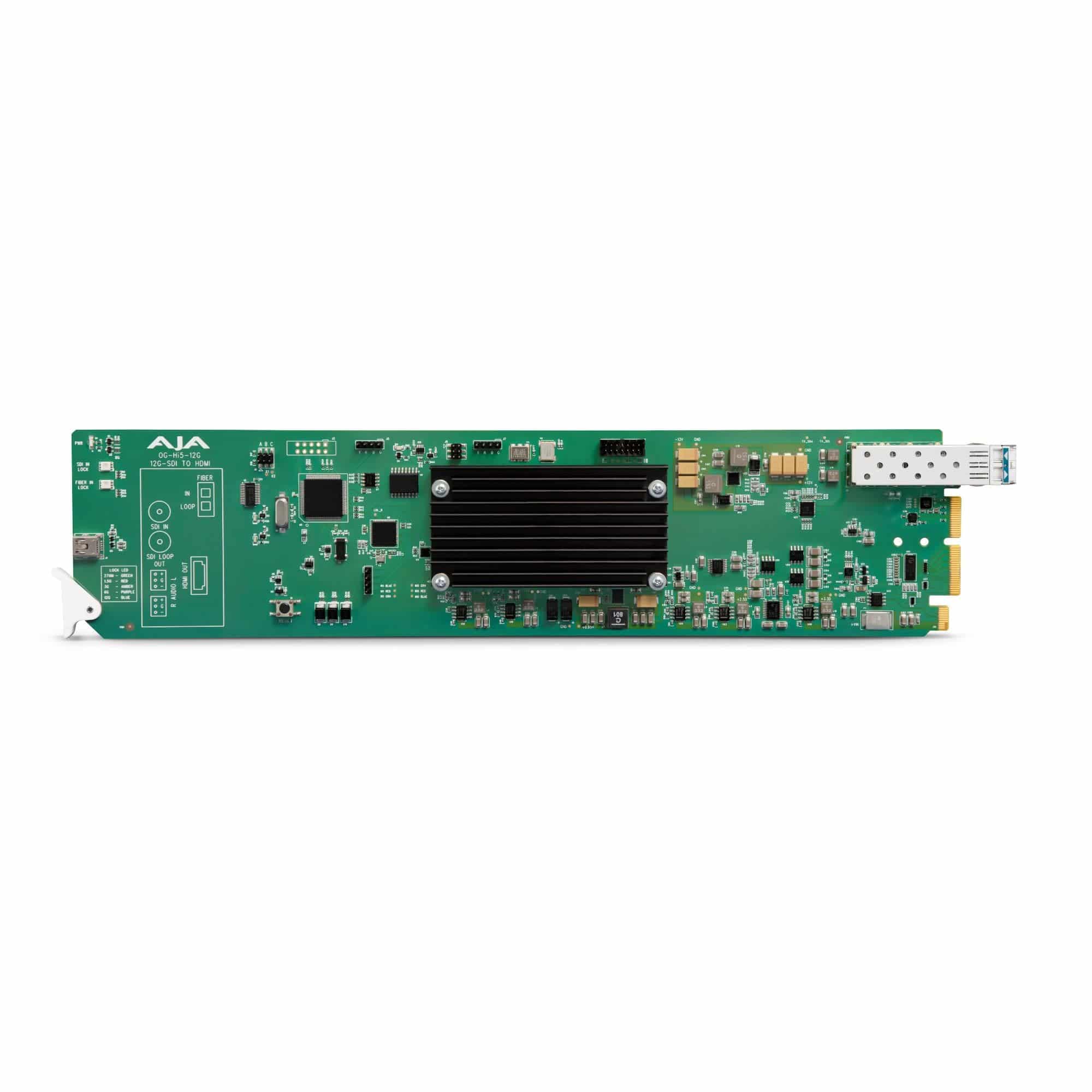

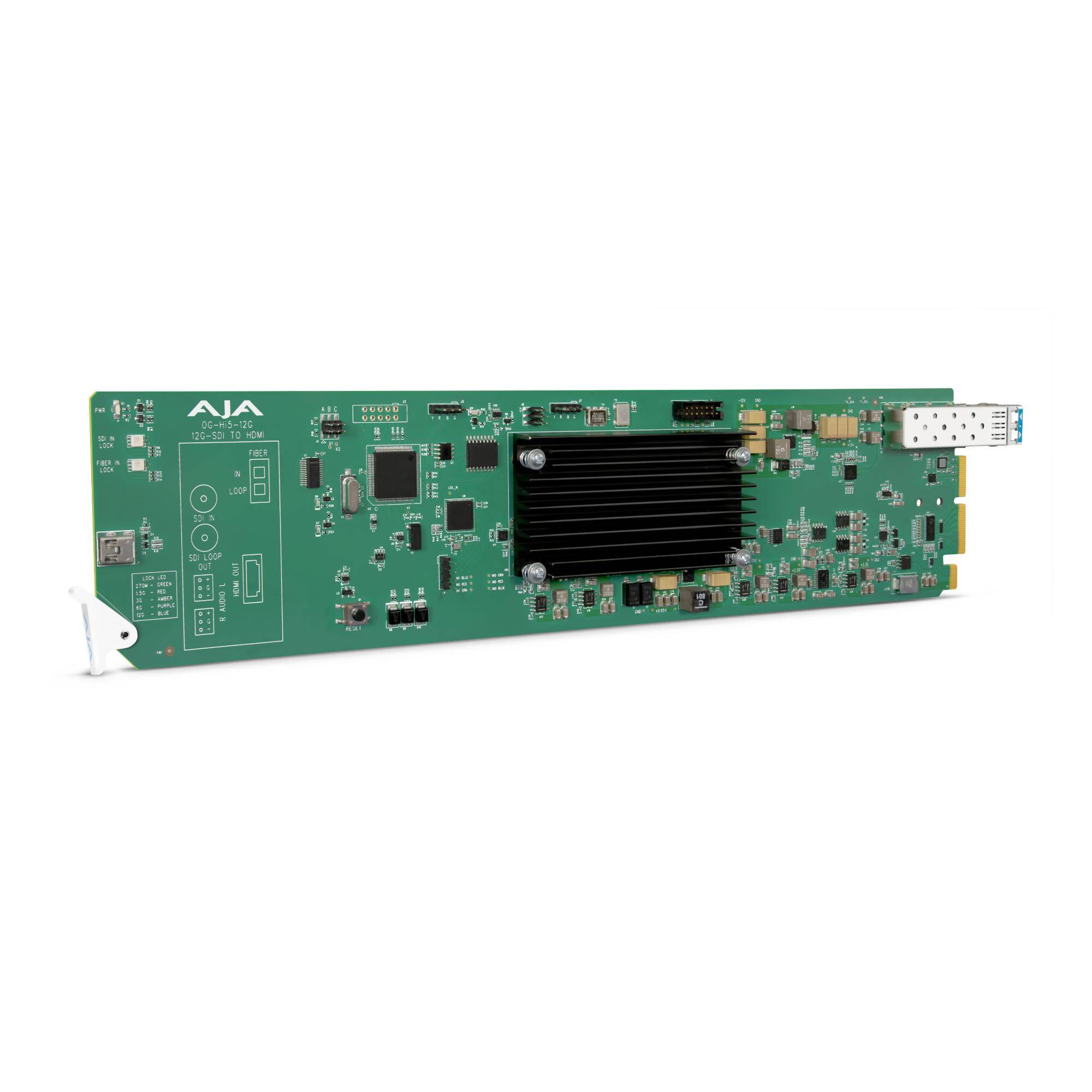

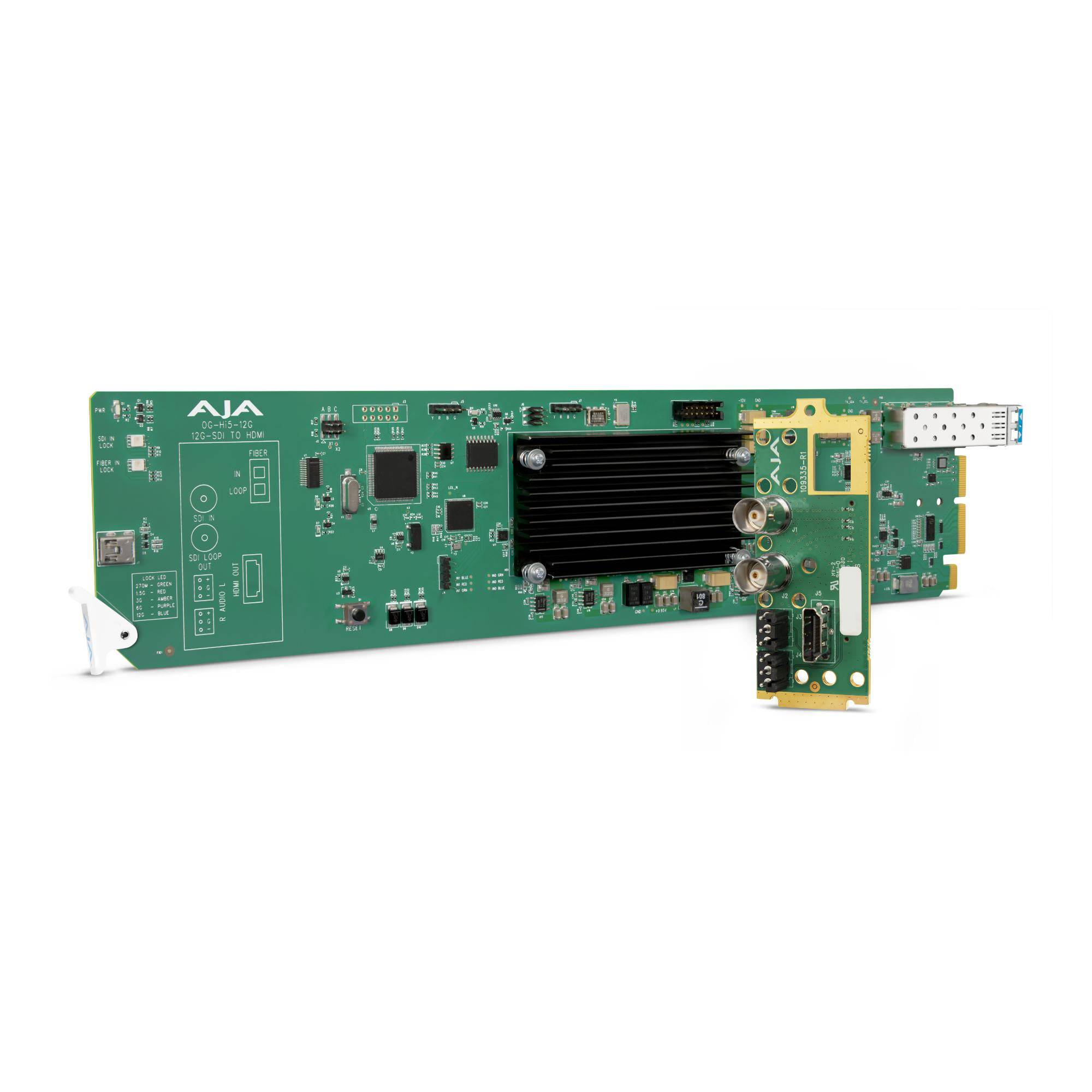

AJA OG-Hi5-12G-TR OpenGear 4K/UHD 12G-SDI to HDMI 2.0 Converter with Fiber LC Transceiver

 AJA OG-Hi5-12G-TR OpenGear 4K/UHD 12G-SDI to HDMI 2.0 Converter with Fiber LC Transceiver is an openGear-mounted video converter built to bridge 12G-SDI sources to HDMI 2.0 displays in professional rack environments. It supports video formats from SD through 4K/UHD up to 60p and is designed to live inside an openGear frame as part of a permanent signal chain rather than a desktop accessory.

Highlights

• 12G-SDI to HDMI 2.0 conversion for modern confidence and reference displays
• 4K/UHD supports up to 60p for current broadcast and live production formats
• SDI loop-through allows the signal to continue downstream without additional hardware
• LC fiber transceiver included for fiber-based signal paths alongside coax
• openGear form factor keeps conversion centralized in rack-based systems

Quick Specs & Uses

• Supports SD, HD, 2K, UHD, and 4K video formats in mixed-resolution facilities
• 1x 12G-SDI BNC input with SDI loop output for routing continuity
• HDMI 2.0 output for direct connection to monitors and displays
• Supports YCbCr and RGB color spaces at 8-, 10-, and 12-bit depth
• Passes embedded SDI audio through to the HDMI output

Why It Helps

In SDI-based facilities, HDMI monitoring is often still required for client displays, multiviewers, or confidence screens. The OG-Hi5-12G-TR handles that conversion cleanly inside an openGear frame, reducing cable clutter and eliminating the need for standalone converters hanging off the rack.

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
