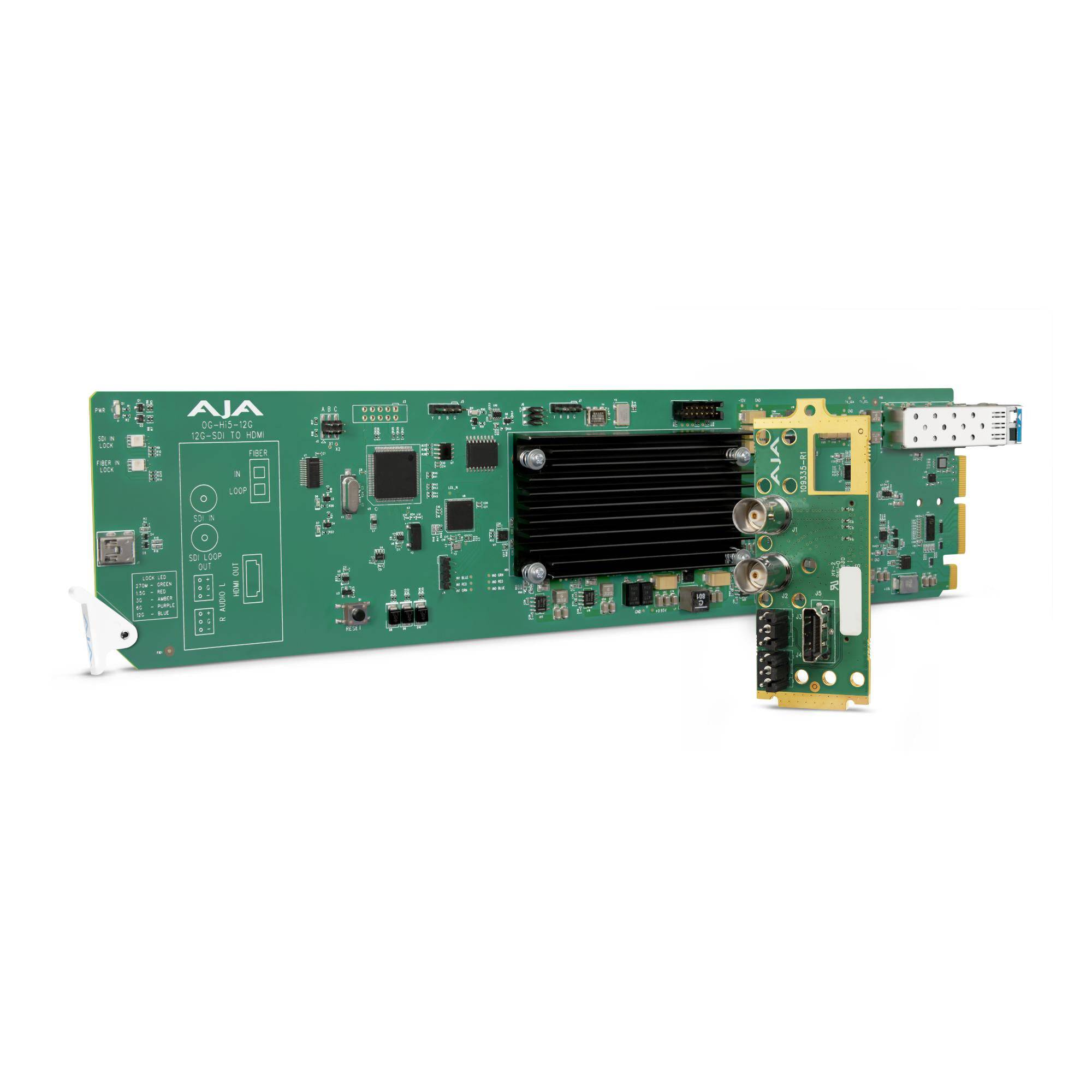

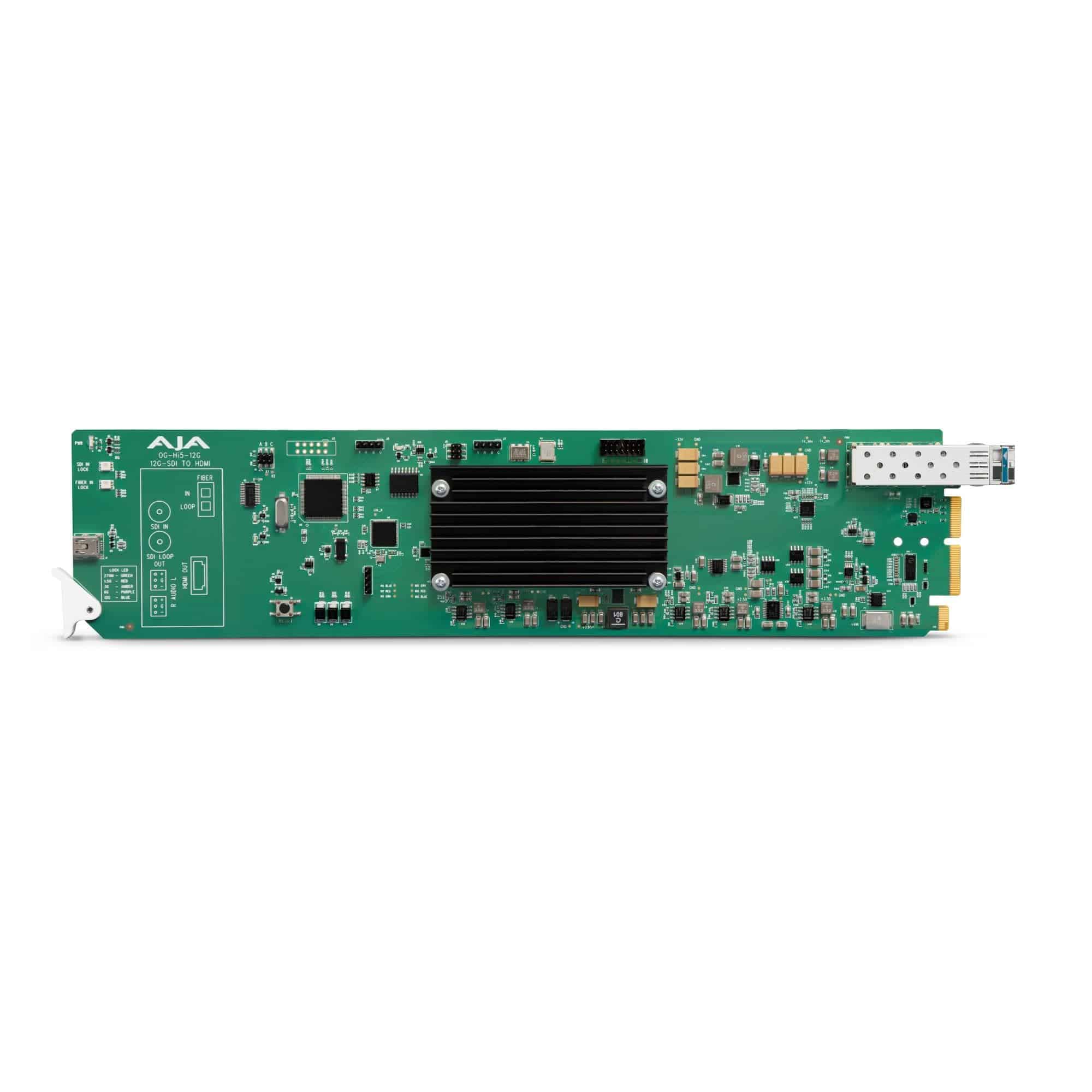

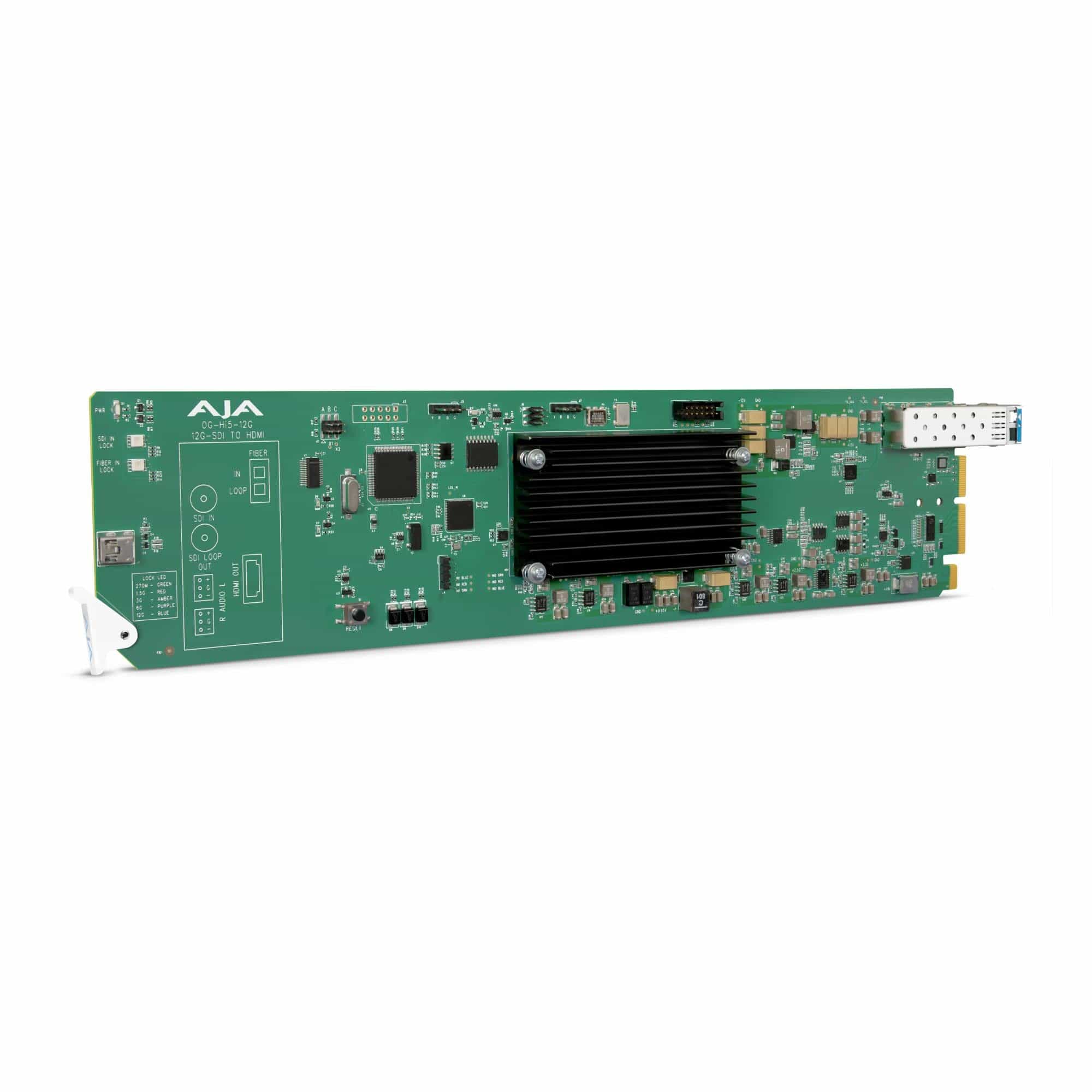

AJA OG-Hi5-12G-R OpenGear 4K 12G-SDI to HDMI 2.0 Converter Card with Fiber LC Connector

AJA OG-Hi5-12G-R OpenGear 4K 12G-SDI to HDMI 2.0 Converter Card with Fiber LC Connector is an openGear-mounted converter card designed for one very common task in broadcast racks: getting a 12G-SDI signal onto a reliable HDMI 2.0 display without disrupting the SDI path. It supports formats from SD through 4K/UHD up to 60p and is intended to live permanently inside an openGear frame.

Highlights

• 12G-SDI to HDMI 2.0 conversion for confidence and reference monitoring
• Supports SD through 4K/UHD in mixed-format facilities
• 12G-SDI loop-through keeps the signal moving downstream
• YCbCr and RGB support with 8-, 10-, and 12-bit video
• openGear form factor with Dashboard configuration

Quick Specs & Uses

• Video input: 1x 12G-SDI (BNC)
• Video outputs: 1x HDMI 2.0, 1x 12G-SDI loop
• Supports SD, HD, 2K, UHD, and 4K formats up to 60p
• Handles embedded SDI audio passed through to HDMI
• Configurable and monitored via Dashboard software

Why It Helps

Even in SDI-first facilities, HDMI displays are still common for confidence monitoring, client viewing, and local reference. The OG-Hi5-12G-R keeps that conversion inside the rack, reducing external adapters and keeping the signal path predictable.

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
