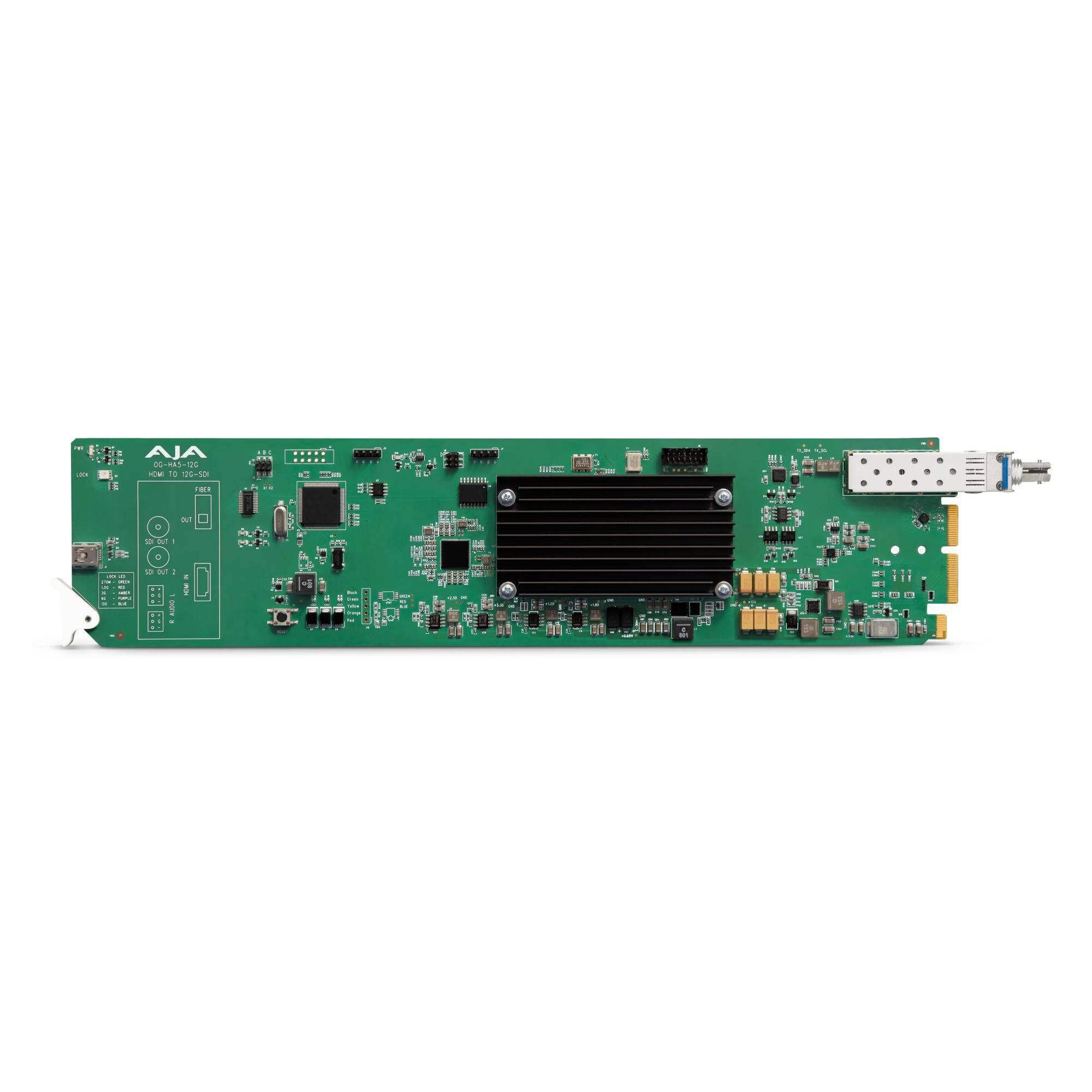

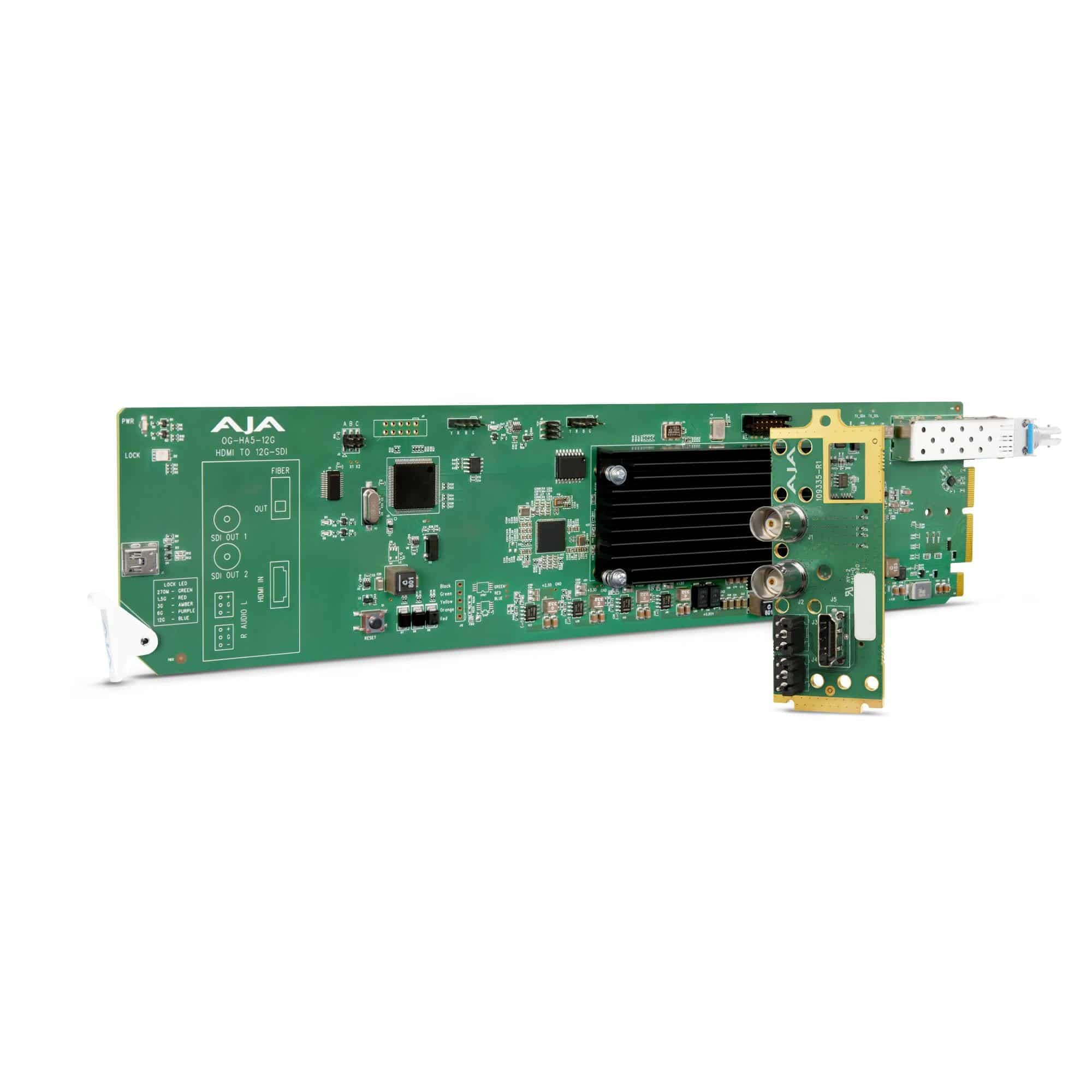

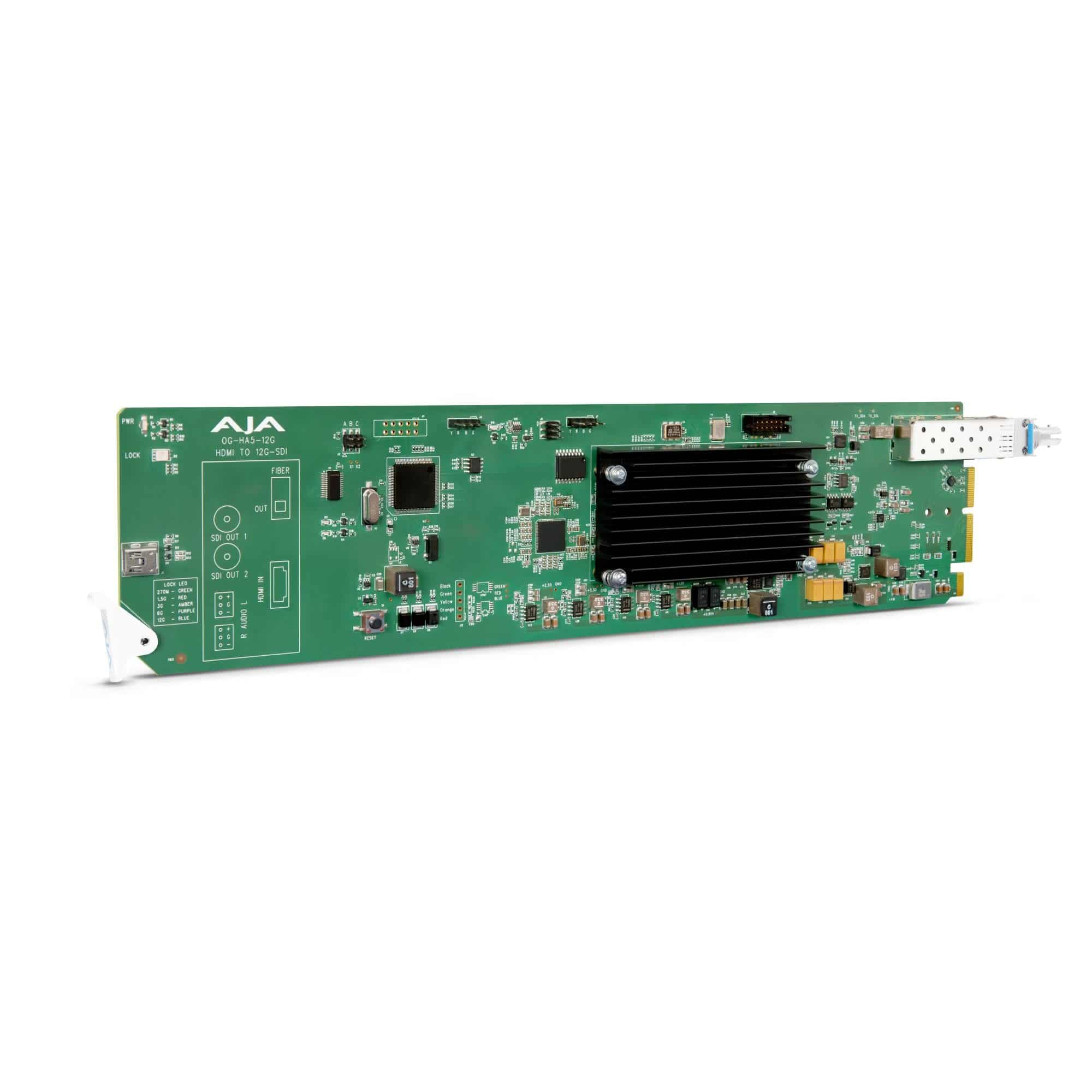

AJA OG-HA5-12G-T-ST OpenGear 4K HDMI 2.0 to 12G-SDI Converter Card with Fiber ST

AJA OG-HA5-12G-T-ST is an openGear-mounted converter card designed to take HDMI 2.0 sources and put them cleanly onto a 12G-SDI signal path. It supports formats from SD through 4K/UHD up to 60p and is built for rack-based environments where HDMI sources need to integrate into SDI and fiber workflows.

Highlights

• HDMI 2.0 to 12G-SDI conversion for integrating HDMI sources into SDI systems
• ST fiber transmitter output for long-distance signal transport
• Supports SD through 4K/UHD up to 60p
• YCbCr and RGB color support with 8-, 10-, and 12-bit video
• openGear form factor with DashBoard configuration

Quick Specs & Uses

• Video input: 1x HDMI 2.0
• Video outputs: 1x 12G-SDI (BNC), 1x ST fiber
• Supports SD, HD, 2K, UHD, and 4K formats up to 60p
• Passes embedded HDMI audio into the SDI and fiber outputs
• Configuration and monitoring via DashBoard software

Why It Helps

HDMI sources are common at the edges of production systems, but SDI and fiber still dominate the core infrastructure. The OG-HA5-12G-T-ST bridges that gap by converting HDMI 2.0 into 12G-SDI while also providing a fiber transmit path for longer runs and cleaner routing.

Real-World Notes

• Well suited for ingesting HDMI cameras, players, or graphics into SDI-based facilities
• ST fiber output is useful when distance or routing constraints make coax impractical
• Best used as a fixed rack conversion point rather than a portable adapter
• DashBoard control keeps configuration centralized across openGear frames
• Designed to behave like infrastructure, not a temporary converter

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
