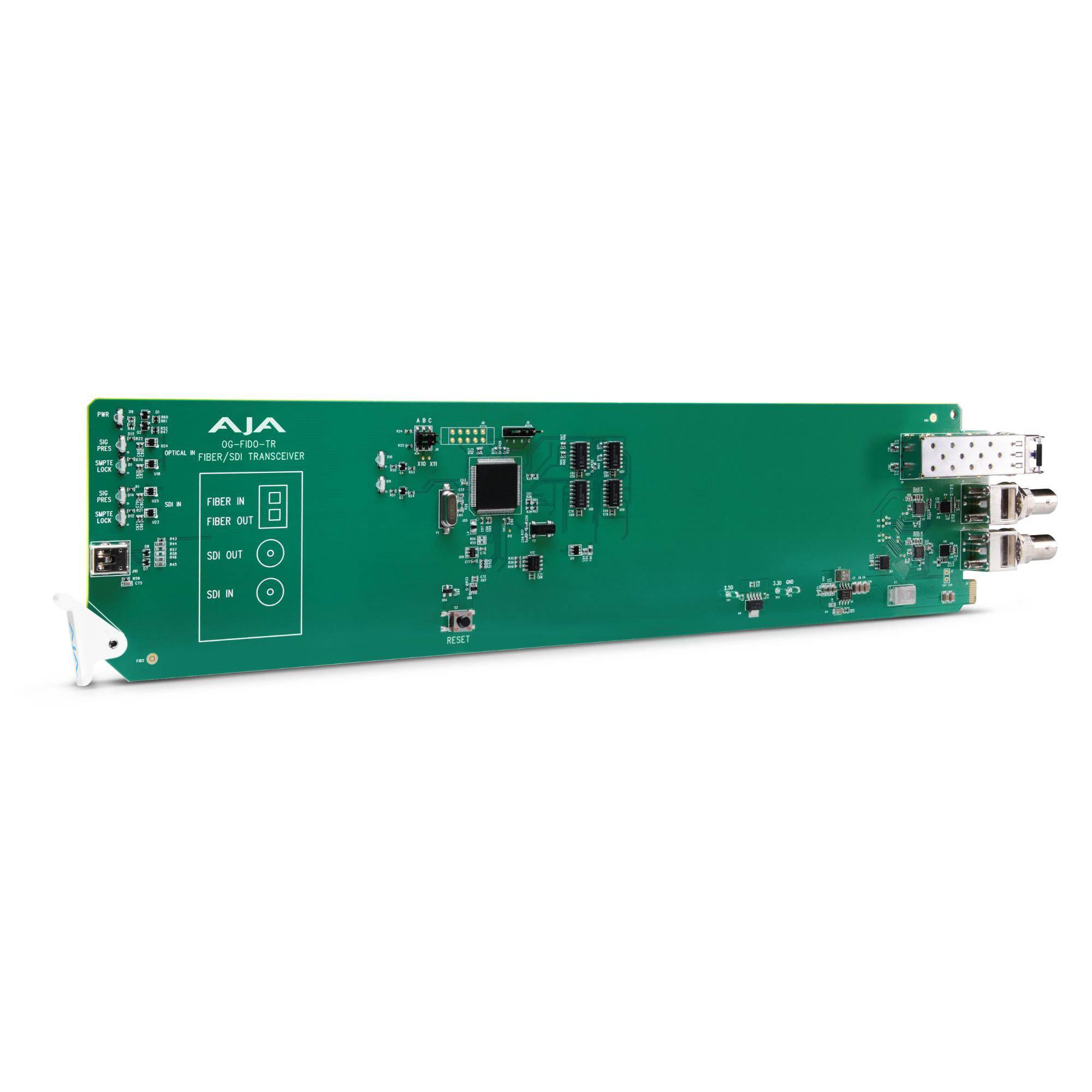

AJA OG-FIDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver

AJA OG-FiDO-TR-MM openGear 1-Channel 3G-SDI/LC Multi-Mode LC Fiber Transceiver is an openGear 3G-SDI to fiber (and fiber to 3G-SDI) converter built for clean, long-distance transport over multi-mode LC fiber. It’s format-agnostic from 150 Mbps to 3 Gbps, supports HDR/SDI metadata pass-through, and is a straightforward way to extend SDI paths while also helping reduce issues like ground loops that show up with long copper runs.

Highlights

• 3G-SDI ↔ Multi-Mode LC fiber conversion (SMPTE-259/292/424 over BNC, SMPTE-297 over fiber)
• Long fiber runs: up to 700 m (OM4) or 300 m (OM3)
• Format-agnostic rates: 150 Mbps to 3 Gbps
• Automatic detection + reclocking at common SDI rates
• Dashboard monitoring with Input Present and SMPTE Lock LEDs

Quick Specs & Uses

• Inputs: 1x 3G-SDI BNC + 1x Multi-Mode LC fiber
• Outputs: 1x 3G-SDI BNC + 1x Multi-Mode LC fiber
• Optics: 850 nm nominal wavelength
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps (others pass through)
• Power: 2.5 W max per card; openGear frame compatible

Why It Helps

When you need distance, isolation, and stability, fiber is usually the right tool. OG-FiDO-TR-MM gives you a clean SDI bridge over multi-mode fiber, keeps SDI metadata intact (including HDR), and reclocks common SDI rates so the downstream path stays predictable.

Key Technical Notes

• SDI metadata pass-through is supported, including HDR
• Reclocking behavior: listed SDI rates are reclocked; all other rates are passed through
• Status visibility: Input Present and Input SMPTE Lock LEDs
• Hot-swap capable for serviceable rack deployments
• Two slots required per card (front slot + rear card)

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Operating environment: 0 to 40 C (32 to 104 F), 10-90% RH noncondensing
• Storage: -40 to 60 C (-40 to 140 F)
• Altitude: <3,000 m (<10,000 ft)
• Weight: 0.5 lb (0.3 kg)

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
