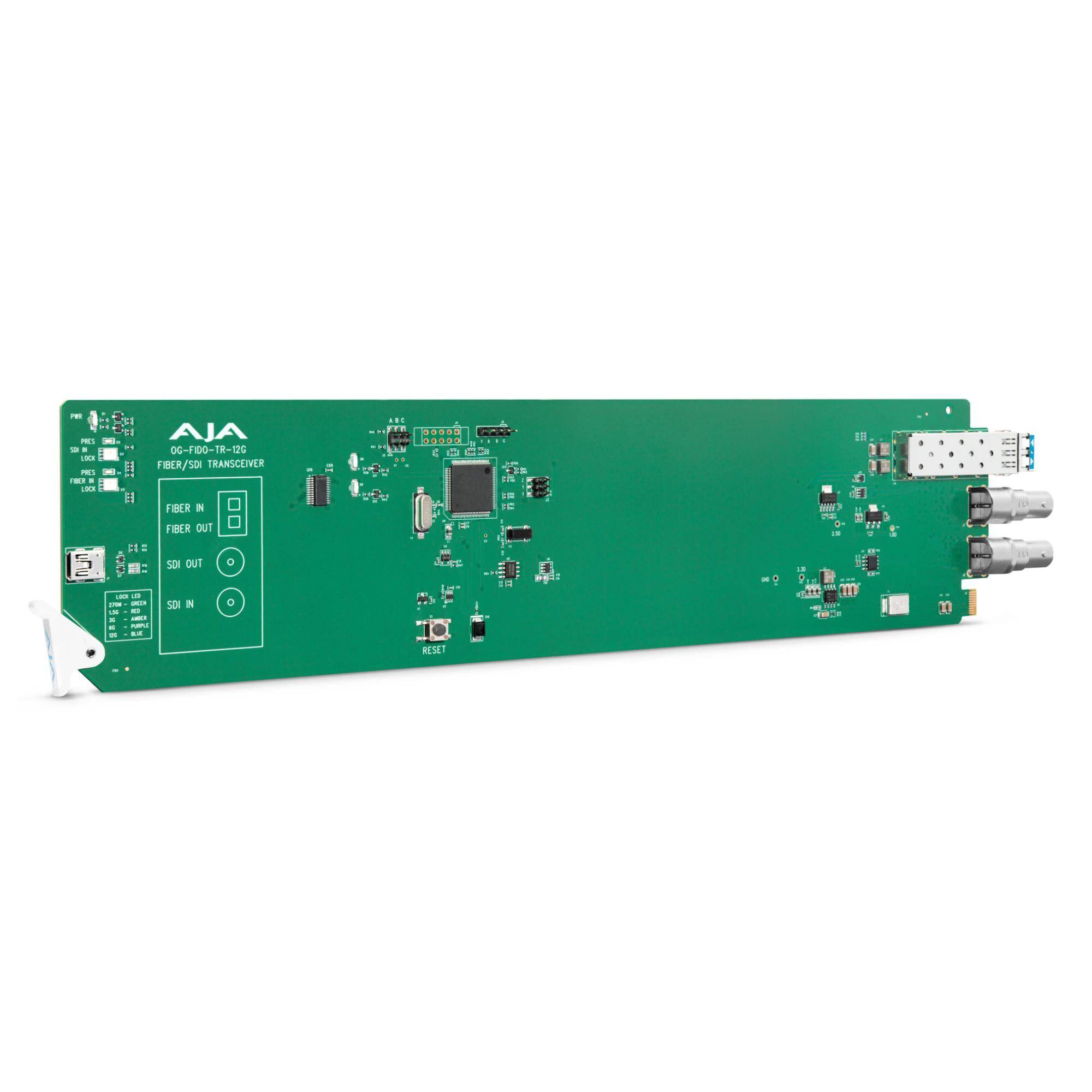

AJA OG-FIDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver

AJA OG-FiDO-TR-12G openGear 12G-SDI/LC Single Mode LC Fiber Transceiver is an openGear-compatible 12G-SDI / fiber transceiver designed for long-distance, high-bandwidth SDI transport over single-mode fiber. It supports both 12G-SDI to fiber and fiber to 12G-SDI conversion, with format-agnostic operation from 270 Mbps up to 12 Gbps, making it suitable for SD through UHD workflows without reconfiguration.

Highlights

• 12G-SDI ↔ single-mode fiber transceiver with simultaneous electrical and optical I/O
• Format-agnostic support from 270 Mbps to 12 Gbps
• Long fiber runs up to 10 km over single-mode fiber
• Automatic detection and reclocking at common SDI data rates
• HDR and SDI metadata pass-through supported

Quick Specs & Uses

• SDI I/O: 1x 12G-SDI BNC input and 1x 12G-SDI BNC output (SMPTE-259/292/424/2081/2082)
• Fiber I/O: 1x single-mode LC input and 1x single-mode LC output (SMPTE-297)
• Optics: Tx nominal 1310 nm; Rx range 1260–1620 nm
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.967, 2.970, 5.934, 5.940, 11.868, 11.880 Gbps
• Power: openGear frame compatible, 3.0 W max per card

Key Technical Notes

• Reclocking behavior: listed SDI rates are reclocked; all other rates are passed through
• Optical performance: output power −5 dBm to +2 dBm; overload −2 dBm minimum
• Status indicators: Input Present and Input SMPTE Lock LEDs
• HDR support: HDR video and SDI metadata passed through intact
• Hot-swap capable for serviceable rack deployments

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Form factor: openGear front card with rear I/O; two slots required
• Weight: 0.5 lb (0.3 kg)
• Operating environment: 0 to 40 C (32 to 104 F), 10–90% RH noncondensing
• Storage: −40 to 60 C (−40 to 140 F); altitude <3,000 m

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
