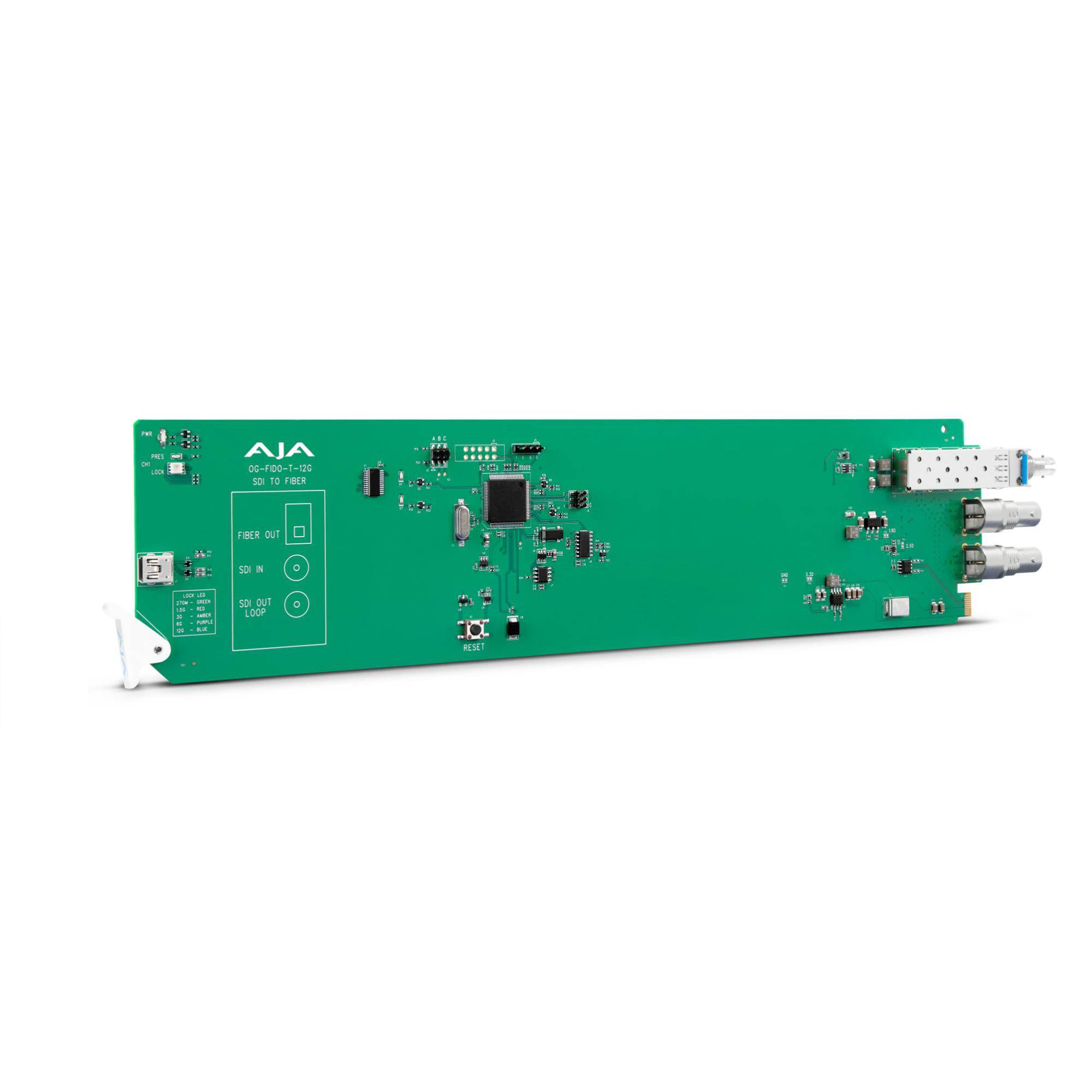

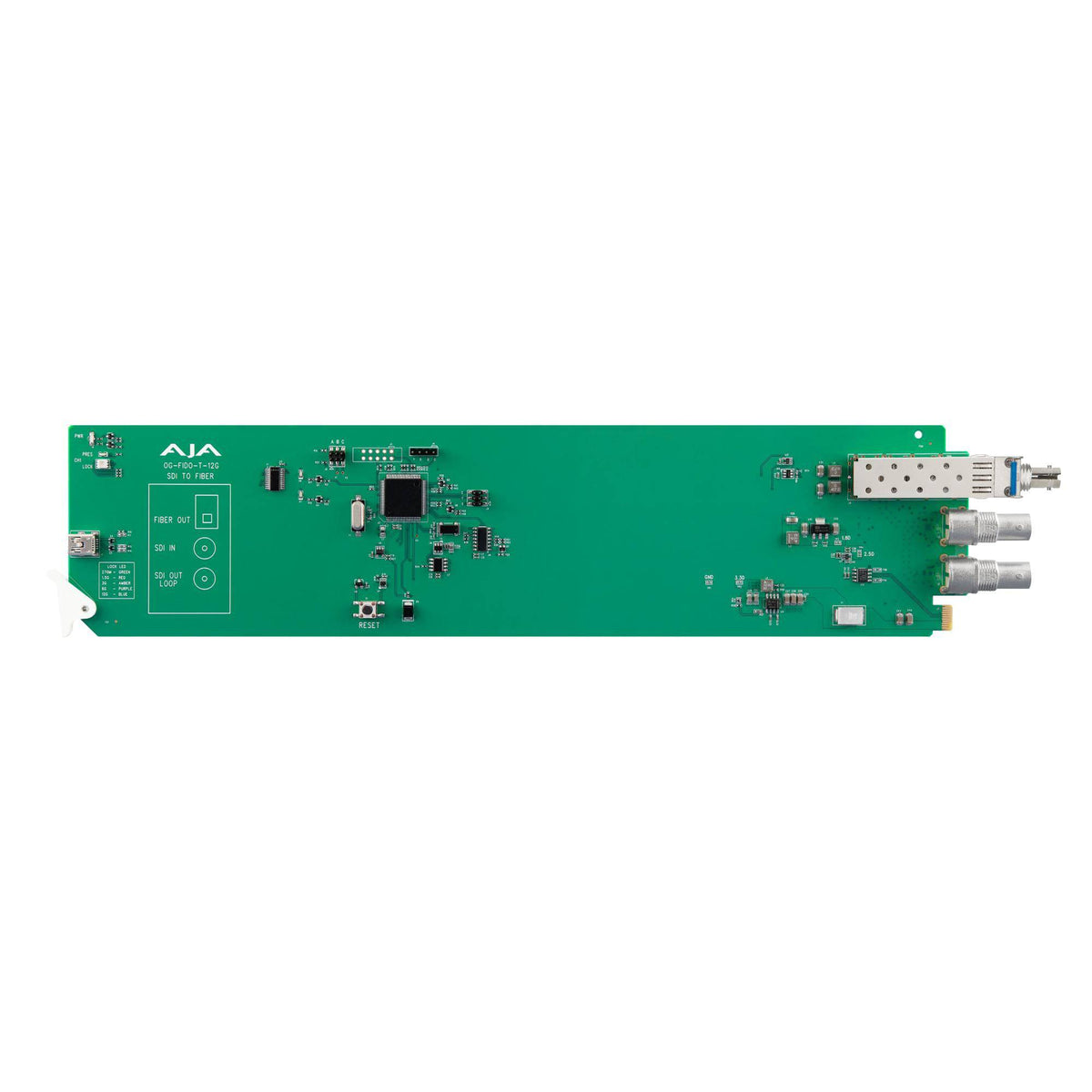

AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter

AJA OG-FiDO-T-12G-ST is an openGear-compatible 12G-SDI to single-mode fiber transmitter built for UHD signal transport when you need distance and a connector that stays put. It extends 12G-SDI up to 10 km (32,808 ft) over standard single-mode fiber and uses a locking ST barrel connector for secure connectivity in live event, production, and mobile environments.

On the SDI side, the input is reclocked with strong input jitter tolerance, and you also get a reclocked SDI loop-through output for local monitoring or downstream distribution.

Highlights

• 12G-SDI to single-mode fiber conversion with locking ST connector
• Reclocked input + reclocked loop-through for cleaner SDI behavior
• Format-agnostic support from 270 Mbps to 12 Gbps
• HDR and SDI metadata pass-through supported
• Dashboard monitoring plus Input Present / SMPTE Lock LEDs

Quick Specs & Uses

• Input: 1x 12G-SDI BNC (SMPTE 259/292/424/2081/2082)
• Outputs: 1x reclocked 12G-SDI BNC loop-through, 1x single-mode ST fiber
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.967, 2.970, 5.934, 5.940, 11.868, 11.880 Gbps
• Optics: Tx 1310 nm (typ); optical power −5 dBm to +2 dBm
• Power: openGear frame compatible, 3.0 W max per card

Why It Helps

This card is built for the real-world problem of keeping 12G-SDI stable over distance. Fiber gets you the run, reclocking helps clean up the SDI path, and the locking ST connector reduces the chance of accidental disconnects when racks, carts, or cables get bumped during a show day.

Frame & System Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Form factor: openGear front slot + rear I/O card
• Slots required: two per card
• Included: appropriate fiber SFP + rear I/O card
• Environmental: 0–40 C operating; -40 to 60 C storage; 10–90% RH; altitude <3,000 m

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
