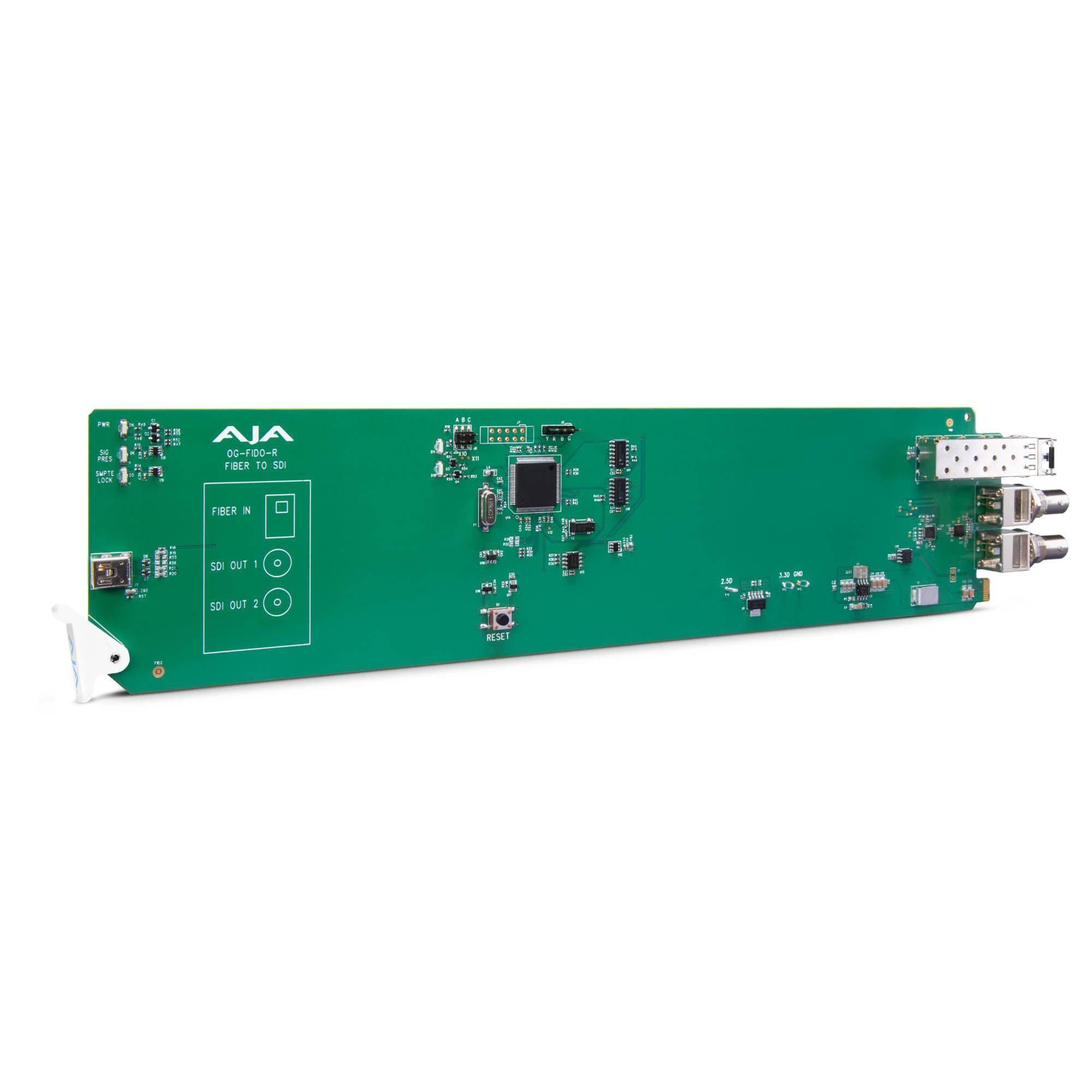

AJA OG-FiDO-R-MM openGear 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver

AJA OG-FiDO-R-MM openGear 1-Channel Multi-Mode LC Fiber to 3G-SDI Receiver is an openGear-compatible single-mode fiber to 3G-SDI receiver designed for the receive end of long SDI fiber runs. It supports distances up to 10 km (32,808 ft) over standard single-mode fiber and applies reclocking at the fiber input to improve jitter tolerance before the signal is converted back to baseband SDI.

Highlights

• Fiber to 3G-SDI conversion for long single-mode runs
• Two mirrored 3G-SDI outputs on BNC
• Format-agnostic support from 150 Mbps to 3 Gbps
• Automatic detection and reclocking at common SDI rates
• HDR and SDI metadata pass-through supported

Quick Specs & Uses

• Input: 1x single-mode LC fiber (SMPTE-297)
• Outputs: 2x mirrored 3G-SDI BNC (SMPTE-259/292/424)
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps
• Optical: 1260–1620 nm, −18 dBm sensitivity
• Power: openGear frame powered, 2.5 W max

Why It Helps

OG-FiDO-R is intended for the far end of a fiber path where stable SDI recovery matters. Reclocking helps clean up the incoming signal, while mirrored outputs let you feed a router and a local monitor without adding an external DA.

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
