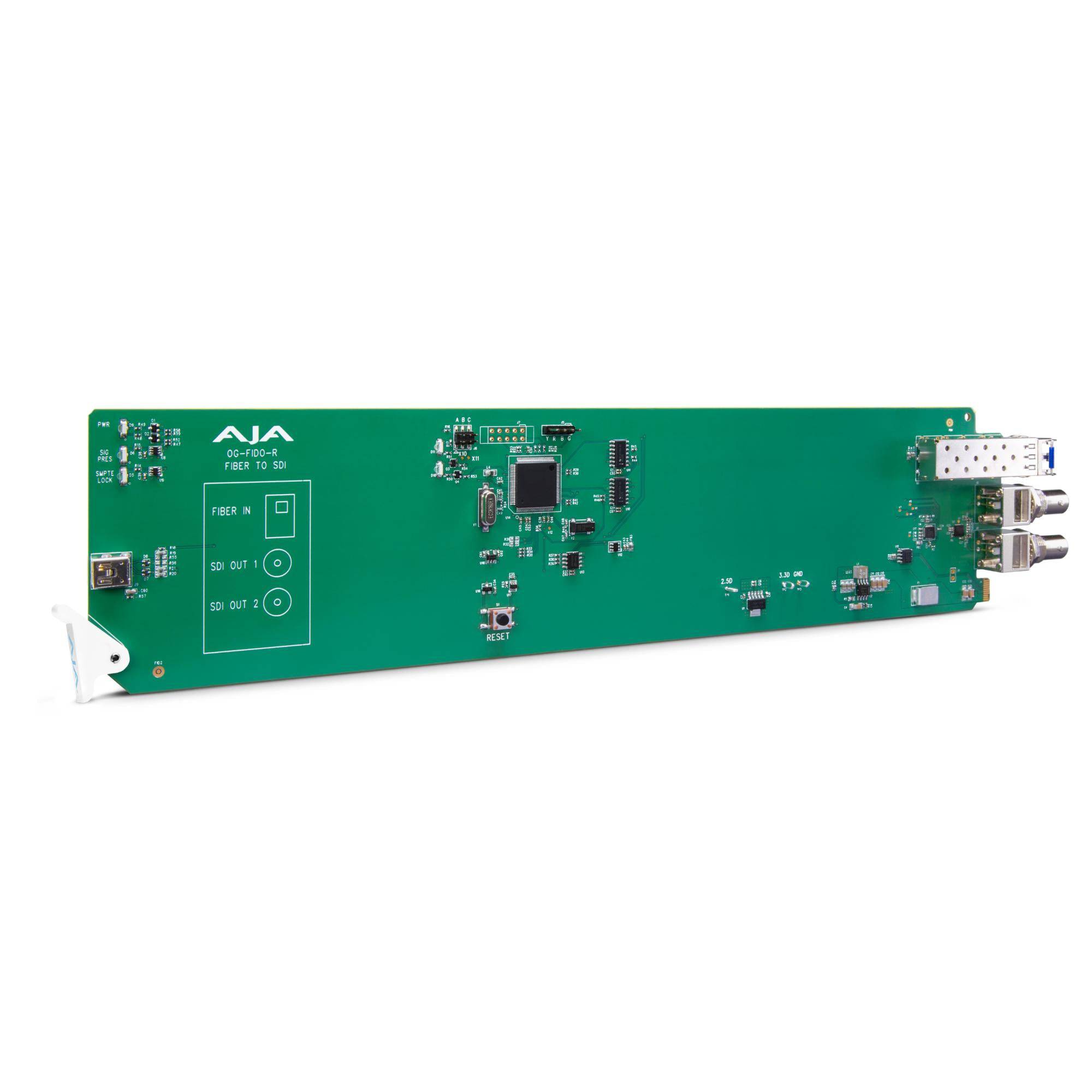

AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver

AJA OG-FiDO-R openGear 1-Channel Single Mode LC Fiber to 3G-SDI Receiver is an openGear-compatible multi-mode fiber to 3G-SDI receiver built for installations that need clean SDI recovery over fiber without dragging electrical noise along for the ride. It supports cable runs up to 700 m (2296 ft) on OM4 and 300 m (984 ft) on OM3, which makes it a practical fit for facility links, rack rooms, and stage-to-control-room paths where ground loop issues can show up fast.

Highlights

• Multi-mode fiber to 3G-SDI conversion (SMPTE-297 in, SDI out)
• Two mirrored 3G-SDI outputs on BNC for easy split feeds
• Format-agnostic support from 150 Mbps to 3 Gbps
• Auto detection and reclocking on common SDI rates
• HDR and SDI metadata pass-through supported

Quick Specs & Uses

• Fiber input: 1x Multi-Mode LC (SMPTE-297), 850 nm
• SDI outputs: 2x mirrored 3G-SDI BNC (SMPTE-259/292/424)
• Reclocked rates (Auto Select): 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps
• Optical sensitivity: 0 dBm (Min), -15 dBm (Max)
• Power: openGear frame compatible, 2.5 W max per card

Why It Helps

OG-FiDO-R-MM is meant for the receive end of a multi-mode fiber run. You bring fiber in, recover SDI out, and get two mirrored outputs so you can feed a router and a monitor path without adding an external distribution amp. DashBoard monitoring and front-panel LEDs help you confirm signal presence and lock without walking the rack.

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
