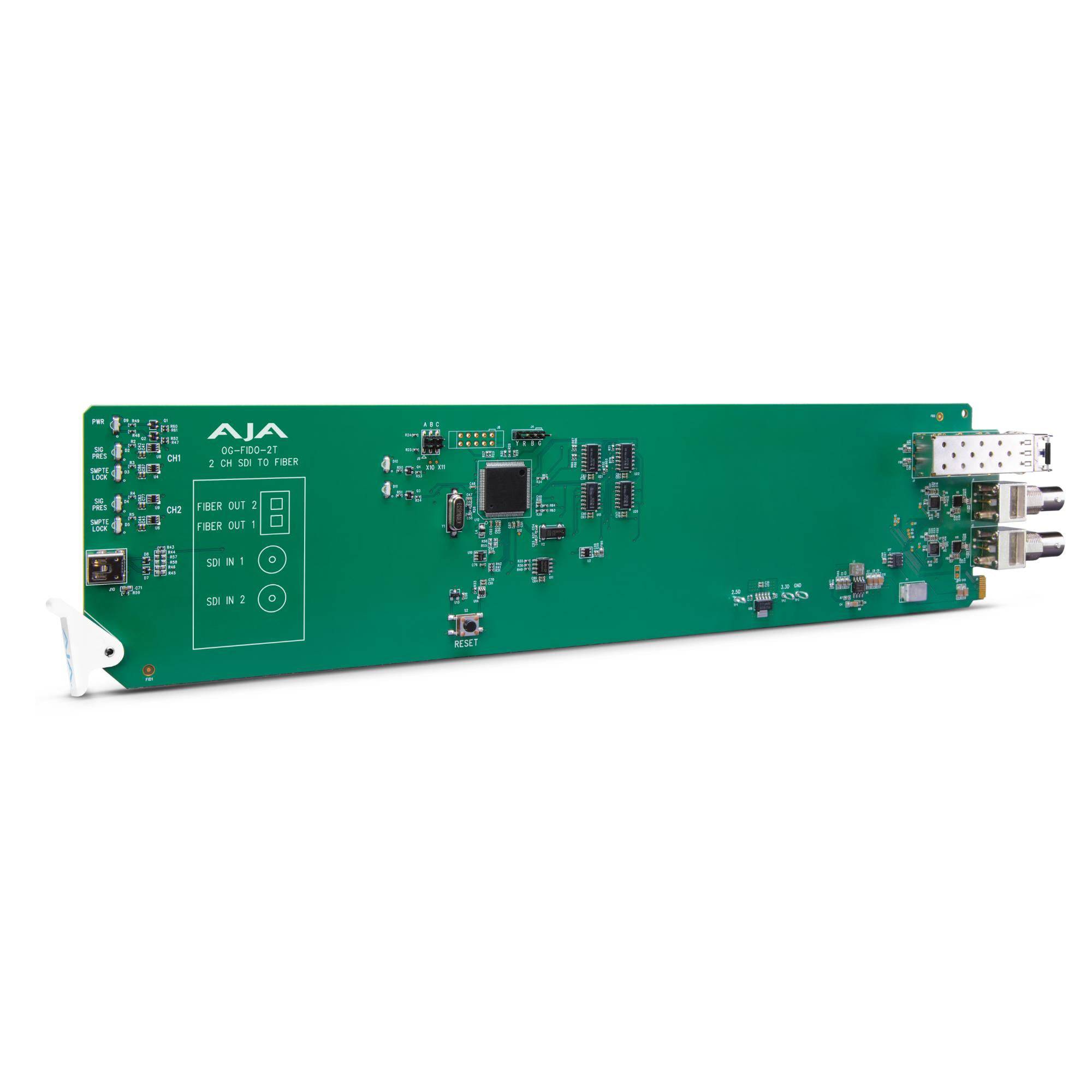

AJA OG-FiDO-2T-MM openGear 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter

AJA OG-FiDO-2T-MM openGear 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter is an openGear dual-channel 3G-SDI to multi-mode fiber transmitter built for clean SDI transport over fiber in high-density racks. It is format-agnostic from 150 Mbps to 3 Gbps, supports SDI metadata pass-through (including HDR), and is designed for long multi-mode runs up to 700 m on OM4 or 300 m on OM3.

Highlights

• Two independent 3G-SDI inputs (BNC) feeding two independent multi-mode LC fiber outputs
• Format-agnostic operation from 150 Mbps to 3 Gbps
• Multi-mode distance: up to 700 m (OM4) or 300 m (OM3)
• Automatic detection and reclocking at common SDI rates
• Dashboard monitoring plus Input Present and SMPTE Lock LEDs

Quick Specs & Uses

• Inputs: 2x 3G-SDI BNC (SMPTE-259/292/424)
• Outputs: 2x multi-mode LC fiber (SMPTE-297)
• Optics: 850 nm nominal wavelength; optical power −7 dBm to −2 dBm
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps (others pass through)
• Power / mechanics: 2.5 W max per card; hot-swap capable; two slots required

Why It Helps

If you need to move SDI farther than coax wants to go, or you want to avoid electrical issues that show up on long copper runs, this card is the simple fix inside an openGear frame. You get two SDI feeds converted to fiber, with reclocking on common rates to keep downstream paths stable.

Key Technical Notes

• SDI metadata pass-through is supported, including HDR
• Reclocking: listed rates are reclocked; all other rates are passed through and not reclocked
• Status: Input Present and Input SMPTE Lock LEDs
• Control/monitoring: openGear DashBoard on Windows, macOS, or Linux
• Environmental: 0 to 40 C operating; -40 to 60 C storage; 10-90% RH; altitude <3,000 m

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Form factor: standard openGear front slot + rear card; two slots required
• Weight: 0.5 lb (0.3 kg)
• Power: openGear frame compatible, 2.5 W max per card
• Fiber: multi-mode LC output per channel

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
