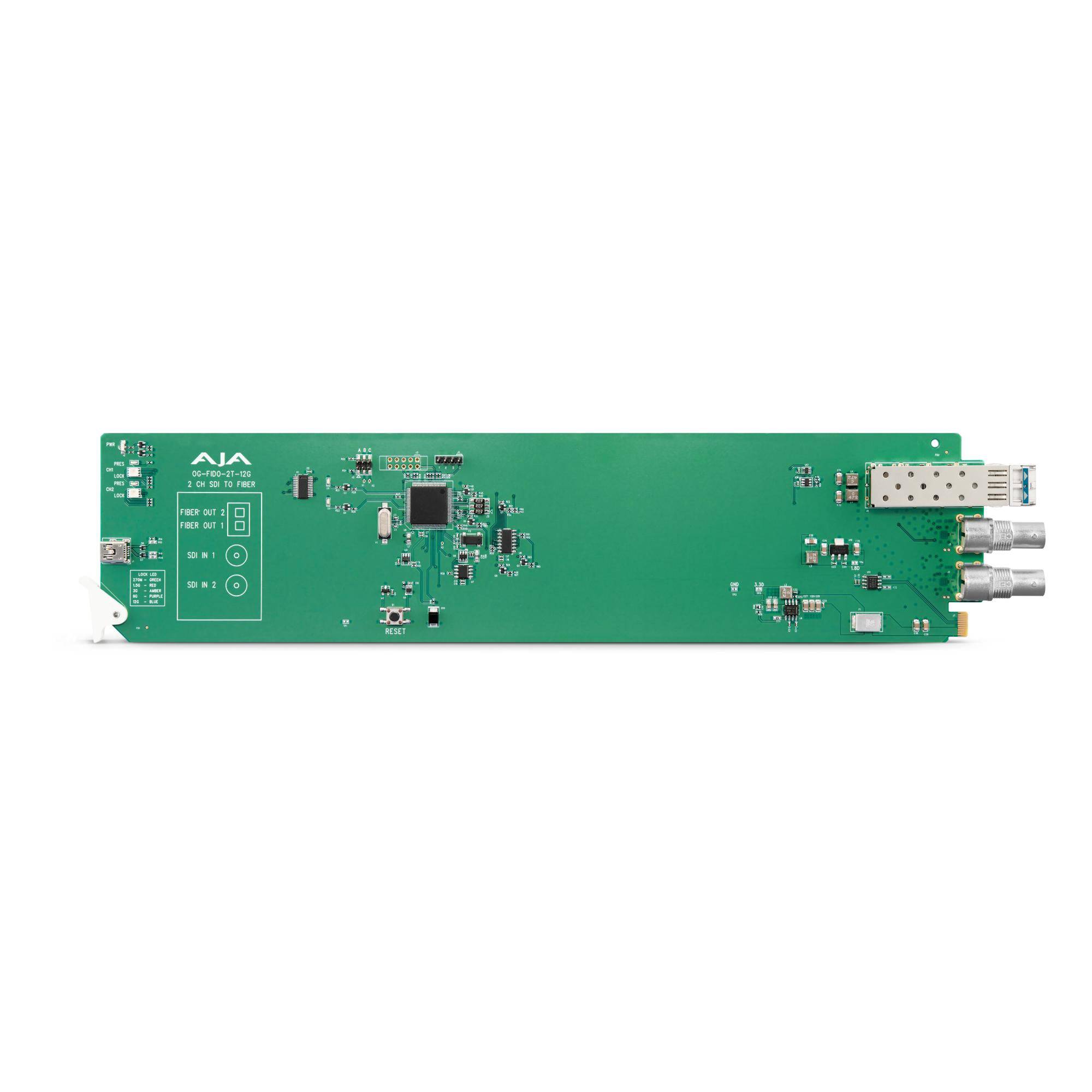

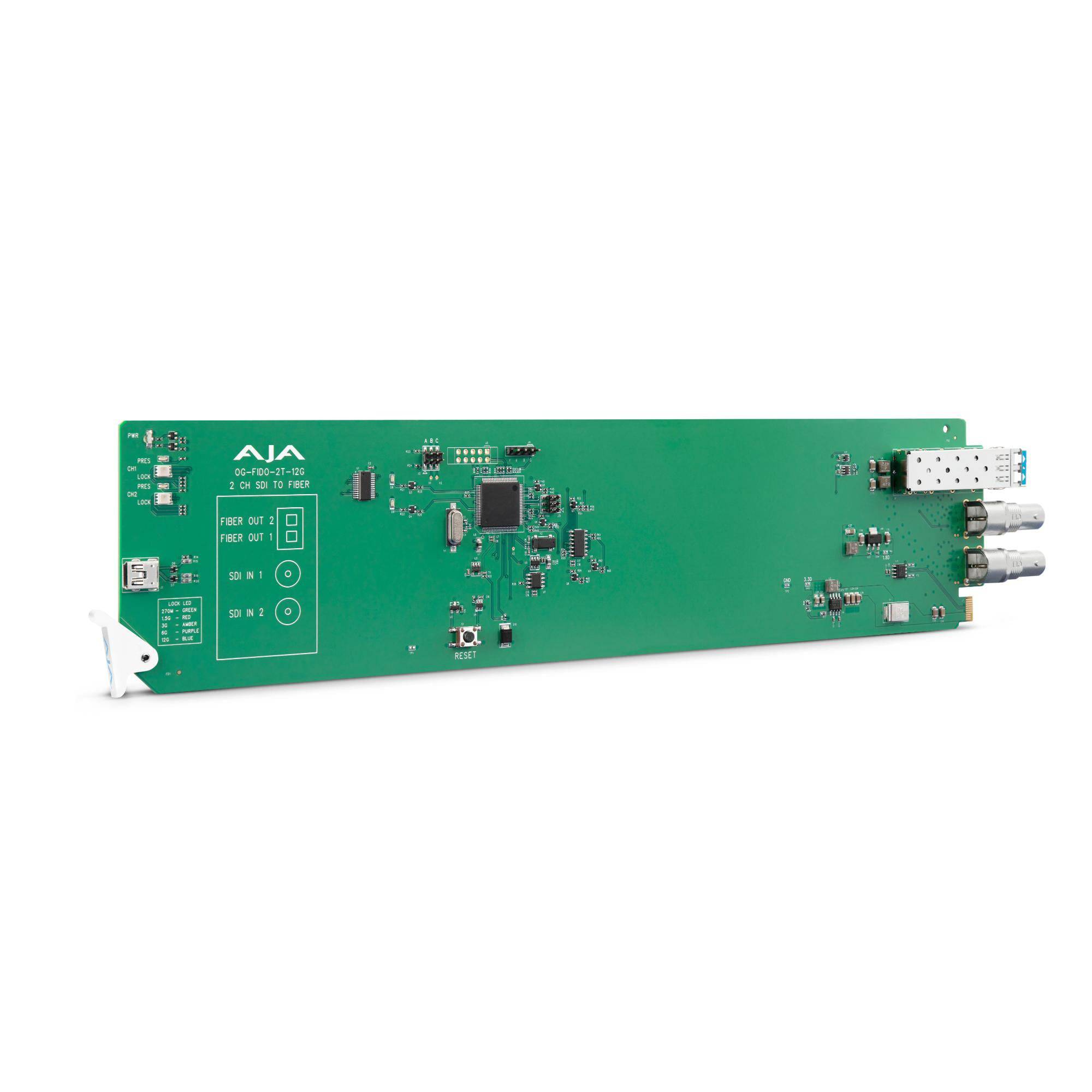

AJA OG-FiDO-2T-12G openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

AJA OG-FiDO-2T-12G openGear 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter is an openGear dual-channel 12G-SDI to single-mode fiber converter built for long-distance SDI transport. Each channel is fully independent, so you can carry different SDI rates on each input while extending signals up to 10 km over standard single-mode fiber.

Highlights

• 2x independent 12G-SDI inputs feeding 2x independent single-mode LC fiber outputs
• Format-agnostic operation from 270 Mbps to 12 Gbps
• Up to 10 km extension over standard single-mode fiber
• Automatic detection and reclocking at common SDI data rates
• HDR + SDI metadata pass-through supported, with Dashboard monitoring

Quick Specs & Uses

• Inputs: 2x 12G-SDI BNC (SMPTE 259/292/424/2081/2082)
• Outputs: 2x single-mode LC fiber (SMPTE 297/259/292/424/2081/2082)
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.967, 2.970, 5.934, 5.940, 11.868, 11.880 Gbps
• Optics: Tx 1310 nm (typ); optical power −5 dBm (min) to 0.5 dBm (max)
• Power / mechanics: 3.0 W max per card; hot-swappable; two slots required; rear I/O included; SFP included

Why It Helps

This card is for when coax stops being practical. You get two independent 12G-SDI paths converted to single-mode fiber for long runs, with reclocking on common SDI rates to keep the downstream system stable. DashBoard monitoring gives you quick visibility when you’re troubleshooting links in a dense rack.

Key Technical Notes

• Channel independence: each 12G-SDI input can carry a different SDI rate
• Reclocking behavior: listed rates reclocked; all other rates passed through and not reclocked
• Status indicators: Input Present and Input SMPTE Lock LEDs
• HDR: supports HDR video and SDI metadata pass-through, including HDR
• Environment: 0–40 C operating; −40 to 60 C storage; 10–90% RH; altitude <3,000 m

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Form factor: standard openGear front slot + rear card; two slots required
• Power: openGear frame compatible, 3.0 W max per card
• Warranty: five year warranty
• Weight: 0.5 lb (0.3 kg)

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
