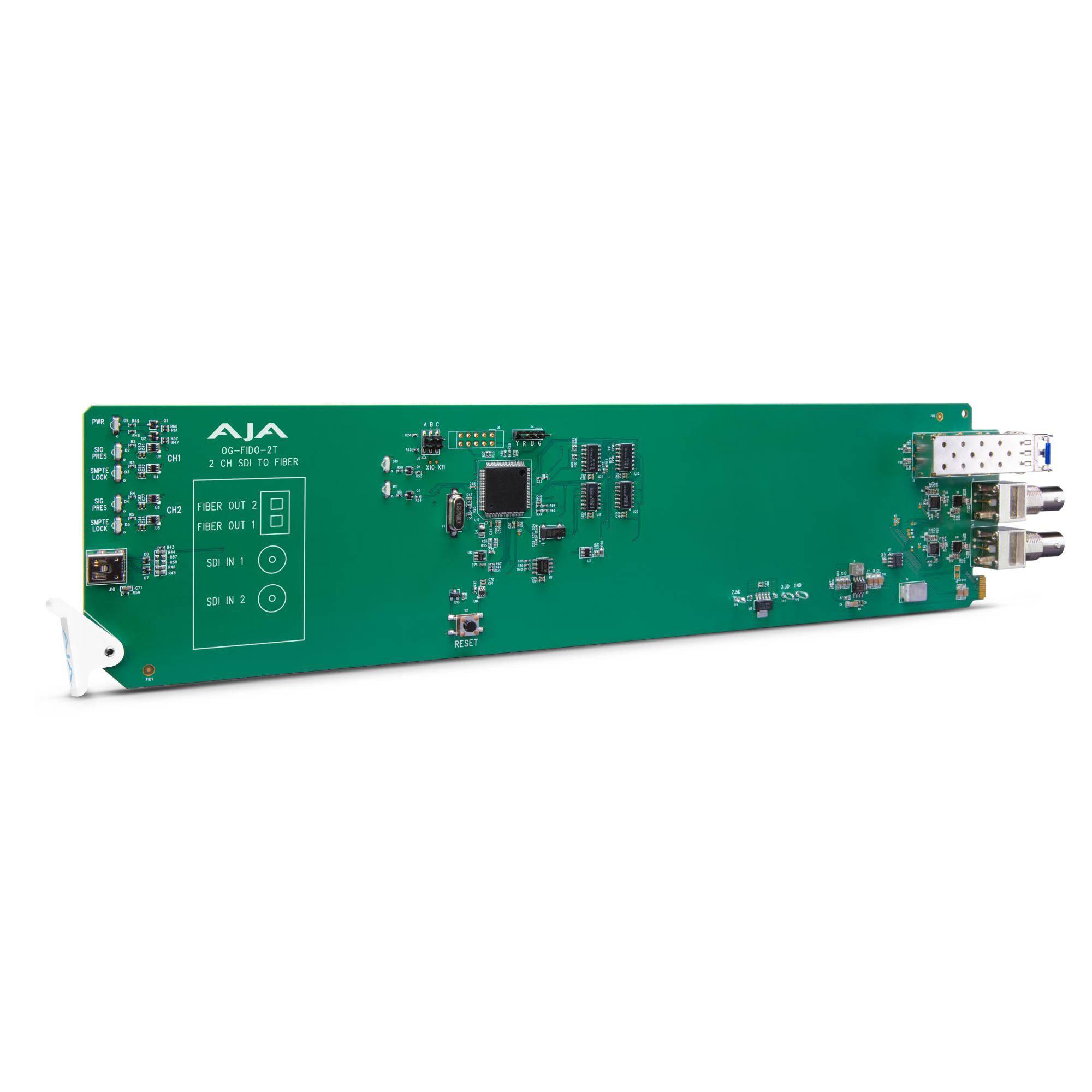

AJA OG-FiDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter

AJA OG-FiDO-2T openGear 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter is an openGear-compatible dual-channel 3G-SDI to single-mode fiber converter built for long-distance SDI transport. Each SDI input is fully independent, so you can carry different 3G-SDI rates per channel while extending signals up to 10 km (32,808 ft) over standard single-mode fiber.

Highlights

• 2x independent 3G-SDI inputs (BNC) to 2x independent single-mode LC fiber outputs
• Format-agnostic support from 150 Mbps to 3 Gbps
• Up to 10 km extension over single-mode fiber at 1310 nm
• Automatic detection and reclocking at common SDI data rates
• SDI metadata pass-through supported, including HDR

Quick Specs & Uses

• Video inputs: 2x 3G-SDI BNC (SMPTE-259/292/424)
• Video outputs: 2x single-mode LC fiber (SMPTE-297)
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps (Auto Select)
• Pass-through behavior: all other rates are passed through and not reclocked
• Optics/power: 1310 nm; optical power −5 dBm to 0 dBm; 2.5 W max

Why It Helps

This card is for when coax runs are no longer practical. You get two independent SDI feeds converted to fiber, with reclocking on common SDI rates to keep downstream paths stable, plus Dashboard monitoring and front-panel LED status to confirm lock quickly in a dense rack.

Key Technical Notes

• Independent channels: each SDI input can carry a different 3G-SDI rate
• Status indicators: Input Present and Input SMPTE Lock LEDs
• Monitoring: openGear Dashboard on Windows, macOS, or Linux
• Serviceability: hot-swap capable
• Environmental: 0 to 40 C operating; -40 to 60 C storage; 10–90% RH; altitude <3,000 m

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Mechanical: openGear standard form factor (front slot + rear card)
• Slots required: two per card
• Power: openGear frame compatible, 2.5 W max per card
• Weight: 0.5 lb (0.3 kg)

What’s In The Box

Package contents may vary by configuration. Please refer to the Specifications tab for the exact included items.
