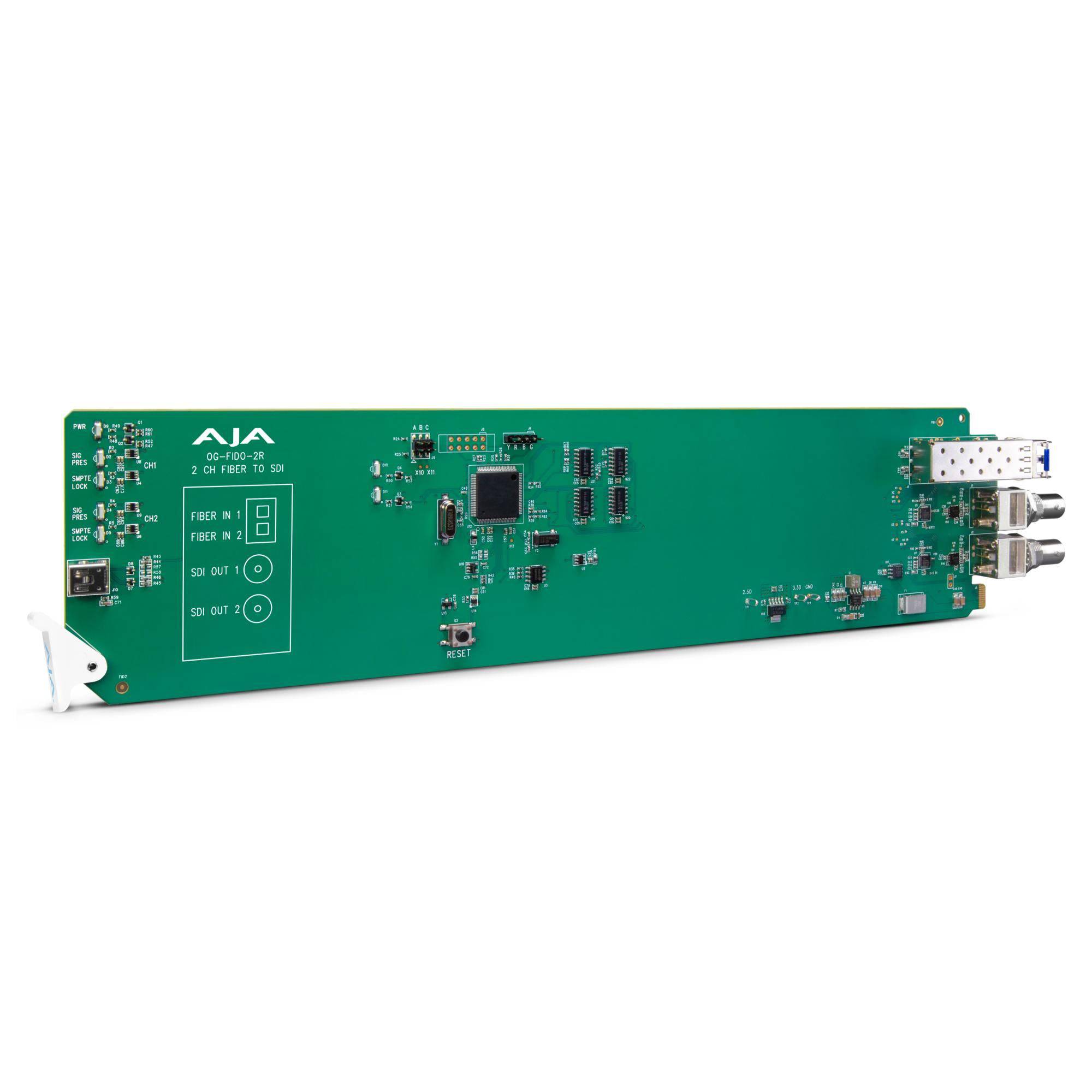

AJA OG-FiDO-2R openGear 2-Channel Single Mode LC Fiber to 3G-SDI Receiver

AJA OG-FiDO-2R openGear 2-Channel Single Mode LC Fiber to 3G-SDI Receiver is an openGear-compatible dual-channel single-mode fiber to 3G-SDI receiver built for the far end of long SDI runs. It converts two independent LC fiber inputs back into two 3G-SDI BNC outputs, allowing different SDI rates on each channel while supporting transport distances up to 10 km (32,808 ft) over standard single-mode fiber.

Highlights

• 2x independent single-mode LC fiber inputs to 2x 3G-SDI BNC outputs
• Format-agnostic operation from 150 Mbps to 3 Gbps
• Up to 10 km SDI recovery over single-mode fiber
• Automatic detection and reclocking at common SDI rates
• HDR and SDI metadata pass-through supported, with Dashboard monitoring

Quick Specs & Uses

• Fiber inputs: 2x single-mode LC (SMPTE-297)
• SDI outputs: 2x 3G-SDI BNC (SMPTE-259/292/424)
• Reclocked rates: 270 Mbps, 1.483, 1.485, 2.966, 2.970 Gbps (Auto Select)
• Optics: 1260–1620 nm; sensitivity −18 dBm (max); overload −3 dBm (min)
• Power: openGear frame compatible, 2.5 W max per card

Why It Helps

OG-FiDO-2R is designed for receiving SDI over fiber when copper is no longer practical. It brings two fiber feeds back to baseband SDI, reclocks common SDI rates to keep downstream gear stable, and gives you quick “is it locked?” visibility via LEDs and Dashboard.

Key Technical Notes

• Independent channels: each fiber input supports its own SDI rate
• Reclocking behavior: listed rates reclocked; all others are passed through and not reclocked
• Status indicators: Input Present and Input SMPTE Lock LEDs
• Monitoring: openGear Dashboard on Windows, macOS, or Linux
• Serviceability: hot-swap capable

Frame & Facility Fit

• Compatible frames: OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
• Form factor: openGear front slot and rear card
• Slots required: two per card
• Weight: 0.5 lb (0.3 kg)
• Operating environment: 0–40 C, 10–90% RH noncondensing, altitude <3,000 m

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
