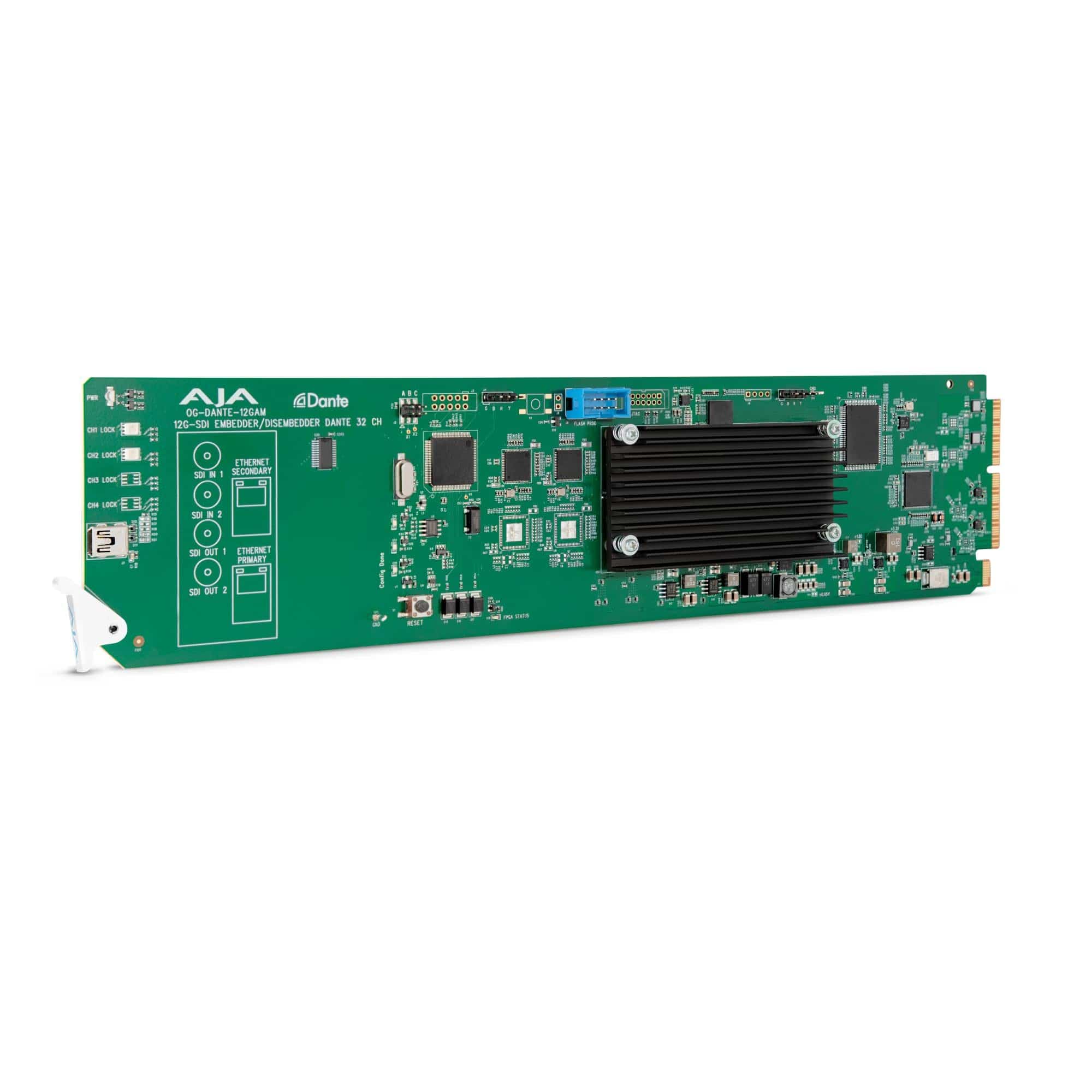

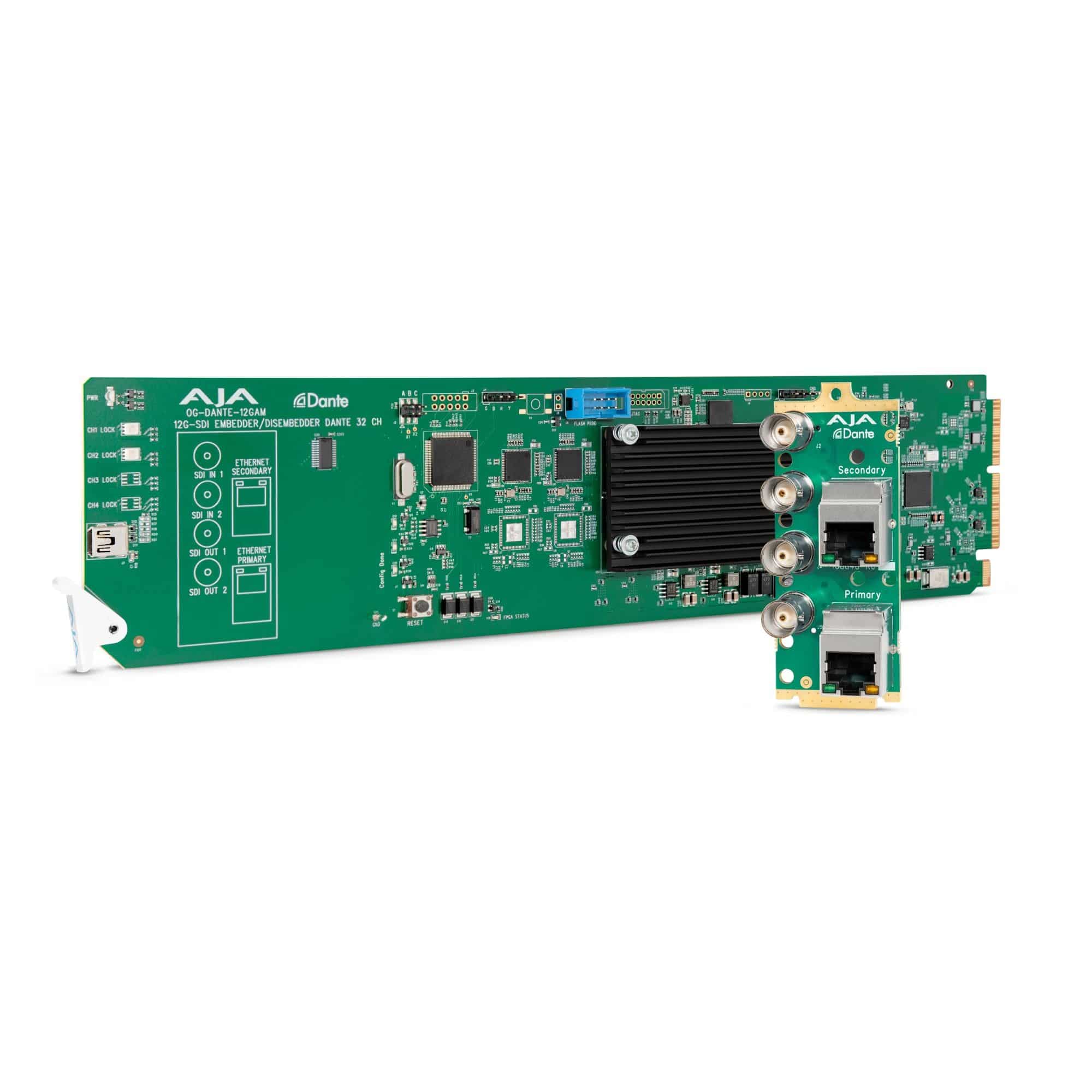

AJA OG-DANTE-12GAM openGear 12G-SDI/Dante 64-Channel Embedder/Disembedder Card

AJA OG-DANTE-12GAM openGear 12G-SDI/Dante 64-Channel Embedder/Disembedder Card is an openGear audio bridge designed to connect 12G-SDI baseband video with modern Audio over IP (AoIP) systems. It functions as a high-density audio embedder and disembedder, supporting Dante, AES67, SMPTE 2110-30, and RAVENNA, and is built for facilities migrating from SDI-centric audio to IP-based audio infrastructures.

Highlights

• SDI ↔ AoIP audio bridging for Dante, AES67, 2110-30, and RAVENNA ecosystems
• Dual independent 12G-SDI paths, each supporting 16 embedded audio channels
• 64 channels per card of simultaneous audio embedding and disembedding
• Primary and Secondary GigE ports for Dante network redundancy
• High-density openGear design enabling up to 640 channels in a 2RU frame

Quick Specs & Uses

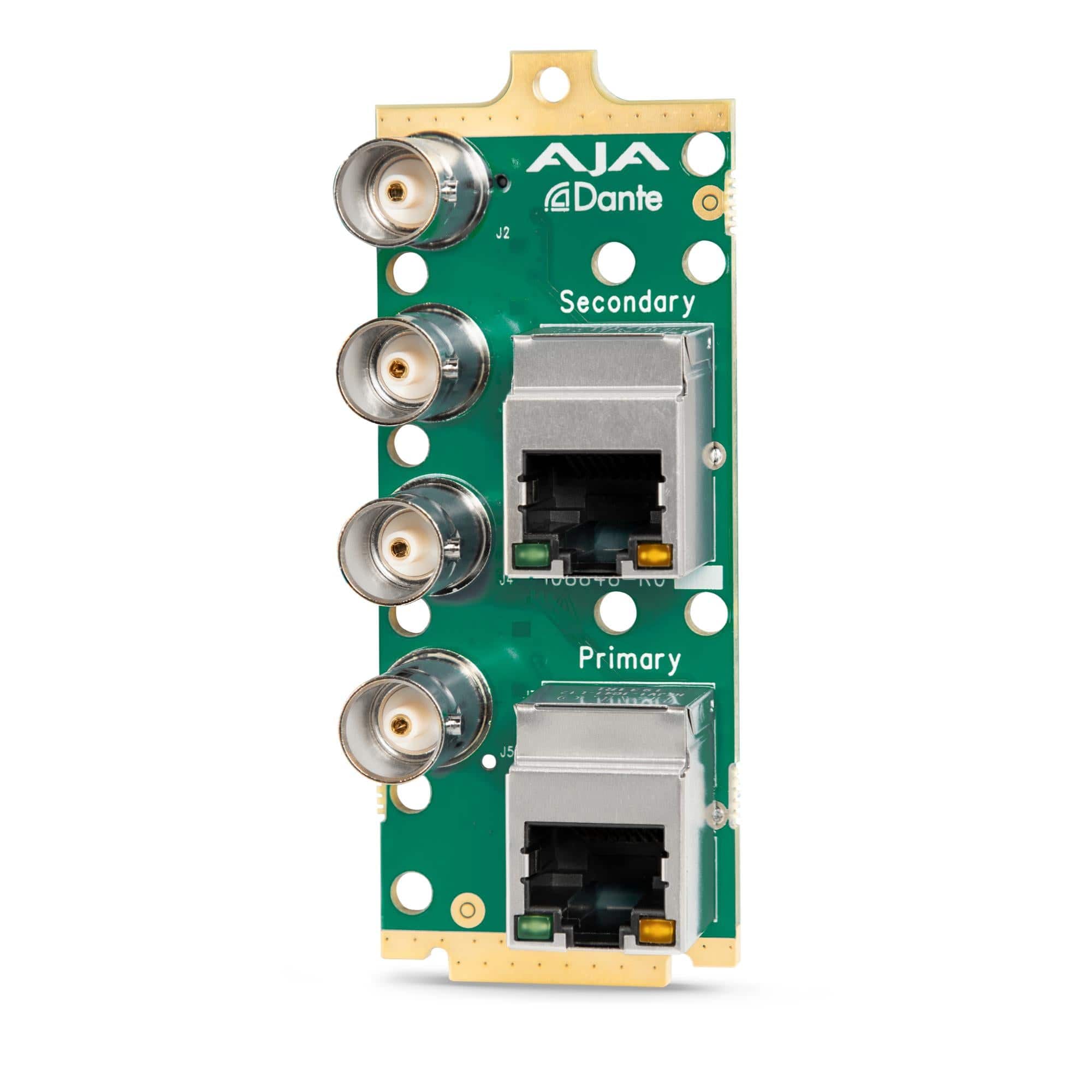

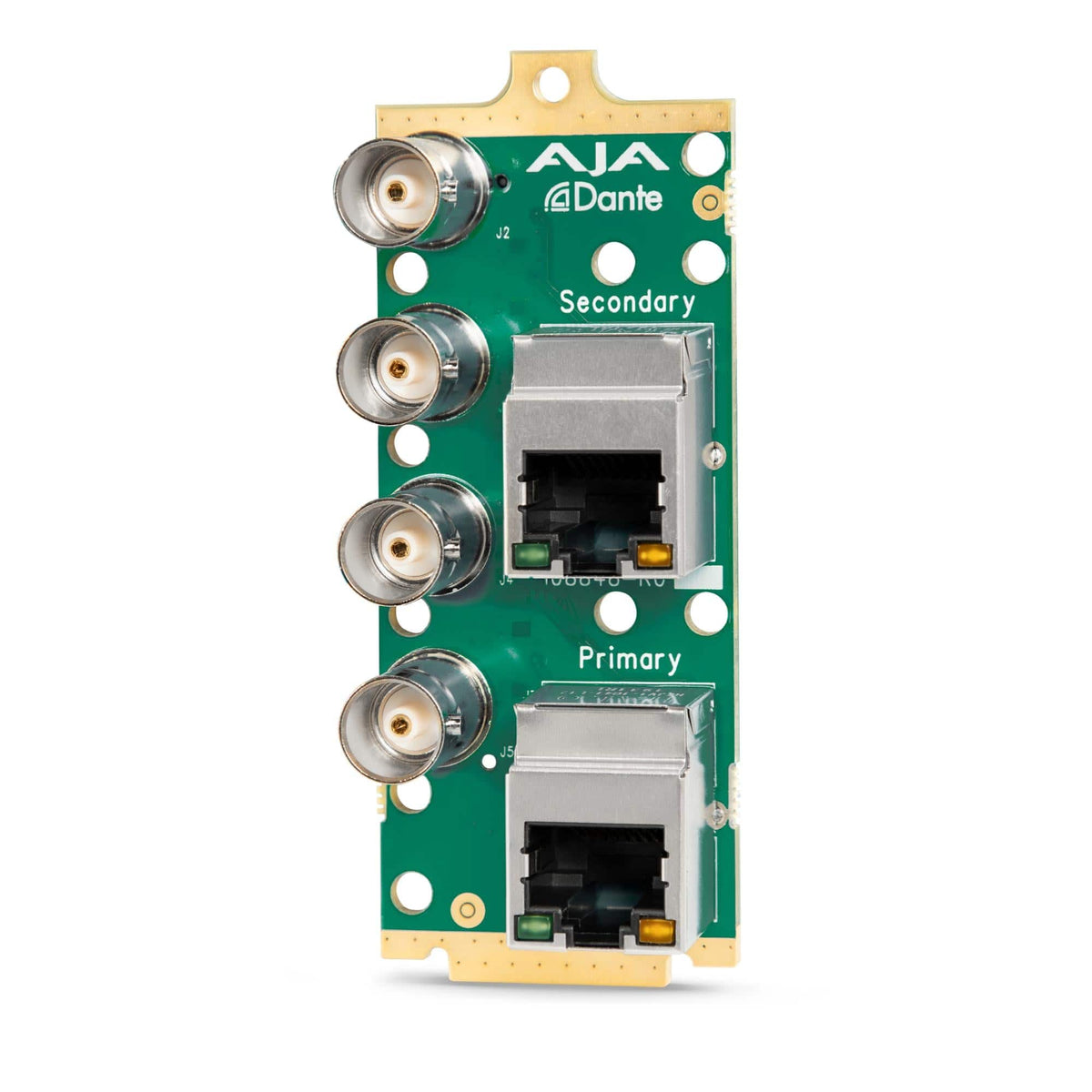

• Video I/O: 2x 12G-SDI BNC inputs and 2x 12G-SDI BNC outputs (single-link SD to 12G)
• Audio I/O (SDI): 16 embedded channels per SDI path (32 total)
• Audio I/O (Dante): 32 channels via Primary/Secondary Gigabit Ethernet
• Total audio capacity: 64 channels of simultaneous SDI/Dante bridging per card
• Control: Ross Dashboard and Audinate Dante Controller

Key Technical Notes

• Supported video formats: SD, HD, 2K, UHD, and 4K up to 60p
• Color support: RGB and YCbCr, 4:4:4 / 4:2:2, 10-bit
• Video latency: as low as 3.2 μsec at 12G/6G/3G Level A
• Audio latency: ~1500 μsec embed, ~1410 μsec disembed
• HDR: pass-through supported

Audio Standards & Performance

• Dante sample rates: 44.1, 48, 88.2, and 96 kHz
• Encoding: PCM 16-bit, 24-bit, and 32-bit
• SDI audio: SMPTE 299M (HD/3G/12G) and SMPTE 272M (SD)
• Audio handling: pass, remove, or override embedded SDI audio
• Reference: Free Run, external reference, or frame reference

Frame & Facility Fit

• Compatible frames: OG-X-FR and OG-3-FR openGear frames
• Slot usage: two openGear slots per card
• Power: openGear frame compatible, 15 W max per card
• Hot-swap capable for serviceability
• Warranty: five-year warranty

What’s In The Box

Package contents vary by configuration. Please refer to the Specifications tab for the exact included items.
