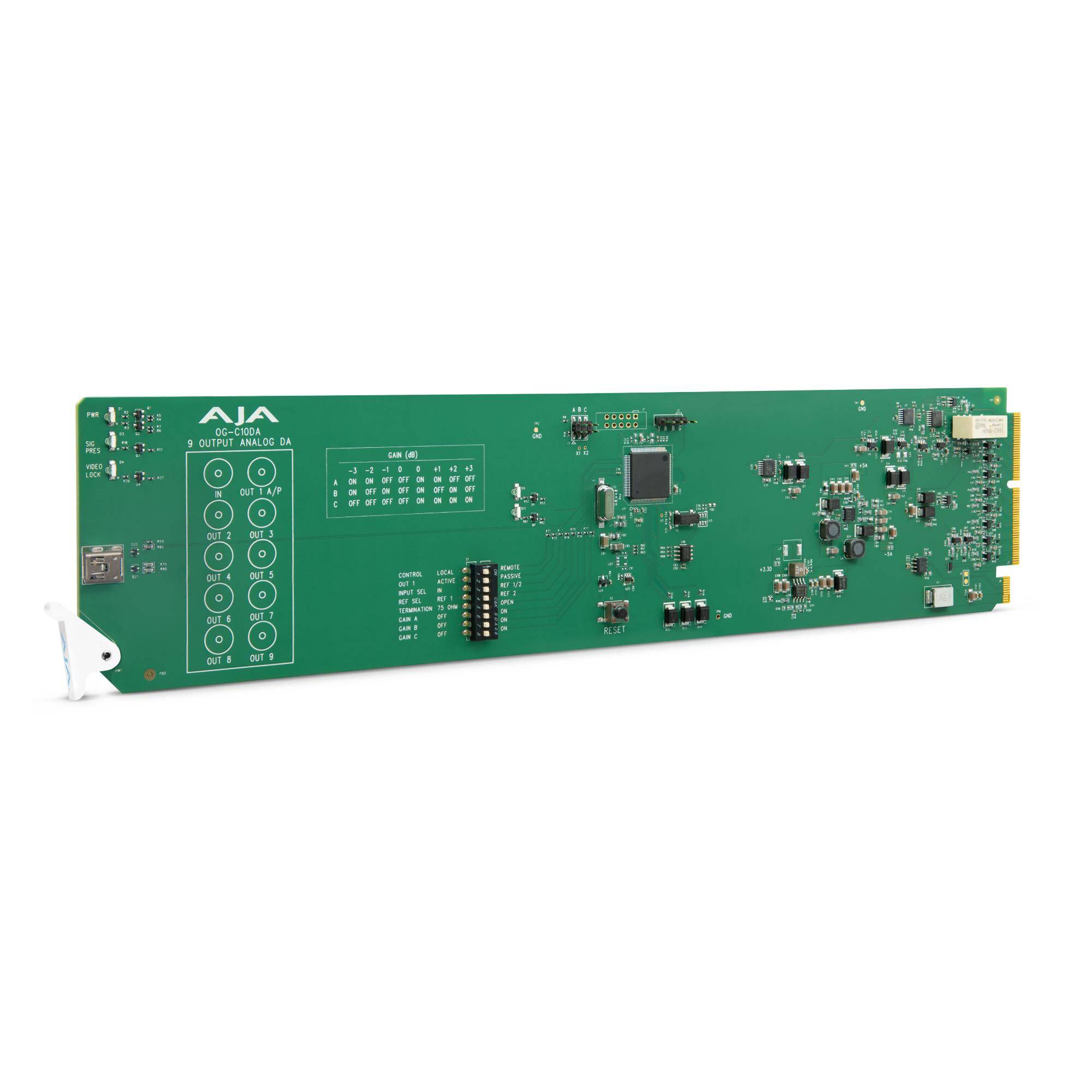

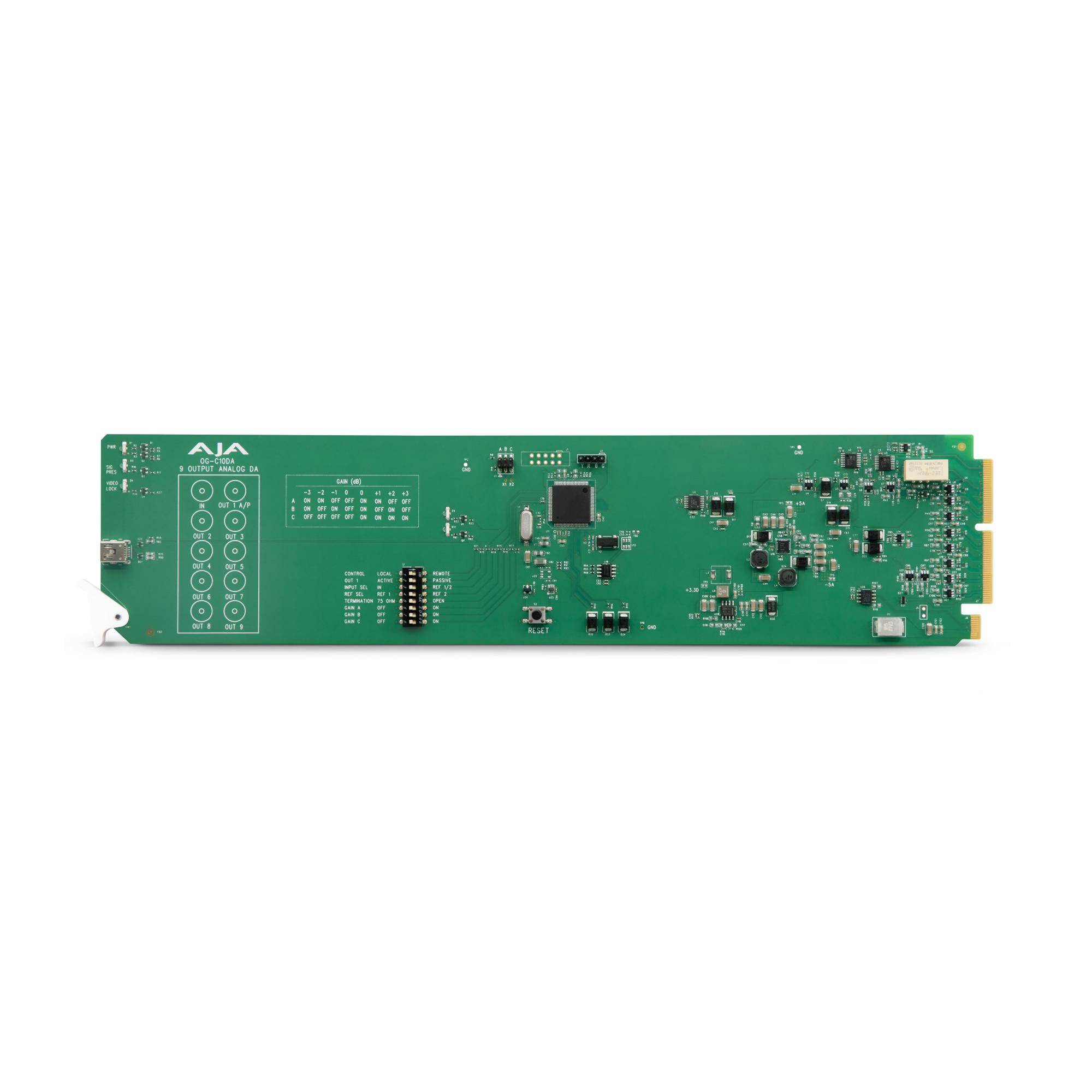

AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier

AJA OG-C10DA Analog Video 1x9 openGear Distribution Amplifier is a facility-grade utility card built for one job: take a single analog feed and distribute it to multiple destinations without level sag, loading problems, or the “why is this noisy today?” surprises that show up when analog gets chained the wrong way.

This is not just for composite video. OG-C10DA supports the signal types that still live in real plants and hybrid racks: NTSC, PAL, bi-level reference (blackburst), tri-level reference, AES3-id, and LTC. If you are distributing house reference, time-related signals, or legacy video paths across a rack, this card stays stable and predictable.

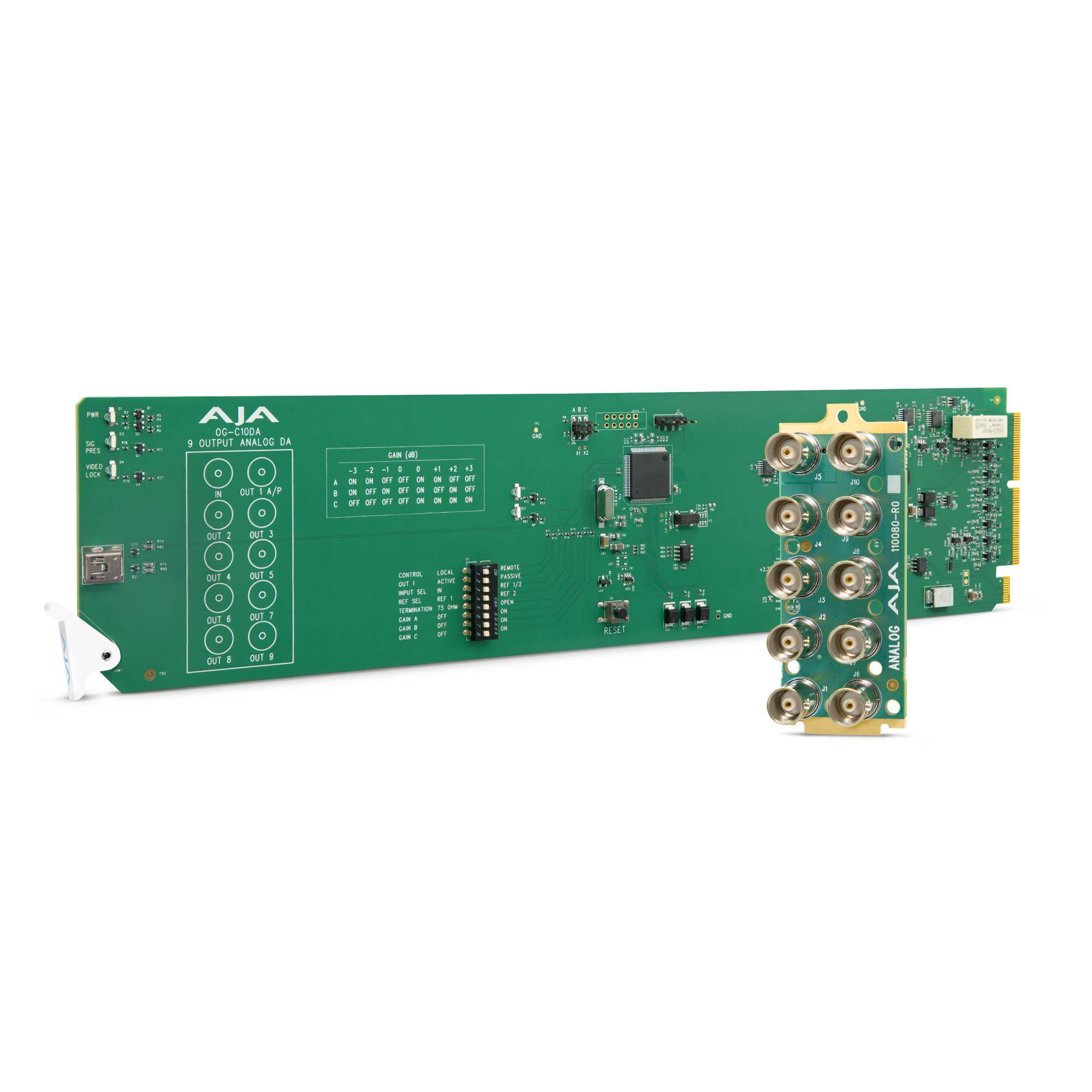

The I/O layout is practical: 1x analog input, a loop output, and 8 buffered BNC outputs. Termination is selectable (75 ohm or unterminated), so you can build the path correctly and gain trim runs from -3 dB to +3 dB to compensate for coax losses or normalize levels across destinations.

Control is straightforward in the field: local DIP switches for quick setup, plus Ross Dashboard support for remote monitoring and configuration when your openGear frame is on the network. The card is hot-swappable, frame-powered, and draws up to 6.75 W. One planning note that matters during frame layout: OG-C10DA is a two-slot card.

Highlights

• Facility-friendly analog DA: openGear 1x9 analog distribution for clean fanout
• Supports common plant signals: NTSC, PAL, bi-level, tri-level reference, AES3-id, and LTC
• Useful output count: 1 input, loop output, plus 8 buffered BNC outputs
• Set up controls that prevent problems: selectable termination and -3 dB to +3 dB gain trim
• Operational visibility: Ross Dashboard control plus local DIP switches, hot-swap capable

Quick Specs & Practical Uses

• Supported signals: NTSC, PAL, bi-level reference, tri-level reference, AES3-id, LTC
• Inputs: 1x BNC analog differential input
• Loop output: 1x BNC analog loop (active or passive)
• Outputs: 8x BNC analog outputs
• Termination: 75 ohm or unterminated (selectable)
• Gain trim: -3 dB to +3 dB
• Video bandwidth: 0 to 6 MHz +/- 0.1 dB
• Control: Ross Dashboard (Windows, macOS, Linux) and local DIP switches
• Power: openGear frame powered, 6.75 W max
• Form factor: openGear standard, two-slot width
• Typical deployments: house reference distribution, composite fanout, AES3-id or LTC distribution in broadcast and hybrid AV racks

What’s In The Box

Contents vary by bundle. Full specifications are provided in the specifications tab for the exact items included with this listing.
