| Product Specifications |
USB:
Port: 2x USB 3.0 Type-A port, 1x USB 3.0 Type-C port
SRT Stream:
Codec: H.264, H.265
RTMP Pull:
Codec: H.264, H.265
NDI® Stream:
NDI HX2 or NDI HX3
Codec: H.264, H.265
|
Mic/line in: 1 x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio input from HDMI port: 2-channel, 48 KHz, 16-bit
Audio input from USB port: 2-channel (only microphone supported)
Audio input from Bluetooth device:
2-channel, 48 KHz, 16-bit
Audio from SRT stream
Audio from RTMP stream
Audio from NDI stream
Audio embedded in video files
Background music (BGM): MP3, M4A, WAV files
|
Streaming and Recording:
Codec: H.264, H.265
Bitrate:
NDI HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 30.0Mbps, down to 256kpbs USB-C:
Port: 1 x USB 3.0 Type-C port
Output mode: DP-OUT, UVC/UAC
|
Streaming and recording: 2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
Headphone output: 1x 3.5mm jack, 2-channel, 48 KHz, 16-bit
Audio output via Bluetooth device: 2-channel, 48 KHz, 16-bit
Audio output via USB-C port: 2-channel, 48 KHz, 16-bit
Audio output via USB-A port: 2-channel, 48 KHz, 16-bit/24-bit/32-bit
|
Video Input:
Picture:
Format: JPEG/PNG/BMP
Video:
Resolution: Up to 4K
Codec: H.264, H.265
Format: MOV/MP4
HDMI:
Typical resolution/frame rate:
4096x2160p/3840x2160p 23.98/24/25/29.97/30/59.94/60
1920x1080p 23.98/24/25/29.97/30/50/59.94/60
1920x1080i 25/29.97/30
1280x720p 23.98/24/25/29.97/30/50/59.94/60
720x576p 50/100
720x576i 25/50
720x480p 59.94/60
720x480i 29.97/30
Color depth: 8/10/12-bit
Color sampling: RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2
USB:
Resolution/frame rate:
Single USB-A input: Up to 1920x1080p, 60fps
Single USB-C input: Up to 1920x1080p, 60fps
Dual USB-A input: Up to 1920x1080p, 50fps + 1920x1080p, 30fps
One USB-A input + one USB-C input: Up to 1920x1080p, 60fps + 1920x1080p, 60fps
Format: YUYV, MJPG, NV12
SRT Stream:
Resolution/frame rate: Up to 1080p, 60fps
RTMP Pull:
Resolution/frame rate: Up to 1080p, 60fps
RTMP Push:
Resolution/frame rate: Up to 1080p, 60fps
NDI® Stream:
Resolution/frame rate: Up to 1080p, 60fps
Video Output:
Streaming and Recording:
Resolution: 1080p, 720p, 540p, 360p (only for NDI)
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
Bitrate:
NDI HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 30.0Mbps, down to 256kpbs
Key frame interval: customizable
Profile: High profile, Main profile, Baseline profile
Bitrate mode: VBR, CBR
USB-C:
Output mode: DP-OUT, UVC/UAC
Resolution: 1920x1080
Frame rate: 60fps, 50fps
Sampling format: RGB 4:4:4
|

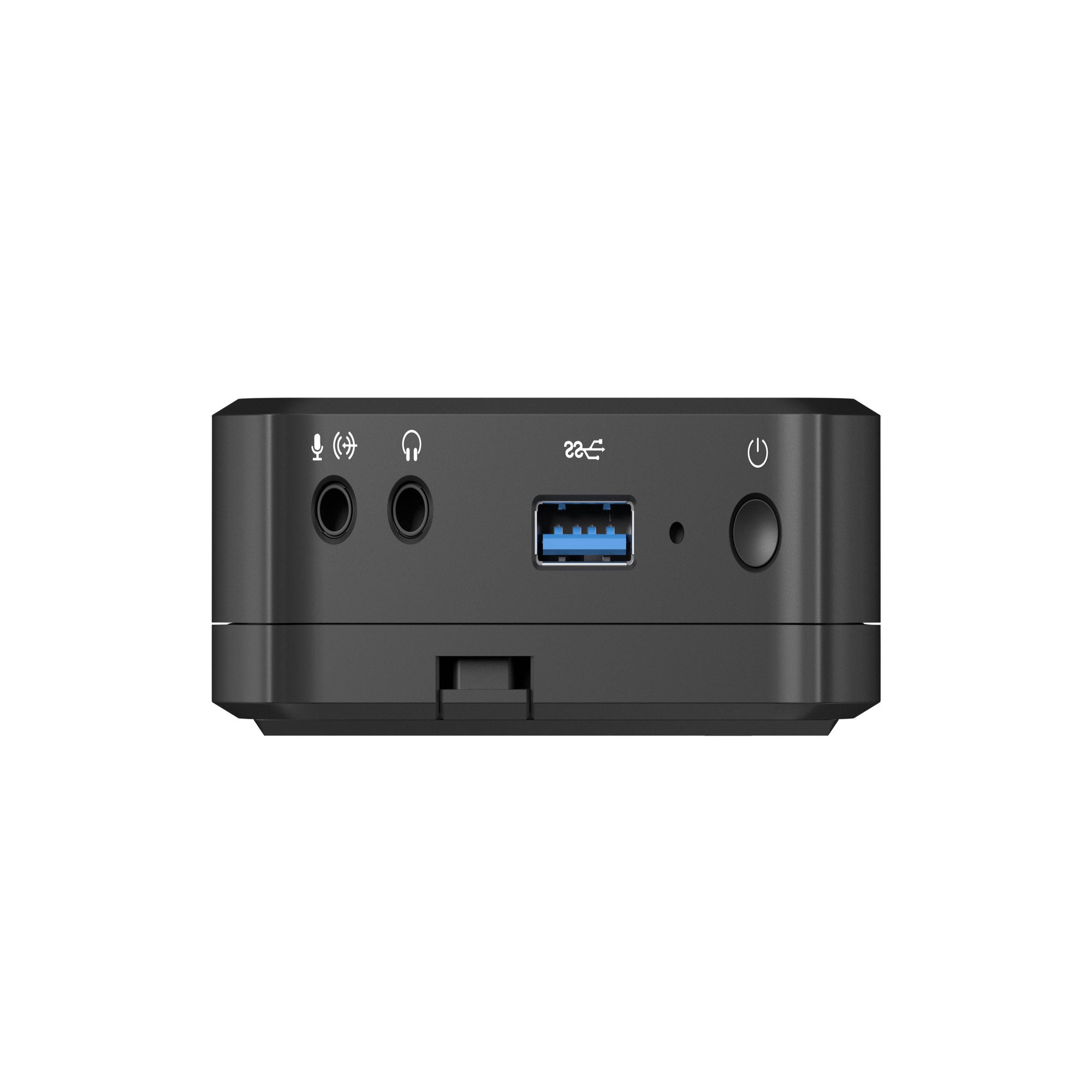

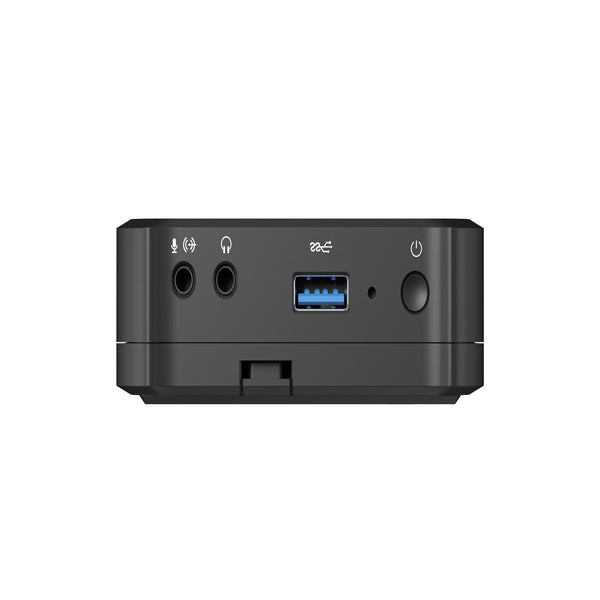

Features of USB-A Port
Connect to a USB A/V device, such as webcam, USB microphone, USB speaker, etc
Connect to a USB modem
Connect to a USB flash drive
· To transfer video, picture, audio and other media files, firmware update files, log files, etc
· Supported system format: FAT32, exFAT and NTFS
Connect to a USB keyboard for shortcuts Features of USB-C Out Port
Connect to an external screen
· Connection mode: Connect the device to a monitor with a USB-C to HDMI/VGA/DP adapter
· A/V display mode options: Clean Program, Preview, Multi-view, Duplicate Screen, Loop HDMI 1, Loop HDMI 2
· Image rotation: Rotate 90° to left, or rotate 90° to right
· Supports using an external touchscreen to control the device in the Duplicate Screen mode
Connect to a computer
· MTP mode: Transfer video, picture, audio and other media files, firmware update files, log files, etc.
· UVC/UAC mode[1]: Output audio and video to streaming software Features
Show:
Supports creating multiple shows in landscape (16:9) or portrait (9:16) mode, and manage them
Supports creating a shows at 60/59.94/50/30/29.97/25/24/23.98 fps
Scenes:
Supports creating multiple scenes in a show, and managing them
Supports adding various sources, including HDMI, Webcam, video, picture, RTMP stream, SRT stream, NDI stream, text and color
Supports multi-view composition in one scene
Provides lots of editing tools, including chromakey, crop, transition, etc
Supports switch scenes directly or preview at first and then switch
Supports switching scenes with an instant cut or fade effect
Audio:
Supports displaying level and peak through audio meter
Supports adjusting the level of each input audio, output and monitor audio
Supports global or scene-based settings for audio input sources
Supports AFV (Audio-follow-video)
Supports solo monitor
Supports switching monitor device
GFX:
Supports multiple GFX types, including title, lower third, animated text, digital clock, analog clock, bullet list, social media, logo, scoreboard, timer, stopwatch, custom picture and text
Supports HTML graphics
Supports displaying multiple GFXs, and managing them
Supports controlling scoreboard, timer and stopwatch in real time
BGM: Supports adding BGM for each scene and controlling in real time
Pen: Annotates on the screen in real time
PTZ Control:
Supports controlling PTZ camera via the network, supporting Visca UDP, supported sources including HDMI, Webcam (UVC camera), SRT stream, RTMP stream, and NDI stream
Live Stream:
Natively supports streaming to YouTube, Twitch and Facebook Live
Supports selecting RTMP or HLS protocol for streaming to YouTube
Supports streaming via SRT, RTMP and RTMPS protocols
Supports two NDI® HX3 outputs, supporting NDI Tally lights
Supports customizing encoding parameters and selecting the encoding source (Program, HDMI, Webcam) for ISO streaming
Supports streaming to two destinations simultaneously
Supports sending live comment as an overlay into the video feed when streaming to social media
Record:
Supports customizing encoding parameters
Supports ISO recording, to record two of different sources simultaneously, or record two-channel images with different quality for one source, and supported sources include Program, HDMI, Webcam as well as NDI|HX2 and NDI|HX3 stream
Supports saving recording files in MP4 or MOV format to local storage or SD card
Supports saving screenshot files in PNG format to local or SD card
Supports splitting recording files by time or size, up to 4 hours or 16G
Supports exporting or downloading files through computer, SD card, USB flash drive, or Web UI LED Light
Tips: The two back LED lights can be set as battery indicators or NDI tally lights.
Battery Indicators (default):
Green: 50% - 100%
Orange: 25% - 50%
Red: <25%
Off: depleted
NDI Tally Lights:
Red: the NDI streaming signal is in PGM view.
Green: the NDI streaming signal is in PVW view
|
|
Local Storage: 64GB
SD Card (not supplied): FAT32 (Under 128G), NTFS, exFAT
|
Supports Ethernet, Wi-Fi and Cellular

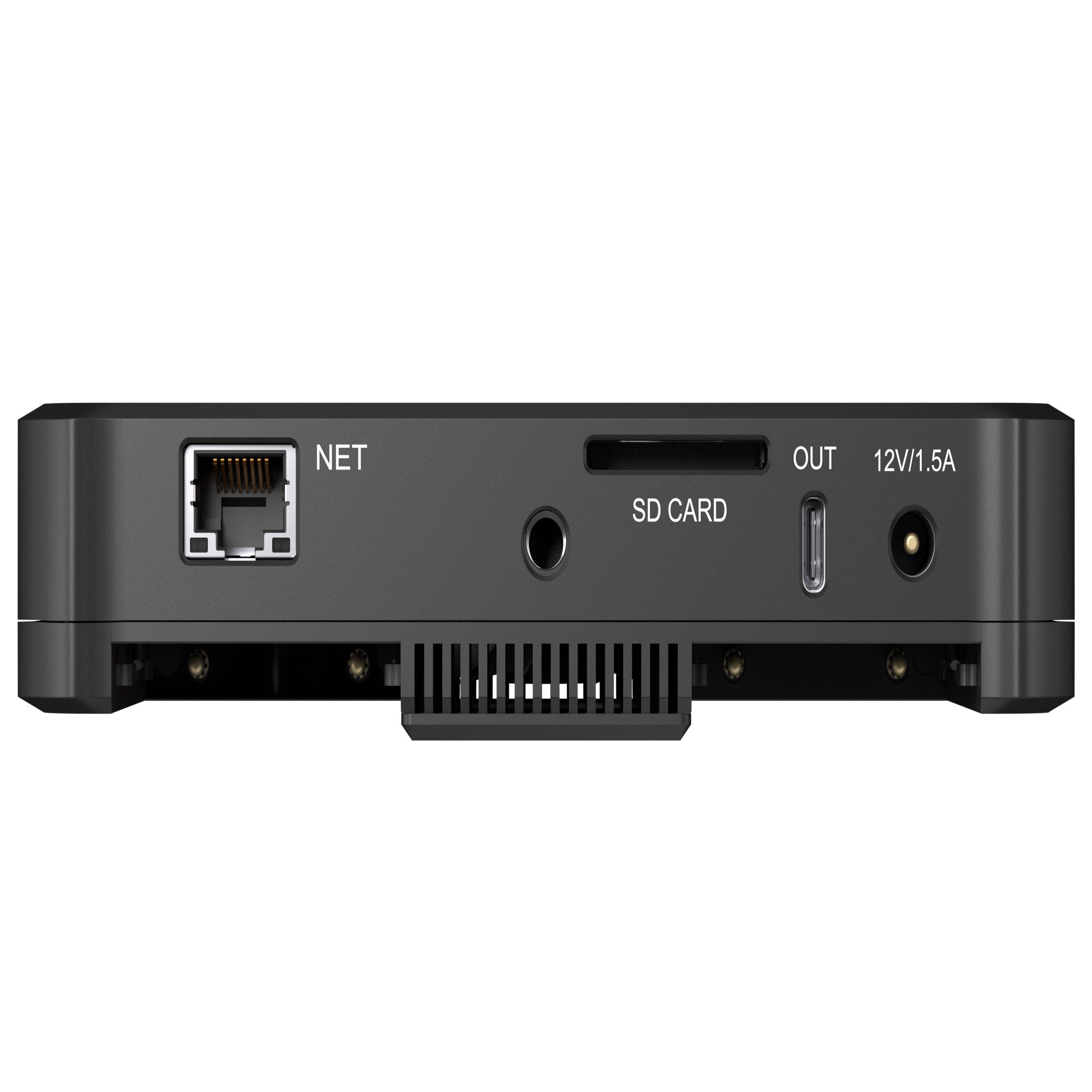

Ethernet: 1x RJ45 port, 10/100/1000 Mbps Base-T
Wi-Fi: 2.4G/5G, Station and Hotspot modes supported
Cellular: USB modem supported (not supplied)
Supports Bluetooth for audio input or output with Bluetooth devices, and also supports Bluetooth keyboard, etc.
Bluetooth: BT 5.0
|
Video Output:
Streaming and Recording:
Codec: H.264, H.265
Resolution: 1080p, 720p, 540p, 360p (only for NDI)
Frame rate: 60/59.94/50/30/29.97/25/24/23.98/15 fps (Encoding options change along with the frame rate of the show.)
Bitrate:
NDI HX3: up to 62.0Mbps, down to 1.5Mbps
Others: up to 30.0Mbps, down to 256kpbs
Key frame interval: customizable
Profile: High profile, Main profile, Baseline profile
Bitrate mode: VBR, CBR
Audio Output:
Streaming and recording:2-channel, 16-bit, 48 KHz, aac, 64kbps/96kbps/128kbps
|

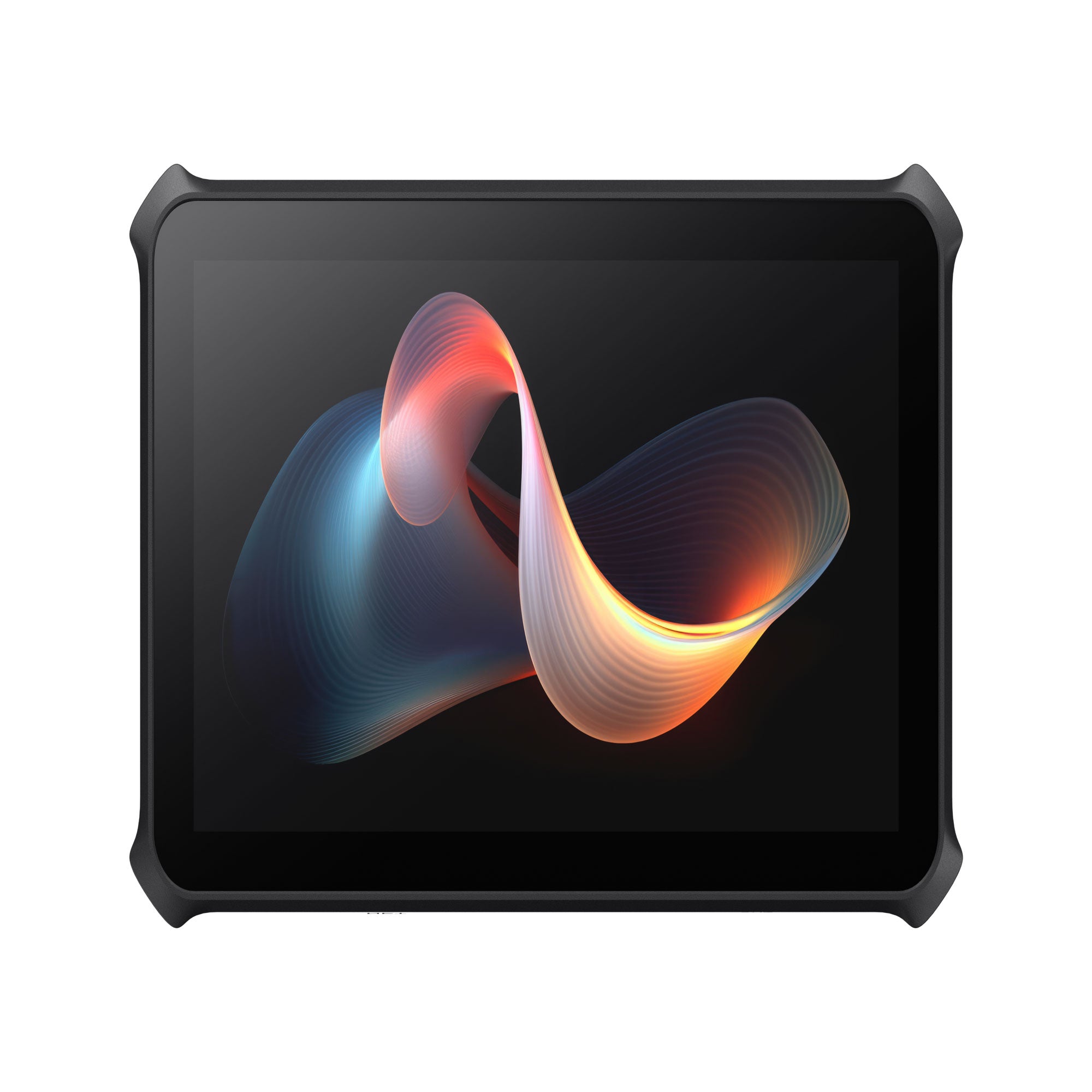

| Display |
Type: AMOLED
Color Depth: 8-bit
Contrast Ratio: 6000:1
Refresh Rate: 60Hz
Viewing Direction: All
PPI: 405
Touchscreen: Capacitive
Screen Coating: Anti-fingerprint coating
|
|
1920x1080
|
|
350 nits
|
|
105% NTSC
|
| Power Specifications |
AC Power:
Power input: 12V/1.5A
Maximum power consumption: 15W
|

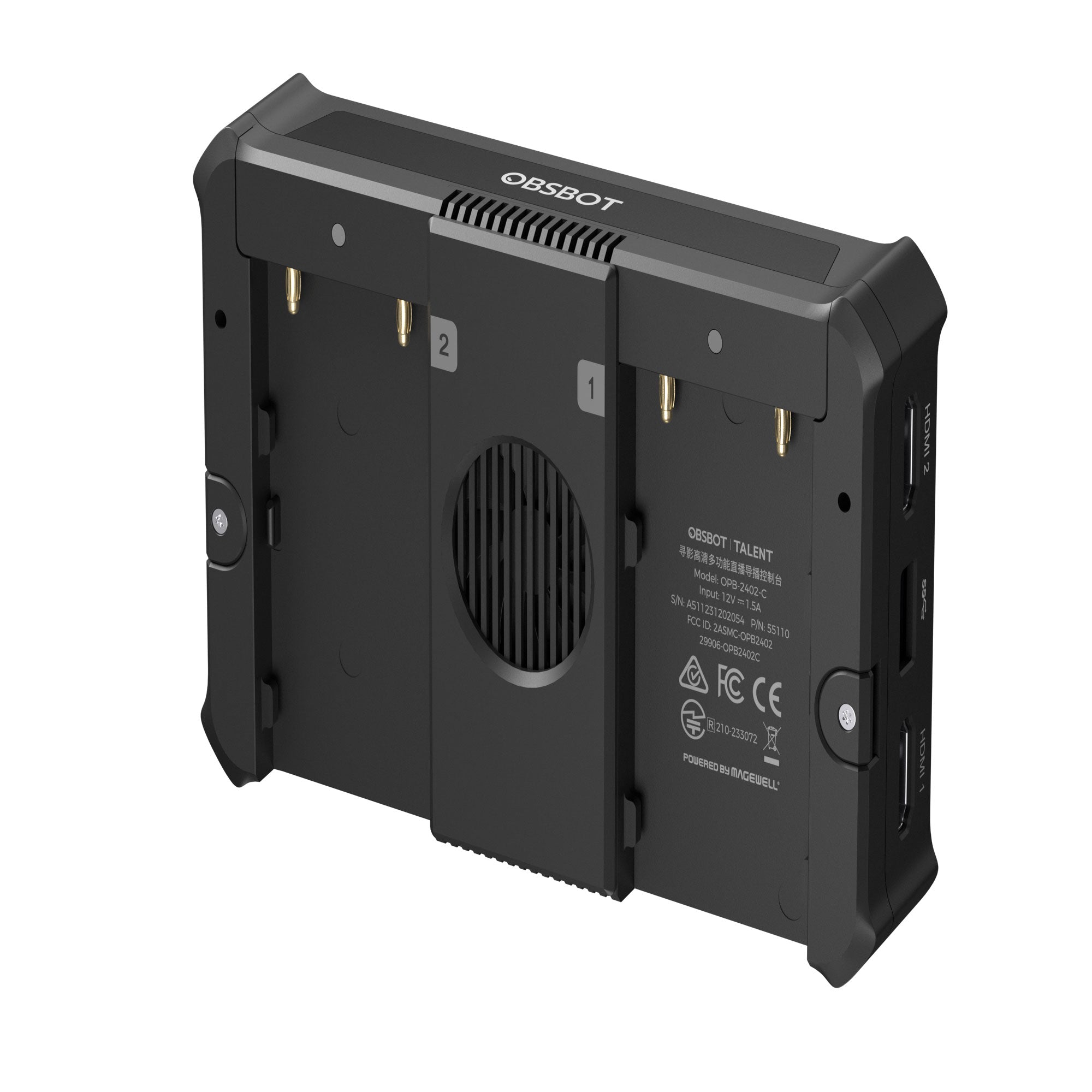

Battery Pack:
2x DC 7.4V (NP-F battery packs, not supplied)
Hot swappable
|
| Physical / Environmental Specifications |
Size: 147.2mm x 90mm x 28.5mm
Weight:
With Stand: 495.2g/1.1 lbs
Without Stand: 402.9g/0.90 lbs
|
|
Operating Temperature: –10 to 50 deg C (AC power)
Storage Temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
|
|
1-Year Manufacturer Warranty
|
