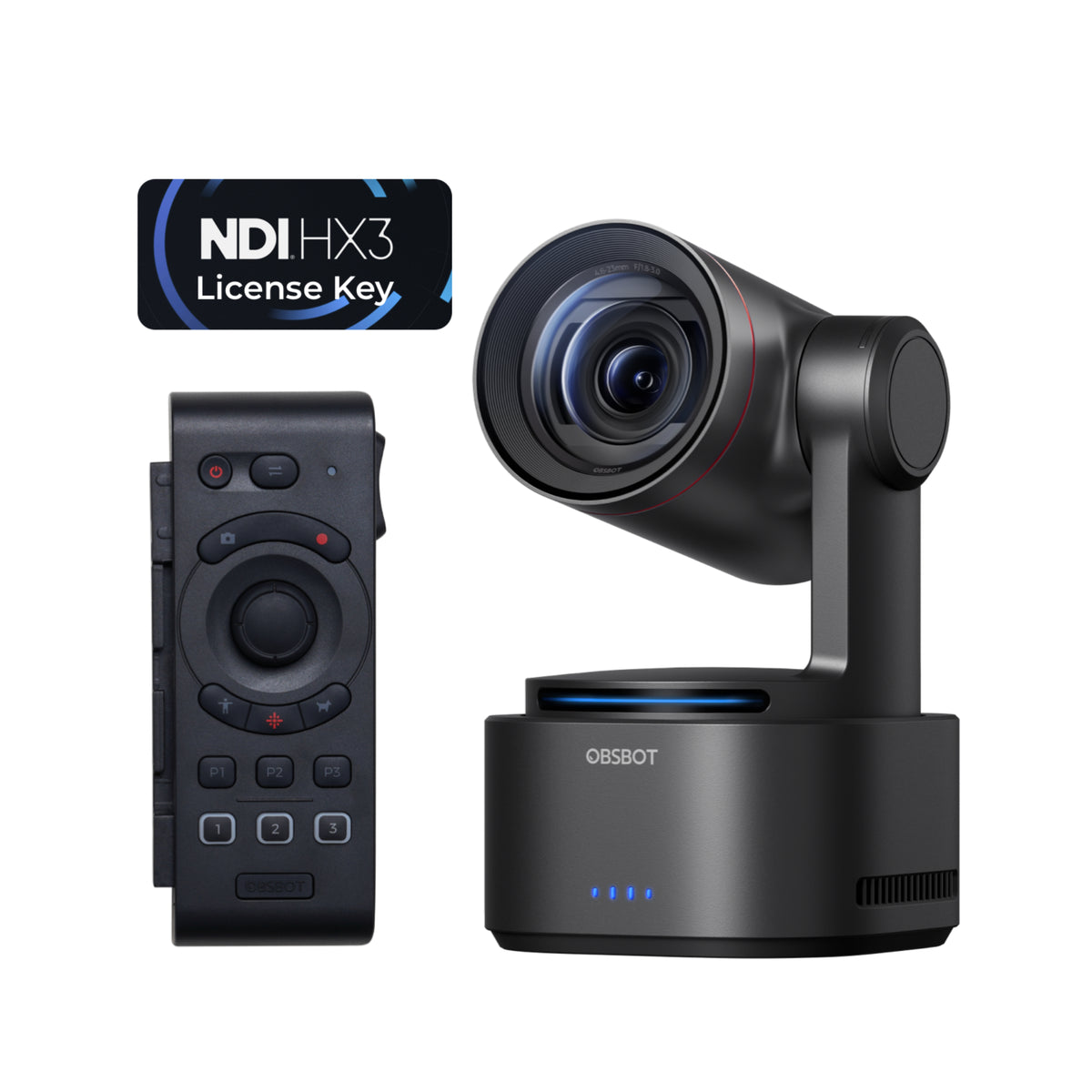

OBSBOT Tail 2 Remote Combo - NDI Activated

OBSBOT Tail 2 Remote Combo - NDI Activated is the kind of robotic camera that makes sense when a production needs more than a simple tracking camera but still wants a compact footprint. Based on the image source, it combines a 1/1.5-inch CMOS sensor, 50 MP effective pixels, 5x optical zoom, 12x hybrid zoom, and a non-removable 3-axis gimbal with broad connectivity that includes HDMI 2.0, 3G-SDI, USB-C 3.0, RJ45 Gigabit Ethernet with PoE+, and network video support for NDI, RTSP, and SRT.

Highlights

• 1/1.5-inch CMOS sensor with 50 MP effective pixels
• 5x optical zoom plus 12x hybrid zoom
• 4K60 recording with NDI / RTSP / SRT, HDMI 2.0, and 3G-SDI
• 3-axis gimbal with pan ±160° and ≤0.003° angle jitter
• PoE+, Gigabit Ethernet, Wi-Fi 6, Bluetooth 5.4, and RS232 control

Quick Specs & Uses

• Working dimensions: 97.5 × 103.5 × 155 mm
• Off-state dimensions: 97.5 × 103.5 × 172 mm
• Weight: 1.066 kg
• AI chip: integrated AI chip with trillions of calculations per second
• Sensor: 1/1.5-inch CMOS
• Effective pixels: 50 million
• Resolution: 8192 × 6144 effective pixel resolution
• Zoom: 5x optical, 12x hybrid
• Aperture: f/1.8 to f/3.0
• Focus: auto focus and manual focus
• Equivalent focal length: 22 mm to 110 mm
• ISO range: 100 to 6400
• White balance: 2000K to 10000K
• Gimbal control range: pan ±160°, tilt -60° to 32°, roll -120° to 120°
• Mechanical range: pan ±175°, tilt ±90°, roll -135° to 135°
• Max controllable speed: 120°/s
• Angle jitter: ≤0.003°
• Video interfaces: 1 x HDMI 2.0, 1 x 3G-SDI, 1 x USB-C 3.0
• Network interface: 1 x RJ45 10/100/1000 Mbps Ethernet with PoE+
• Network video protocols: NDI, RTSP, SRT
• Audio inputs: 1 x mic in, 1 x line in via 3.5 mm TRS AUX
• Control interfaces: RS232 input and output, VISCA / Pelco-D / Pelco-P, USB-C 3.0 with UVC
• Wireless: Wi-Fi 6, BLE 5.4
• PoE: IEEE 802.3af/at, max supported input power 30W
• Battery: 5000 mAh Li-po, 38 Wh, 7.6V
• Operating time: 343 minutes under the listed 1080p/30fps lab conditions
• Charging time: 211 minutes when powered off
• Storage: MicroSD, up to 1TB
• Supported file system: FAT32, exFAT
• Video format: MPEG, H264, H265
• Apps: Obsbot Start, OBSBOT Center, Obsbot Live
• Auxiliary function: Gesture Control
• Operating environment: camera, battery charging, and battery operating ambient temperature -10°C to 40°C

Why It Helps

This camera helps when the workflow needs more than a simple robotic head or a basic streaming camera. It gives you AI-assisted operation, stabilized gimbal movement, professional video outputs, network transport, serial control, onboard battery operation, and software-friendly UVC connectivity in one compact unit. That makes it easier to use the same camera across studio, event, education, house of worship, and hybrid live production environments.

System Characteristics

• A broad output mix makes the camera easier to place in both traditional and IP-based production workflows
• 3-axis gimbal design gives the system more natural motion control than a static compact camera
• 5x optical zoom with 12x hybrid zoom supports both wider room coverage and tighter subject framing
• RS232, VISCA, Pelco-D, and Pelco-P support help the unit fit established control environments
• Battery, PoE+, Wi-Fi 6, and Gigabit Ethernet give the camera more deployment flexibility than many fixed-location production cameras

What’s In The Box

1 x OBSBOT Tail 2 [Pack]
1 x OBSBOT Tail Air Smart Remote Controller
