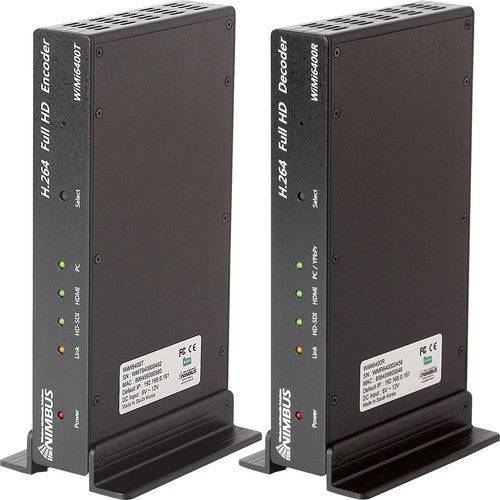

Nimbus WiMi6400 H.264 3G-SDI, HDMI and VGA Transmission Kit

The Nimbus WiMi6400 H.264 3G-SDI, HDMI, and VGA Transmission Kit allow you to transport video signal and output SD/HD/3D-SDI and HDMI up to 1080p60 resolution. It features H.264 (MPEG-4 Parts10: AVC), SD/HD/3G-SDI interface compliant with SMPTE, 2-channel Linear-PCM and G.711 compressed audio and Backchannel audio. You can save bandwidth cost by Multicasting, there are limits on the number of receivers with a multicast IP address.

WiMi6400R features:

• Simultaneous decoding and streaming
• Save cost with single video delivery over a public IP network for video distribution without multiple video transmissions.
• Watch the video with your PC over Ethernet LAN (IP)
• Maximum 32 RTSP clients with the limited encoding rate (unicast IP)
• No limits on the number of RTSP clients (multicast IP)
• PC, Tablet PC or Smart Phone (through wireless AP)
• Ethernet/IP Network: VGA/HDMI/HD-SDI (Broadcasting)

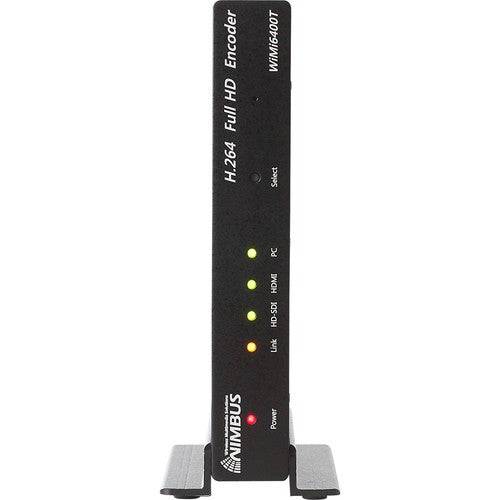

Encoder/Transmitter
The Nimbus WiMi6400T is an H.264 Full HD Encoder/Transmitter with SD/HD/3D-SDI and HDMI interface. The WiMin6400 is designed for professional video producers who need to simultaneously stream a live event. It features SD/HD/3G-SDI and HDMI inputs, SMPTE, 2-channel Linear-PCM, and G.711 compressed audio. You can save bandwidth cost by Multicasting, there are limits on the number of receivers with a multicast IP address. The WiMi6400T can transmit video signals up to 1080p60 over Ethernet/Internet with only 80ms Latency.

The user can Live Stream their event from a camera, CCTV or a PC over the internet. The WiMi6400T enables Full HD live streaming servers such as MPEG-2 TS/UDP and RTSP. This Decoder is ideal for Digital Signage, Control Room, Medical Imaging, Full HD Live Streaming, RTSP/MPEG-2 TS Server and Education/Multi-Vision. The Transmitter encodes the input signal in H.264. Using optional dedicated software, you can watch the H.264 signal live on your computer by entering in the IP address.

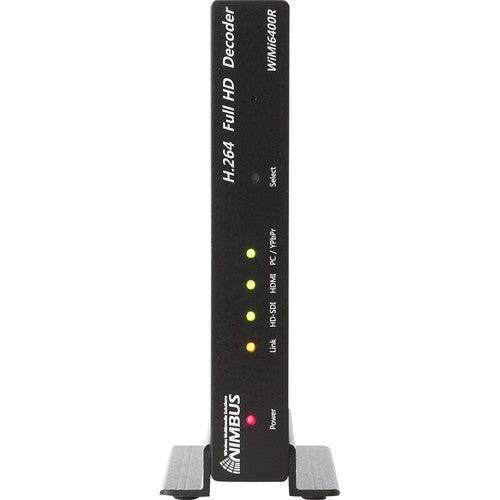

Decoder/Receiver
The Nimbus WiMi6400R is an H.264 Full HD Receiver/Decoder with SD/HD/3D-SDI/HDMI interface. The WiMin6400R decodes common protocols such as RTSP/MPEG-2 TS and can output SD/HD video at resolutions up to 1080p60 with only 80ms Latency. It features an SD/HD/3G-SDI Output, HDMI output, 2-channel Linear-PCM, and G.711 compressed audio. You can save bandwidth cost by Multicasting, there are limits on the number of receivers with a multicast IP addresses.

The user can Live Stream their event from a camera, CCTV or a PC over the internet. The WiMi6400 enables Full HD live streaming servers such as MPEG-2 TS/UDP and RTSP. This Encoder is ideal for Digital Signage, Control Room, Medical Imaging, Full HD Live Streaming, RTSP/MPEG-2 TS Server, and Education/Multi-Vision. The WiMi6400R delivers excellent image quality with very low delay and can operate on standard 10/100Mb Ethernet networks.
