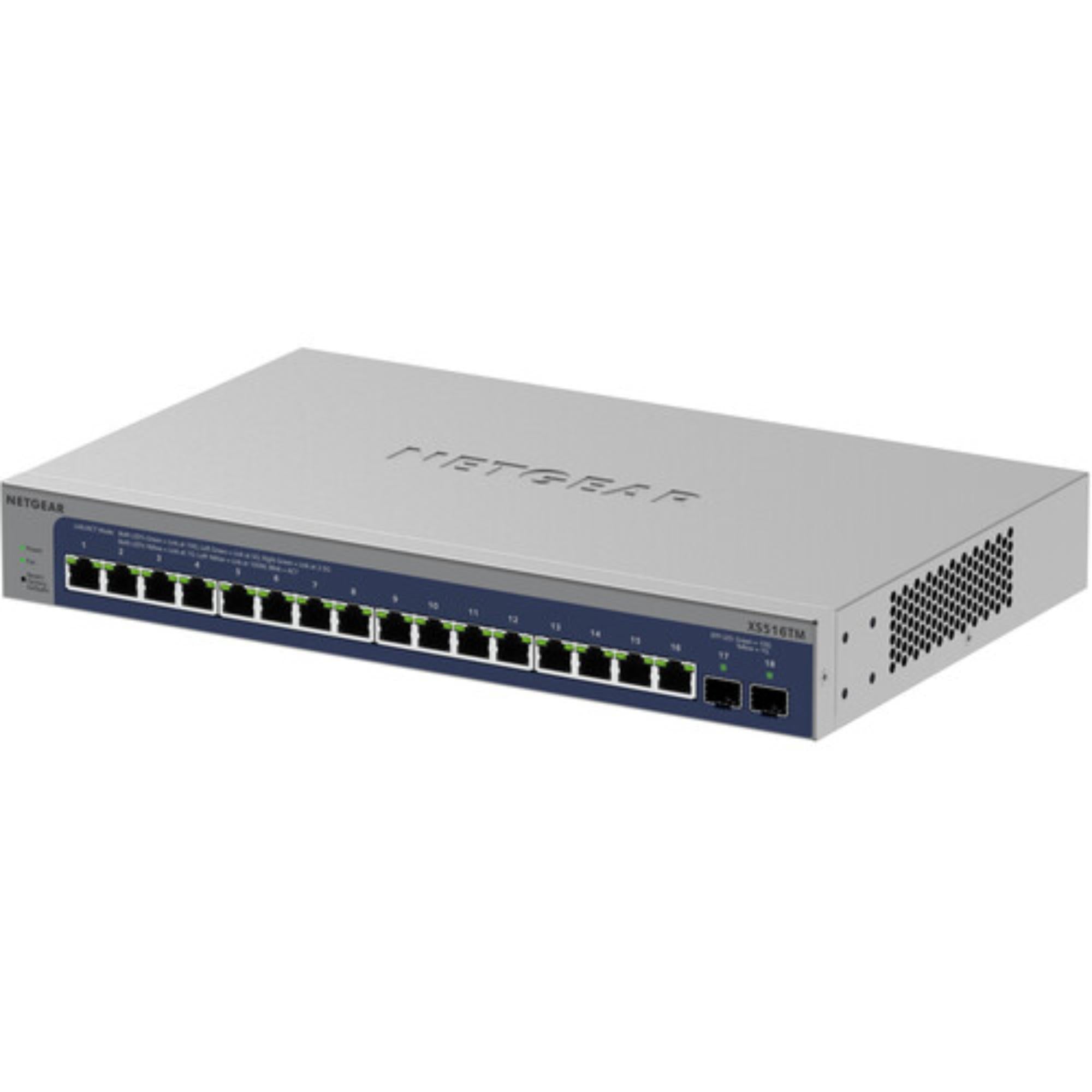

NETGEAR XS516TM 16-Port 10G Managed Network Switch

NETGEAR XS516TM 16-Port 10G Managed Network Switch is built for environments that need dense 10G and Multi-Gig copper connectivity without stepping into oversized or unnecessarily loud hardware. Based on the source details, this switch combines 16 x 10G or Multi-Gigabit ports with 2 x 10G SFP+ uplinks in a compact chassis, making it a strong fit for high-throughput technical networks where copper access and fiber uplink flexibility both matter.

Highlights

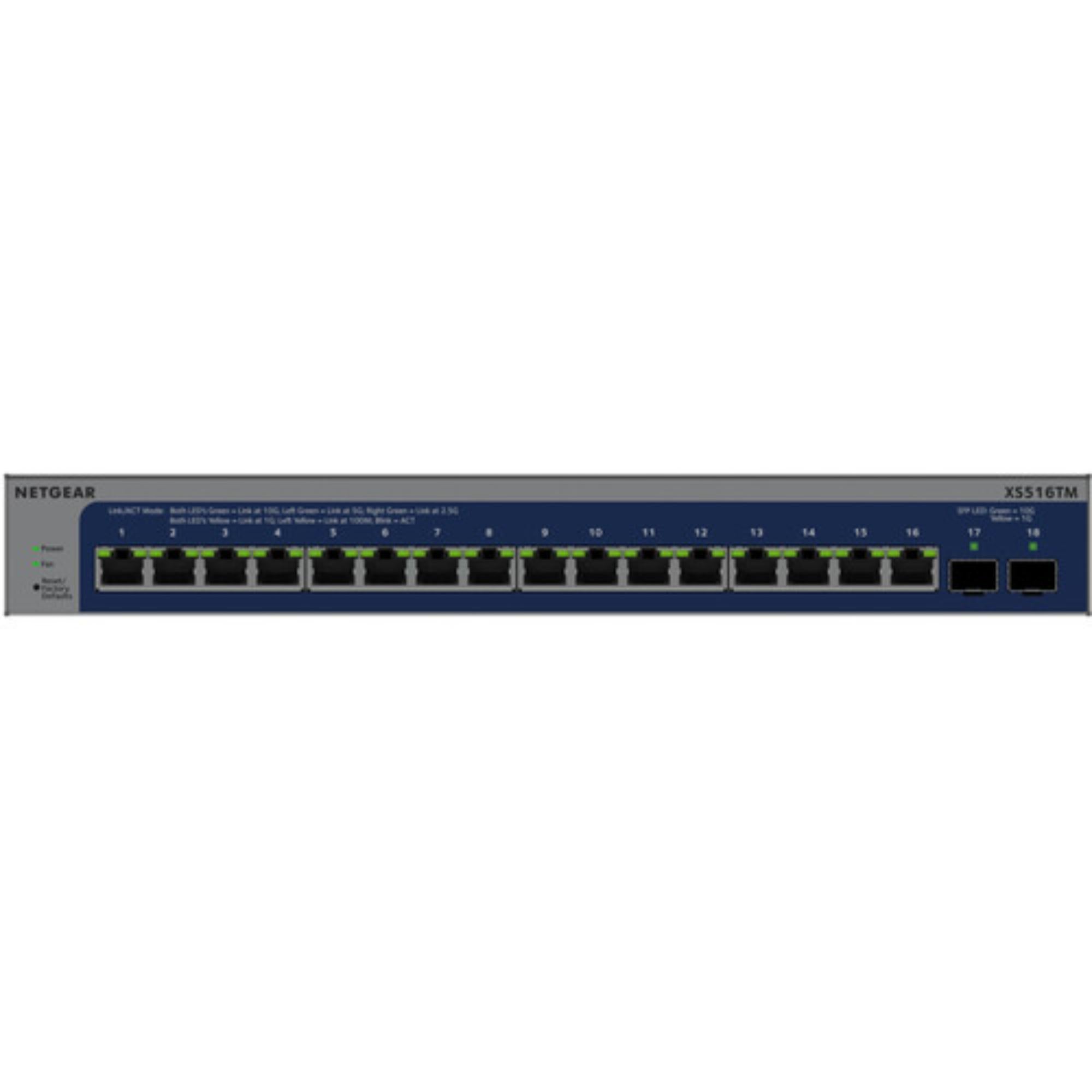

• 16 x 10G or Multi-Gigabit ports for dense high-speed copper connectivity
• 2 x 10G SFP+ ports for uplinks and inter-switch links
• Supports 512 VLANs with VLAN routing and dynamic VLAN assignment
• MLD Snooping, static routing, and DoS prevention for more structured network control
• Quiet operation rated at 27.35 dBA at 25°C

Quick Specs & Uses

• Width: 330 mm (13 in)
• Depth: 206 mm (8.12 in)
• Height: 43 mm (1.71 in)
• Weight: 2.45 kg (5.4 lb)
• 10G / Multi-Gigabit ports: 16
• 10G SFP+ ports: 2
• Max MAC entries: 16K
• Buffer size: 4 MB
• VLANs supported: 512
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static route: Yes
• Host ARP table: 1024
• EEE: Yes
• DoS prevention: Yes
• Power supply: Internal power supply
• Max consumption: 63.9W
• Fans: 3
• Acoustic noise level: 27.35 dBA at 25°C
• Operating temperature: 0° to 50° C
• MTBF: 506,741.9 hours (57.8 years)

Why It Helps

In real high-throughput networks, some switches need to support a large number of copper-connected devices while still leaving room for fiber uplinks and proper traffic segmentation. The XS516TM fits that role well, combining dense 10G copper connectivity, 10G SFP+ uplinks, and a managed feature set that supports more structured network design in a compact form factor.

System Characteristics

• Dense 10G and Multi-Gig copper layout supports endpoint-heavy high-speed networks
• 10G SFP+ uplinks add flexibility for fiber handoff and inter-switch links
• VLAN routing and dynamic VLAN support help organize more complex network designs
• Lower 27.35 dBA acoustic noise makes placement easier in quieter technical spaces
• Internal power supply supports cleaner integration than external power adapters

What’s In The Box

Please refer to the Specifications tab for the exact included items.
