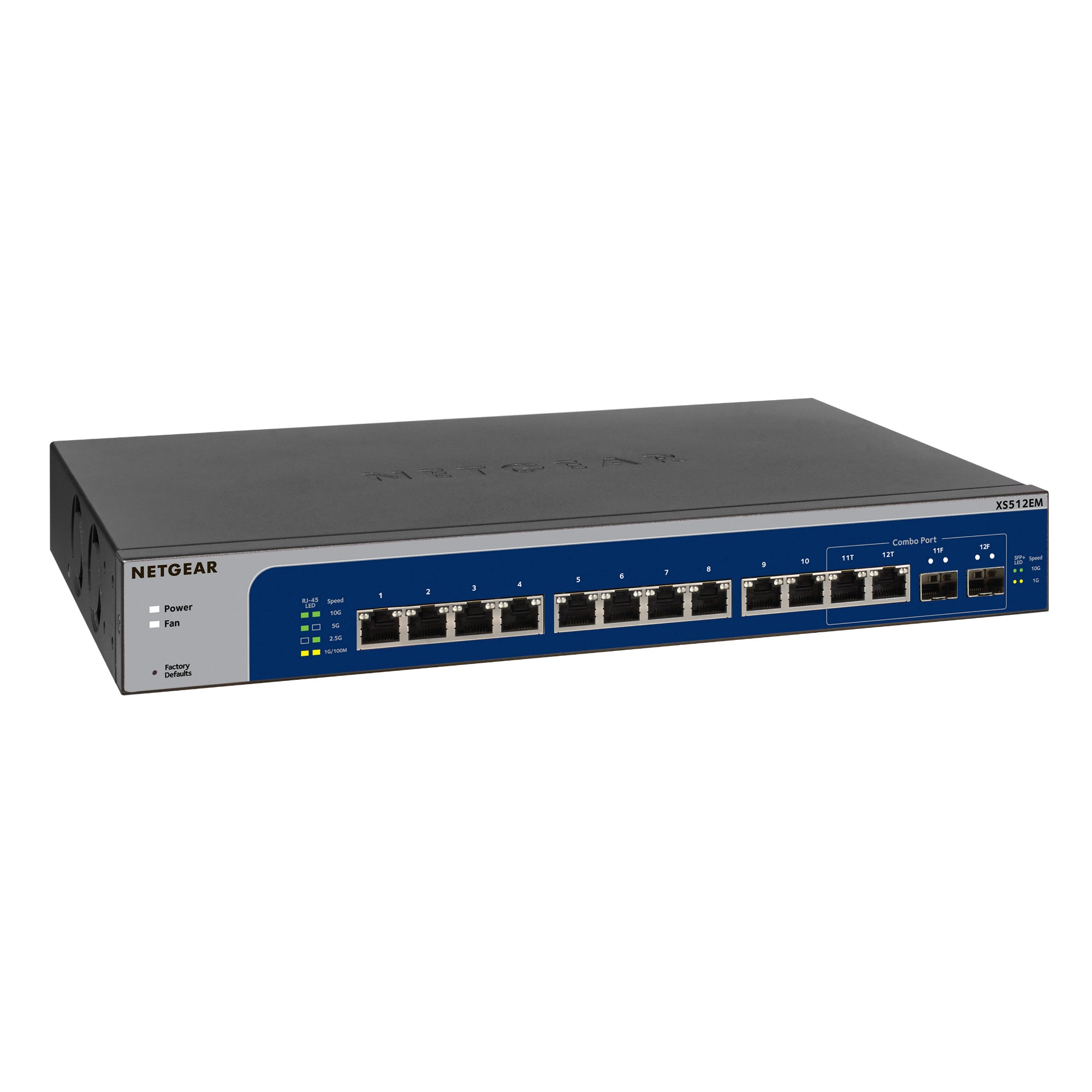

NETGEAR XS512EM 12-Port Gigabit Managed Smart Cloud Switch

NETGEAR XS512EM 12-Port Gigabit Managed Smart Cloud Switch is the kind of switch that fits when a network needs more than standard Gigabit, without jumping straight into a much larger core chassis. Based on the image source, it provides 12 RJ-45 copper ports supporting 100M, 1G, 2.5G, 5G, and 10G, plus 2 shared SFP+ ports for uplink flexibility. The source also lists 240Gbps bandwidth, which gives the switch a practical role in installations where endpoint speeds are mixed, and the backbone needs more headroom.

Highlights

• 12 multi-gig RJ-45 copper ports supporting speeds from 100M to 10G
• 2 shared SFP+ ports for fiber or higher-speed uplink use
• 240Gbps bandwidth for higher-throughput switching
• Supports 64 VLANs, 8 LAGs, and 128 multicast groups for structured network design
• Rackmount form factor with 2 active fans and low-listed acoustic noise

Quick Specs & Uses

• RJ-45 copper ports: 12
• Supported copper speeds: 100M, 1G, 2.5G, 5G, 10G
• SFP+ ports: 2 shared
• Form factor: rackmount
• Packet buffer memory: 3MB
• Bandwidth: 240Gbps
• MAC address database size: 32K
• VLAN support: 64
• LAG support: 8 LAGs with up to 8 members in each LAG
• Supported multicast groups: 128
• Port mirroring: up to 11 source ports in many-to-one mirroring
• Fans: 2 active fans
• Energy Efficient Ethernet: IEEE 802.3az
• Maximum power consumption: 76.56W
• LED indicators: power, speed, fan, link/activity
• Acoustic noise level: 29.3 dBA at 25°C
• Operating temperature: 0° to 50°C
• Electromagnetic compliance: A

Why It Helps

As networks grow, the challenge is usually not just more ports. It is supporting devices that run at different speeds while still keeping uplinks, segmentation, and traffic handling under control. The XS512EM addresses that by combining multi-gig copper ports, shared SFP+ uplinks, VLAN support, LAG support, and multicast handling in one rackmount switch that is still relatively quiet for its class.

System Characteristics

• Multi-gig copper port support makes it easier to work with mixed-speed endpoints on one switch
• Shared SFP+ uplinks give the switch more flexibility on the backbone side
• 64 VLANs and 8 LAGs help the switch fit more structured managed network deployments
• 29.3 dBA noise level makes it more realistic for quieter technical spaces than louder chassis hardware
• Rackmount design with active cooling gives the unit a cleaner fit in installed infrastructure environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
