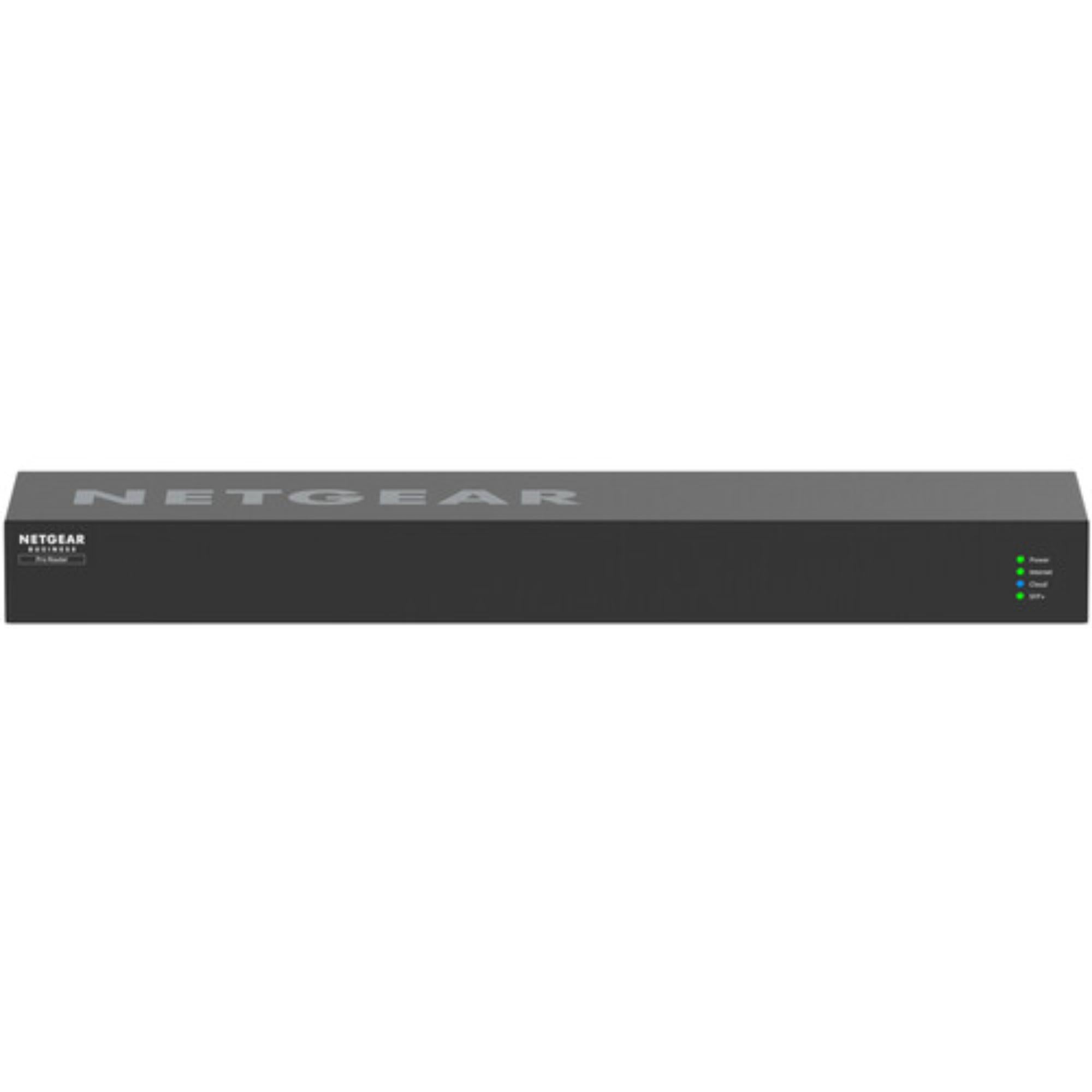

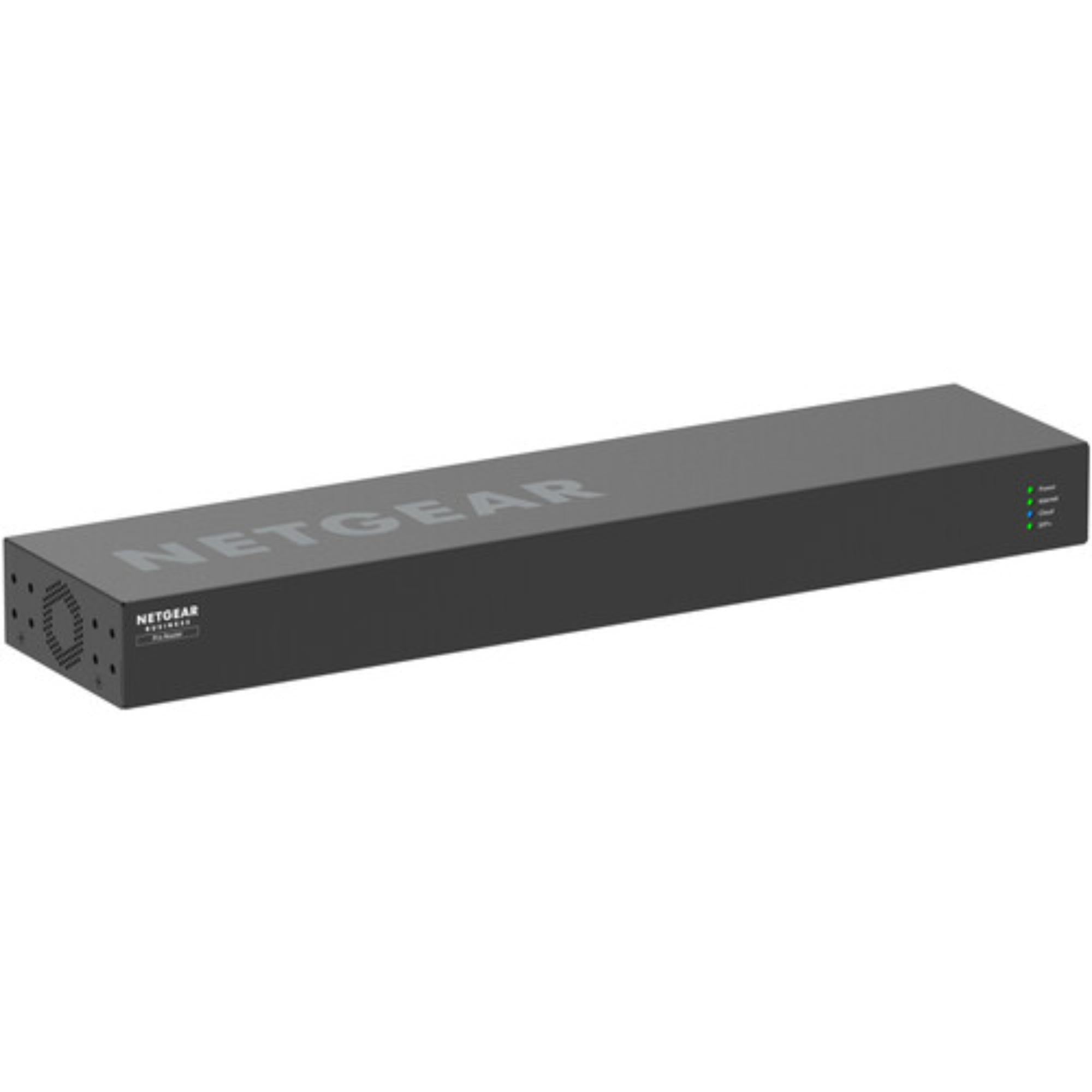

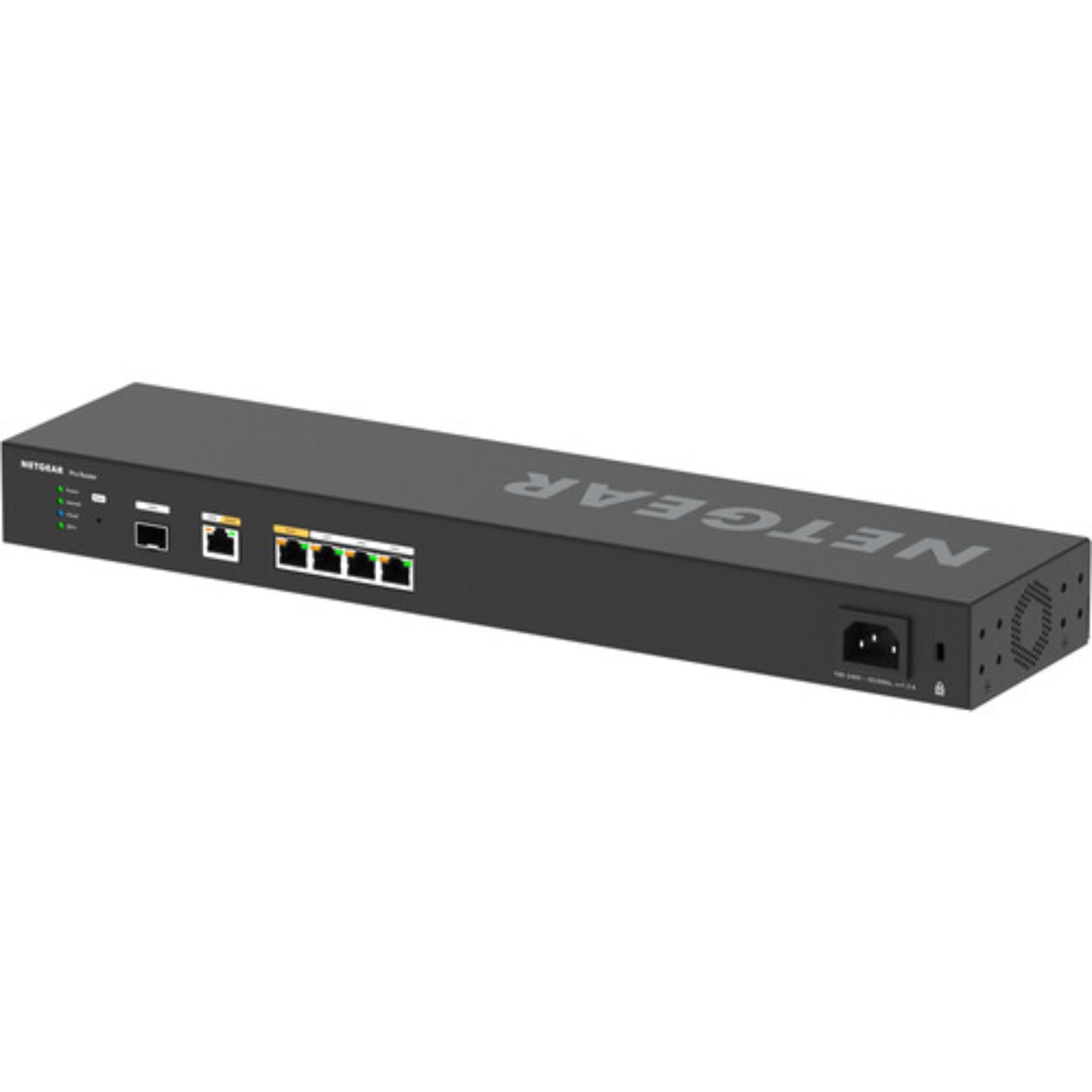

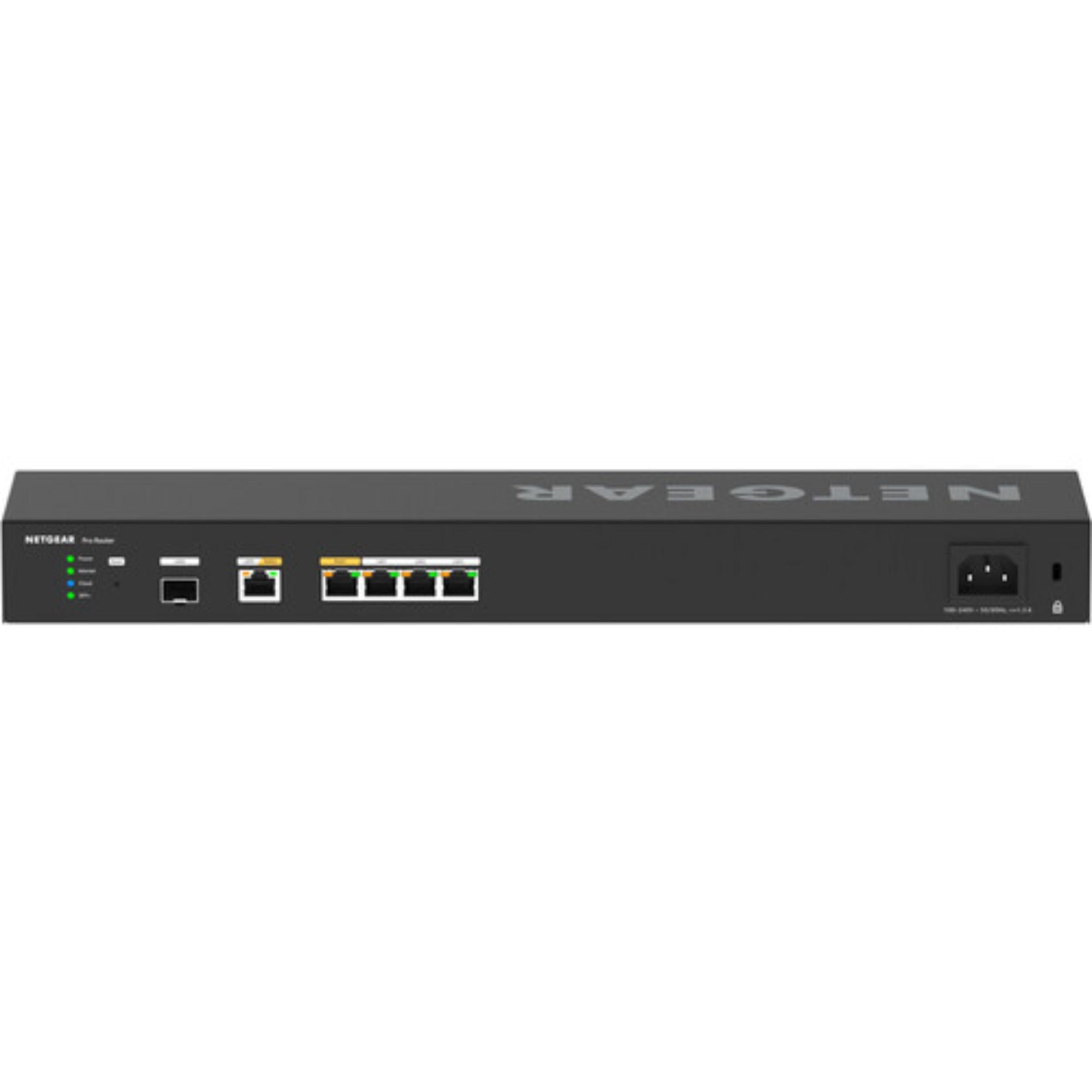

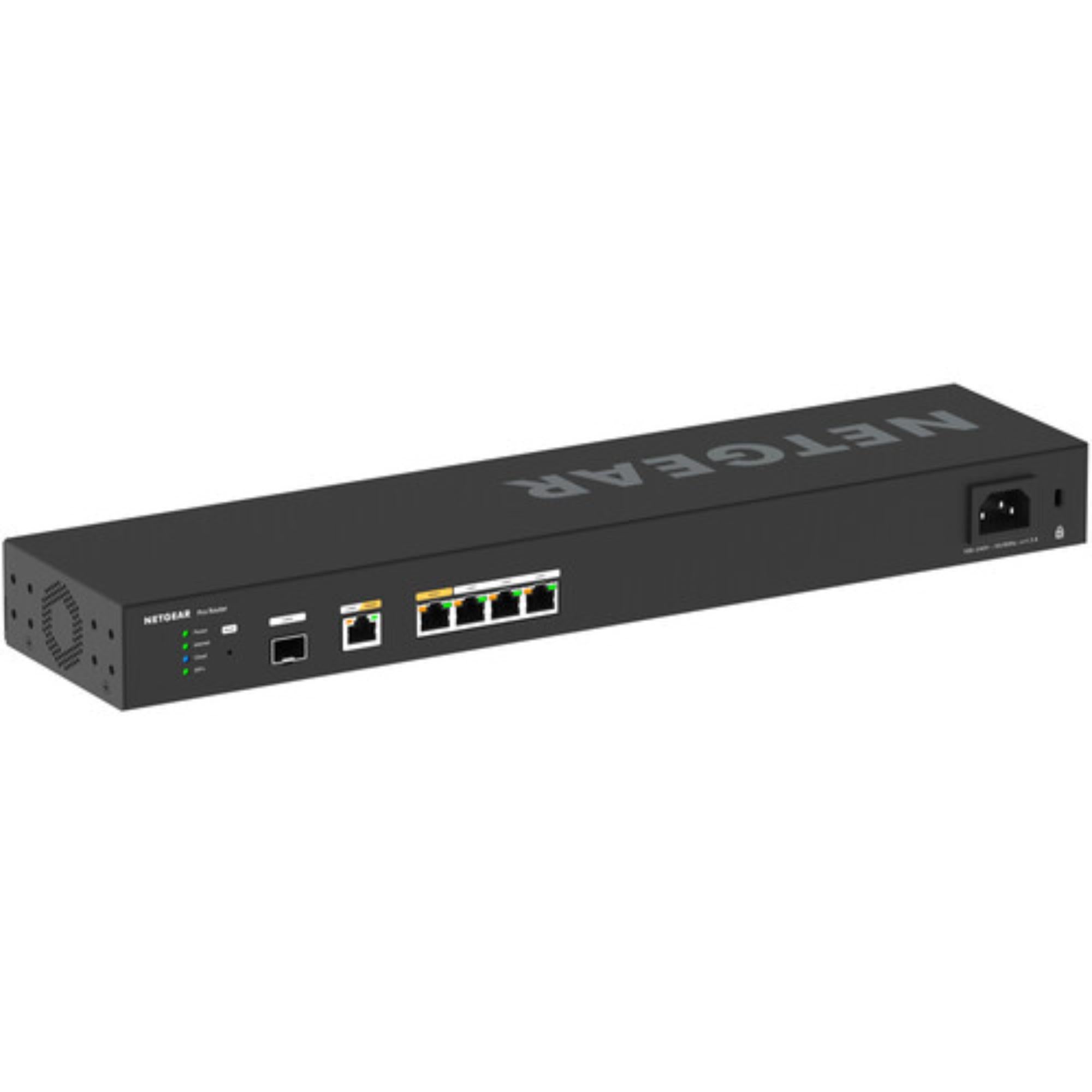

NETGEAR PR460X 6-Port 10G / 2.5G Dual-WAN Pro Router

Netgear PR460X 6-Port 10G / 2.5G Dual-WAN Pro Router is built for network environments where internet redundancy, faster WAN handoff, and practical policy control matter more than raw port count. Based on the source details, this router combines 1 x 10G/Multi-gig copper configurable as LAN or WAN, 1 x 2.5G/1G WAN, 3 x 2.5G/1G LAN, and 1 x 10G/1G SFP+ LAN, making it a strong fit for higher-speed branch, AV, and production edge deployments.

Highlights

• Dual-WAN design for flexible internet handoff and redundancy
• Configurable 10G/Multi-gig port for LAN or WAN use
• 2.5G and 10G connectivity for faster gateway-side networking
• IPSec VPN support with IKEv1 and IKEv2
• Insight Cloud management with diagnostics and monitoring tools

Quick Specs & Uses

• Width: 440 mm
• Depth: 100 mm
• Height: 43.2 mm
• Weight: 3.27 lb (1484 g)
• Hardware: Quad-core ARM A73 @ 2.2 GHz, 2GB DDR4, 4GB eMMC
• Connectivity: 1 x 10G/Multi-gig copper configurable LAN/WAN, 1 x 2.5G/1G WAN, 3 x 2.5G/1G LAN, 1 x 10G/1G SFP+ LAN
• Performance: WAN/LAN speed at 2.5G or 10G port wired speed
• LAN/VLAN: Up to 8 VLANs, DHCP server limit 32, 802.1Q VLANs
• Security: Firewall rules and scheduling, port forwarding, port triggering, SPI, blocking, DoS prevention, stealth mode, TCP/UDP flood blocking
• VoIP SIP ALG: Yes
• Networking: DHCP, static IP, PPPoE, NAT, static routing, RIPv1, RIPv2, MAC cloning/spoofing, NTP, UPnP, auto uplink
• VPN: IPSec
• Encryption/authentication: 3DES, AES 128/192/256-bit, SHA-1, SHA-2 256-bit, MD5
• Key exchange: IKEv1, IKEv2, pre-shared key
• Management: Insight Cloud, logging, source MAC filter, session limit, bandwidth limit, diagnostics, firmware upgrades, statistics monitoring
• Regulatory: RoHS
• Safety: CE/LVD, CSA
• EMI: CE/LVD, CSA
• Operating temperature: 0° - 40°C
• Storage temperature: -20° - 70°C
• Humidity: 90% operating non-condensing, 95% storage non-condensing
• Power: AC 100-240V, 50/60Hz, 1.3A

Why It Helps

In real deployments, a gateway device often has to do more than simply connect the site to the internet. It has to preserve higher-speed WAN and LAN handoffs, support policy control, handle VPNs, and provide enough visibility for ongoing support. The PR460X fits that role well by combining dual-WAN flexibility, multi-gig connectivity, IPSec support, and cloud-based management in a compact rack-friendly form factor.

System Characteristics

• Flexible WAN and LAN port assignment supports more practical site design
• 2.5G and 10G gateway connectivity helps avoid immediate bottlenecks at the edge
• IPSec and routing support add value for branch and site-to-site connectivity
• Insight Cloud and built-in diagnostics improve operational visibility and support
• Security and traffic controls make the platform more usable in managed environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
