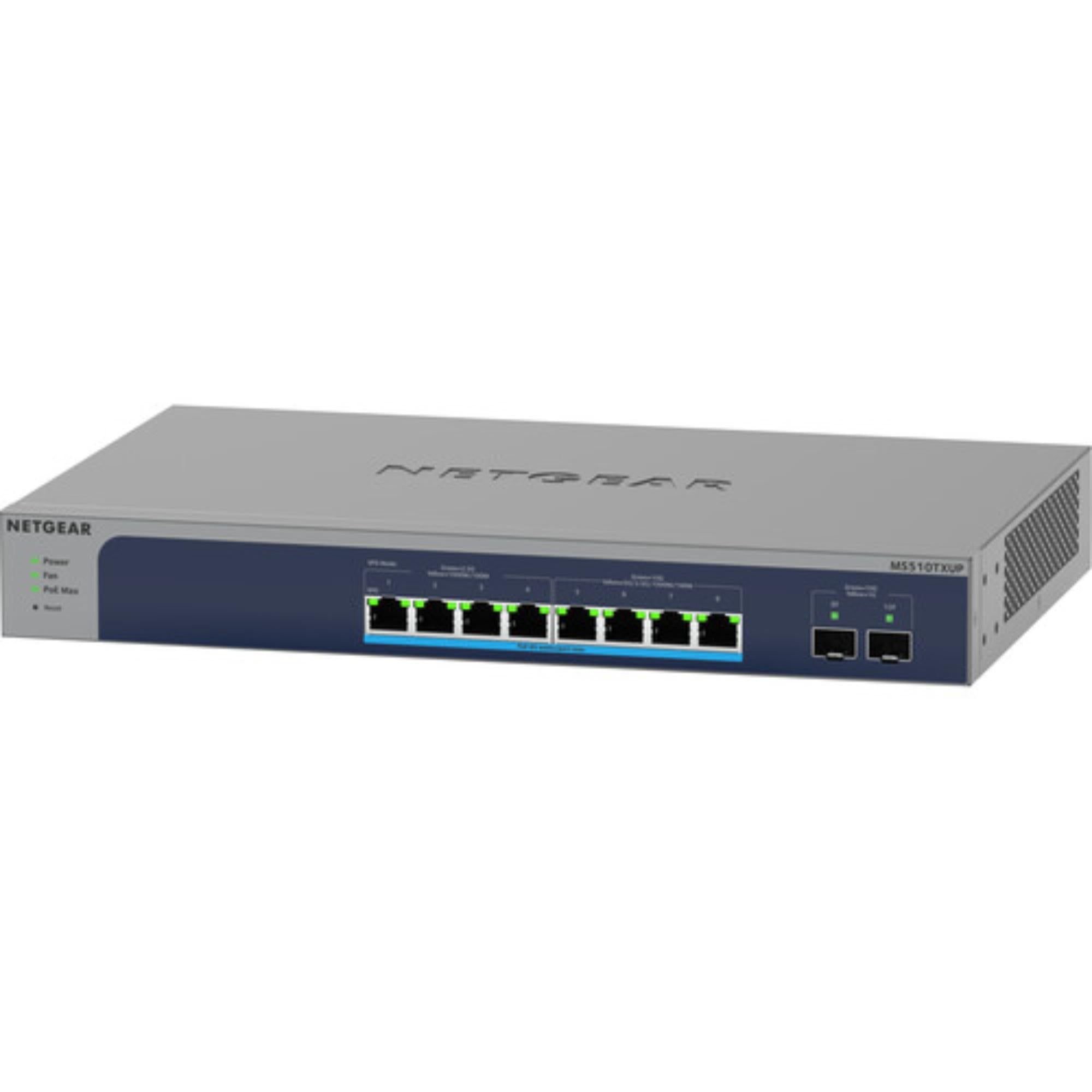

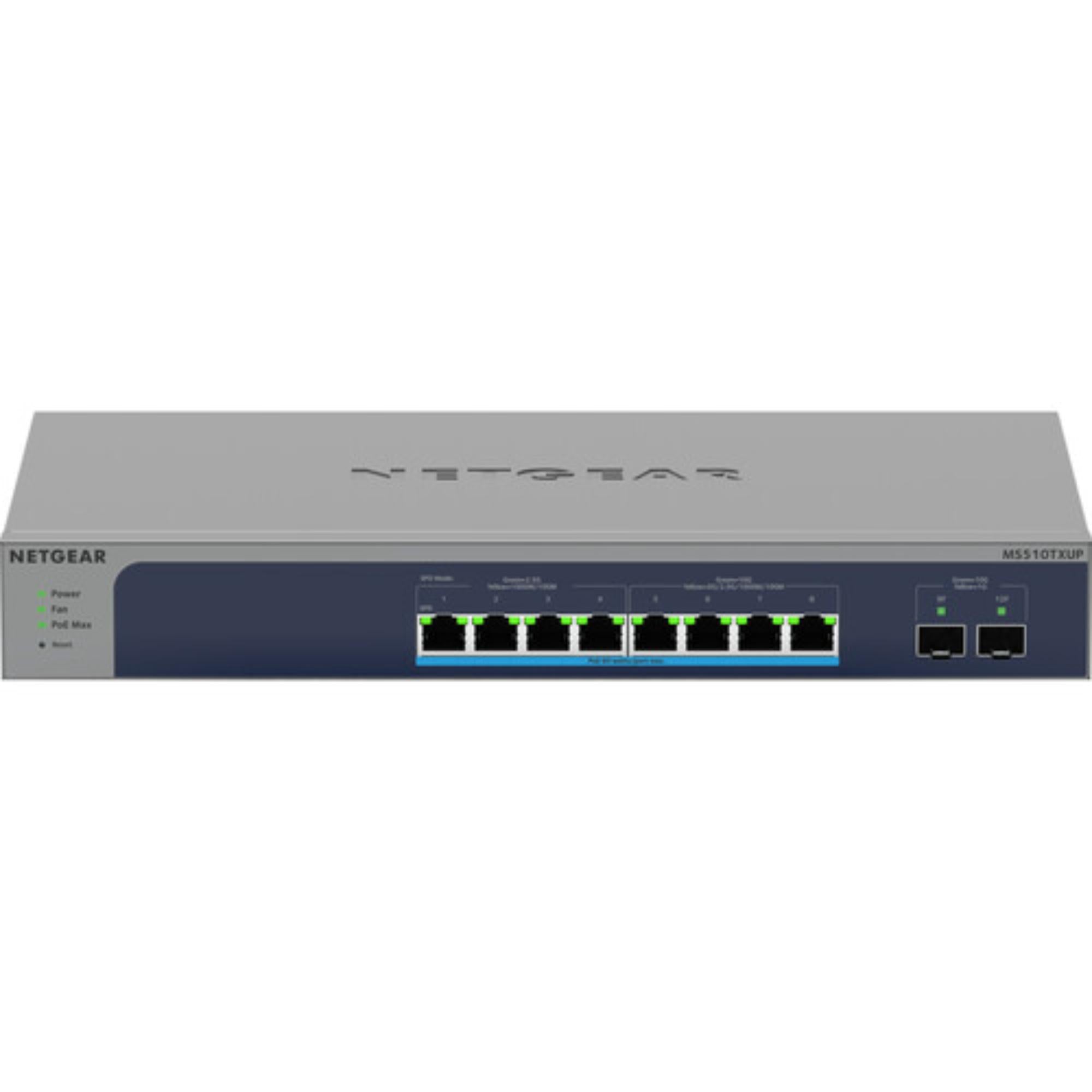

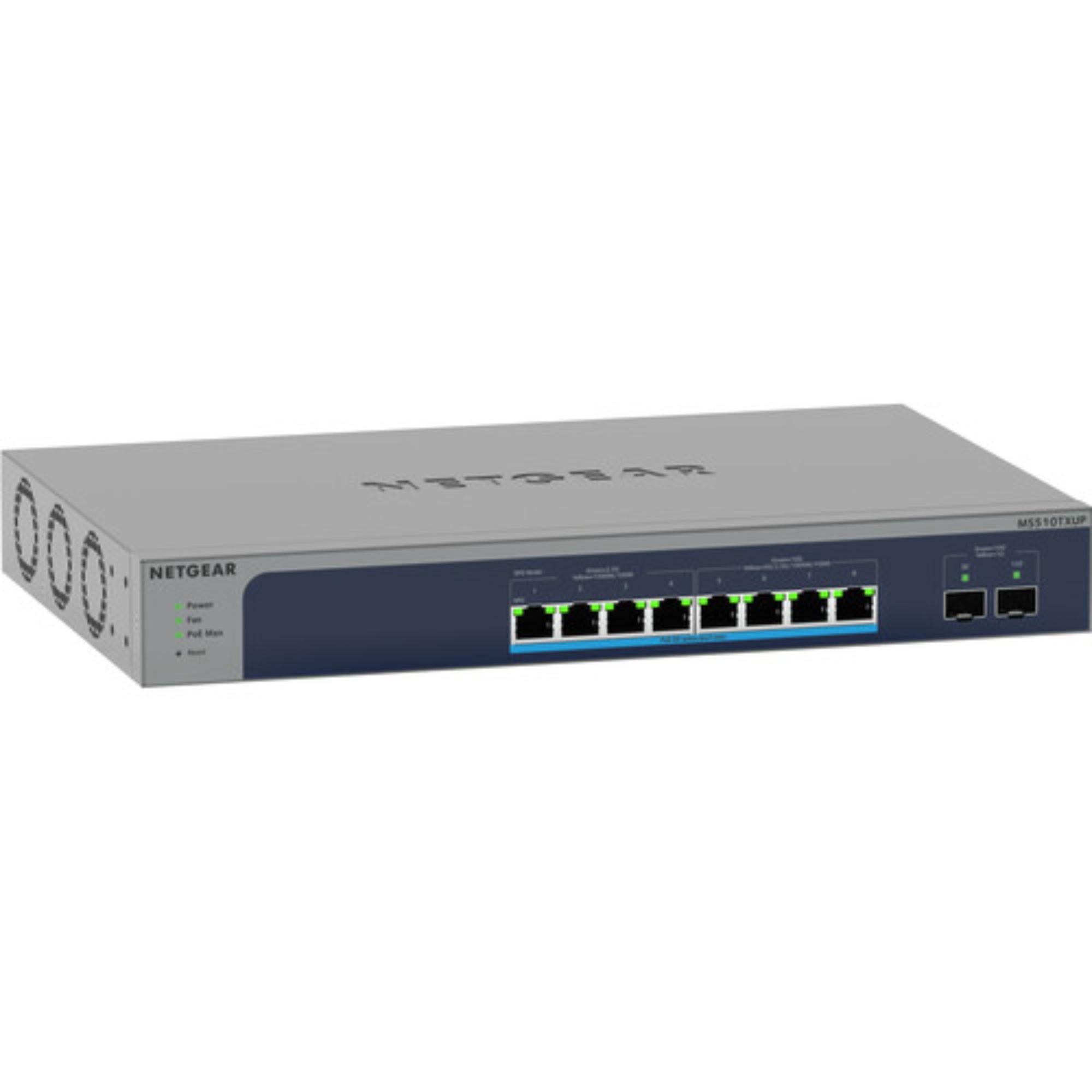

NETGEAR Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch with SFP+

NETGEAR Ultra60 MS510TXUP 8-Port Multi-Gigabit PoE++ Compliant Managed Switch with SFP+ is built for compact high-performance network environments where powered endpoints, mixed copper speeds, and fiber uplinks all need to work together cleanly. Based on the source details, this switch combines 8 PoE++ copper ports with 2 SFP+ uplinks, making it a strong fit for smaller AV, production, and business deployments that still need serious managed capability.

Highlights

• 8 PoE++ copper ports with mixed multi-gig and 10G speed support
• 2 SFP+ uplink ports for fiber handoff and inter-switch links
• 295W total PoE budget with uninterrupted PoE support
• Supports 256 VLANs with VLAN routing and dynamic VLAN assignment
• 33.0 dBA acoustic level for more manageable placement in smaller technical spaces

Quick Specs & Uses

• Multi-gigabit copper ports: 4 (1G/2.5G)
• Multi-gigabit / 10 Gigabit copper ports: 4 (1G/2.5G/5G/10G)
• SFP+ ports: 2
• Number of PoE++ ports: 8
• Total PoE power budget: 295 Watts
• Uninterrupted PoE: Yes
• Max MAC entries: 32K
• Buffer size: 16 Mbit
• VLANs supported: 256
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static route: Yes (32)
• Host ARP table: 512 ARP
• EEE: Yes
• DoS prevention: Yes
• Power supply: Internal
• Max power: 380W worst case, all ports used, line-rate traffic
• Fans: 3
• Acoustic noise level: 33.0 dBA at 25°C
• Operating temperature: 0° to 50°C (32 to 122°F)
• MTBF: 848,553 hours (96.9 years)

Why It Helps

In real deployments, some compact switches still need to do serious work. The MS510TXUP fits that role well by combining multi-gig PoE++ access, selective 10G copper capability, fiber uplinks, and a managed feature set that supports structured network design rather than simple flat connectivity.

System Characteristics

• Mixed-speed copper layout supports a wider range of connected device requirements
• 2 SFP+ uplinks provide clean upstream handoff and inter-switch flexibility
• 295W PoE budget with uninterrupted PoE supports powered device continuity
• VLAN routing, MLD Snooping, and static routes support more controlled deployment design
• Internal PSU and moderate acoustic profile help the switch fit better into real technical spaces

What’s In The Box

Please refer to the Specifications tab for the exact included items.
