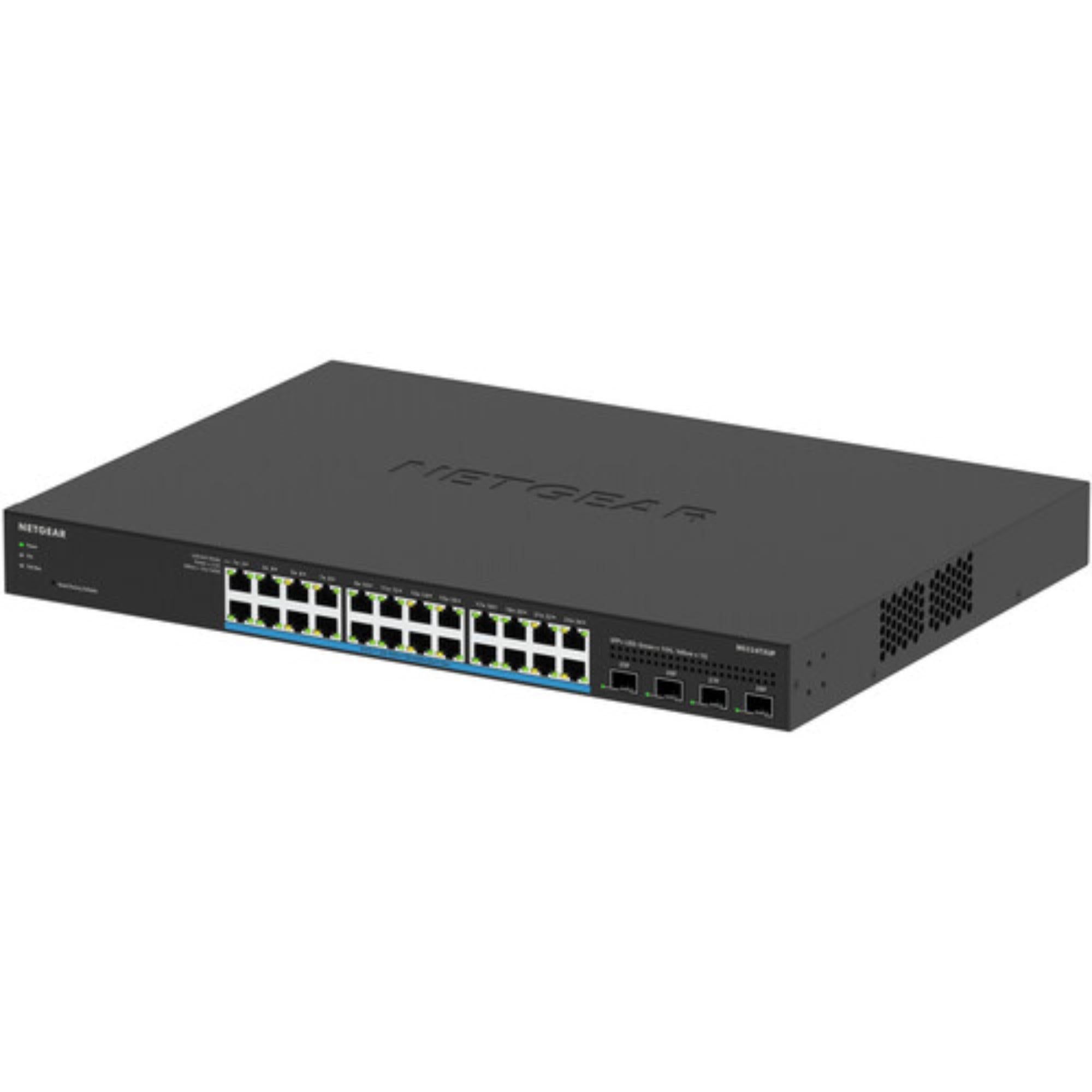

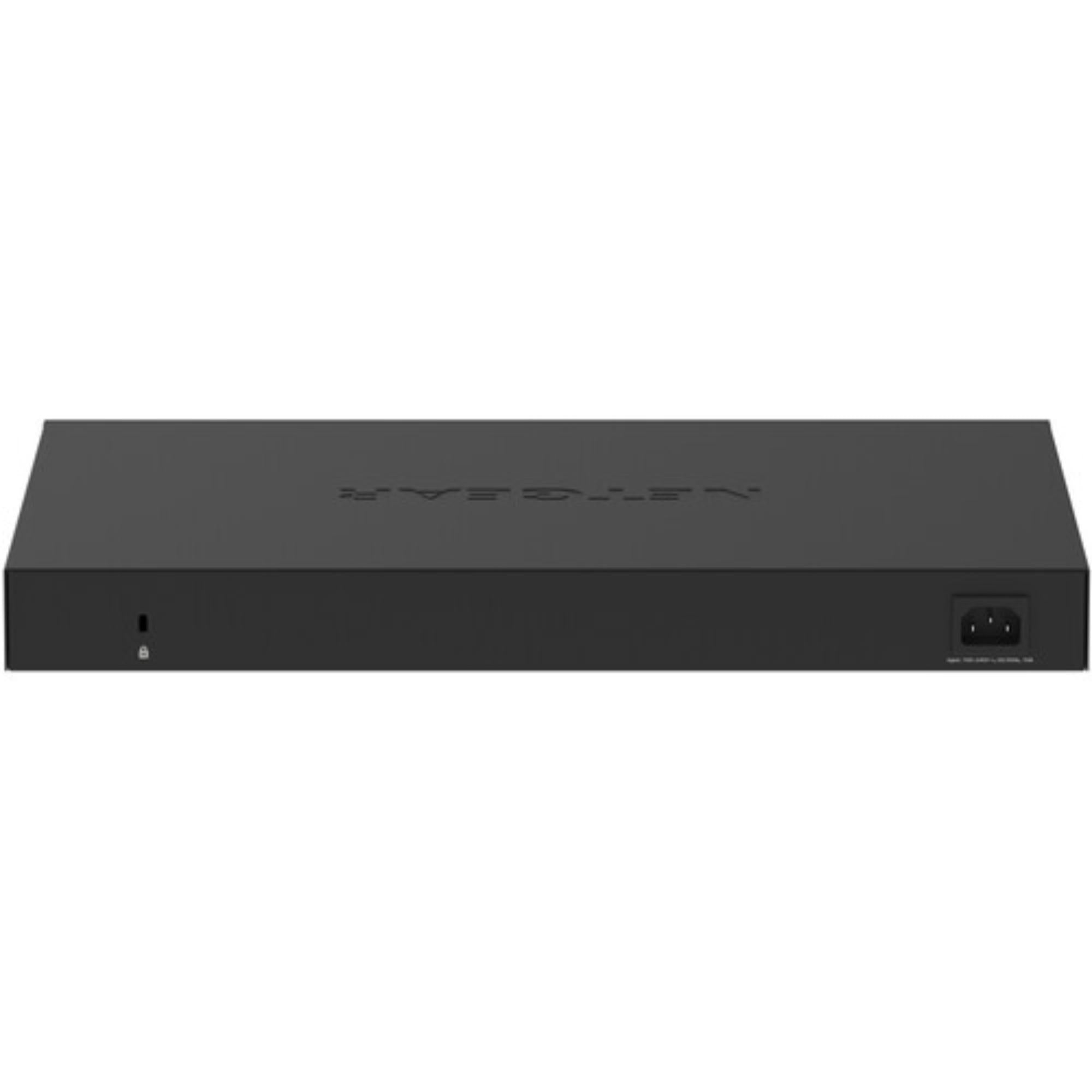

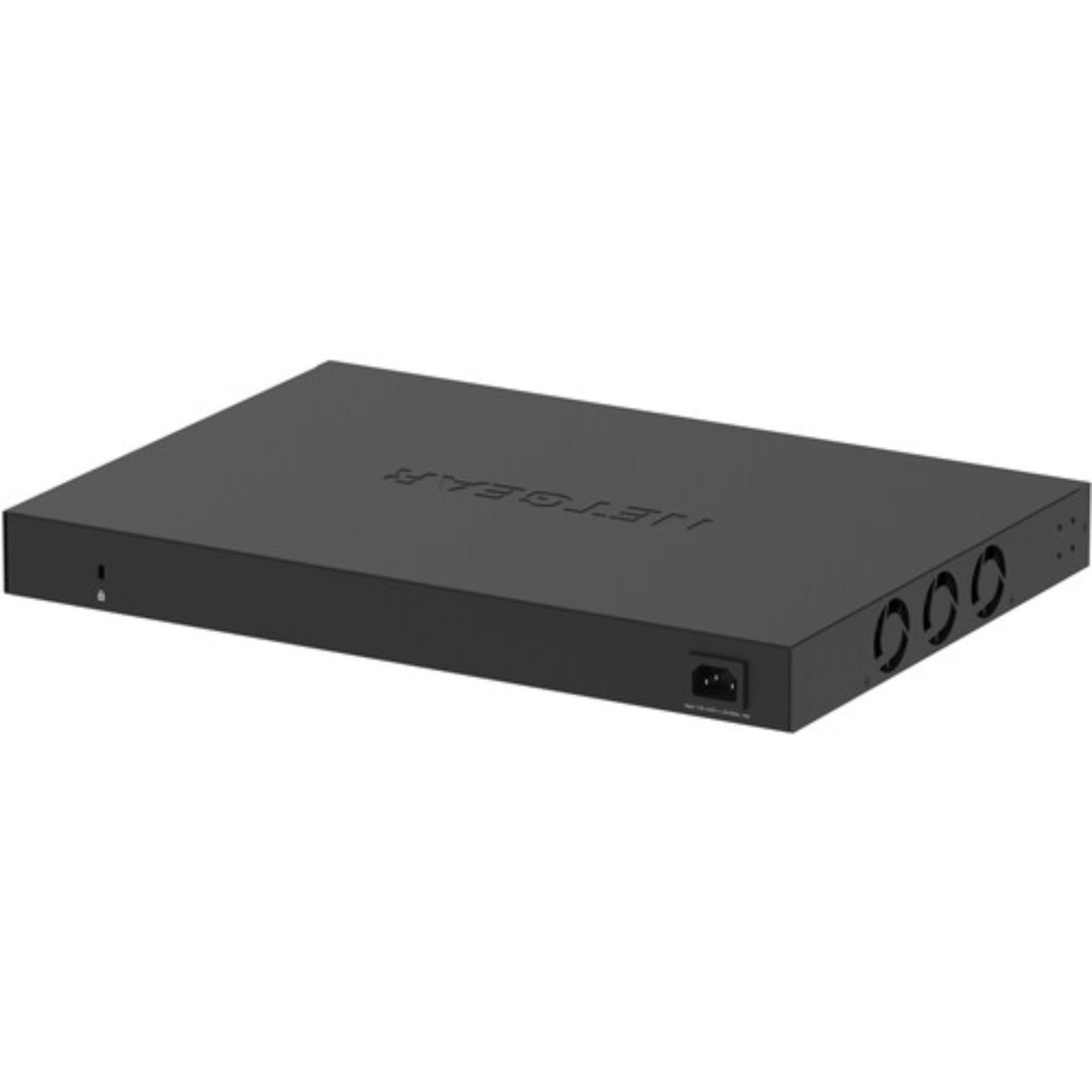

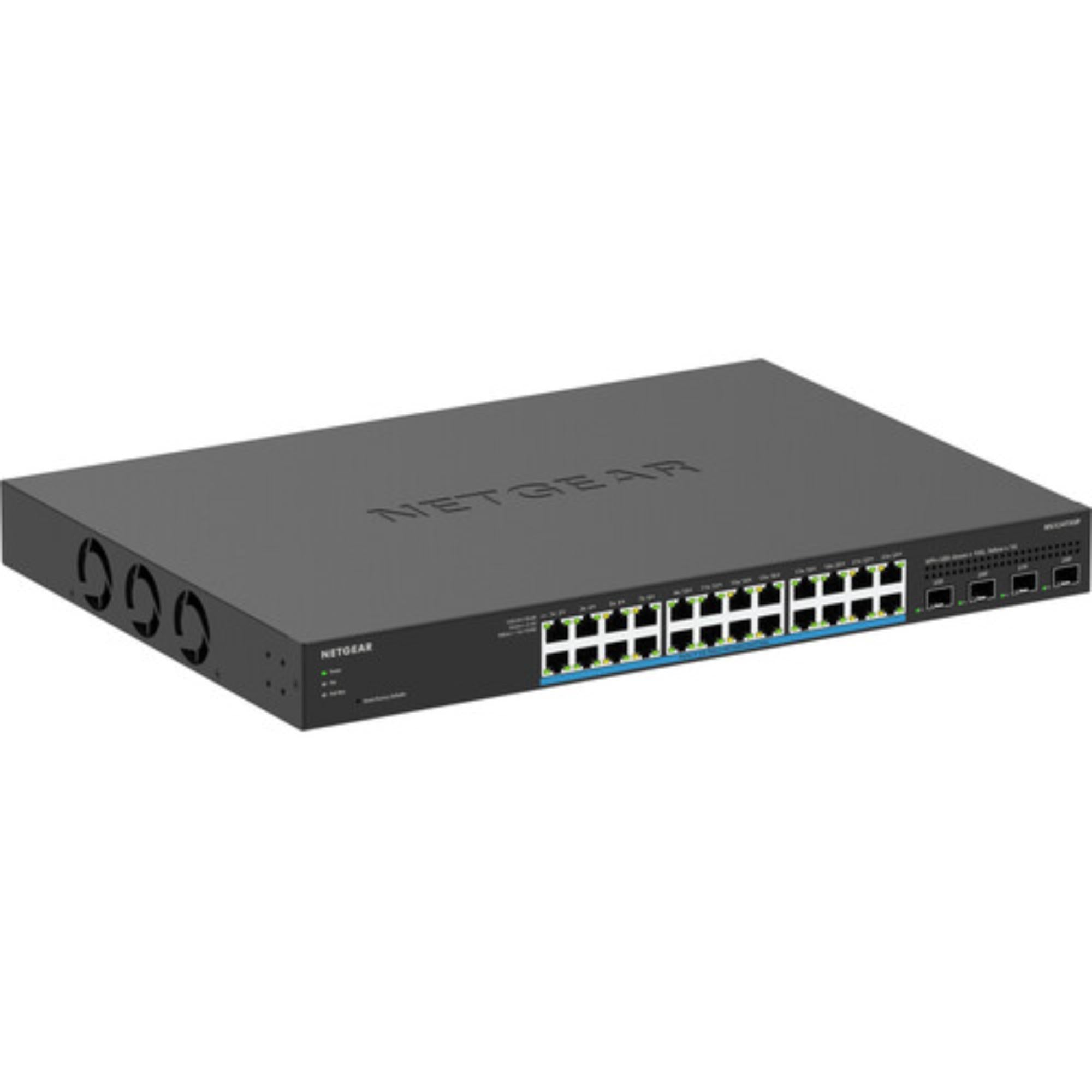

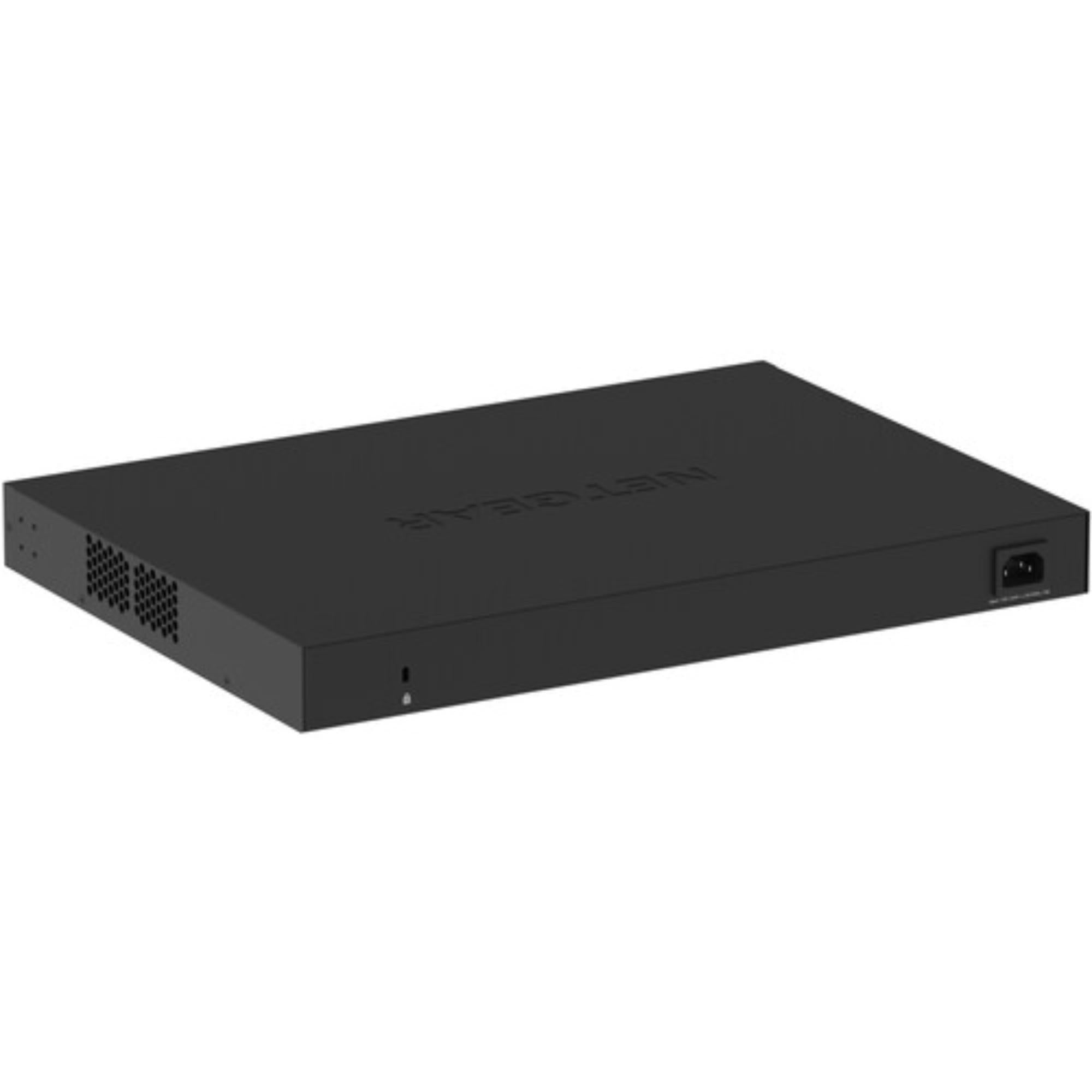

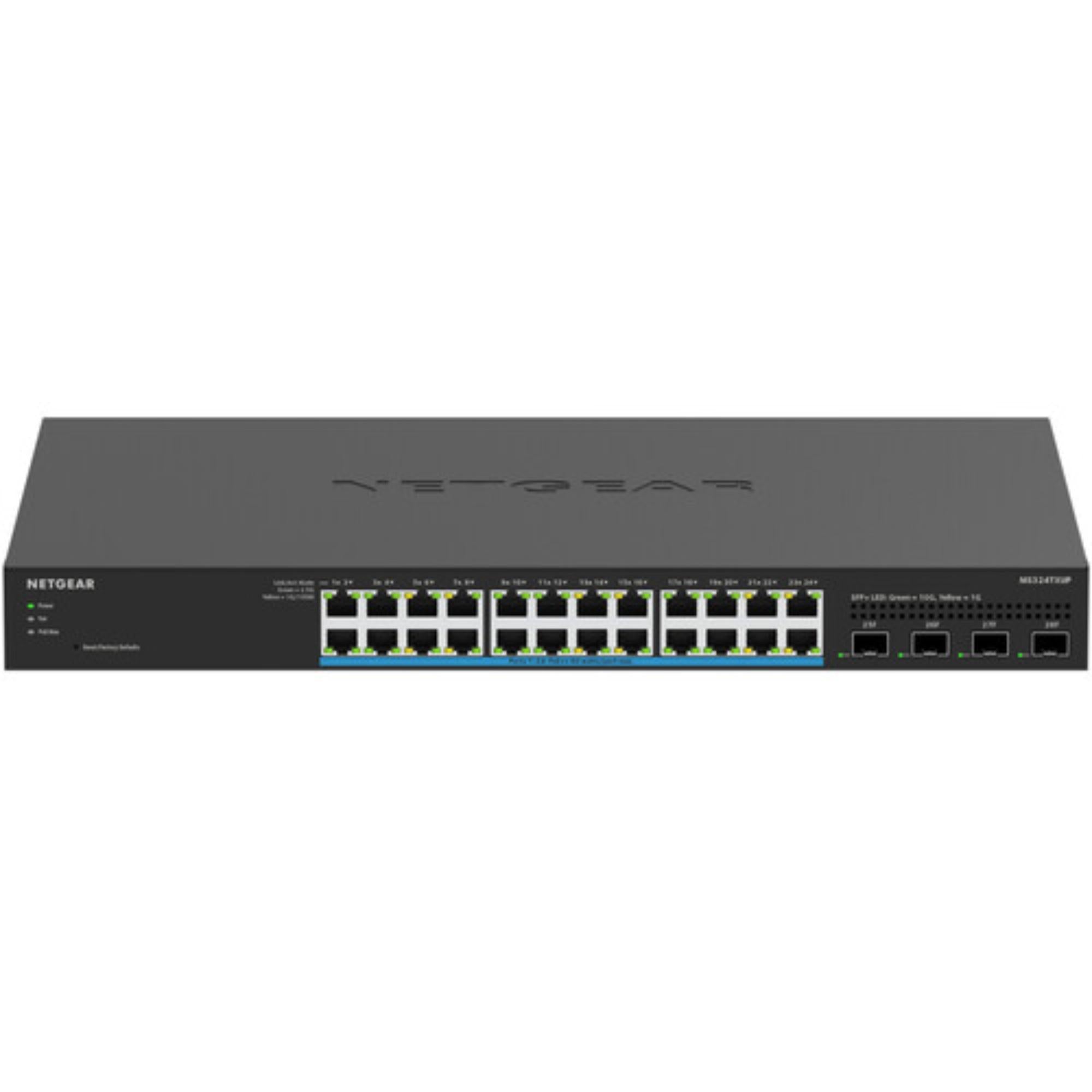

NETGEAR MS324TXUP 24-Port 2.5G Ultra60 PoE++ Compliant Managed Network Switch

NETGEAR MS324TXUP 24-Port 2.5G Ultra60 PoE++ Compliant Managed Network Switch is the kind of switch you use when the edge of the network has to do real work. You have 24 copper ports at 1G and 2.5G, full PoE++ across the chassis, and 4 SFP+ uplinks for the part of the job that needs to leave the rack cleanly. For installs with a lot of powered devices, that combination is what gives this model its value.

Highlights

• 24 x 1G/2.5G copper ports for dense multi-gig edge connectivity
• 24 PoE++ ports with a 720W total power budget
• 4 x SFP+ uplinks for backbone, aggregation, or fiber handoff
• Uninterrupted PoE to help keep powered devices stable
• Managed switching features including VLAN routing and dynamic VLAN assignment

Quick Specs & Uses

• Width: 440 mm
• Depth: 310 mm
• Height: 43.2 mm
• Weight: 9.78 lb (4.435 kg)
• Copper ports: 24 (1G/2.5G)
• SFP+ uplinks: 4
• PoE++ ports: 24
• Total PoE budget: 720W
• Uninterrupted PoE: Yes
• MAC table: 32K
• Buffer size: 2 MB
• VLAN support: 256
• VLAN routing: Yes
• Dynamic VLAN assignment: Yes
• MLD Snooping: Yes
• Static routes: 32
• Host ARP table: 512 ARP
• EEE: Yes
• DoS prevention: Yes
• Power supply: Internal
• Max power draw: 765W worst case, all ports active at line rate
• Fans: 3
• Noise level: 38.0 dBA at 25°C
• Operating temperature: 0° to 50°C (32° to 122°F)
• MTBF: 1,017,939 hours

Why It Helps

Some switches are just there to add ports. This one is there to feed devices, organize traffic, and still leave you with proper uplinks on the back end. That matters in deployments with cameras, wireless access points, AV endpoints, or anything else that pushes the access layer harder than a basic office network would.

System Characteristics

• 2.5G copper access gives the edge more breathing room than standard Gigabit
• High PoE budget makes it usable for larger powered device counts
• SFP+ uplinks keep upstream traffic from getting boxed into copper only
• Routing and segmentation features help the switch fit into more structured network designs
• Internal PSU and rack format keep the install cleaner and easier to manage long term

What’s In The Box

Please refer to the Specifications tab for the exact included items.
