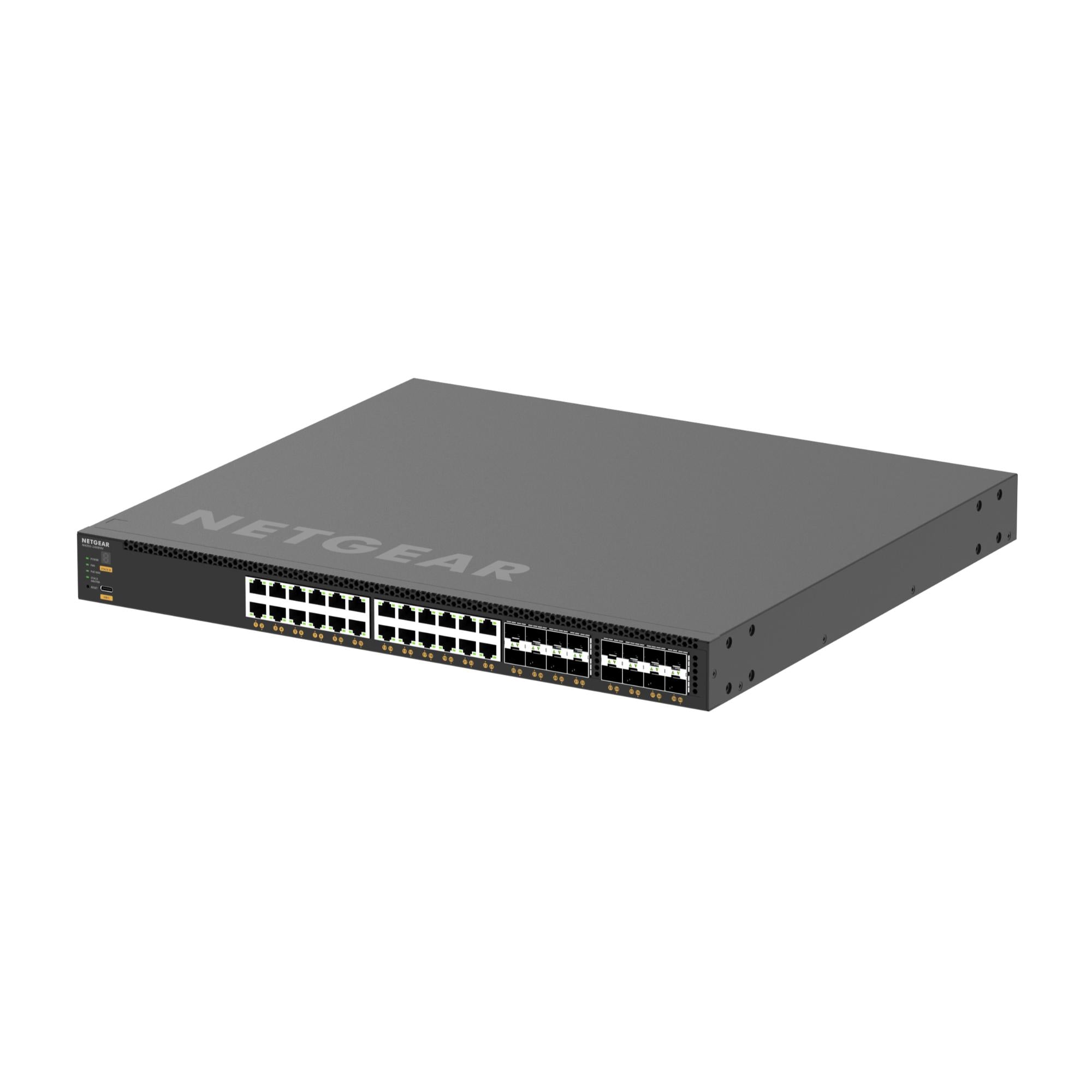

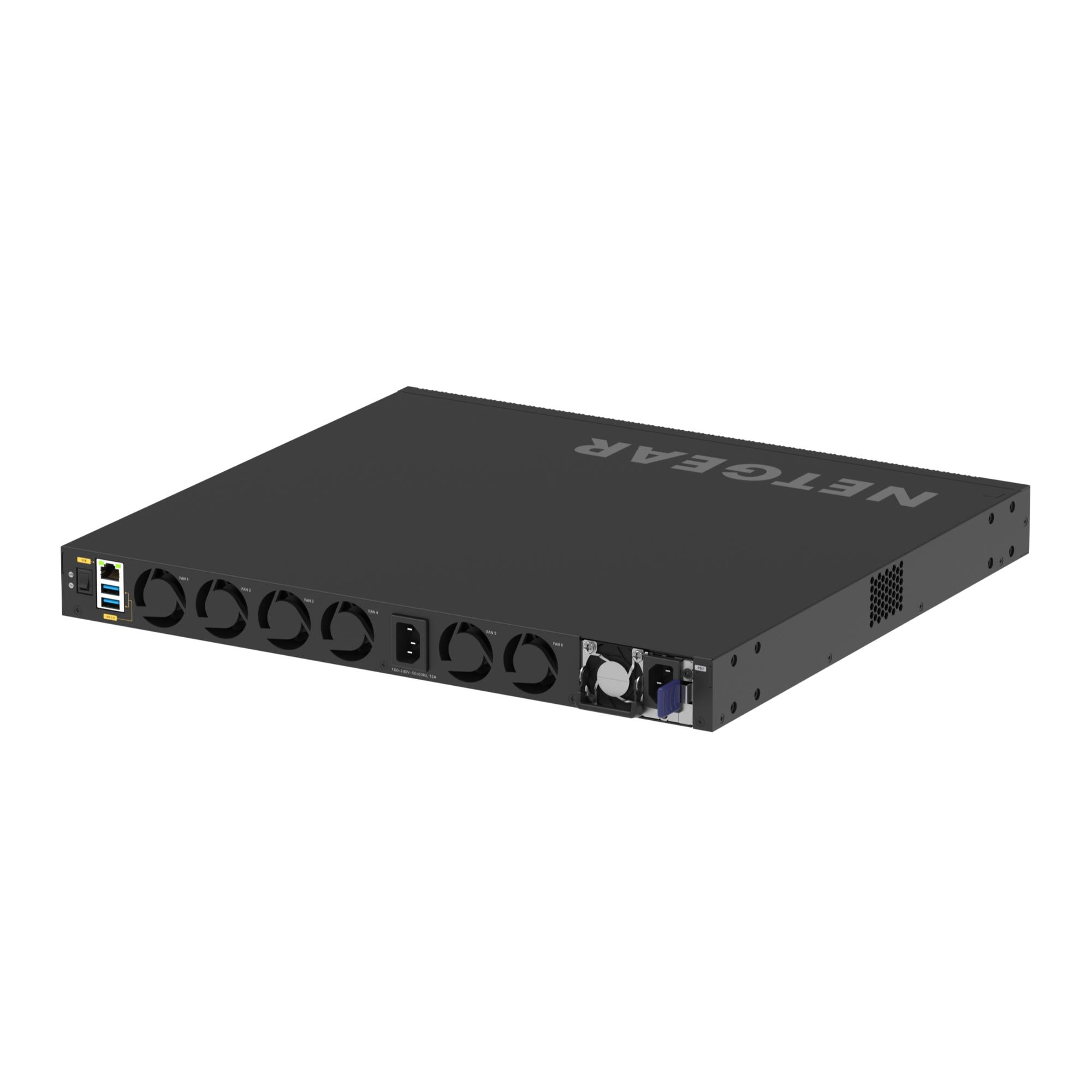

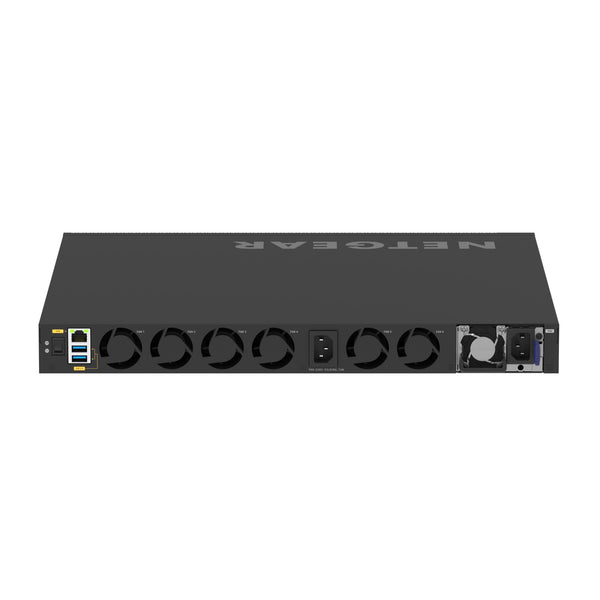

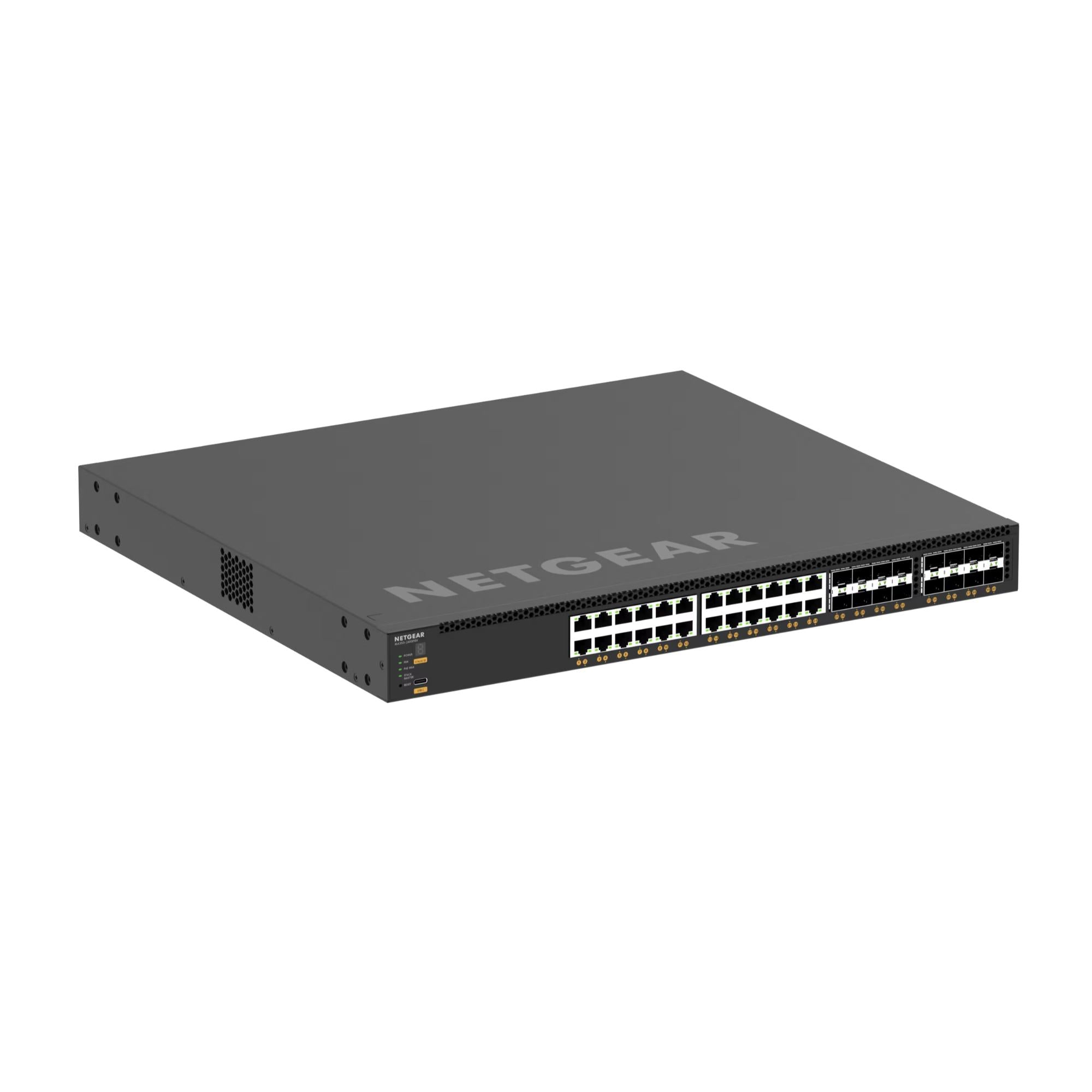

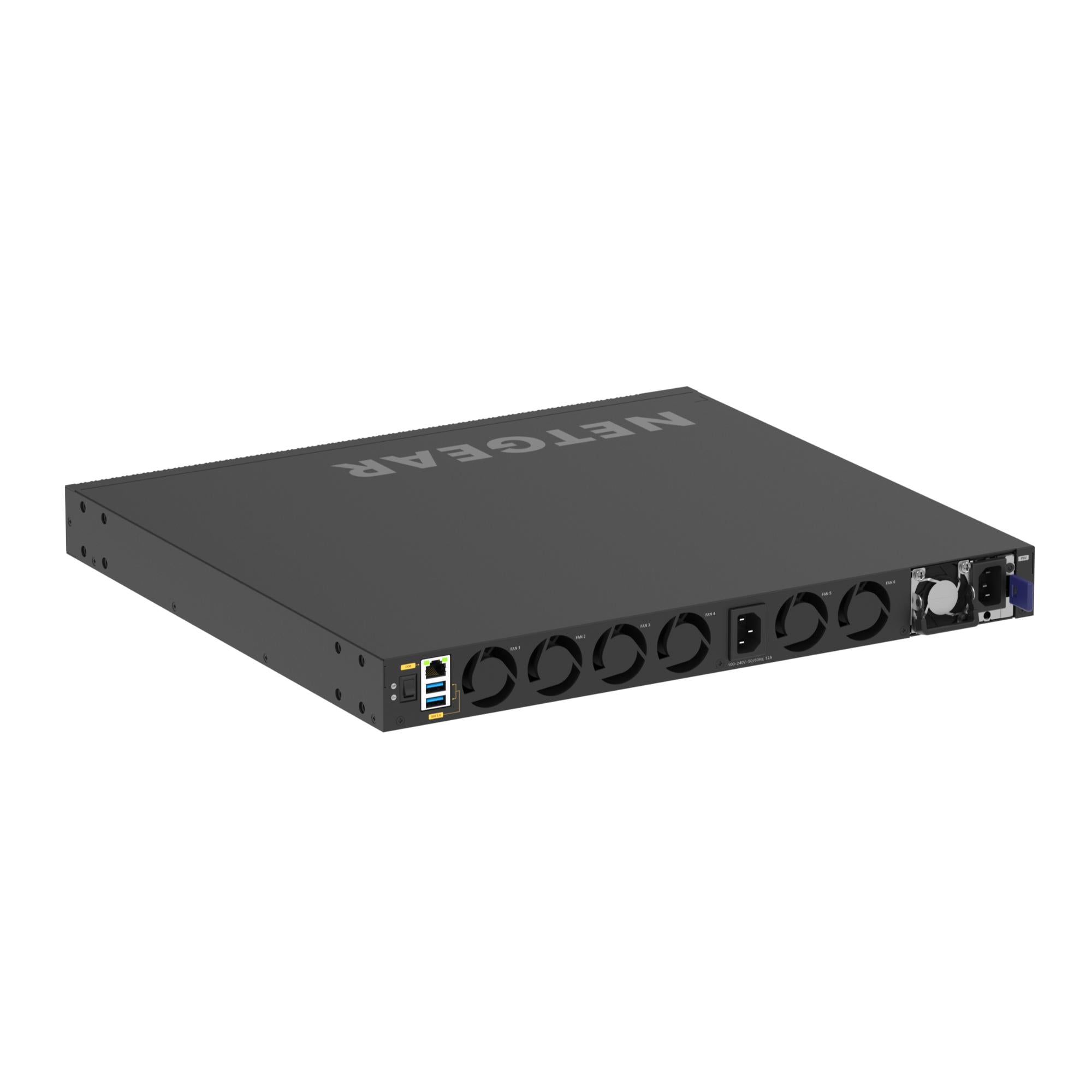

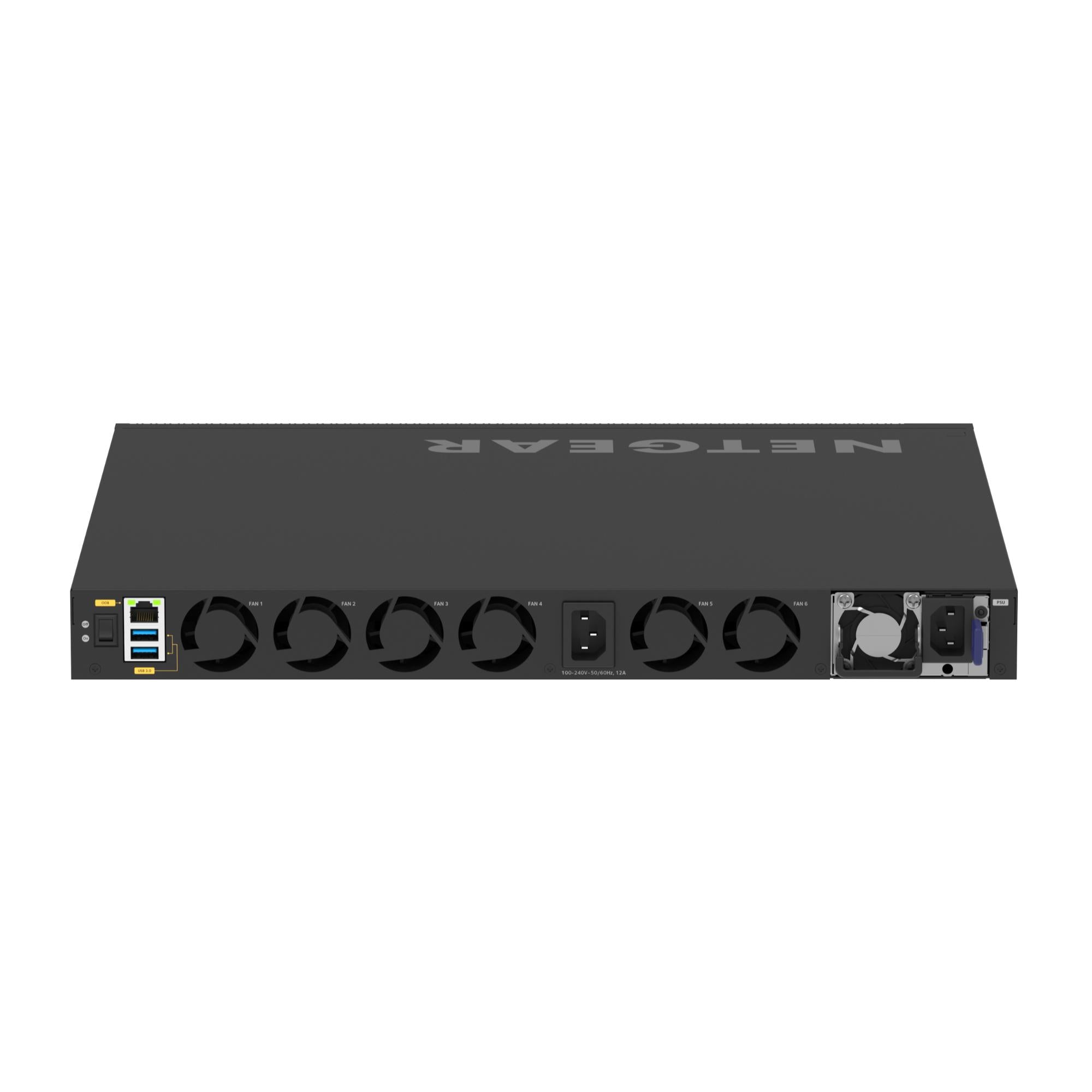

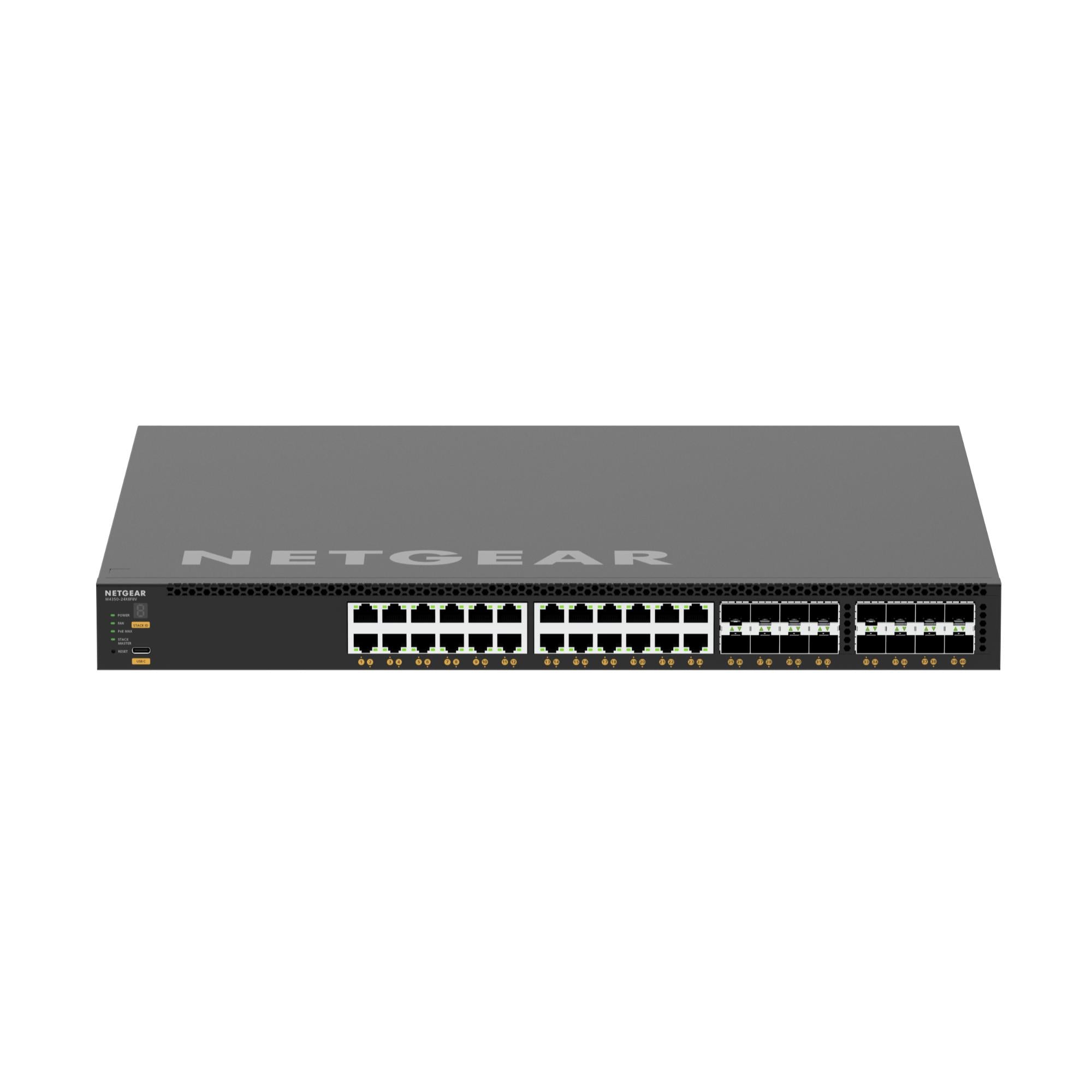

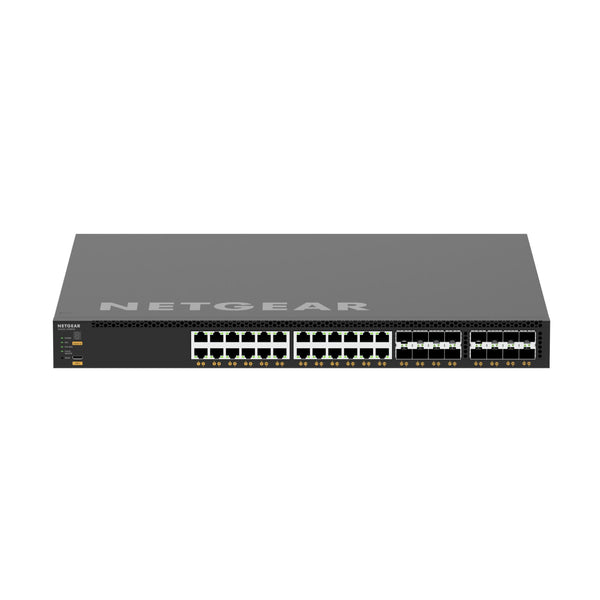

NETGEAR M4350-24X8F8V Fully Managed Switch (XSM4340V) 24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch (TAA Compliant)

NETGEAR M4350-24X8F8V Fully Managed Switch (XSM4340V) 24x10G/Multi-Gig PoE++ (290W base, up to 1,770W), 8xSFP+ and 8xSFP28 25G Managed Switch is built for AV and broadcast network environments where powered copper endpoints, fiber connectivity, and higher-speed uplinks all need to live in the same chassis. Based on the source details, this switch provides 40 total ports, including 24 x 10G/Multi-Gig PoE++ ports, 8 x 10G SFP+ ports, and 8 x 25G SFP28 ports, making it a strong fit for mixed-role media and infrastructure networks.

Highlights

• 24 x 10G/Multi-Gig PoE++ ports for high-power endpoint connectivity
• 8 x 10G SFP+ ports for optical links and switching flexibility
• 8 x 25G SFP28 ports for higher-bandwidth uplinks and aggregation
• Up to 1,770W PoE budget with 90W per port support
• Enhanced IGMP support, AVB included, and jumbo frames up to 12kb

Quick Specs & Uses

• Width: 440 mm
• Depth: 400 mm
• Height: 43.2 mm
• Weight: 7.24 kg (15.96 lb)
• Primary port speed: 10 Gigabit / Multi-Gig
• Number of ports: 40 (24 x 10G/Multi-Gig PoE++, 8 x 10G SFP+, 8 x 25G SFP28)
• PoE ports / budget: 24 PoE++ (90W/port), 290W Base, up to 1,770W Budget
• IGMP support: Enhanced (NETGEAR IGMP Plus)
• Jumbo frame support: Yes, up to 12kb
• AVB support: Yes, included
• Acoustics: Quiet Mode 32.6 dB at 25°C
• Power consumption: With PoE 464W / 1582.24 Btu/hr; Without PoE 151.8W / 476.65 Btu/hr; Standby without any port connection 53.4W / 167.68 Btu/hr
• PSU compatible models: APS600Wv3, APS1200Wv2, APS2000Wv2

Why It Helps

In higher-density AV and broadcast systems, the switch often has to do more than one job. The M4350-24X8F8V fits that reality well, combining powered Multi-Gig access, optical connectivity, and faster uplink capacity in a single 1RU platform. That makes it easier to design a cleaner network without spreading roles across extra hardware unless the system truly requires it.

System Characteristics

• Mixed copper and fiber connectivity supports more flexible AV network design
• High PoE++ budget makes the switch practical for demanding powered endpoints
• 25G SFP28 uplinks add headroom for aggregation and backbone traffic
• Enhanced IGMP, AVB, and jumbo frame support align it with multicast-heavy and timing-sensitive workflows
• Multiple compatible PSU options support broader deployment and service planning

What’s In The Box

Please refer to the Specifications tab for the exact included items.
