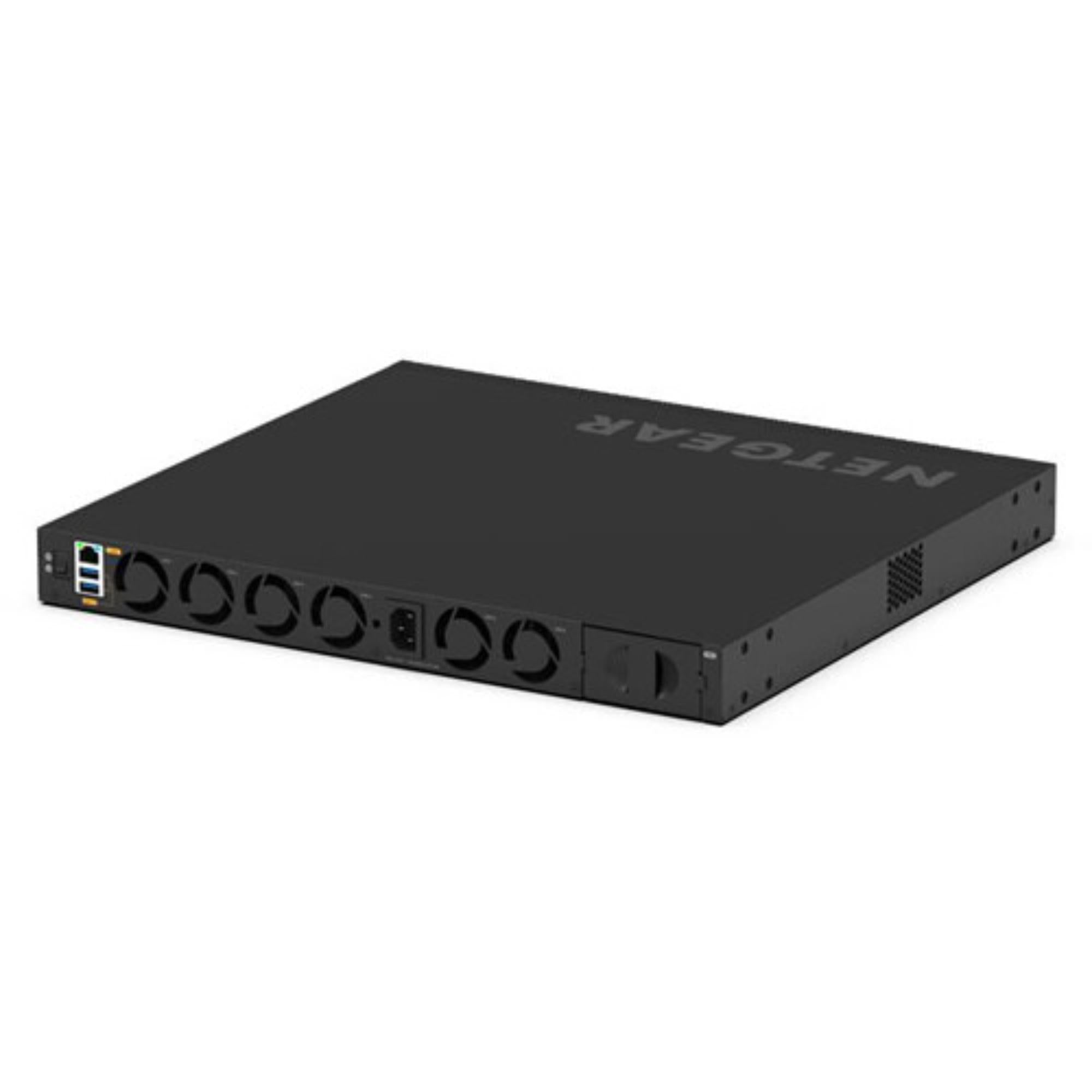

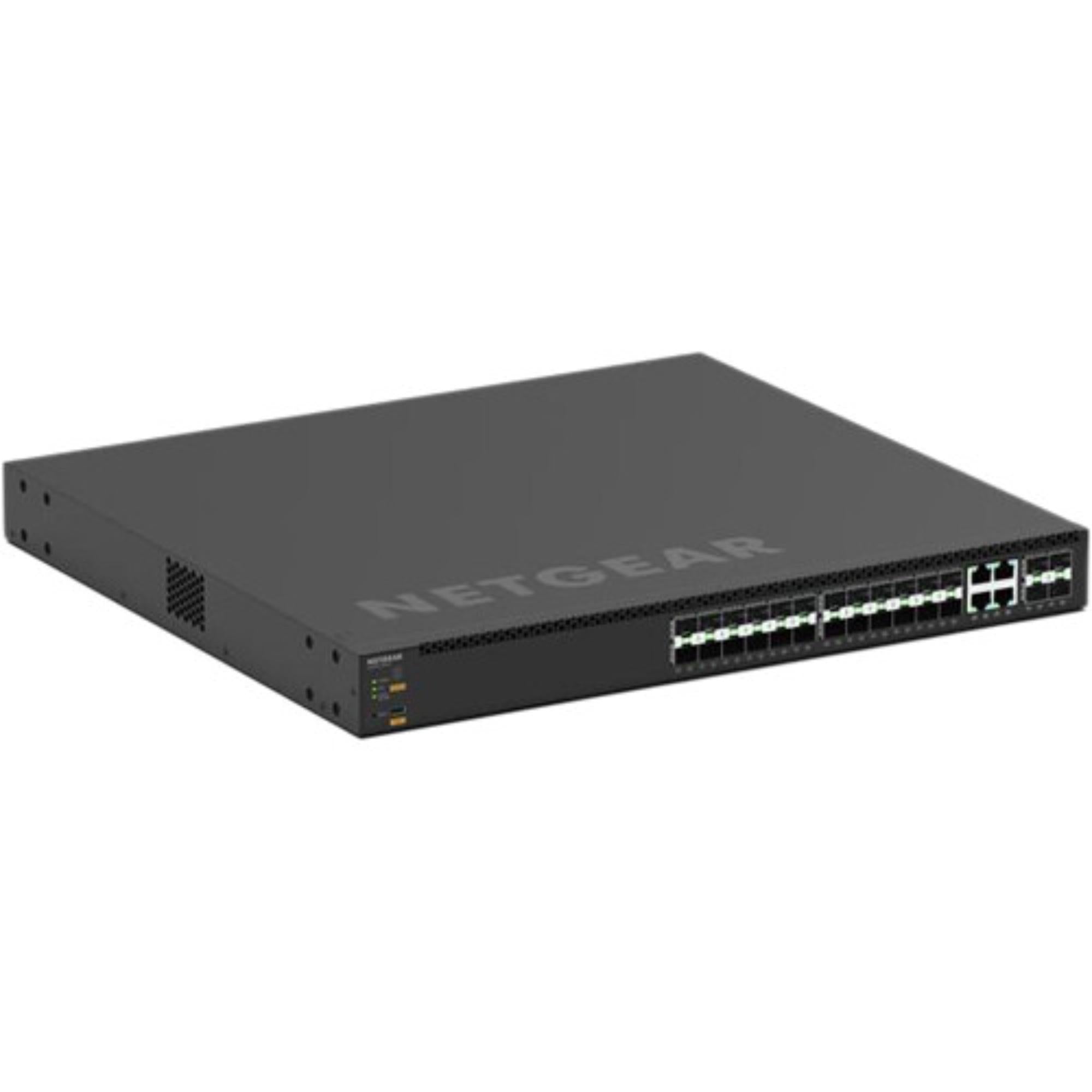

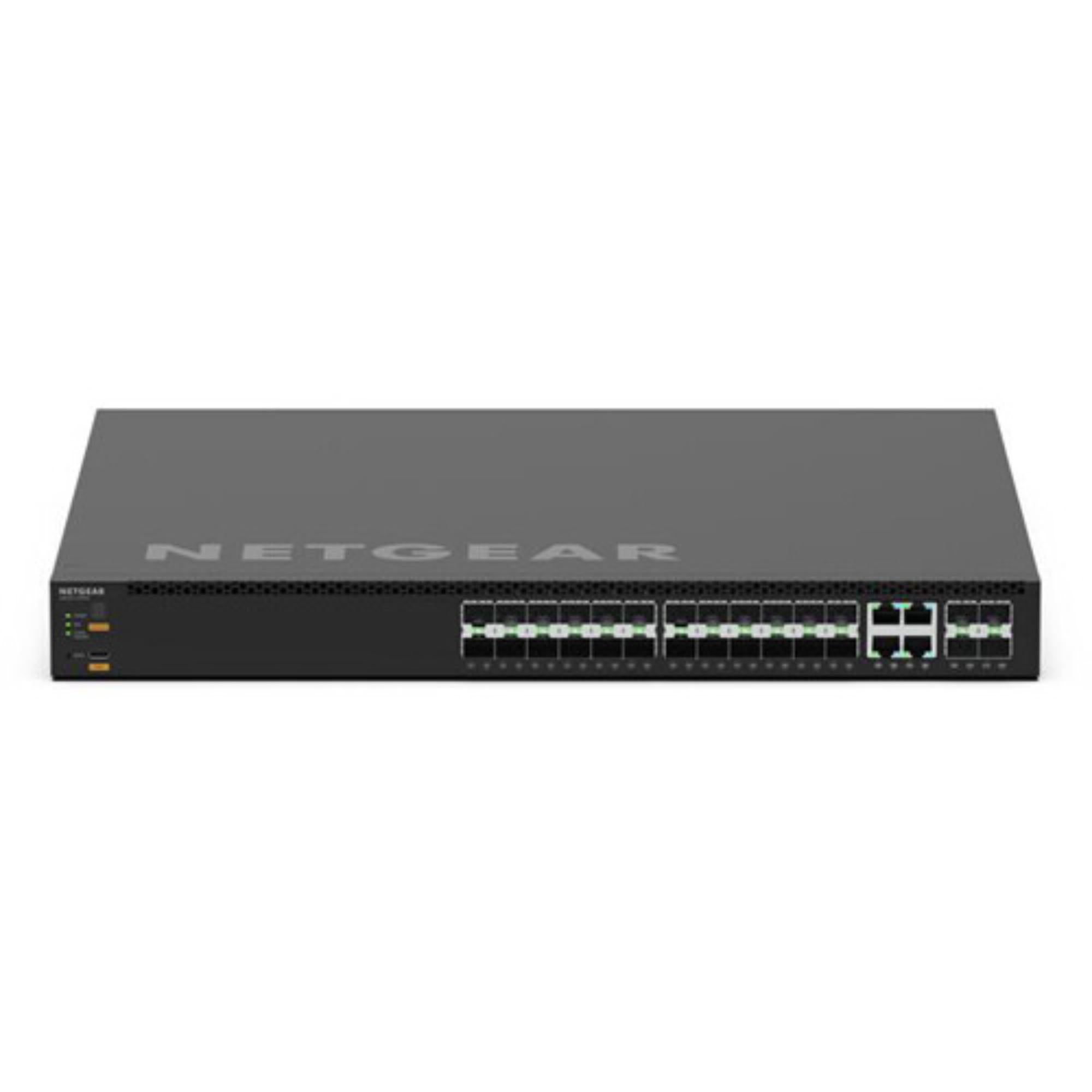

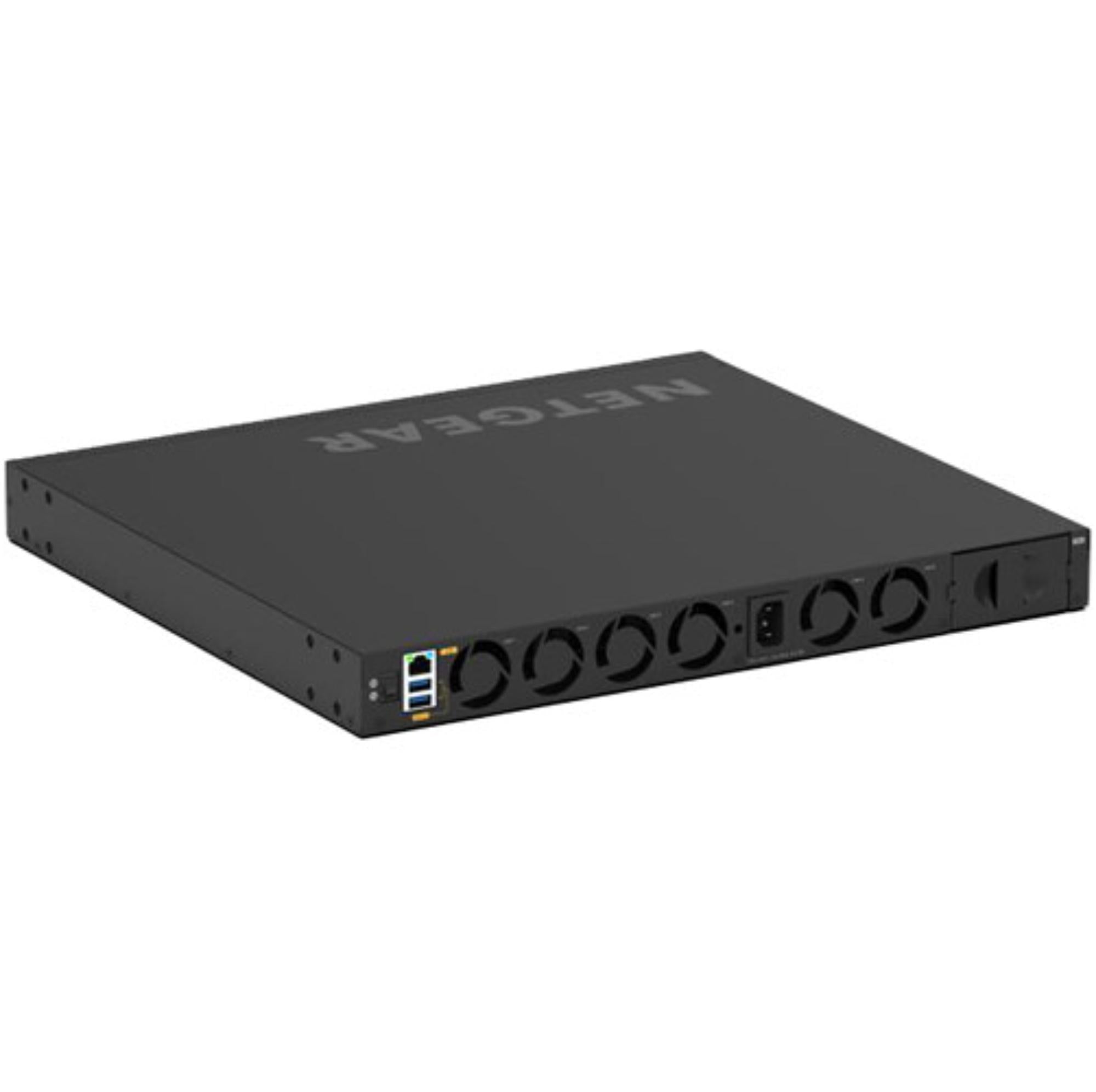

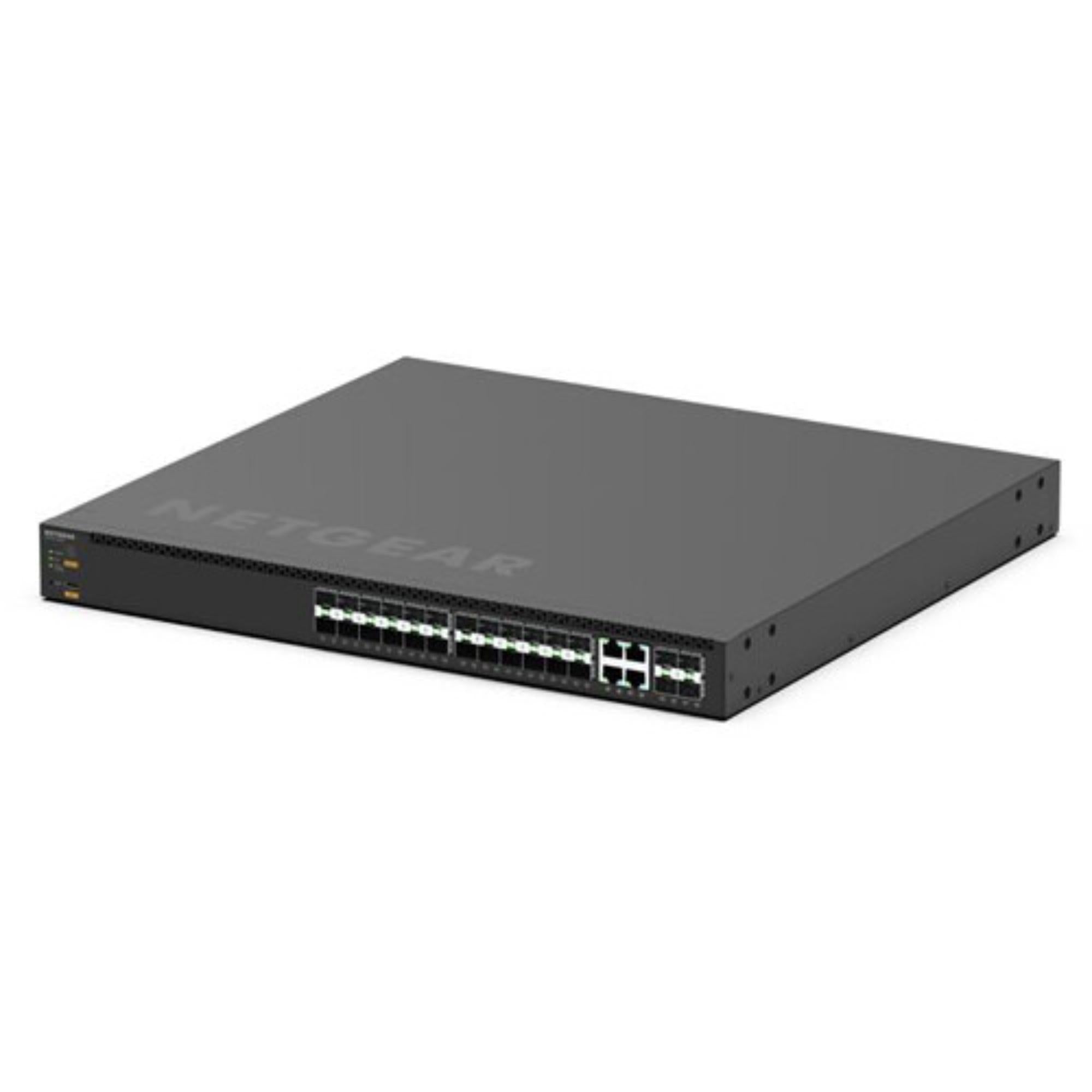

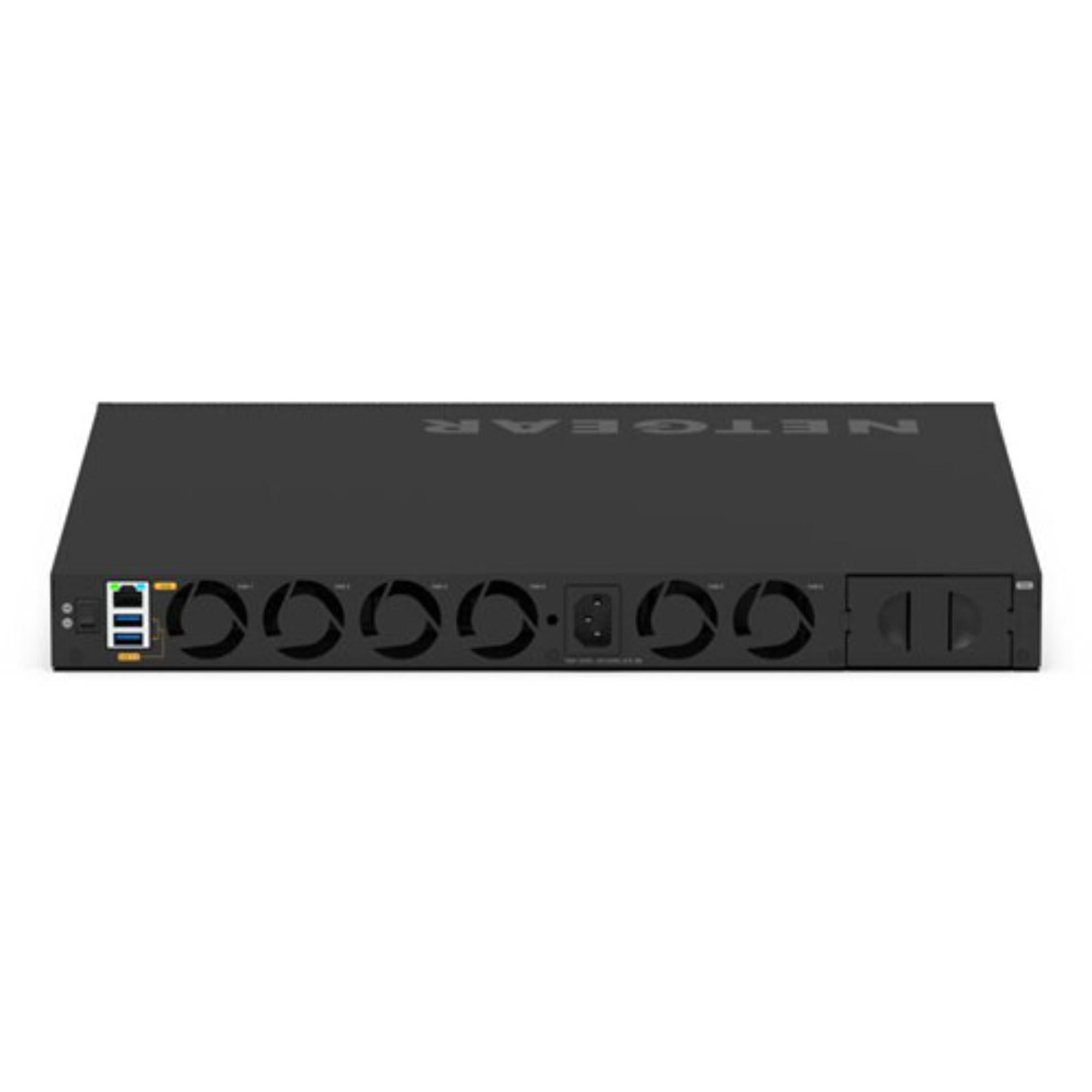

NETGEAR AV Line M4350-24F4X 24-Port Gigabit SFP Managed Switch

NETGEAR AV Line M4350-24F4X 24-Port Gigabit SFP Managed Switch is built for AV and broadcast network environments where fiber density, multicast handling, and quieter rack operation all matter. Based on the image source, this switch provides 24 x 1G/2.5G SFP ports plus 4 combo uplink ports that support 10GBASE-T copper or 10G SFP+, giving engineers a flexible platform for high-density fiber connectivity with adaptable 10G uplink options.

Highlights

• 24 x 1G/2.5G SFP ports for high-density fiber connectivity
• 4 combo uplink ports supporting 10GBASE-T copper or 10G SFP+
• Enhanced NETGEAR IGMP Plus support for multicast-aware network operation
• AVB support included for professional media and AV environments
• Jumbo frame support up to 12kb
• Quiet Mode rated at 30dB at 25°C

Quick Specs & Uses

• Width: 440mm
• Depth: 400mm
• Height: 43.2mm
• Weight: 7.38kg (16.26lb)
• Primary port speed: 1 / 2.5 Gigabit
• Total ports: 28
• Port configuration: 24 x 1G/2.5G SFP, 4 Combo 10GBASE-T Copper / 10G SFP+
• IGMP support: Enhanced (NETGEAR IGMP Plus)
• Jumbo frame support: Yes, up to 12kb
• AVB support: Yes, included
• Acoustics: Quiet Mode 30dB at 25°C
• Power consumption: Max: 115.5W / 393.84Btu/hr
• Standby without any port connection: 39W / 132.87Btu/hr
• Compatible PSU models: APS600Wv3, APS1200Wv2, APS2000Wv2

Why It Helps

In real AV and broadcast deployments, the port mix is what makes this switch stand out. The large SFP count supports fiber-heavy designs, while the four combo 10G uplink ports leave room for different upstream connection choices. Add enhanced IGMP support, AVB, and lower-noise operation, and this becomes a practical fit for installations where traffic control, rack planning, and day-to-day usability all matter.

System Characteristics

• High SFP port density supports fiber-focused network layouts
• Flexible 10G uplink options help adapt the switch to different cabling and backbone requirements
• Enhanced IGMP Plus support helps suit multicast-heavy AV workflows
• AVB inclusion supports professional media network environments
• Quiet Mode operation makes the switch easier to place in noise-sensitive technical areas
• Listed PSU compatibility helps with cleaner power planning for supported deployments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
