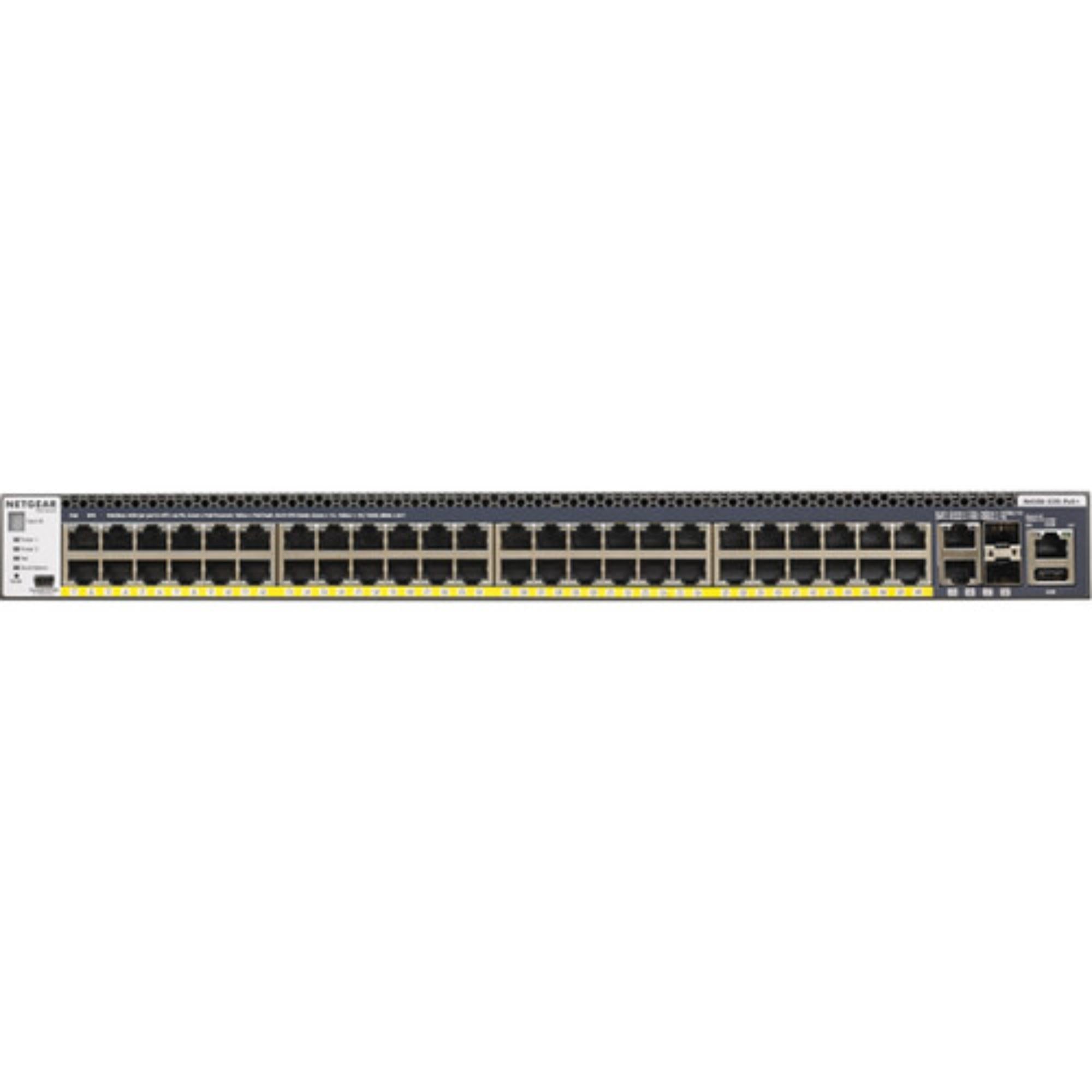

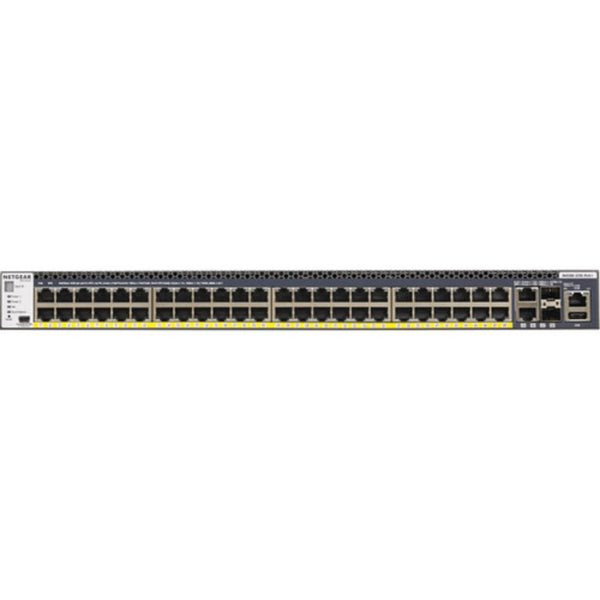

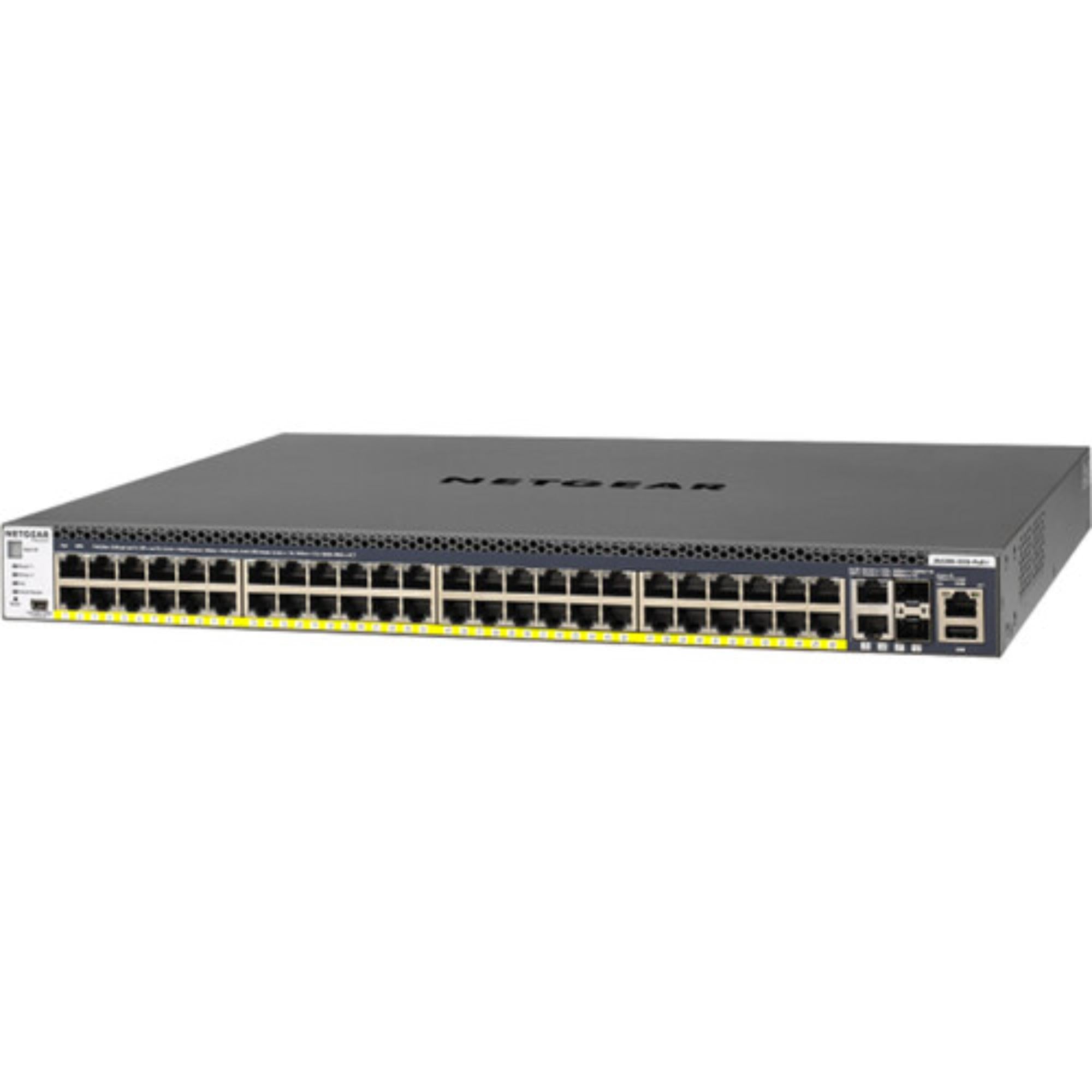

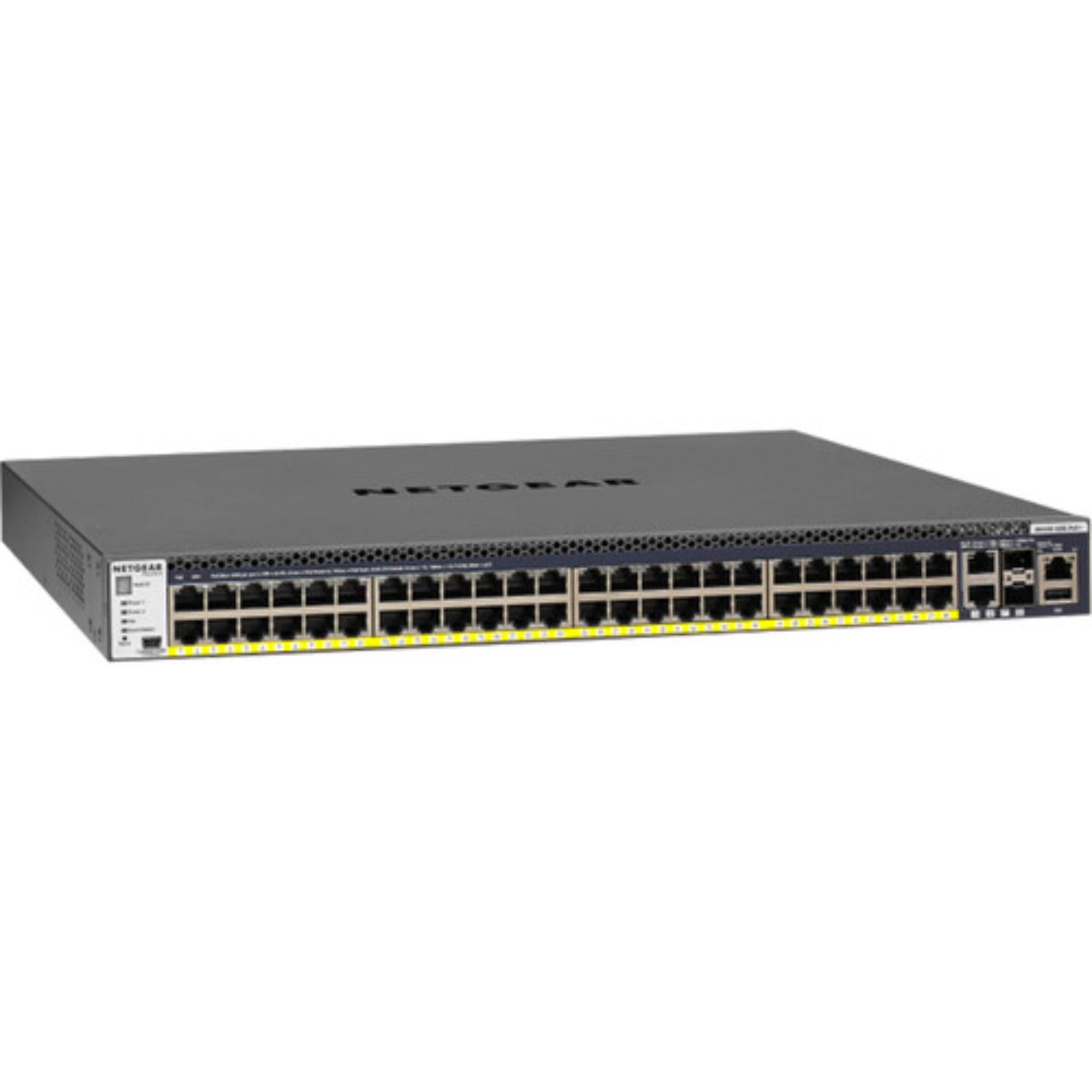

NETGEAR M4300-52G-PoE+ 50-Port 1G/10G PoE+ Compliant Managed Network Switch with SFP+

NETGEAR M4300-52G-PoE+ 50-Port 1G/10G PoE+ Compliant Managed Network Switch with SFP+ is built for network environments that need high copper port density, practical PoE+ support, and real uplink flexibility in the same chassis. Based on the source details, this switch provides 48 x 1G RJ45 PoE+ ports, along with 2 x 10GBASE-T and 2 x SFP+ uplinks, making it a strong fit for access-layer deployments that still need clean paths back to aggregation or core.

Highlights

• 48 x 1G PoE+ RJ45 ports for high-density endpoint connectivity
• 2 x 10GBASE-T and 2 x SFP+ uplinks for copper or fiber upstream flexibility
• Up to 720W PoE budget with dual PSUs in shared EPS mode
• Layer 3 routing support including static, policy-based, RIP, OSPF, and VRRP IPv4
• Dual modular PSU design for continuity and power planning flexibility

Quick Specs & Uses

• Hardware specification: 48 x 1G PoE+ stackable managed switch with 2 x 10GBASE-T and 2 x SFP+
• Ordering number: GSM4352PA
• Acoustics: 39.8 dB @ 25°C (77°F)
• Power consumption (max): 865 watts
• 1G RJ45 ports: 48 x 10/100/1000
• 10G RJ45 ports: 2 x 10GBASE-T, 1G and 10G speeds
• 10G fiber SFP+ ports: 2 x SFP+, 1G and 10G speeds
• Power over Ethernet: 48 x PoE+ 30W
• PoE budget: 480W with 1 PSU on 110V / 220V AC input; 480W with 2 PSUs in redundant RPS mode; 720W with 2 PSUs in shared EPS mode
• External redundancy option: RPS4000V2 when 2 internal PSUs are used in EPS mode
• Feature set: Layer 3 with static, policy-based, RIP, OSPF, and VRRP IPv4 routing
• Management ports: 1G Ethernet OOB RJ45, RS232 serial RJ45, Mini-USB console, USB for storage/logs/config/image files

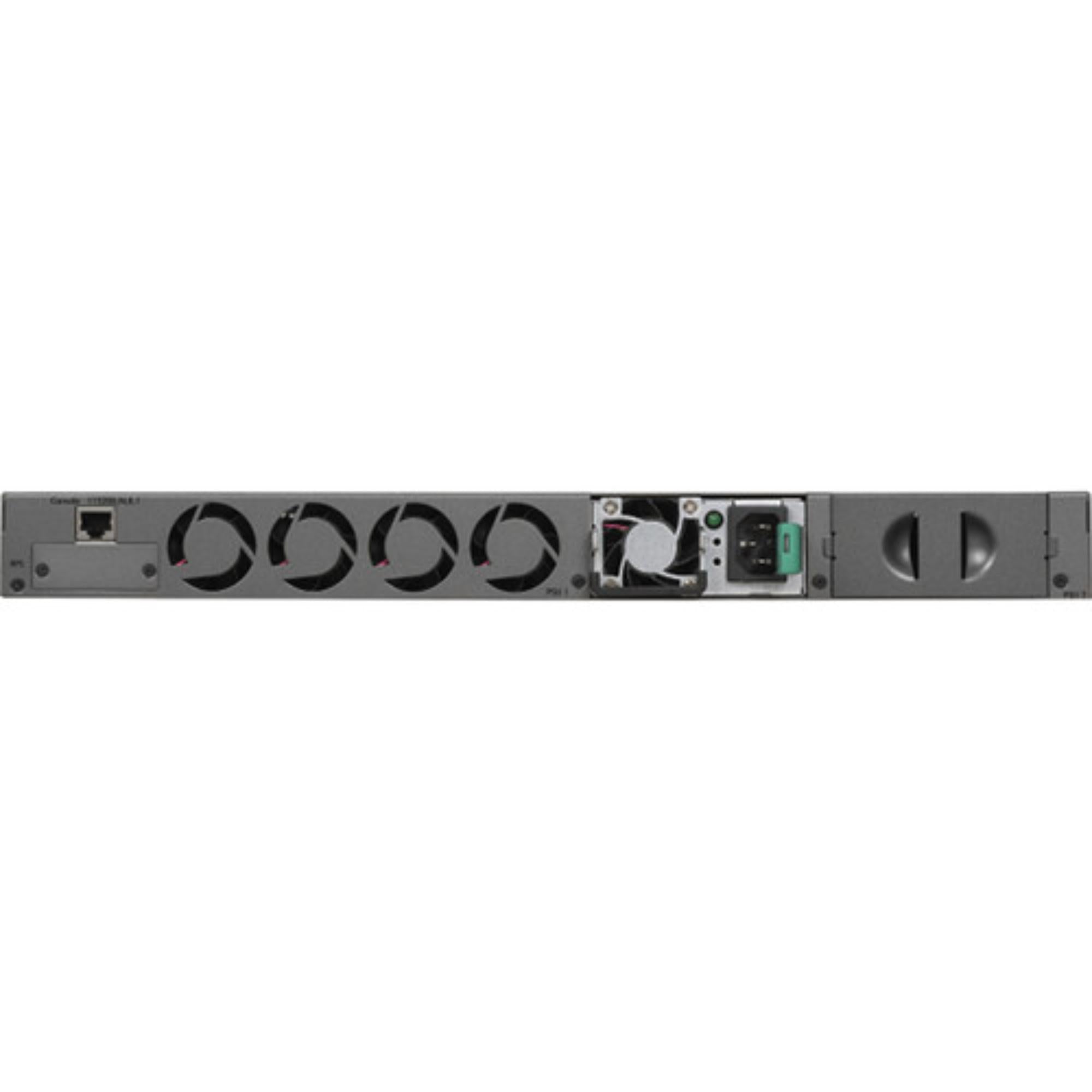

• Form factor: Full width with dual, redundant modular PSU for business continuity

Why It Helps

In real deployments, an access switch often has to do more than simply offer port count. It has to power endpoints, provide uplink flexibility, stay serviceable, and support redundancy planning. The M4300-52G-PoE+ fits that role well by combining 1G PoE+ edge connectivity, 10G copper and fiber uplinks, Layer 3 capability, and multiple power configuration options in one rack-ready platform.

System Characteristics

• High-density 1G PoE+ access supports larger endpoint counts
• Mixed 10G copper and fiber uplinks give the design more flexibility upstream
• Multiple PoE budget modes allow a choice between redundancy and additional power headroom
• Layer 3 routing features add more deployment flexibility beyond basic switching
• Multiple local and OOB management paths improve serviceability in real-world support scenarios

What’s In The Box

Please refer to the Specifications tab for the exact included items.
