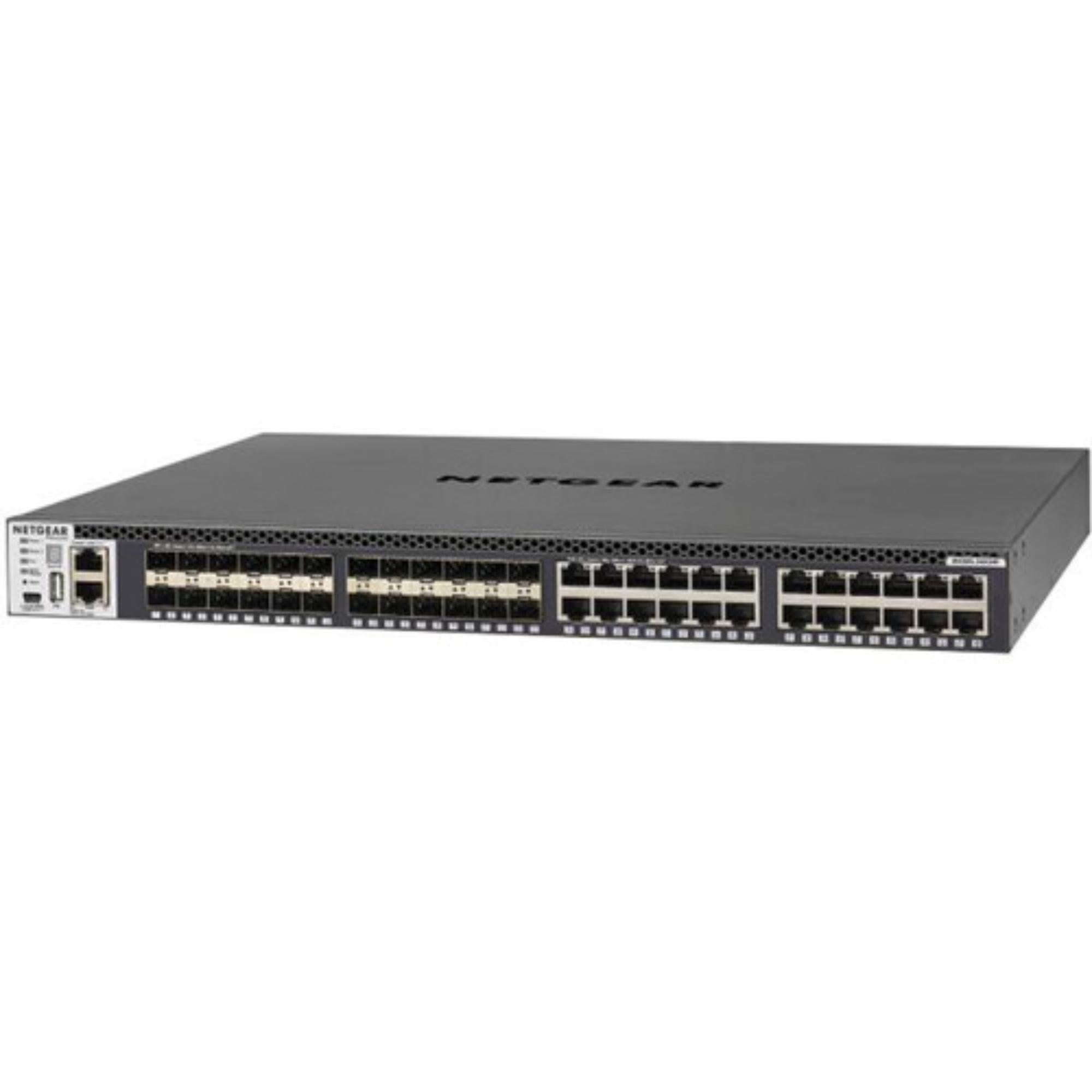

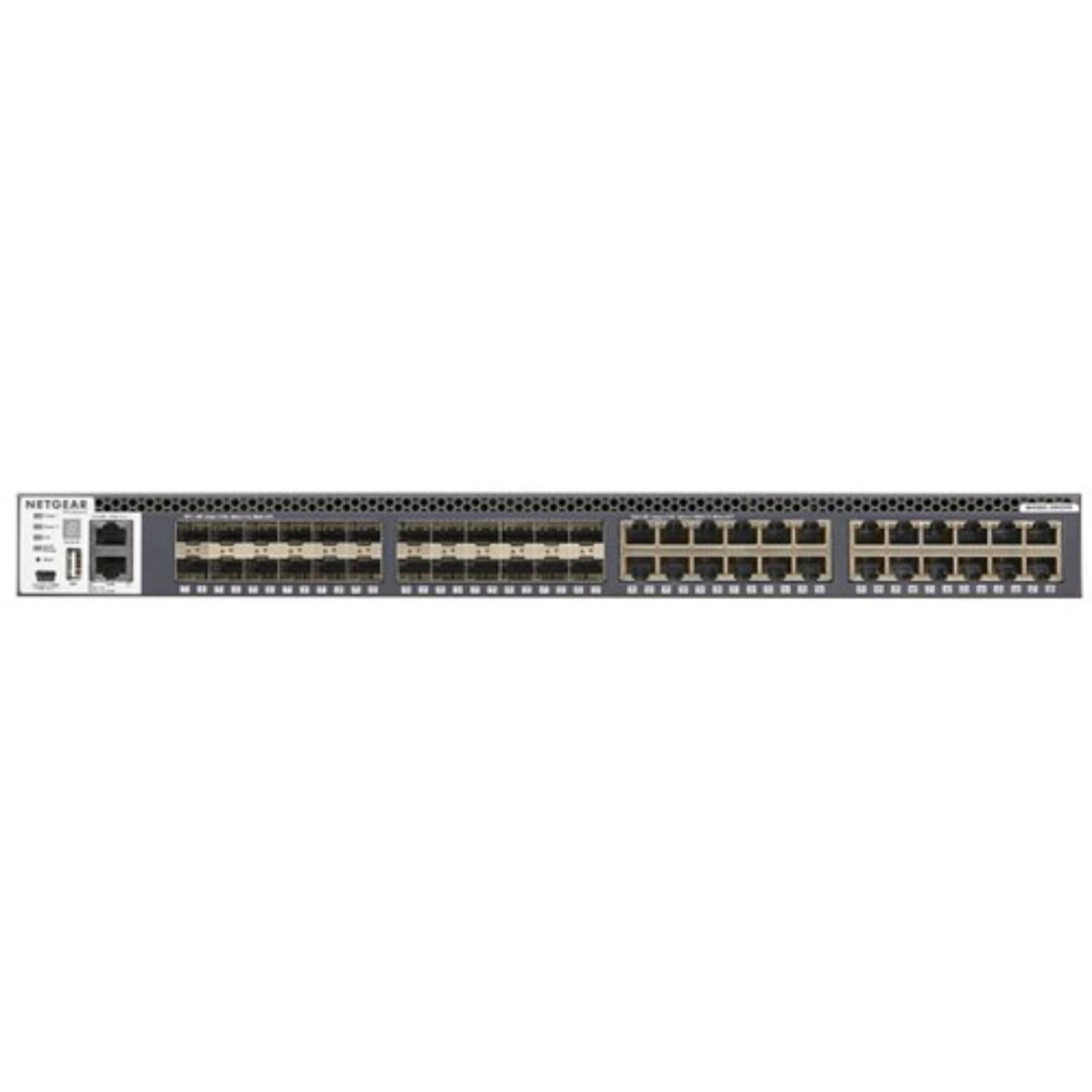

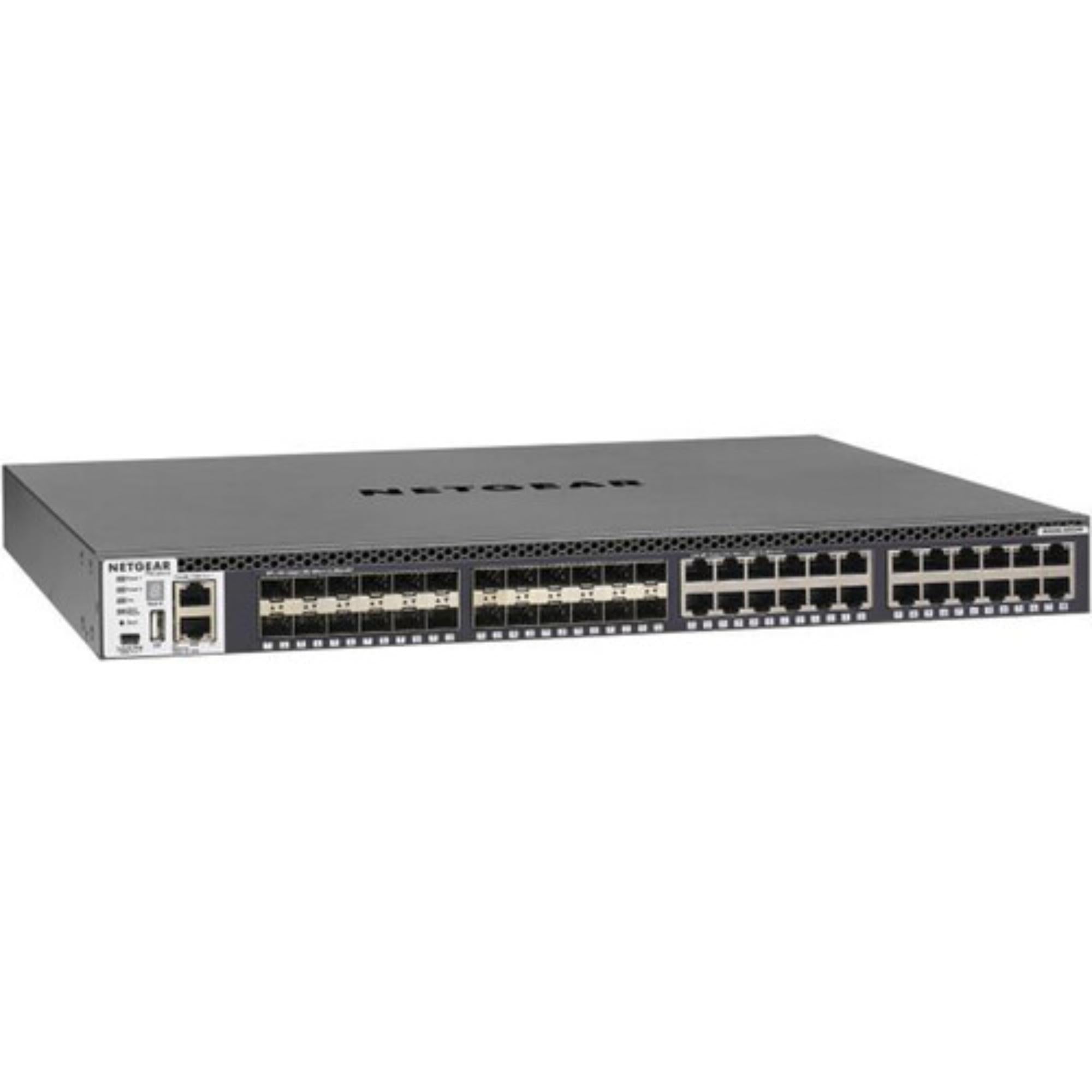

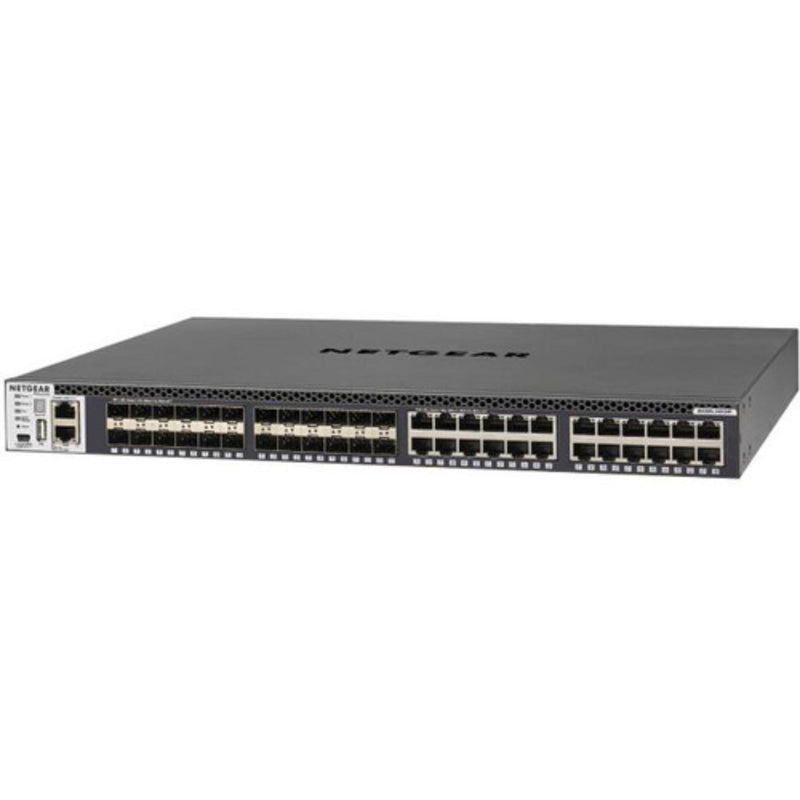

NETGEAR M4300-24X24F 24-Port RJ45 & 24-Port SFP+ 10G Managed Network Switch

NETGEAR M4300-24X24F 24-Port RJ45 & 24-Port SFP+ 10G Managed Network Switch is built for network environments where copper and fiber both have to coexist without making the design messy. Based on the source details, this model combines 24 copper ports supporting 100M / 1G / 10G with 24 SFP+ ports supporting 1G / 10G, giving it a practical role in mixed-media infrastructures that need flexibility without adding extra switching layers too early.

Highlights

• 24 copper ports supporting 100M, 1G, and 10G connectivity
• 24 SFP+ ports supporting 1G and 10G fiber links
• 960 Gps switching fabric for higher-throughput switching capacity
• One included APS250W modular PSU in a modular power bay
• Front-access management ports for easier setup and servicing

Quick Specs & Uses

• Model number: XSM4348S
• Copper ports: 24 ports, 100M / 1G / 10G
• SFP+ ports: 24 ports, 1G / 10G

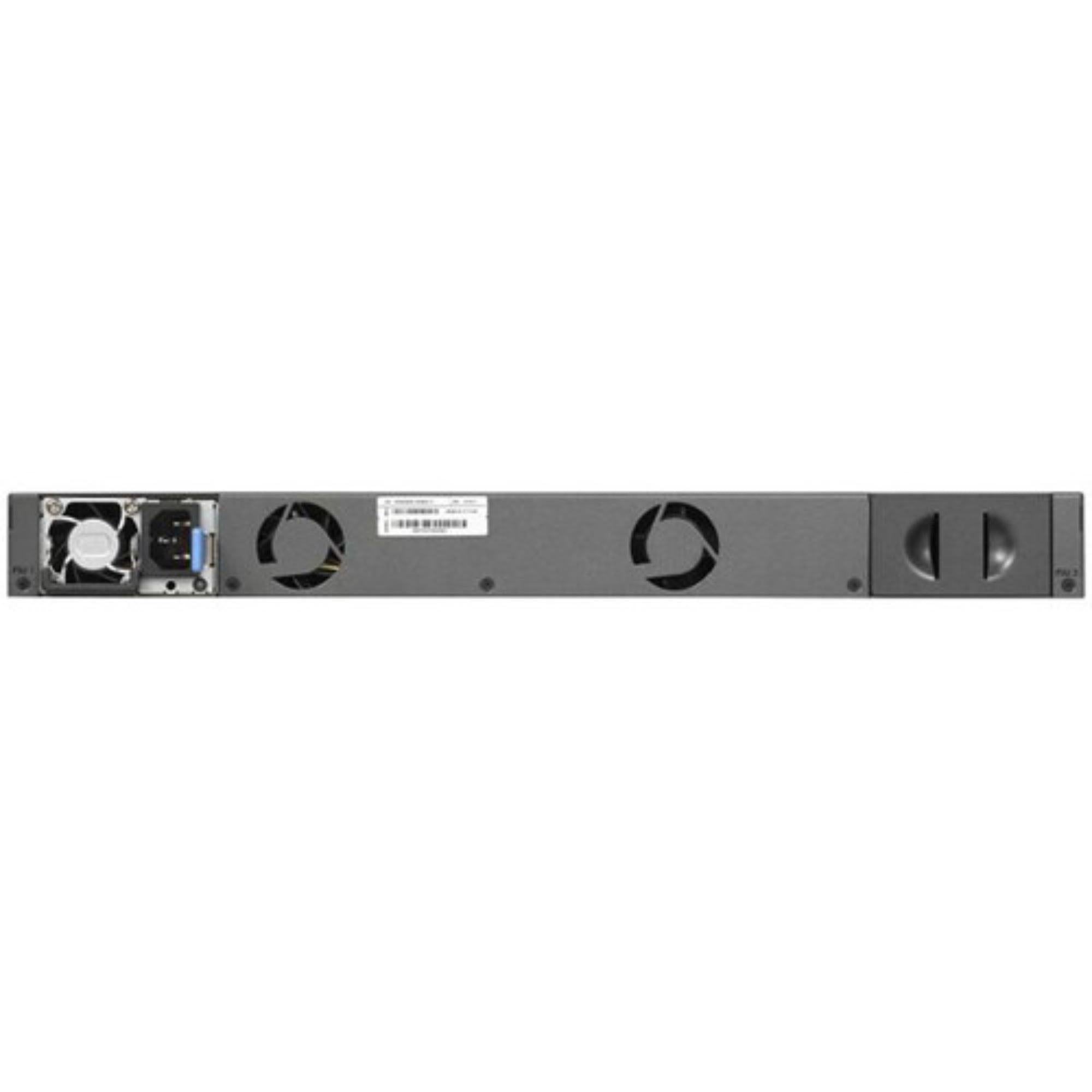

• Modular power: 1 modular bay with one included 250W APS250W PSU
• Switching fabric: 960 Gps
• Cooling: Fixed fan, front-to-back airflow
• Acoustics: 35.8 dB
• Out-of-band management: Front 1G Ethernet port
• Console: Front RJ45 RS232 and front Mini-USB
• Storage: Front USB
• Management platform: NMS300 with mass-configuration support
• Update support: Dual firmware image and configuration file for reduced service interruption

Why It Helps

In real installations, not every switch fits neatly into a single media type. Some devices still live on copper, while distribution and uplinks may already be moving toward fiber. The M4300-24X24F fits that mixed role well by combining RJ45 and SFP+ connectivity, modular power, and practical front-access management in a single platform.

System Characteristics

• Mixed copper and fiber connectivity supports more flexible network design
• 10G support across copper and SFP+ adds headroom where faster links are needed
• Modular PSU design improves serviceability and long-term support planning
• Front-access management and storage ports make local setup and recovery easier
• NMS300 and dual firmware support help with larger rollouts and safer updates

What’s In The Box

Please refer to the Specifications tab for the exact included items.
