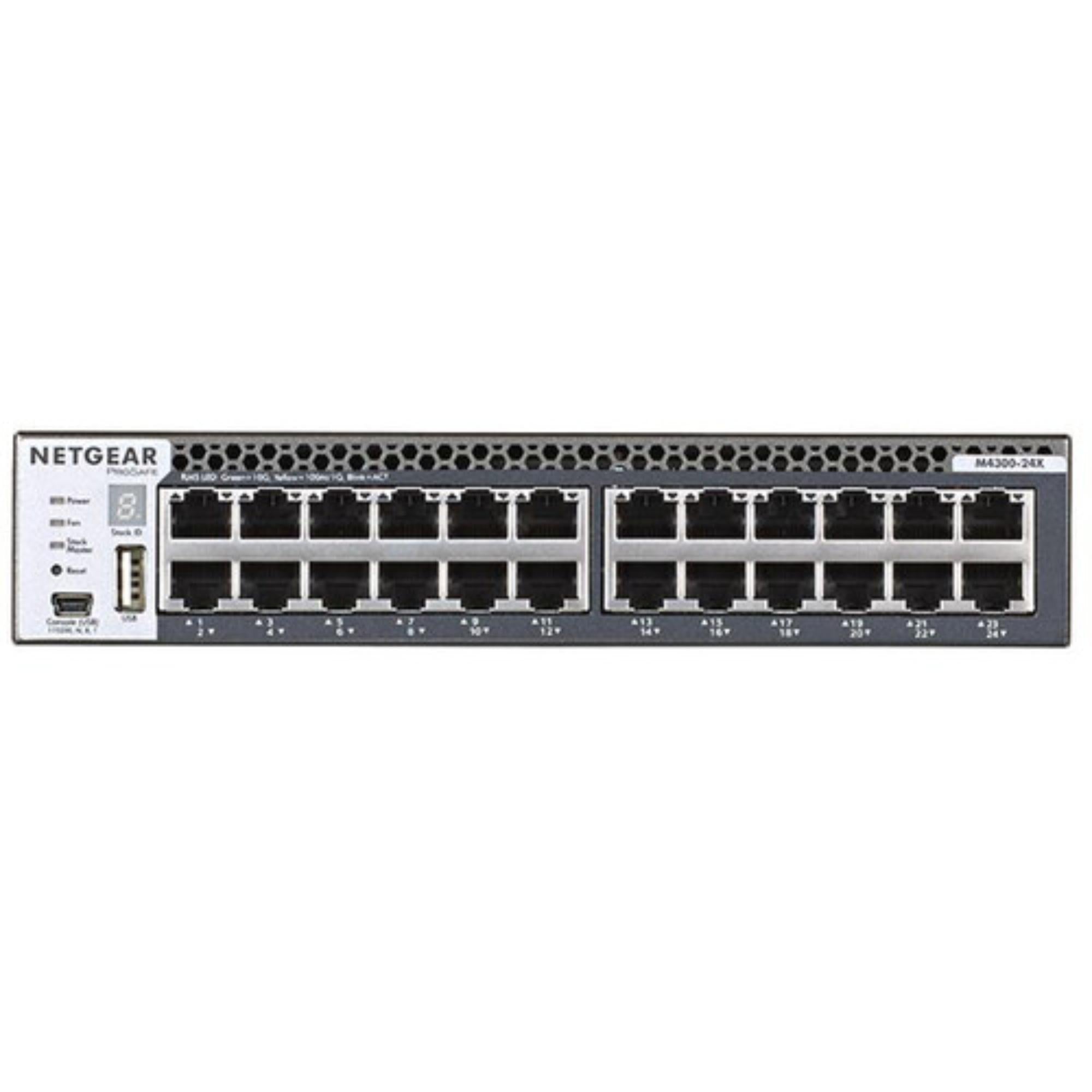

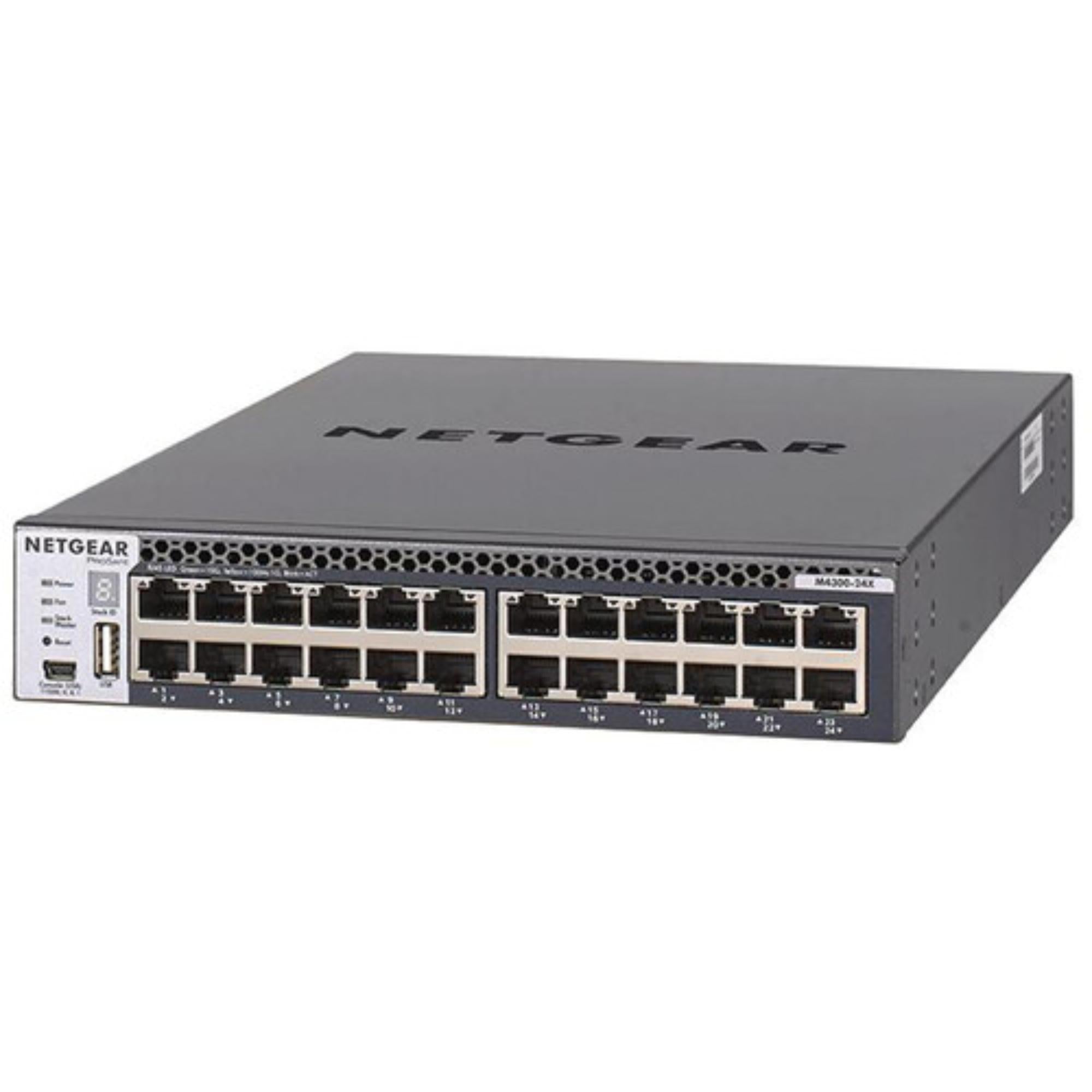

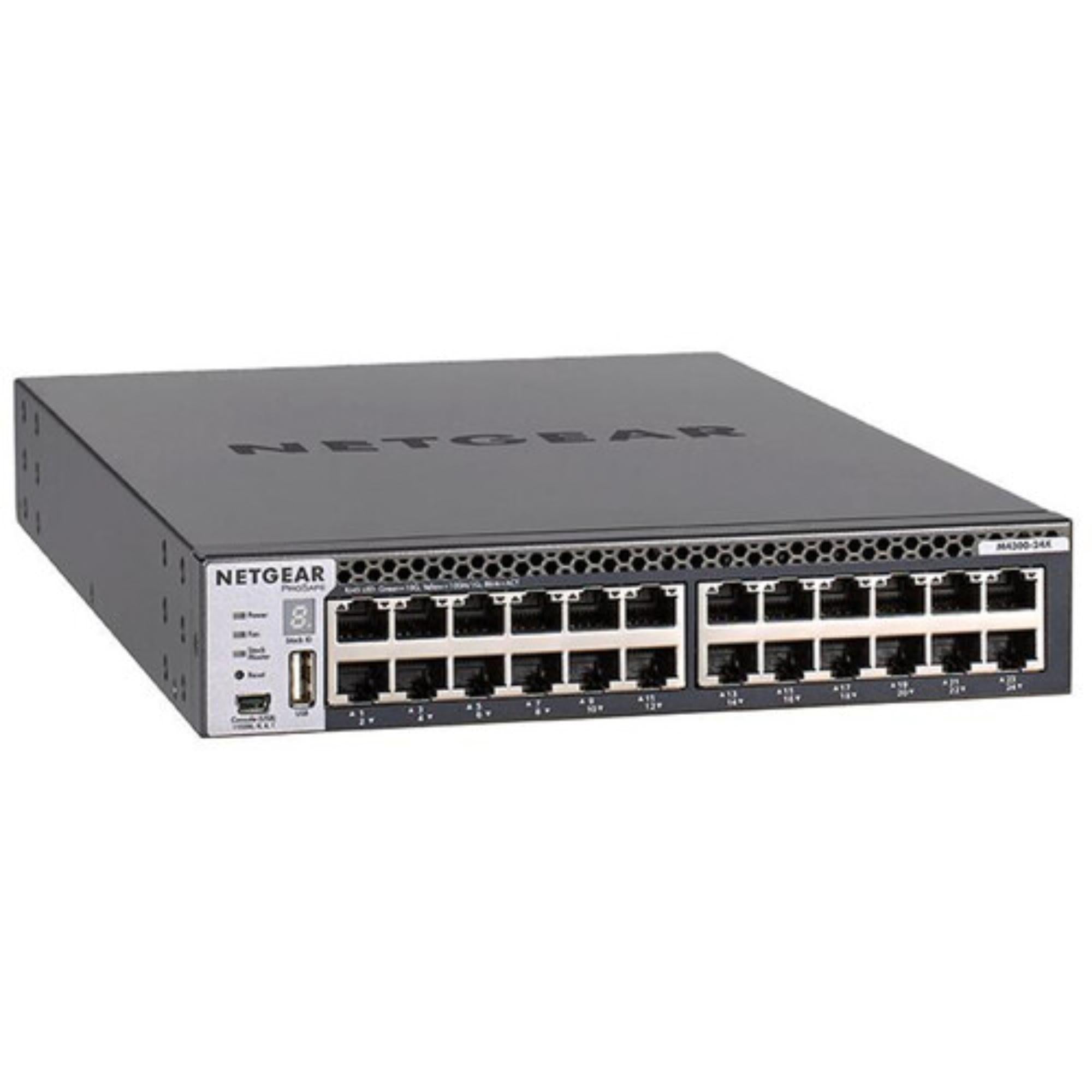

NETGEAR M4300-24X 24-Port 10G Managed Network Switch with SFP+

NETGEAR M4300-24X 24-Port 10G Managed Network Switch with SFP+ is built for network environments where high-speed copper connectivity is the priority, but a small amount of SFP+ flexibility still matters. Based on the source details, this model combines 24 copper ports supporting 100M / 1G / 10G with 4 shared SFP+ ports supporting 1G / 10G, giving it a practical role in mixed copper deployments that still need some optical or shared uplink capability.

Highlights

• 24 copper ports supporting 100M, 1G, and 10G connectivity
• 4 shared SFP+ ports supporting 1G and 10G links
• 480 Gps switching fabric for higher-throughput switching capacity
• One included APS250W modular PSU in a modular power bay
• Front and rear management access for easier setup and servicing

Quick Specs & Uses

• Model number: XSM4324CS
• Copper ports: 24 ports, 100M / 1G / 10G
• SFP+ ports: 4 ports, 1G / 10G, shared
• Modular power: 1 modular bay with one included 250W APS250W PSU
• Switching fabric: 480 Gps
• Cooling: Fixed fan, front-to-back airflow
• Acoustics: 37 dB

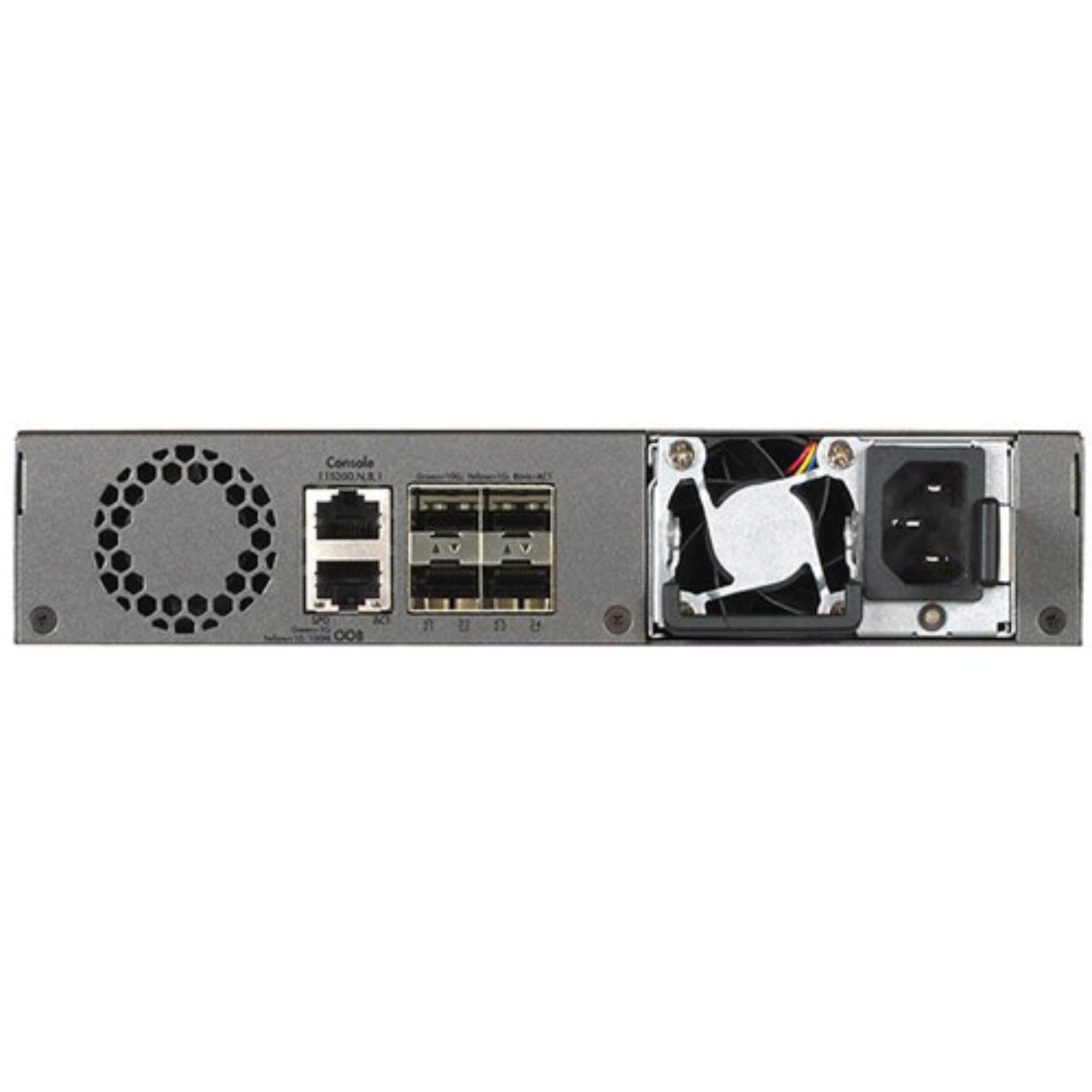

• Out-of-band management: Back 1G Ethernet port
• Console: Back RJ45 RS232 and front Mini-USB
• Storage: Front USB
• Management platform: NMS300 with mass-configuration support
• Update support: Dual firmware image and configuration file for reduced service interruption

Why It Helps

In real installations, not every switch needs to be fiber-heavy. Sometimes the network is mostly copper, but you still want a few flexible uplink or shared SFP+ options available. The M4300-24X fits that role well by combining dense 10G copper connectivity, modular power, and practical front and rear management access in a platform that is easier to support over time.

System Characteristics

• Dense 10G copper connectivity supports higher-speed RJ45 network designs
• Shared SFP+ flexibility adds optical or uplink options where needed
• Modular PSU design improves serviceability and long-term support planning
• Front and rear management paths make local setup and recovery easier
• NMS300 and dual firmware support help with larger rollouts and safer updates

What’s In The Box

Please refer to the Specifications tab for the exact included items.
