NETGEAR GS752TPv3 48-Port PoE+ Compliant Gigabit Managed Network Switch (380W)

NETGEAR GS752TPv3 48-Port PoE+ Compliant Gigabit Managed Network Switch (380W) is the kind of switch that makes sense when a network needs a serious number of powered copper ports without giving up managed control. Based on the image source, it provides 48 RJ45 Gigabit Ethernet PoE+ ports, each listed at 30W and 802.3at, along with 4 SFP Gigabit Ethernet WAN ports and 1 USB-A port. It is built for larger endpoint environments where port count, power delivery, and structured switching all need to live in the same 1U chassis.

Highlights

• 48 RJ45 Gigabit Ethernet PoE+ ports with 30W, 802.3at support
• 4 SFP Gigabit Ethernet WAN ports for uplink or fiber connectivity
• 380W total PoE budget for larger powered endpoint deployments
• Layer 2, Layer 3, and Layer 4 support for more structured managed switching
• 1U rackmount design with full internal power and active cooling

Quick Specs & Uses

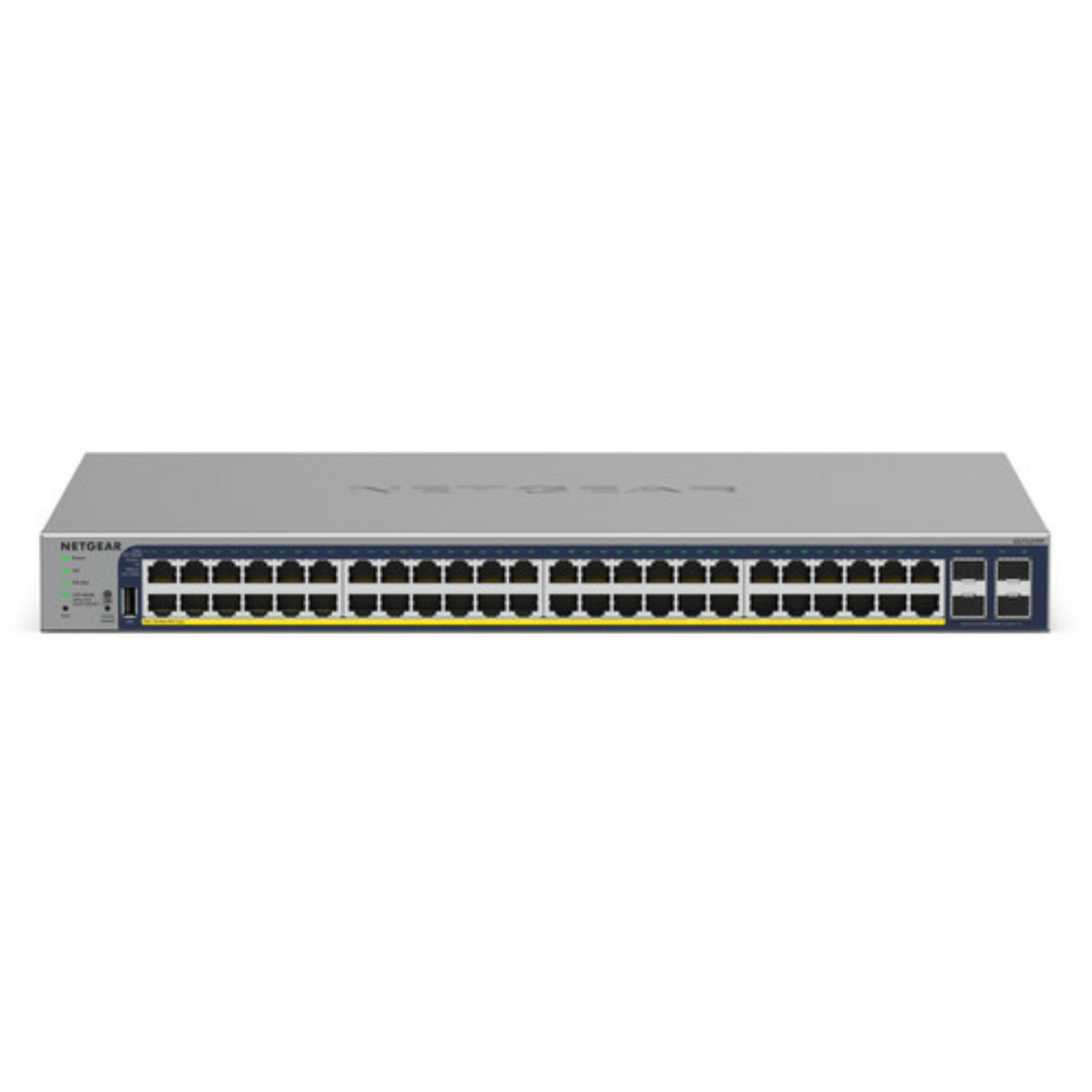

• Networking I/O: 48x RJ45 Gigabit Ethernet PoE+ (30W, 802.3at), 4x SFP Gigabit Ethernet WAN
• Other I/O: 1x USB-A
• Stackable: No
• Layer services supported: Layer 2, Layer 3, Layer 4
• Supported protocols: TLS, Link Aggregation, Port Mirroring, DHCP Server, IGMP Snooping, DoS, IPv6, Auto-VoIP, RADIUS, IPv4
• Queuing: Strict Priority, Weighted Round Robin (WRR)
• Jumbo frames support: 10,000 bytes
• MAC address table size: 16K
• Security features: DHCP Snooping, DoS Attack Prevention, RADIUS Authentication, Storm Control, Kensington Lock Support
• Forwarding rate: 77.38 Mpps
• Switching bandwidth: 104 Gb/s (Non-Blocking)
• Packet buffer: 1.5 MB
• Flash memory: 64 MB
• CPU: Single-Core, up to 800 MHz A55
• Memory: 512 MB
• PoE power budget: 380 W
• Power draw: 29.00 W idle, 861.00 W max
• Input power: 100 to 240 VAC, 60 / 50 Hz
• Power supply type: Internal
• Cooling system: Fan, noise level 36.6 dB
• MTBF: 1.4 Million Hours
• Indicator lights: Yes
• Rack mountable: Yes, 1U
• Dimensions: 17.3 x 12.2 x 1.7 in / 440 x 310 x 43.2 mm
• Weight: 11.08 lb / 5.03 kg

Why It Helps

In larger managed networks, port count on its own is not enough. The switch also needs enough total PoE budget, uplink flexibility, protocol depth, and traffic-handling capability to make that port count useful. The GS752TPv3 addresses those needs by combining 48 PoE+ ports, 4 SFP uplinks, and broader Layer 2 through Layer 4 support in a rack-ready 1U switch that is designed for more structured deployments.

System Characteristics

• 48 PoE+ capable ports make it easier to support larger powered endpoint counts from one switch
• 380W total PoE budget gives the switch more realistic deployment headroom across a denser port count
• 4 SFP WAN/uplink ports add flexibility for upstream or fibre-based connectivity
• Layer 2, 3, and 4 support, plus broad protocol coverage, make it a stronger fit for structured managed networks
• 1U rackmount design with internal PSU and active cooling positions the switch clearly for installed infrastructure environments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
