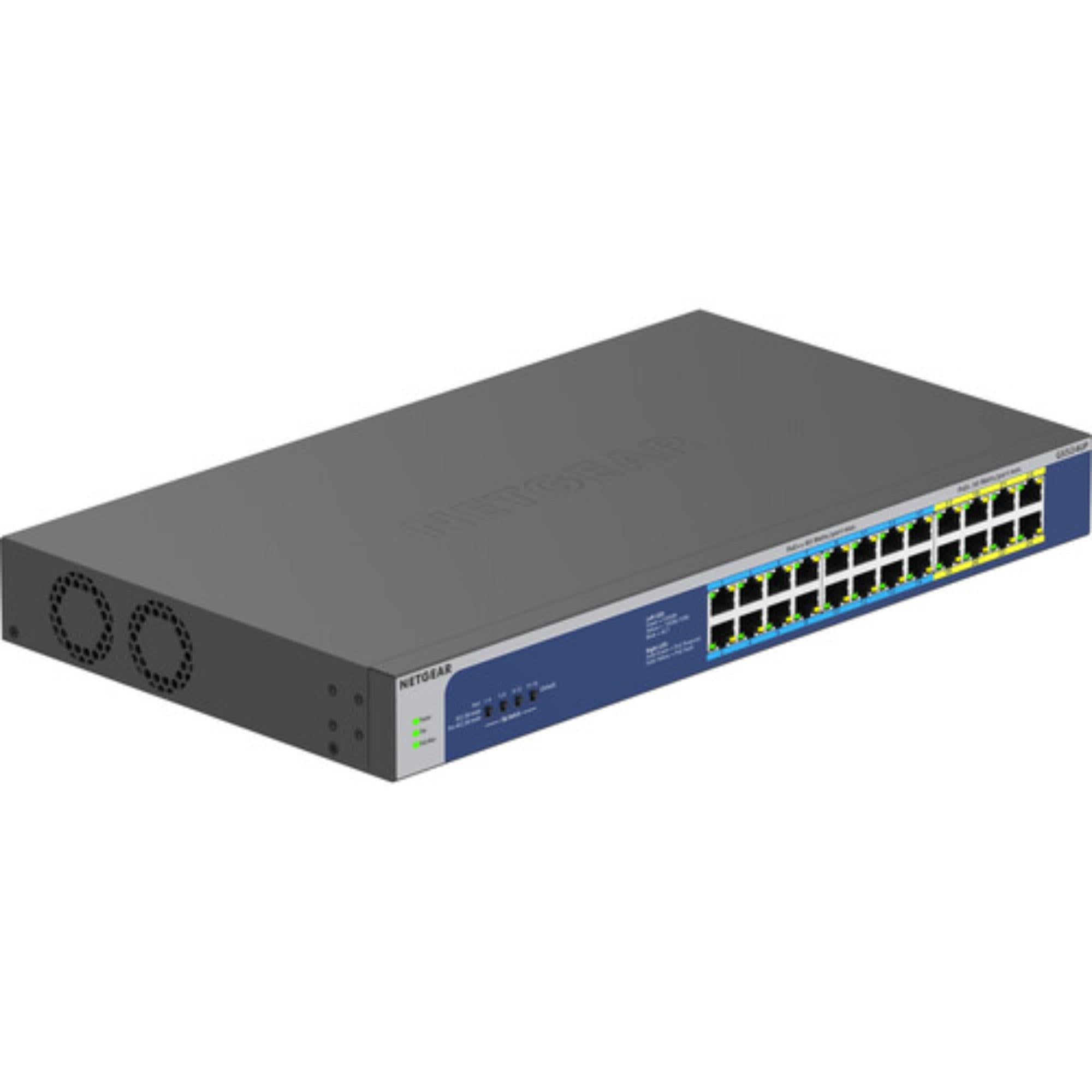

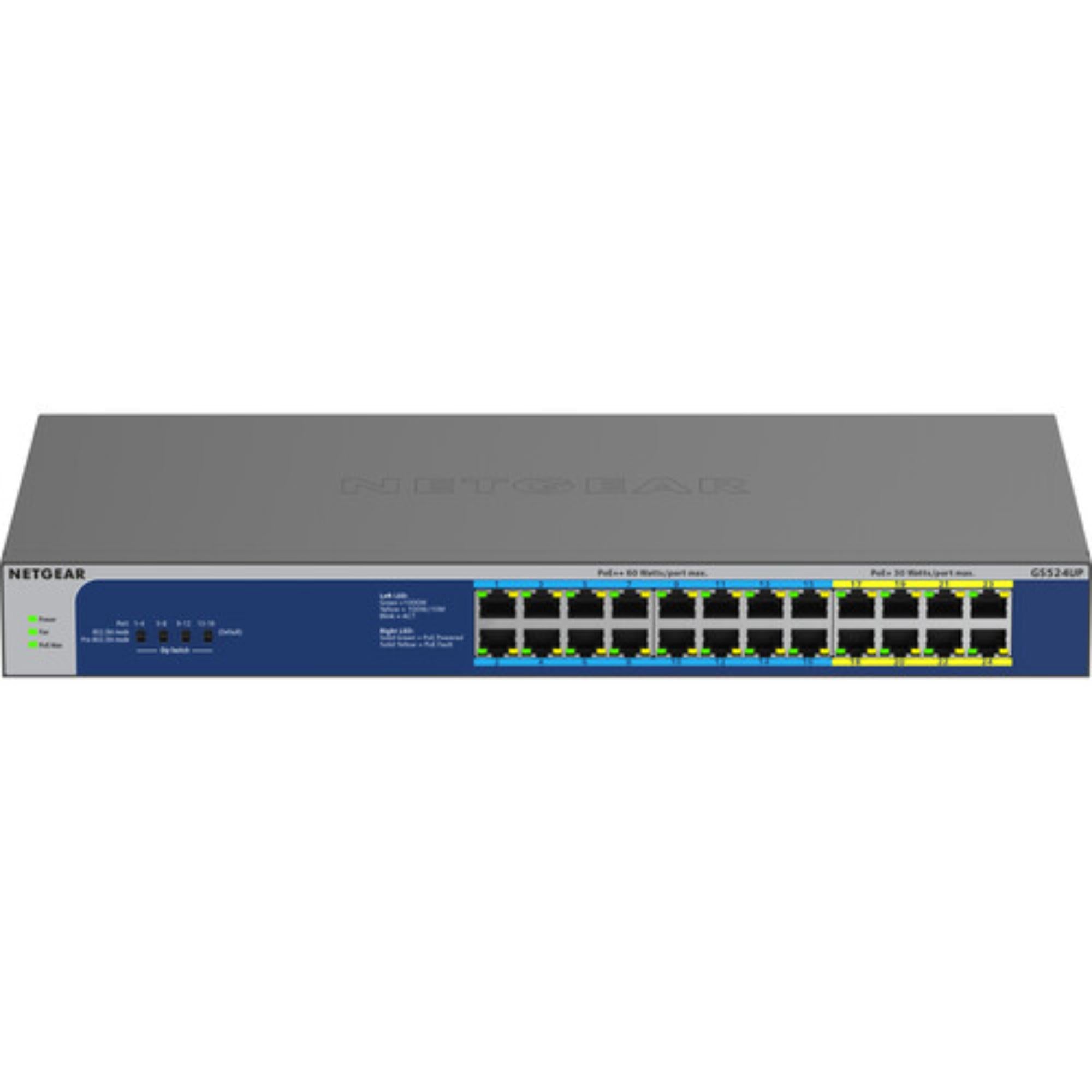

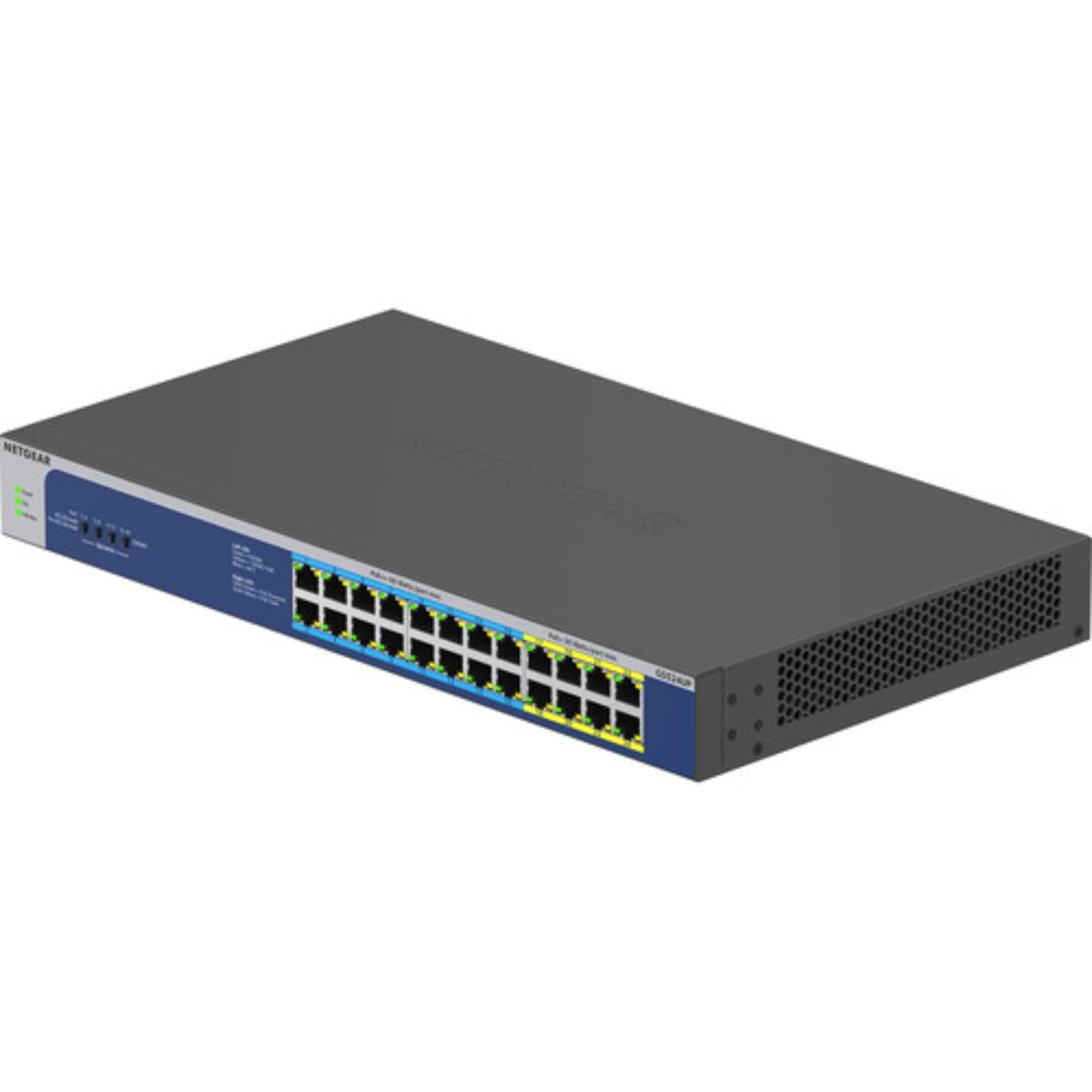

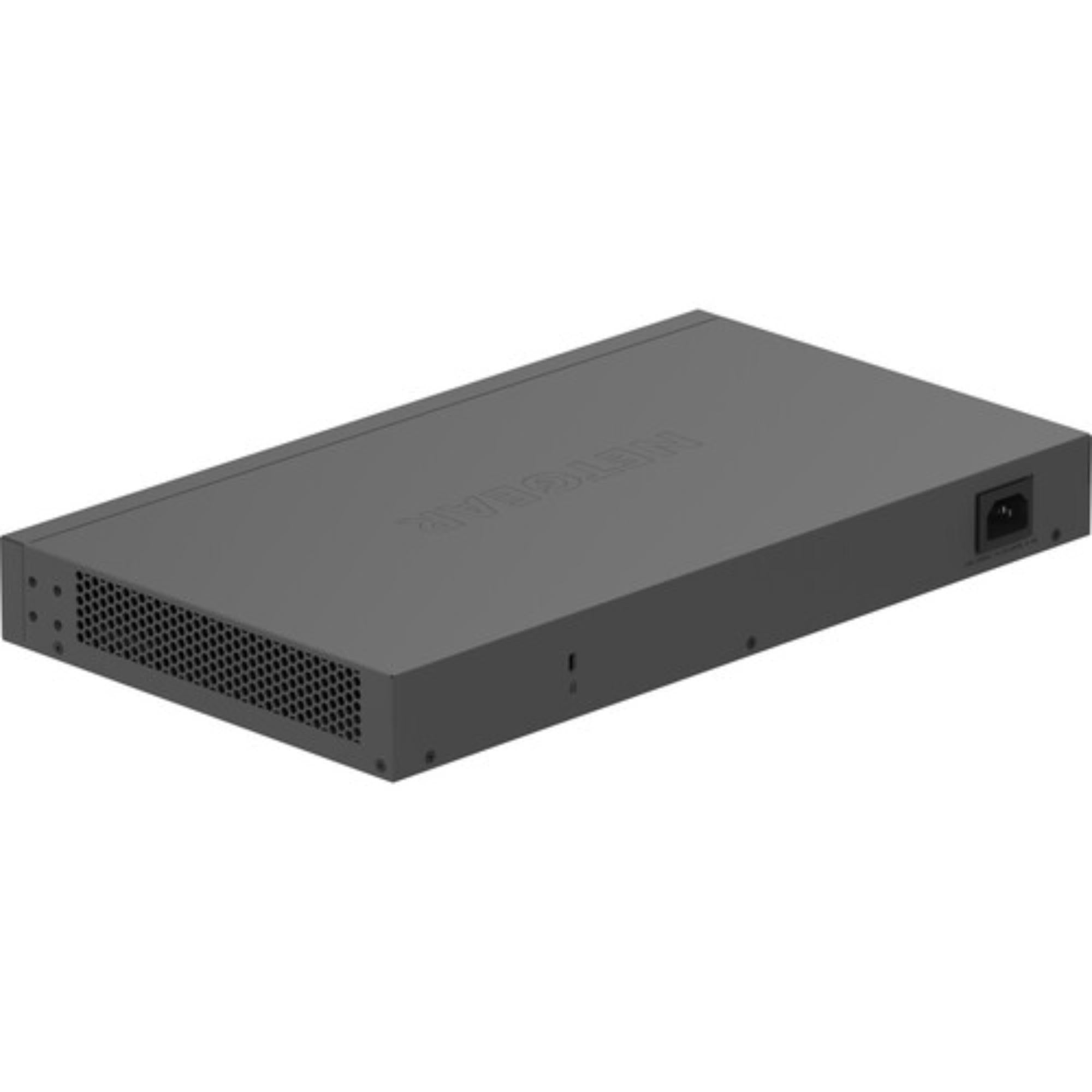

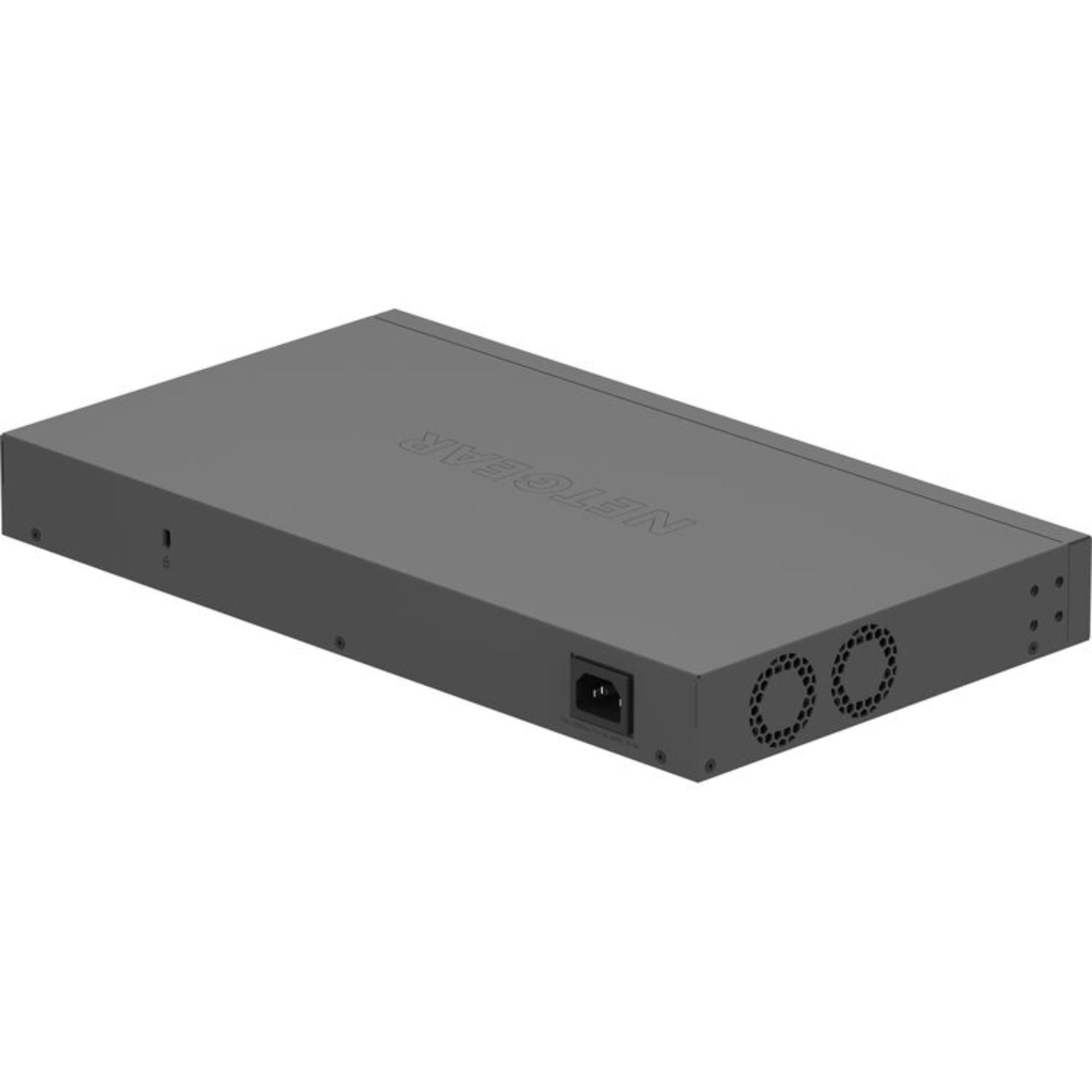

NETGEAR GS524UP 24-Port PoE++ Compliant Gigabit Unmanaged Network Switch

NETGEAR GS524UP 24-Port PoE++ Compliant Gigabit Unmanaged Network Switch is the kind of switch that makes sense when a network needs a lot of powered copper ports and the power side of the design cannot be treated like an afterthought. Based on the image source, this is a 24-port Gigabit unmanaged switch with 8 PoE+ ports, 16 PoE++ ports, and a substantial 480W total PoE budget. It is built for denser powered endpoint deployments where a basic PoE switch would start to feel underpowered too quickly.

Highlights

• 24 Gigabit ports for higher endpoint density
• 8 PoE+ ports and 16 PoE++ ports for mixed powered device support
• 480W total PoE budget for stronger power headroom across the switch
• Unmanaged operation for simpler installation and deployment
• QoS and jumbo frame support for cleaner traffic handling

Quick Specs & Uses

• Speed: Gigabit
• Number of ports: 24
• PoE layout: 8 PoE+ ports and 16 PoE++ ports
• PoE budget: 480W
• Energy Efficient Ethernet: IEEE 802.3az
• Jumbo frame support: 9,216 bytes
• MAC table size: 8K
• Packet buffer size: 192 KB
• QoS: IEEE 802.1p
• Max power consumption: 456.8W / 14.9W
• Fans: 2
• Operating temperature: 0° to 40°C
• MTBF: 809,853.3 hours
• FCC class: Class A

Why It Helps

In larger powered networks, the challenge is usually not just having enough ports. It is having enough total wattage, and the right mix of power capability, to make those ports actually useful. The GS524UP addresses that by combining a large 24-port Gigabit layout with both PoE+ and PoE++ support, plus a strong overall power budget, while keeping the switch itself straightforward through an unmanaged design.

System Characteristics

• 16 PoE++ ports give the switch a stronger fit for higher-power endpoint deployment
• 8 additional PoE+ ports help support mixed-power device groups from one chassis
• 480W total budget gives the switch much more realistic power headroom than lighter PoE models
• Unmanaged operation makes installation simpler where deep switch configuration is not the priority
• QoS, jumbo frames, and 8K MAC table give the switch more structure than a basic low-feature desktop unit

What’s In The Box

Please refer to the Specifications tab for the exact included items.
