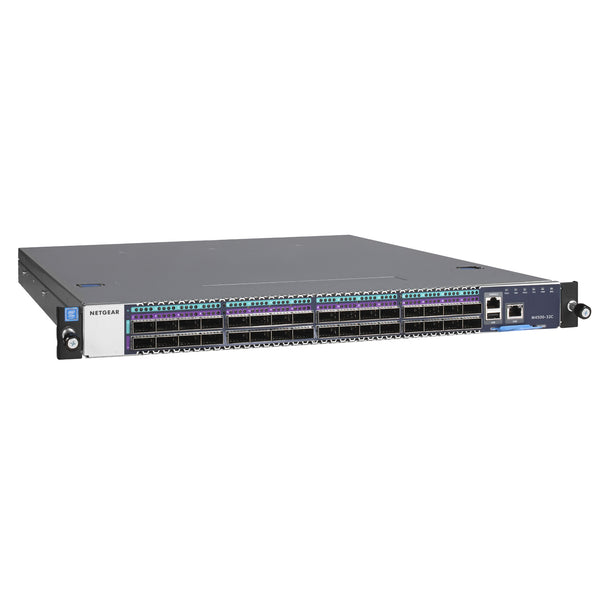

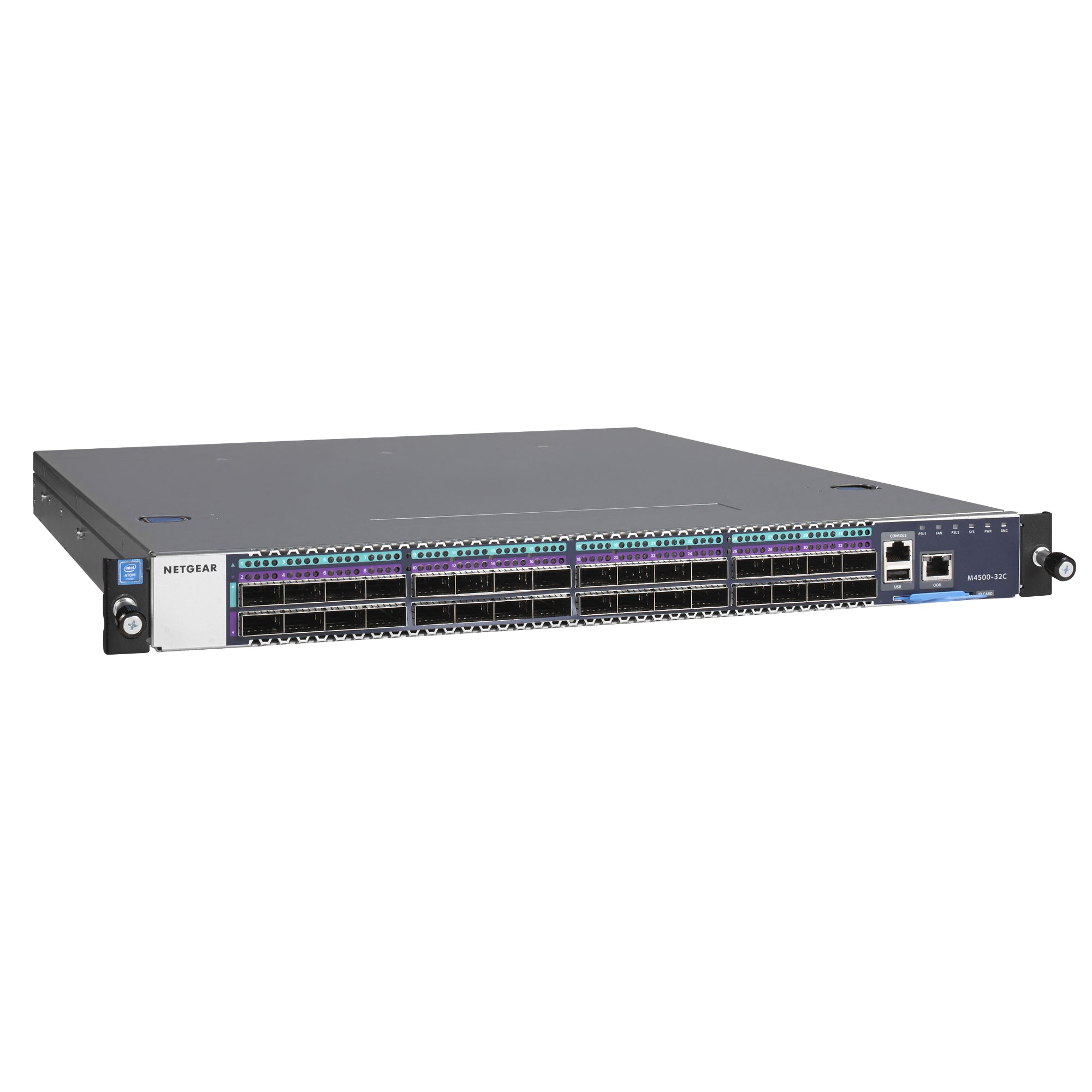

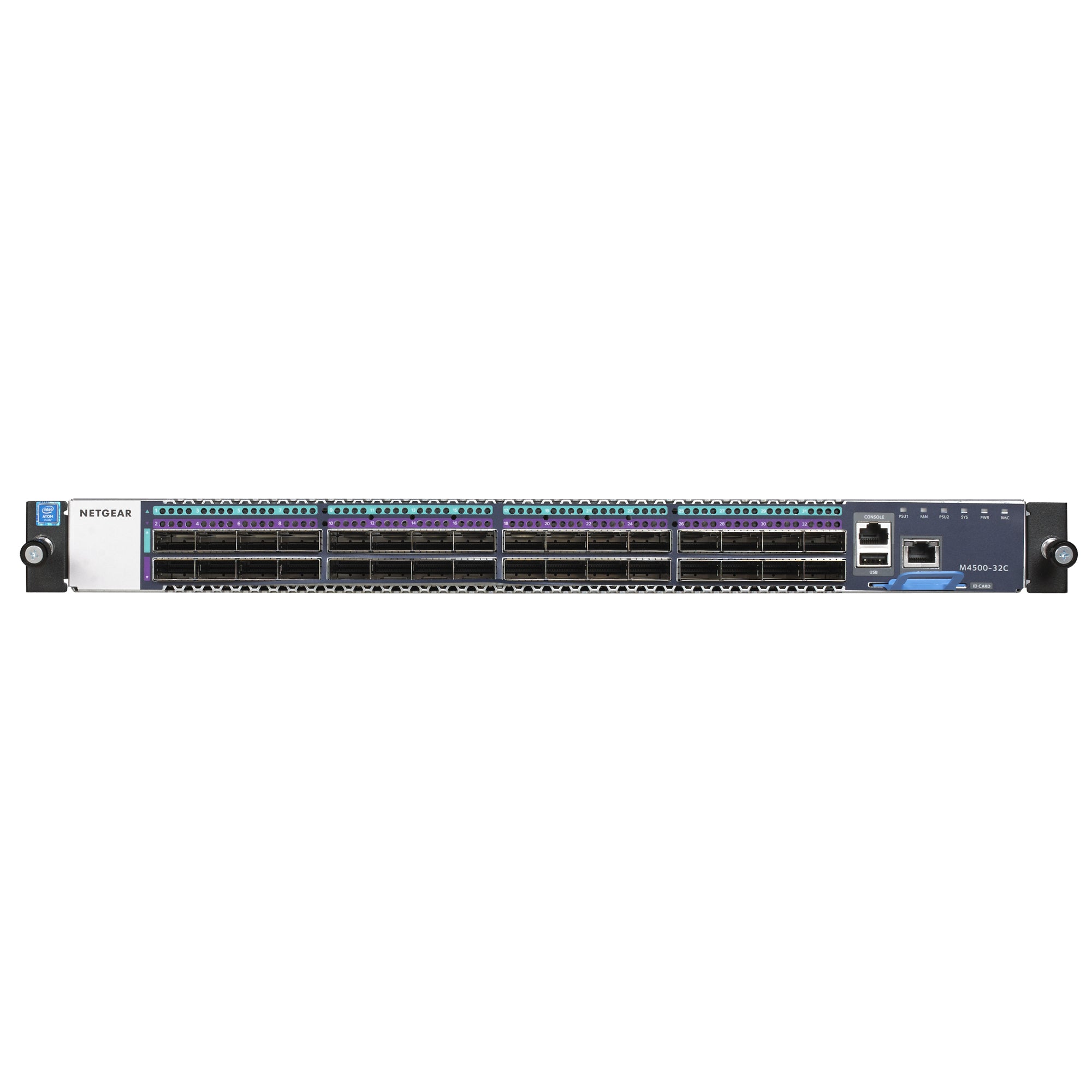

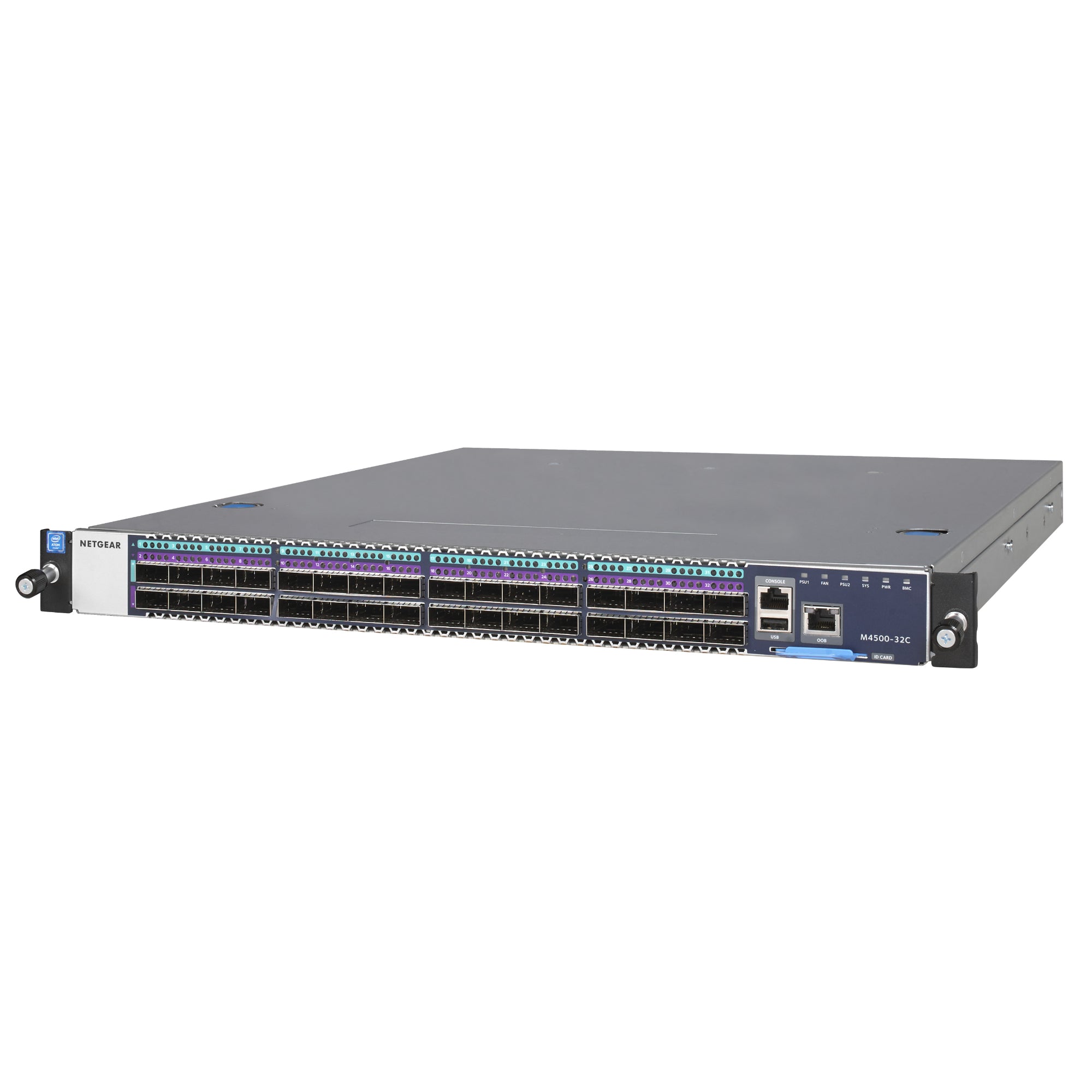

NETGEAR CSM4532 M4500 Fully Managed Switch

NETGEAR CSM4532 M4500 Fully Managed Switch is the kind of switch you look at when the network backbone has to carry serious media traffic, and there is no room for casual hardware choices. Based on the image source, this model is an M4500 managed switch with 32x 100G QSFP28 ports, which places it firmly in high-bandwidth core and aggregation roles rather than light edge switching. The source also lists 1x100G default mode with alternative 1x50G and 1x40G modes, giving the platform some link-speed flexibility depending on the deployment.

Highlights

• 32x 100G QSFP28 ports for high-capacity switching and aggregation
• Supports 1x100G default mode with additional 1x50G and 1x40G options

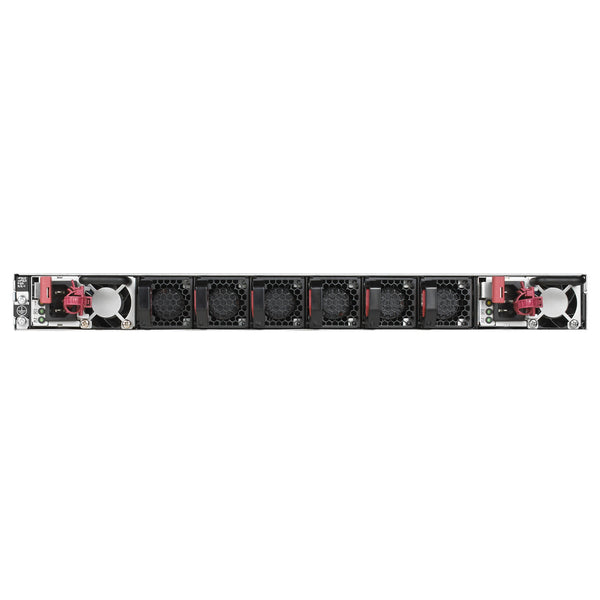

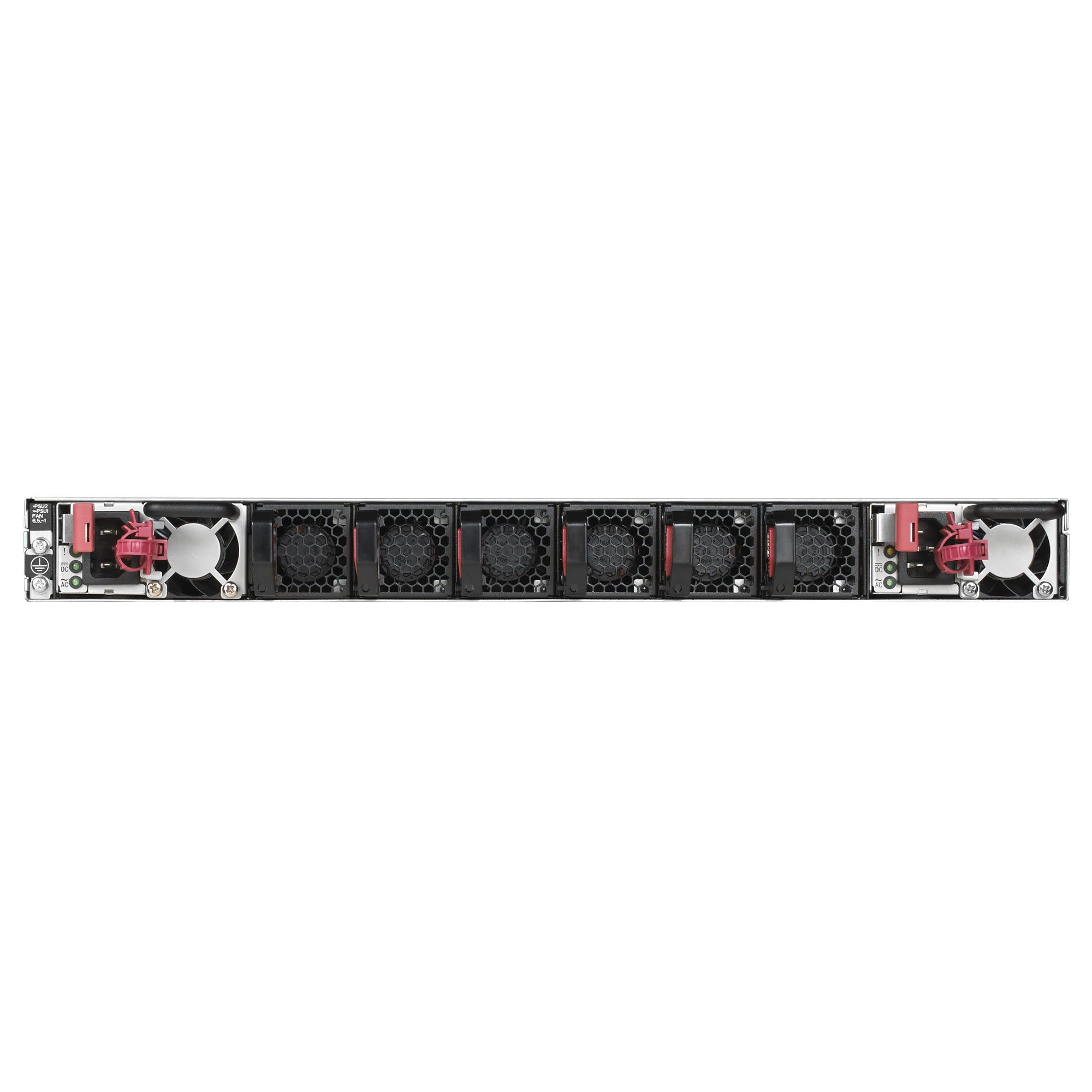

• 2 modular PSUs and 6 modular fan trays come pre-installed
• CLI-only management with local console, telnet, and SSH access
• Full-width 1U form factor with front mounting ears and rear rail kits

Quick Specs & Uses

• Model description: M4500 Managed Switch with 32x100G QSFP28 ports
• Ordering number: CSM4532
• 25G SFP28 ports: N/A
• 100G ports: 32 QSFP28 ports
• Port modes: 1x100G default, with 1x50G and 1x40G modes listed
• Power consumption: 426 Watts maximum
• Acoustics: 64.0 dB at 25°C, with reduced noise when both PSUs are connected
• PSU and fans: 2 modular power supply units and 6 modular fan trays pre-installed
• Management: CLI only
• Access methods: local console, telnet port 1223, SSH port 1234
• Management ports: 1G Ethernet OOB RJ45 and RS232 straight-through serial RJ45
• Form factor: full-width 1U, 508 mm depth
• Mounting: front mounting ears and rear rail kits

Why It Helps

In large media networks, the switch is not just another rack device. It becomes part of the infrastructure that everything else depends on. The CSM4532 is built around dense 100G connectivity, modular power, modular cooling, and dedicated management access, which makes it more suitable for serious backbone and aggregation work than smaller-purpose switches that were never meant to carry that kind of load.

System Characteristics

• 32 QSFP28 ports in 1U give the switch a strong fit for high-density backbone and aggregation roles
• 1x100G default mode with alternate port modes gives more flexibility in how links are deployed
• Modular PSUs and fan trays support a more serviceable infrastructure design
• CLI-only management model is aimed at environments where command-line control is expected
• Dedicated OOB Ethernet and serial console make management access cleaner in structured rack deployments

What’s In The Box

Please refer to the Specifications tab for the exact included items.
