MustHD M702H 7'' 1920x1200 4K HDMI Field Monitor

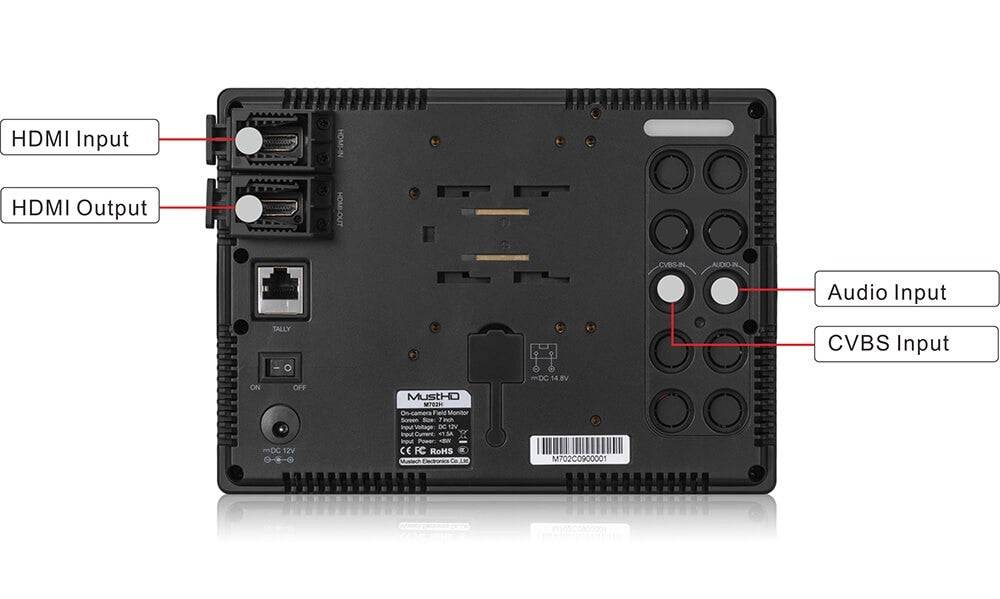

MustHD M702H is a professional grade field monitor with HDMI input and loop-through support. The 7" 1920 x 1200 pixel IPS screen combined with 450 cd/m² (450 nits) brightness and a 1100:1 contrast ratio provide a crisp image clear image with accurate color. The 178° horizontal and 178° vertical viewing angles make it easy to see even at an angle helping to insure accurate video capture.

Focus Assist (Peaking Red/Green/Blue)
Help shooters to easily find out the exact area in the picture with good focus by adding sharp red (green/blue) outline on the shape or boundaries of the object in the picture. The shooter adjusts the focus control until the red indicator outlines on the desired area are sharp, indicating optimal focus.

Histogram
The Histogram provides a graphic depiction of how many pixels in your image are at each level between black and white. This provides you exposure information so you can objectively judge how much of your image is clipping, falling into the shadows, or being captured faithfully.

False Color
The false color filter is used to aid in the setting of camera exposure. As the camera Iris is adjusted, elements of the image will change color based on the luminance or brightness values. This enables proper exposure to be achieved without the use of costly, complicated external test equipment.

Marker
You can set the display marker mode, 16:10, 16:9, 15:9, 1.85:1 and 4:3 and also set the marker color, thickness and transparency. Image below shows the 2.35:1 marker.
