Matrox Vion EX Compact IP Video Gateway With SDI, HDMI, And IP Inputs

Matrox Vion EX Compact IP Video Gateway With SDI, HDMI, And IP Inputs is built for production systems where SDI, HDMI, and network video all need to meet in the same box. It can encode, decode, transcode, and cross-convert several video formats, giving engineers one compact gateway for moving signals between baseband and IP workflows.

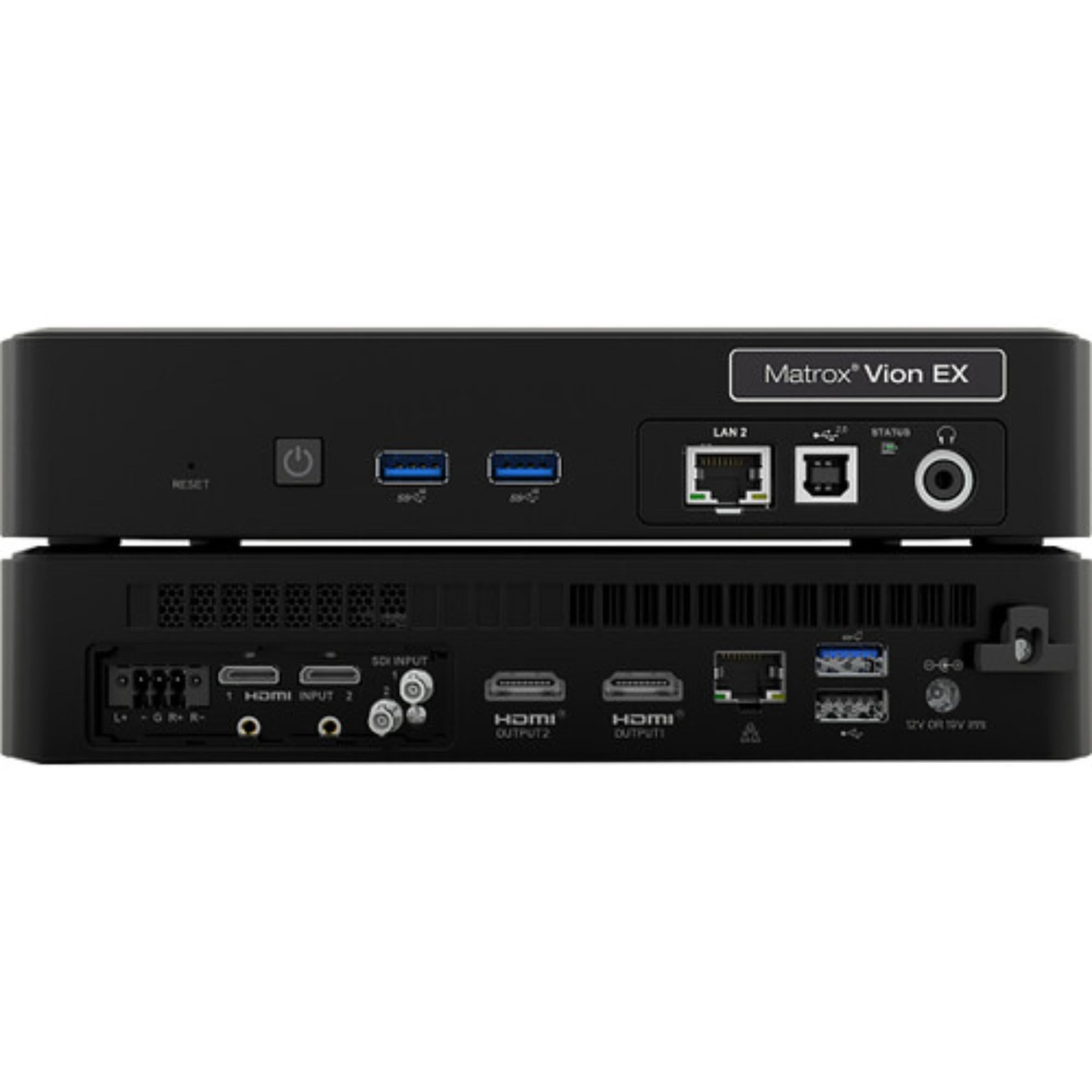

The Vion EX accepts two 12G-SDI feeds and two Mini-HDMI sources, while two full-size HDMI outputs provide local video connections. On the network side, Gigabit and 2.5 GbE interfaces support multichannel IP operation with H.264, H.265, JPEG XS, and NDI processing.

Highlights

• Encoding, decoding, and transcoding – handles several conversion jobs inside one compact appliance
• SDI, HDMI, and IP integration – connects baseband and network video workflows without separate converters for every signal type
• Multichannel and bidirectional streaming – supports as many as eight simultaneous streams
• DCI and UHD 4K60 support – handles high-resolution production sources over SDI and HDMI
• H.264, H.265, JPEG XS, and NDI – provides several codec choices for different transport requirements
• 4:2:2 and 4:4:4 10-bit processing – suited to professional video workflows that need higher color precision

Quick Specs & Uses

• Product type: Compact IP video gateway
• Primary functions: Encoding, decoding, transcoding, protocol conversion, and video cross-conversion
• Video inputs: 2 x Mini-HDMI; 2 x Micro BNC (12G-SDI)
• Video outputs: 2 x HDMI
• SDI capability: DCI 4K60
• HDMI capability: UHD 4K60
• Embedded audio: HDMI / SDI, 8-channel
• Analog audio input: 1 x 5-pin stereo block; 1 x 1/8" / 3.5 mm TRS
• Analog audio output: 1 x 1/8" / 3.5 mm TRS
• Network I/O: 1 x RJ45 10/100/1000 Ethernet; 1 x RJ45 2.5 GbE
• USB: 4 x USB-A; 1 x USB-B
• IP video codecs: H.264, H.265, JPEG XS, NDI
• IP video resolution: 4096 × 2160 to 1920 × 1080 at 60 fps
• Transport protocols: NDI / HX3, RTP, RTSP, SRT, TS-MPEG
• Simultaneous streams: Up to 8
• HDCP support: Yes
• Broadcast system compatibility: NTSC, PAL
• Internal recording: No
• Reclocking: No
• Media / memory card slot: No
• Wireless: No
• Cellular support: No
• Power input: 1 x barrel, 19 VDC at 5.5 A
• Power supply: 120 to 240 VAC, 120 W
• Operating temperature: 0 to 35°C (32 to 95°F)
• Certifications: CE, FCC, ICES-003, KC, RCM, REACH, RoHS
• Dimensions: 210 × 175 × 42 mm (8.3 × 6.9 × 1.7 in)
• Weight: 1.5 kg (3.3 lb)

Why It Helps

Mixed-format systems can get complicated quickly when every conversion requires another box. The Vion EX gives engineers one place to take in SDI, HDMI, or IP video and move it into the format needed farther down the chain.

The eight-stream capability is useful when the job involves more than a simple point-to-point conversion. Several feeds can be encoded, decoded, or transcoded inside the same appliance, which helps reduce the amount of separate gateway hardware sitting in the rack or production area.

Having both Gigabit and 2.5 GbE interfaces also gives the network side some room to scale. Combined with NDI, JPEG XS, H.264, H.265, SRT, RTP, and RTSP support, the unit can sit between traditional baseband equipment and newer IP production systems without forcing everything onto one transport format.

System Characteristics

• Baseband and IP cross-conversion connects SDI and HDMI sources with network-based video systems
• Multichannel processing supports up to eight simultaneous streams from one compact gateway
• Bidirectional workflow support handles both encoding and decoding duties
• Multiple codec choices allow engineers to match compression and transport to the application
• Dual Ethernet speeds provide standard Gigabit and 2.5 GbE connections for IP media workflows
• Professional 4K processing supports DCI 4K60 over SDI and UHD 4K60 over HDMI

What's In The Box

• 1 x Matrox Vion EX Compact IP Video Gateway With SDI, HDMI, And IP Inputs
• 1 x 120W Power Supply
• 1 x Power Cord
• 2 x HD-BNC to BNC Cable Adapters (1')
• 1 x Mounting Plate with Screws
