Matrox REMI Workflow Bundle

Matrox REMI Workflow Bundle brings together the main pieces needed to build an ST 2110 remote-production path. The package includes a Monarch EDGE E4 encoder, a Monarch EDGE D4 decoder, and four ConvertIP DSS converters, giving engineers a matched set of devices for moving broadcast signals between the field and studio.

The EDGE E4 handles 10-bit 4:2:2 encoding, while the EDGE D4 provides the decode side of the workflow. The ConvertIP DSS units sit between the EDGE devices and ST 2110 or IPMX infrastructure, helping bridge SDI, IP, and network transport without forcing the entire production chain onto one type of interface.

Highlights

• Complete REMI workflow bundle – combines encoding, decoding, and IP conversion hardware in one package
• ST 2110 production support – built for remote-production environments using professional IP media transport
• 10-bit 4:2:2 encoding – Monarch EDGE E4 is designed for demanding broadcast-quality contribution workflows
• Ultra-low-latency decoding – Monarch EDGE D4 handles the return side when paired with the EDGE encoder
• 4 x ConvertIP DSS converters – bridges EDGE hardware with ST 2110 and IPMX infrastructure
• Flexible power options – ConvertIP DSS supports PoE or optional external power with redundancy capability

Quick Specs & Uses

• Product type: Remote-production workflow bundle
• Primary workflow: ST 2110-based REMI production
• Encoder: 1 x Matrox Monarch EDGE E4
• Decoder: 1 x Matrox Monarch EDGE D4
• Converters: 4 x Matrox ConvertIP DSS
• EDGE E4 video processing: 10-bit 4:2:2 encoding
• EDGE D4 role: Low-latency video decoding and return-feed transport
• ConvertIP DSS video interface: 12G-SDI
• ConvertIP DSS synchronization: Genlock
• ConvertIP DSS network interface: 1 x RJ45
• ConvertIP DSS high-speed network I/O: 2 x SFP28
• Network speed: Up to 25 Gb/s
• Workflow support: Compressed or uncompressed IP media transport
• Power options: PoE or optional external power supply
• Power redundancy: Supported when PoE and external power are used together

Why It Helps

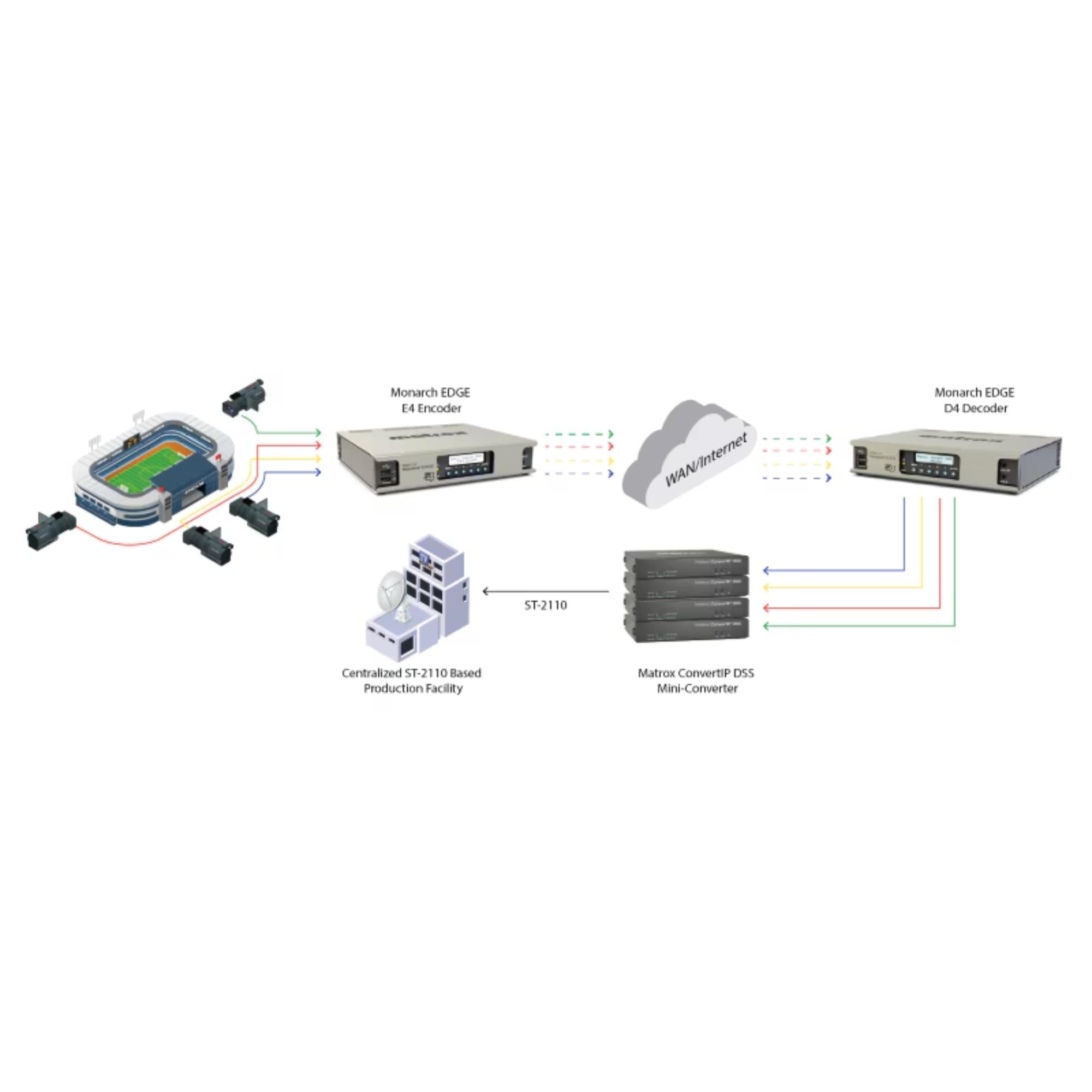

Remote production usually becomes complicated where different signal domains meet. The field side may be carrying SDI, the backbone may be ST 2110, and the studio may still need a dedicated decode path. This bundle puts those pieces together so engineers can build the complete handoff without sourcing each part separately.

The EDGE E4 and D4 cover the encode and decode sides of the path, while the four ConvertIP DSS units handle the transition into ST 2110 and IPMX infrastructure. That is useful when several feeds need to move between baseband and network transport while keeping the signal chain organized.

The ConvertIP DSS units also give installers some freedom around power and placement. They can run from PoE or an optional power supply, and both can be used together when power redundancy is needed in a more critical deployment.

System Characteristics

• Encoder-to-decoder REMI path covers the main contribution and return stages of a remote-production workflow
• 10-bit 4:2:2 processing keeps the system aimed at broadcast-quality video rather than basic streaming use
• ST 2110 and IPMX bridging helps connect EDGE devices to modern IP media infrastructure
• 12G-SDI support keeps conventional baseband video available where it is still required
• 25 Gb/s SFP28 connectivity provides headroom for high-bandwidth media transport
• PoE and external power options give integrators more flexibility when deploying the converters

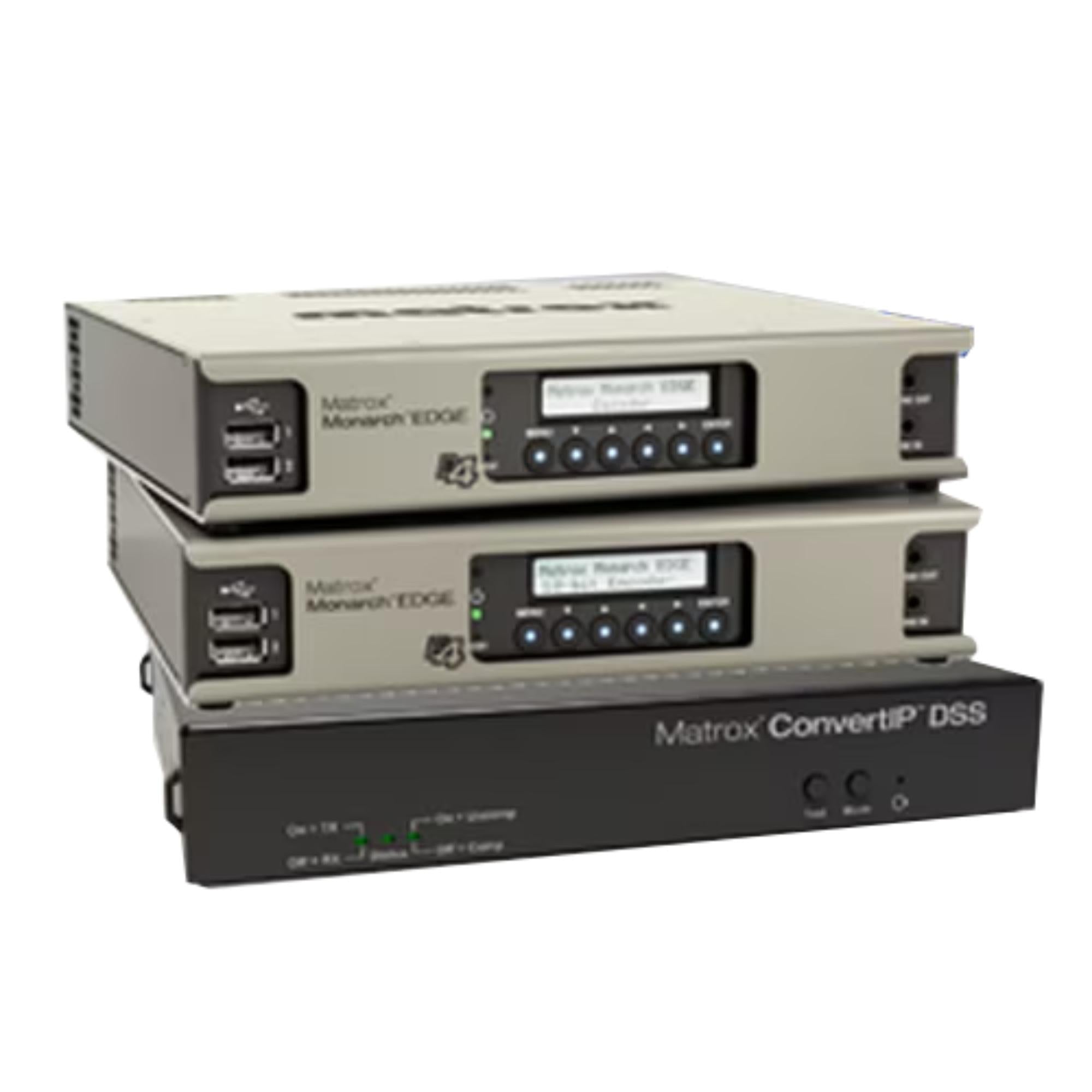

What's In The Box

• 1 x Matrox Monarch EDGE E4 Encoder
• 1 x Matrox Monarch EDGE D4 Decoder
• 4 x Matrox ConvertIP DSS Converters
