Matrox NRG Redundant Power Supply Unit Preinstalled On A Rack Tray

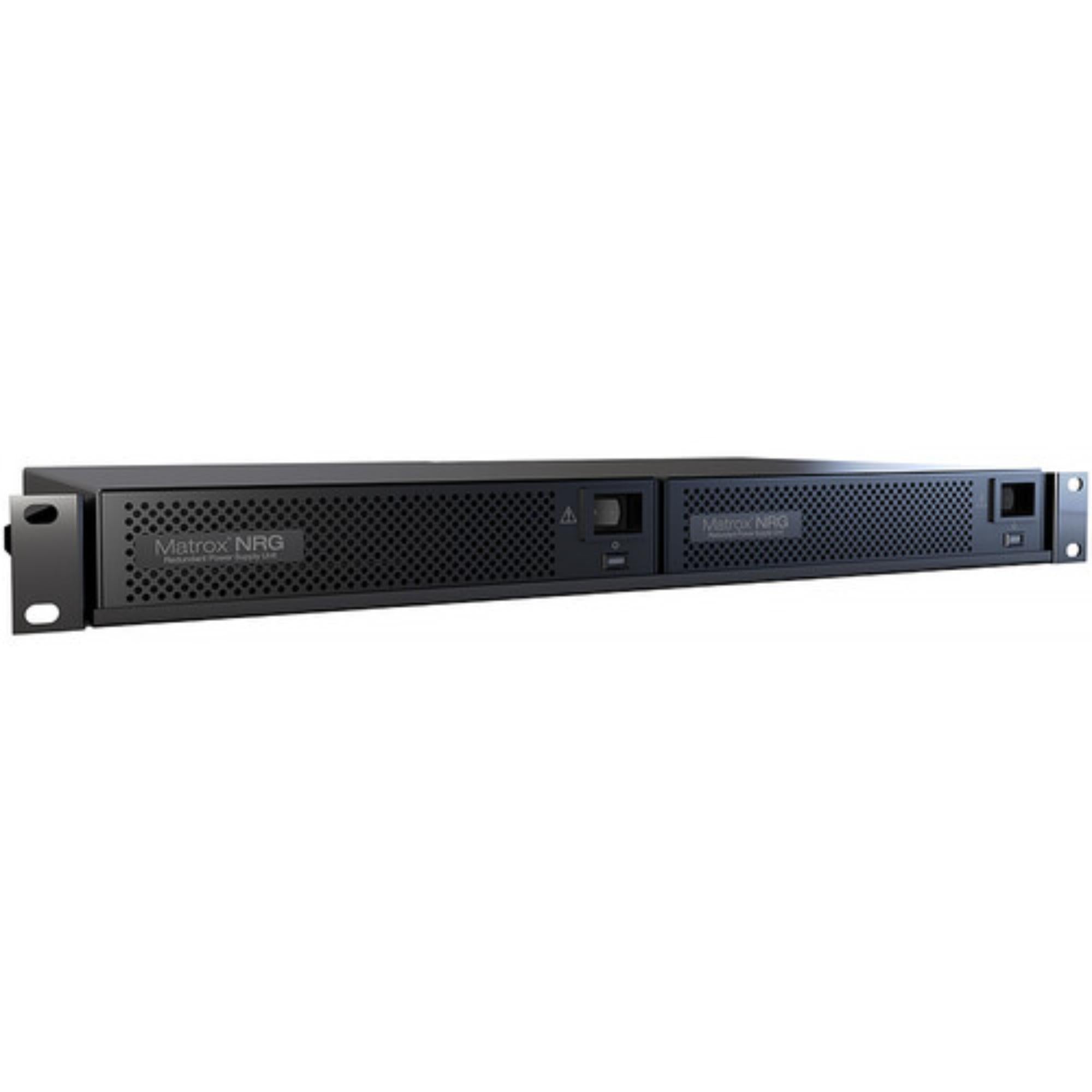

Matrox NRG Redundant Power Supply Unit Preinstalled On A Rack Tray is a rack-ready power solution built around a single half-rack NRG RPSU mounted on a 1 RU tray. Inside the unit are two redundant 300 W hot-swappable power modules, giving broadcast and AV systems a cleaner way to keep power organized while adding redundancy at the rack level.

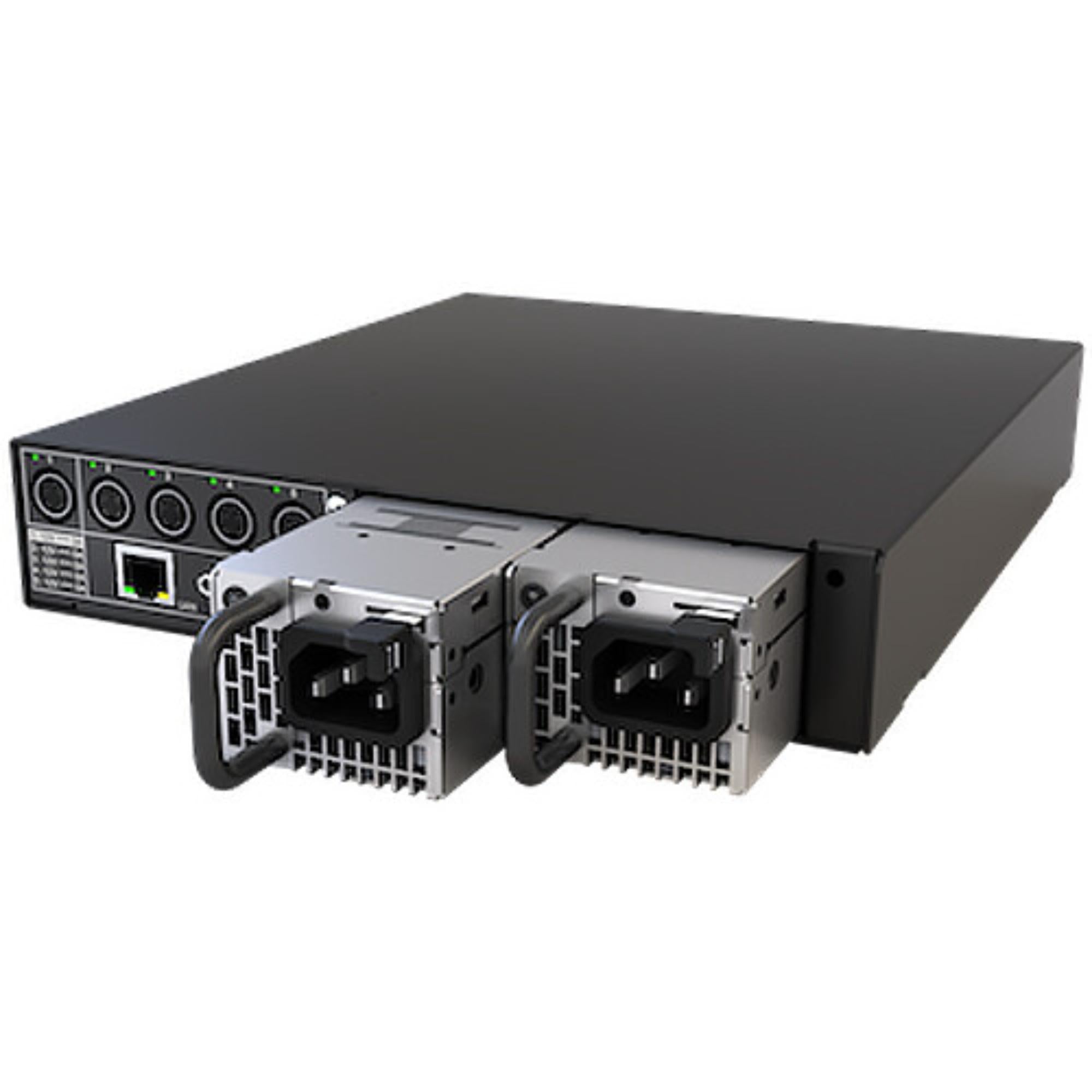

The RPSU can simultaneously power up to five Matrox devices through five DIN 4-pin outputs. Two IEC C13 AC inputs feed the power supply, while IP connectivity gives engineers remote access for monitoring and control without needing to be standing at the rack.

Highlights

• Preinstalled on a 1 RU rack tray – arrives ready for rack integration
• 2 hot-swappable power modules – provides redundant 300 W power modules inside the RPSU
• Powers up to 5 Matrox devices – centralizes power for several units from one supply
• 5 DIN 4-pin outputs – provides dedicated downstream power connections
• 2 IEC C13 inputs – accepts AC power through dual input connections
• IP monitoring and control – allows engineers to check and manage the power system remotely

Quick Specs & Uses

• Product type: Redundant power supply unit preinstalled on rack tray
• Power source: AC input
• AC power inputs: 2 x IEC C13
• Power outputs: 5 x DIN 4-pin
• AC input power: 100 to 240 VAC, 50 / 60 Hz
• Hot-swappable modules: 2 per RPSU
• Power module rating: 300 W each
• Device capacity: Up to 5 Matrox devices
• Monitoring and control: IP connectivity
• Mounting: 4 x rack tray mounting holes
• Color: Black
• NRG unit dimensions: 244 × 216 × 43 mm (9.6 × 8.5 × 1.7 in)
• Rack tray dimensions: 483 × 290.8 × 44.5 mm (19 × 11.45 × 1.75 in)
• Weight: 2.8 kg (6.2 lb)
• Operating conditions: 0 to 50°C (32 to 122°F)
• Storage conditions: -18 to 80°C (0 to 176°F)

Why It Helps

When several Matrox devices are installed in the same rack, running a separate power supply for each one adds cable clutter and takes up more room than it needs to. This RPSU gives five devices a single, organized power source from one 1 RU assembly.

The redundant design is useful in systems that are expected to stay online. Two hot-swappable 300 W modules sit inside the RPSU, so the power section is built around replaceable redundant modules instead of one fixed supply.

IP connectivity also makes the unit easier to manage once it is installed. Engineers can monitor and control the power system over the network, while the DIN 4-pin outputs keep downstream device connections neatly grouped at the rack.

System Characteristics

• Single-RPSU rack architecture combines redundant power hardware on one 1 RU tray
• Five-device capacity centralizes power for multiple Matrox units from one rack position
• Hot-swappable 300 W modules allow individual power modules to be replaced within the RPSU
• DIN 4-pin distribution provides five dedicated outputs for connected equipment
• Dual AC inputs support the redundant power design at the rack level
• IP-based monitoring gives engineers remote visibility and control of the power system

What's In The Box

• 1 x Matrox NRG Redundant Power Supply Unit (1 RU, Single PSU)
• 1 x Rack Tray with 1 Preinstalled NRG RPSU
• 1 x Double-Ended DIN 4 Cable
• 4 x M3 Device Mounting Screws
• 4 x Tray Mounting Screws
