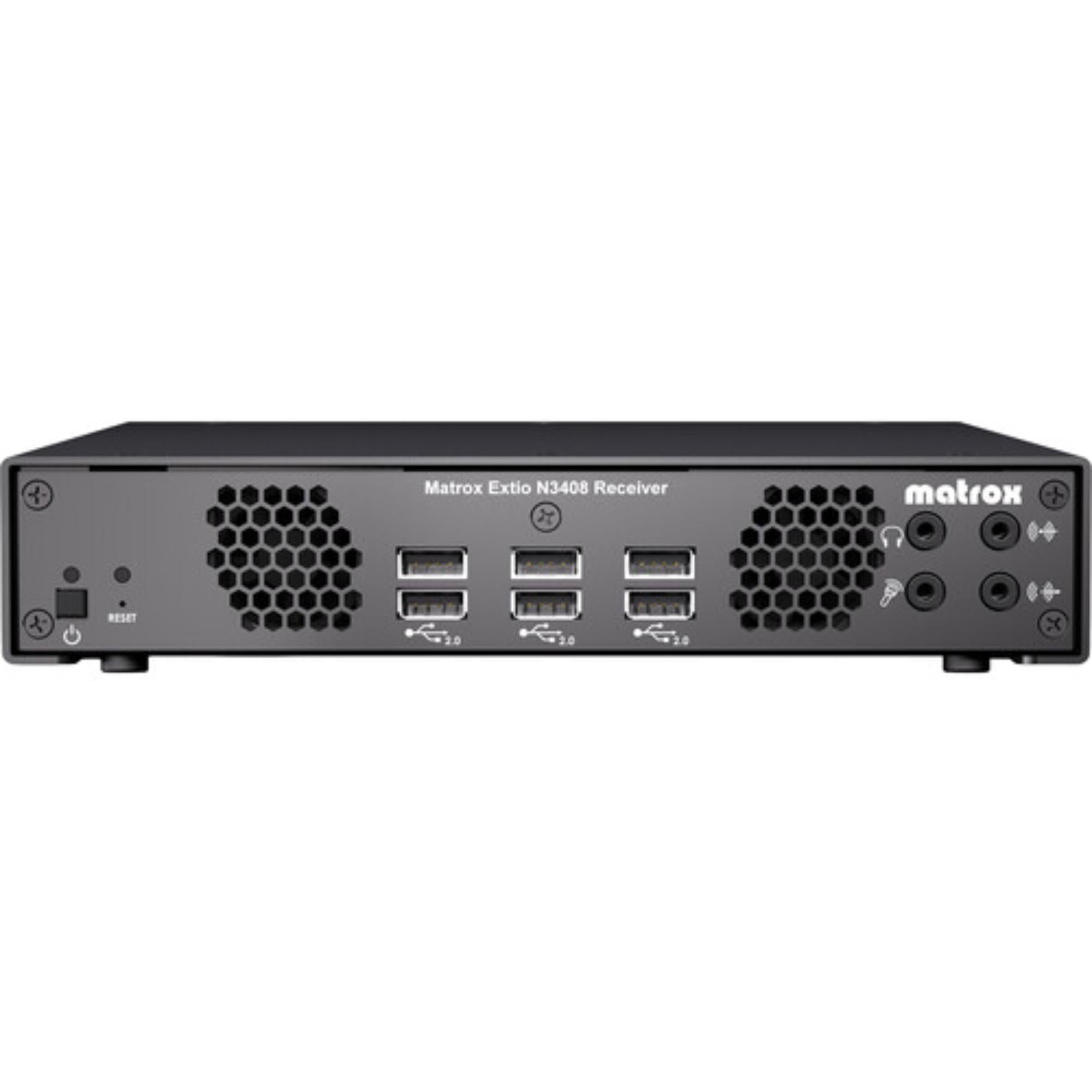

Matrox Matrox Extio N3408 IP KVM Receiver Appliance

Matrox Extio N3408 IP KVM Receiver Appliance is built for operator positions that need high-resolution displays and USB control while the source computer stays somewhere else on the network. Using standard Gigabit Ethernet, the receiver brings remote video, keyboard, mouse, and other supported USB functions back to the desk without requiring the workstation to sit beside the user.

The receiver supports UHD video up to 3840 × 2160 at 60 Hz with 4:4:4 color and can also drive four 1920 × 1080 displays at 60 Hz from a single Extio transmitter and receiver pair. Four DisplayPort outputs and six USB 2.0 connections make it a practical fit for control rooms and other multi-monitor workspaces.

Highlights

• 4K60 IP KVM reception – supports UHD video up to 3840 × 2160 at 60 Hz
• 4:4:4 image support – keeps desktop graphics and detailed interface elements clear
• 4 DisplayPort outputs – supports multi-monitor operator positions from one receiver
• 6 USB 2.0 ports – provides local connections for keyboard, mouse, and supported USB peripherals
• Gigabit Ethernet transport – operates over standard 1 GbE network infrastructure
• Plug-and-play operation – keeps deployment straightforward at the receiver position

Quick Specs & Uses

• Product type: IP KVM receiver appliance
• System family: Matrox Extio 3
• Video outputs: 4 x DisplayPort
• USB connectivity: 6 x USB 2.0
• Maximum resolution: 3840 × 2160 at 60 Hz
• Quad-monitor configuration: Up to 4 x 1920 × 1080 at 60 Hz
• Color support: 4:4:4
• Network: Standard Gigabit Ethernet
• Peripheral control: Keyboard and mouse via USB
• Network switch compatibility: Commercial off-the-shelf Ethernet switches
• Typical uses: Broadcast control rooms, production workstations, multi-monitor operator desks, and networked KVM environments

Why It Helps

Moving the computer away from the operator is useful when the workstation belongs in a machine room but the displays and controls need to stay at the production desk. The Extio N3408 receiver handles that last part of the path, delivering the remote desktop back to the operator over the existing network.

The four DisplayPort outputs are particularly useful in monitoring-heavy environments. One receiver can support a four-screen workspace at 1920 × 1080 per display, or the system can be used for a single UHD desktop at up to 3840 × 2160 at 60 Hz.

Because the Extio 3 platform works over standard Gigabit Ethernet and conventional network switches, the system can grow beyond a simple direct extension. That gives engineers room to build larger KVM matrix installations without replacing the network with a dedicated proprietary transport layer.

System Characteristics

• 4K60 remote desktop support gives operators access to high-resolution source systems over IP
• Quad-monitor capability fits control positions that need several applications visible at the same time
• USB peripheral extension keeps keyboard and mouse control at the operator position
• Standard 1 GbE operation lets the KVM system use familiar Ethernet infrastructure
• Commercial switch compatibility makes it easier to scale from direct links into larger matrix systems
• 4:4:4 video handling preserves detail for text, graphics, and professional desktop interfaces

What's In The Box

• 1 x Matrox Extio 3 IP KVM Receiver
