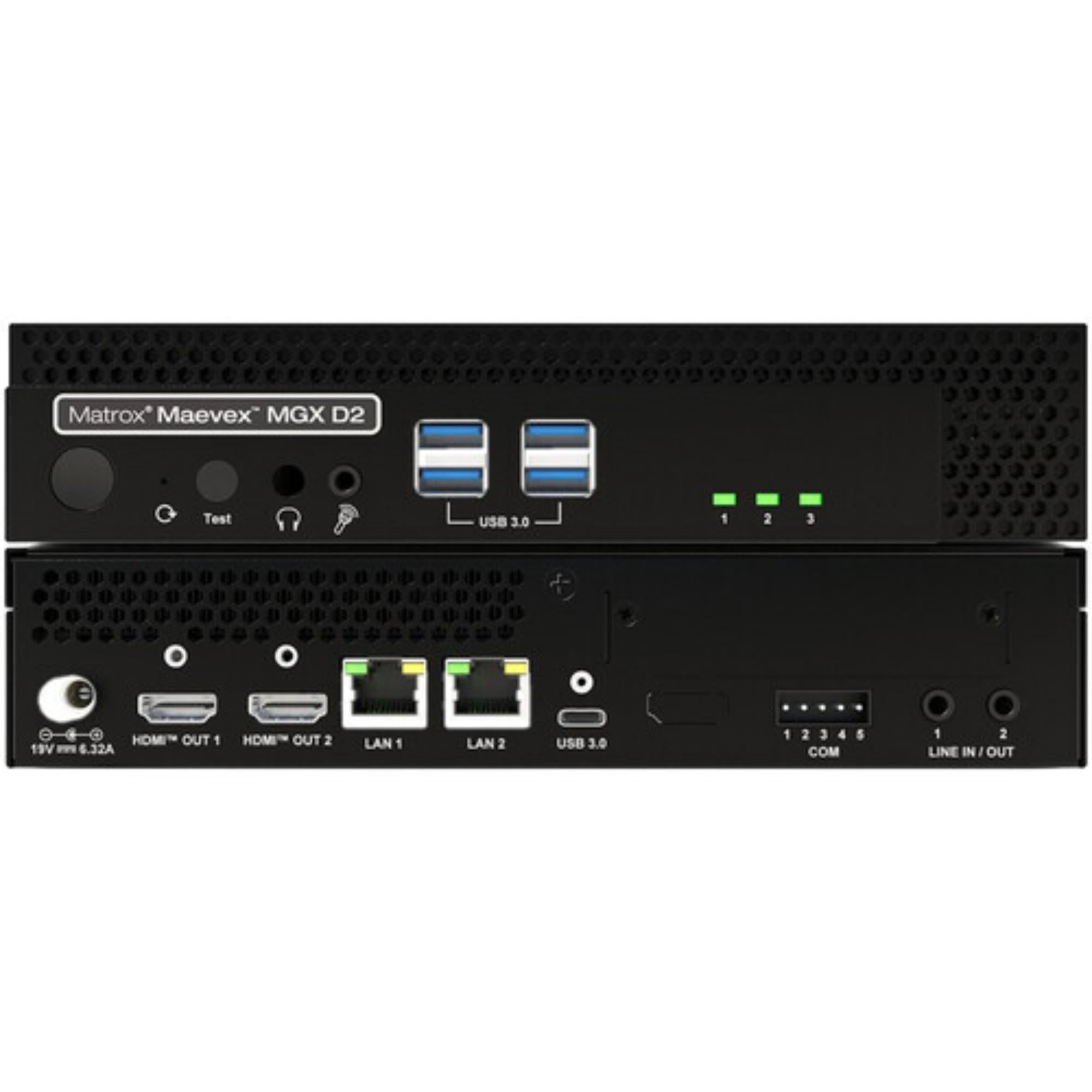

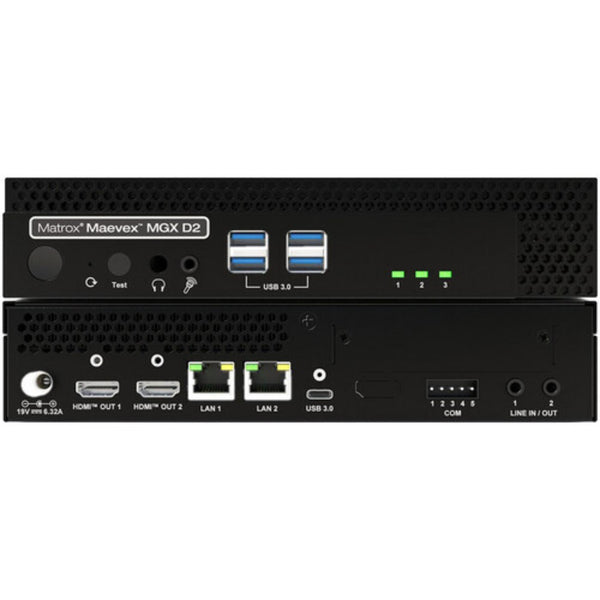

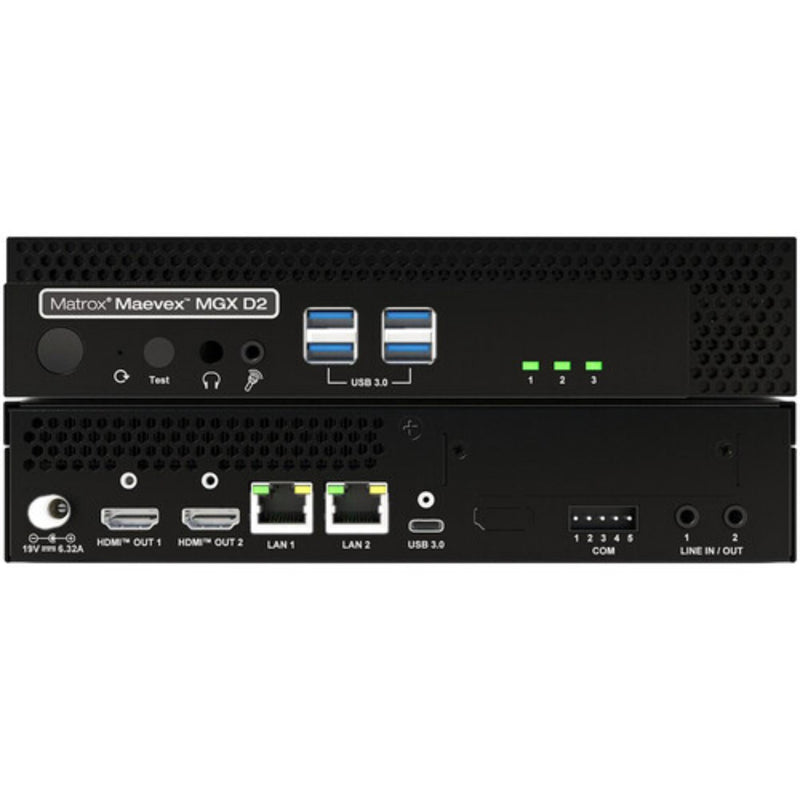

Matrox Maevex MGX D2 Dual 4K60 Decoder

Matrox Maevex MGX D2 Dual 4K60 Decoder is built for AV-over-IP installations that need more decoding capacity at the display end of the system. It can decode two 4K60 streams at the same time, or handle up to eight 1080p60 streams, giving engineers more room to build multi-screen and multiview endpoints from a single appliance.

The D2 supports H.265 and H.264 video along with IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS. Two HDMI outputs, dual 1/2.5 GbE network ports, USB extension, analog audio connections, and built-in display compositing make it useful for control rooms, corporate AV, remote workstations, and other distributed video systems.

Highlights

• Dual 4K60 decoding – decodes up to two 4K60 streams from one appliance
• High-density 1080p operation – supports up to eight 1080p60 decoded streams
• H.265 and H.264 support – handles efficient compressed AV-over-IP delivery
• IPMX and Matrox IQ Mode – supports professional low-latency IP media workflows
• Integrated multiview – provides PiP, PbP, quadrant, 2x1, and 2x2 viewing options
• USB extension – carries keyboard, mouse, and webcam operation to the decoder location

Quick Specs & Uses

• Product type: Dual 4K60 AV-over-IP decoder
• Video inputs: Network streams
• Video outputs: 2 x HDMI Type A with retention screws
• Maximum decode capability: 2 x 4K60
• H.265 decoding: Up to 2 x 4K60 or up to 8 x 1080p60; 4:2:0 or 4:4:4
• H.264 decoding: Up to 2 x 4K60 or up to 8 x 1080p60; 4:2:0
• Video bitrate: 50 Kbps to 400 Mbps per stream
• H.265 color support: 4:2:0 8/10-bit; 4:4:4 8/10-bit
• H.264 color support: 4:2:0 8-bit
• Video scaling: Yes
• Video compositing: Yes; PiP, PbP, and quadrant 1080p layouts
• Multiview: 2x1, 2x2
• Preview mode: Yes
• HDCP support: 1.4 and 2.3
• Microphone input: 1 x 3.5 mm
• Line input: 1 x 3.5 mm
• Headphone output: 1 x 3.5 mm
• Line output: 1 x 3.5 mm
• Audio format: MPEG-4 AAC-LC, raw and ADTS
• Audio bitrate: Up to 1152 Kbps AAC-LC
• Uncompressed audio: Supported with IPMX and Matrox IQ Mode
• Network I/O: 2 x RJ45 1000/2500 Base-T
• USB: 4 x USB-A front; 1 x USB-C rear
• USB support: Keyboard, mouse, webcam
• COM port: 5-pin COM port
• IP addressing: IPv4, IPv6, DHCP or static IP
• Routing: Unicast, multicast
• Streaming formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, MPEG2-TS
• Discovery and control: NMOS IS-04 and IS-05
• Command and control: mDNS, LLMNR, HTTPS over TCP
• Matrox IQ Mode latency: As low as 16 ms glass-to-glass, depending on encoder
• IPMX latency: As low as 120 ms glass-to-glass
• Operating temperature: 0 to 40°C (32 to 104°F)
• Form factor: Standalone appliance; rack mountable, 1 RU / half-rack horizontal
• Dimensions: 206 × 185 × 46 mm (8.11 × 7.28 × 1.81 in)
• Weight: 1.22 kg (2.69 lb)

Why It Helps

The D2 makes sense at an endpoint where one screen is not enough. Instead of assigning a decoder to every individual display feed, it can handle two 4K60 streams or several 1080p60 sources from the same unit. That gives system designers more flexibility when building operator stations, monitoring walls, or multi-display rooms.

Its compositing tools are also useful when several sources need to share the same display. Picture-in-picture, picture-by-picture, and quadrant layouts can be created inside the decoder, so a basic multiview does not automatically require another processor in the signal path.

For interactive installations, USB support keeps the workstation experience at the remote end. Keyboards, mice, and webcams can connect through the decoder while the source equipment stays elsewhere on the IP network. Dual 1/2.5 GbE connections and multiple transport options make the unit easier to work into different network designs.

System Characteristics

• Dual-stream 4K60 decoding supports higher-density UHD endpoints from one appliance
• Up to eight 1080p60 streams provides additional flexibility for multiview and monitoring layouts
• Integrated video compositing handles common multi-source display arrangements without a separate processor
• Multi-protocol IP support allows operation with IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS
• USB extension supports remote interaction alongside video delivery
• NMOS discovery and control helps the decoder fit into standards-based professional IP media systems

What's In The Box

• 1 x Matrox Maevex MGX D2 Dual 4K60 Decoder
• 1 x Power Supply, 110-240V AC, 19VDC 90W
