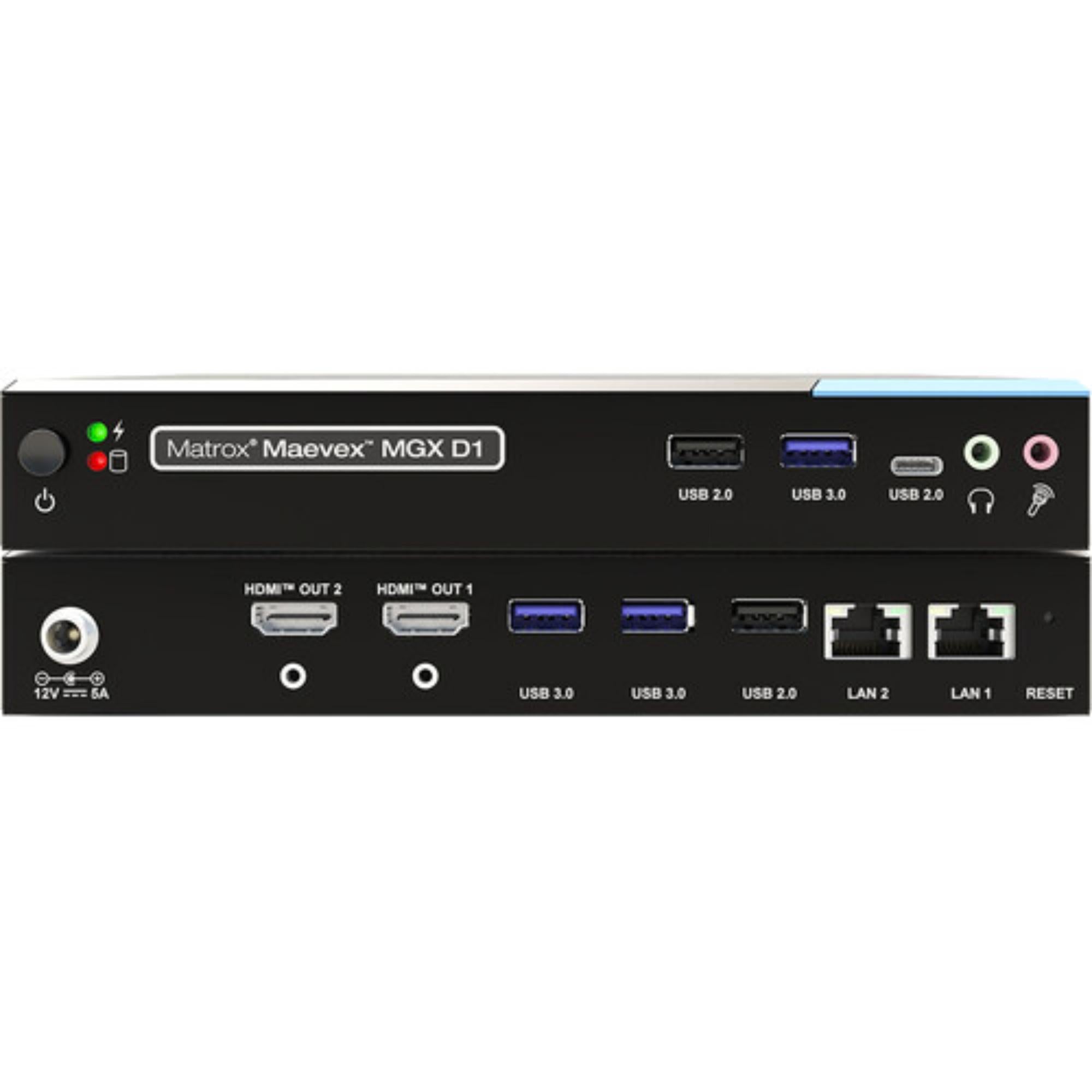

Matrox Maevex MGX D1 Single 4K60 Decoder

Matrox Maevex MGX D1 Single 4K60 Decoder is designed for professional AV-over-IP systems that need to bring compressed network video back to local displays with low latency. It decodes H.265 or H.264 streams and can output either one 4K60 signal or two 1080p60 signals through its two HDMI outputs.

The MGX D1 supports both IPMX and Matrox IQ Mode, along with RTP/RTSP, SRT, and MPEG2-TS. Dual Gigabit Ethernet ports, USB extension, multiview layouts, and NMOS discovery make it a practical endpoint for control rooms, corporate AV, remote workstations, and other distributed video systems.

Highlights

• Single 4K60 decoding – decodes one stream up to 4K60
• Dual 1080p60 output option – can decode and display two 1080p60 streams
• H.265 and H.264 support – handles efficient compressed AV-over-IP transport
• IPMX and Matrox IQ Mode – supports low-latency professional IP media workflows
• Multiview support – provides 2x1 and 2x2 layouts, including PiP, PbP, and quadrant modes
• USB extension – supports keyboard, mouse, and webcam connections at the decoder

Quick Specs & Uses

• Product type: Single 4K60 AV-over-IP decoder
• Video inputs: Network only
• Video outputs: 2 x HDMI Type A with retention screws
• Maximum decode capability: 1 x 4K60 or 2 x 1080p60
• H.265 decoding: Up to 1 x 4K60 or 2 x 1080p60, 4:2:0 or 4:4:4
• H.264 decoding: Up to 1 x 4K60 or 2 x 1080p60, 4:2:0
• Video bitrate: 50 Kbps to 400 Mbps per stream
• H.265 color support: 4:2:0 8/10-bit; 4:4:4 8/10-bit
• H.264 color support: 4:2:0 8-bit
• Video scaling: Yes
• Video compositing: Yes; PiP, PbP, quadrant 1080p
• Preview mode: Yes
• HDCP support: 1.4 and 2.3
• Audio output: 1 x 3.5 mm headphone
• Audio formats: MPEG-4 AAC-LC; raw and ADTS
• Audio bitrate: Up to 1152 Kbps AAC-LC
• Uncompressed audio: Supported for IPMX and Matrox IQ Mode
• Network I/O: 2 x RJ45 1000 Base-T
• USB: 3 x USB-A front; 2 x USB-A rear; 1 x USB-B rear
• USB support: Keyboard, mouse, webcam
• IP addressing: IPv4, IPv6, DHCP or static IP
• Routing: Unicast, multicast
• Streaming formats: IPMX, Matrox IQ Mode, RTP/RTSP, SRT, MPEG2-TS
• Discovery and control: NMOS IS-04 and IS-05
• Command and control: mDNS, LLMNR, HTTPS over TCP
• Matrox IQ Mode latency: As low as 16 ms glass-to-glass, depending on encoder
• IPMX latency: As low as 120 ms glass-to-glass
• Operating temperature: 0 to 40°C (32 to 104°F)
• Form factor: Standalone appliance; rack mountable, 1 RU / half-rack horizontal
• Dimensions: 199 × 152 × 30 mm (7.83 × 5.98 × 1.18 in)
• Weight: 1.09 kg (2.40 lb)

Why It Helps

The MGX D1 is useful when a remote display needs to receive 4K or multi-view video without bringing the source equipment into the room. It takes the network stream, decodes it locally, and gives operators direct HDMI outputs at the endpoint.

Its ability to decode either one 4K60 stream or two 1080p60 streams makes the same unit useful for both single-screen and multi-view installations. Built-in compositing also means PiP, picture-by-picture, or quadrant layouts can be handled inside the decoder instead of relying on another processor.

USB extension adds another layer to the workflow. A keyboard, mouse, or webcam can stay at the viewing location while the source system remains elsewhere on the network, which is useful for control rooms, meeting spaces, and remote workstation setups.

System Characteristics

• 4K60 AV-over-IP decoding brings high-resolution network video back to local HDMI displays
• Dual-stream operation supports two 1080p60 feeds from one decoder
• Integrated multiview reduces the need for a separate display processor
• Multi-protocol support allows deployment across IPMX, Matrox IQ Mode, RTP/RTSP, SRT, and MPEG2-TS networks
• USB extension supports interactive remote workstation and collaboration use
• NMOS discovery and control helps the decoder fit into standards-based IP media systems

What's In The Box

• 1 x Matrox Maevex MGX D1 Single 4K60 Decoder
• 1 x Power Supply, 110-240V AC, 19VDC 120W
