Matrox Maevex 6152 Quad 4K Enterprise Encoder

Matrox Maevex 6152 Quad 4K Enterprise Encoder is a four-input HDMI encoder built for high-density 4K streaming and recording. It can handle at least four simultaneous 4K streams and recordings, with support for resolutions up to DCI 4K60 and H.264 compression for professional AV distribution.

The encoder supports HLS, MPEG-2 TS, RTP, RTMP, RTSP, and SRT, so it can work across local networks, WAN links, cloud services, and internet-based delivery. Zero-latency passthrough keeps local HDMI outputs available, while HDCP 1.4 and 2.2 compliance, adjustable encoding parameters, and 4:4:4 chroma support give engineers more control over image quality and signal handling.

Highlights

• Quad HDMI video encoding – supports at least four simultaneous 4K streams and recordings
• Up to DCI 4K60 – handles high-resolution content for enterprise and professional AV workflows
• 4:4:4 chroma support – preserves detailed color information for higher-quality source material
• Zero-latency passthrough – keeps real-time HDMI output available for local display
• Flexible streaming protocols – supports HLS, MPEG-2 TS, RTP, RTMP, RTSP, and SRT
• HDCP 1.4 and 2.2 compliance – supports protected HDMI content in compatible signal chains

Quick Specs & Uses

• Product type: Quad HDMI H.264 enterprise encoder
• Simultaneous streams: At least 4 x 4K streams
• Simultaneous recording: Supported
• Maximum resolution: Up to DCI 4K60
• Video compression: H.264
• Chroma subsampling: Up to UHD 4K 4:4:4
• Streaming protocols: HLS, MPEG-2 TS, RTP, RTMP, RTSP, SRT
• HDCP support: HDCP 1.4 and HDCP 2.2
• Passthrough: Zero-latency HDMI passthrough
• Encoding controls: User-definable bitrates, quantization parameters, and encoding modes
• Compositing: Supported
• Recording destinations: Local or network storage
• Network infrastructure: Works over existing 1 Gigabit Ethernet infrastructure

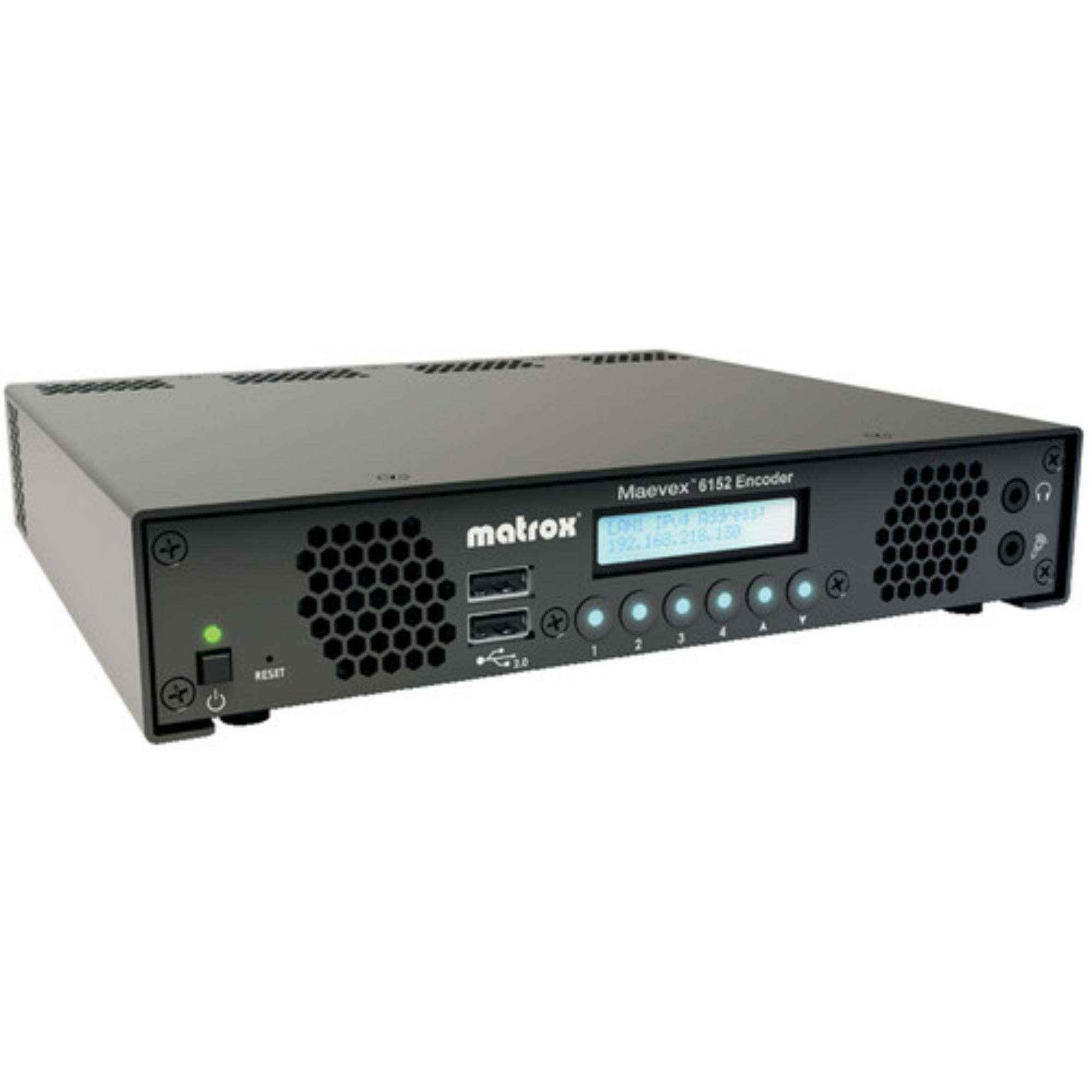

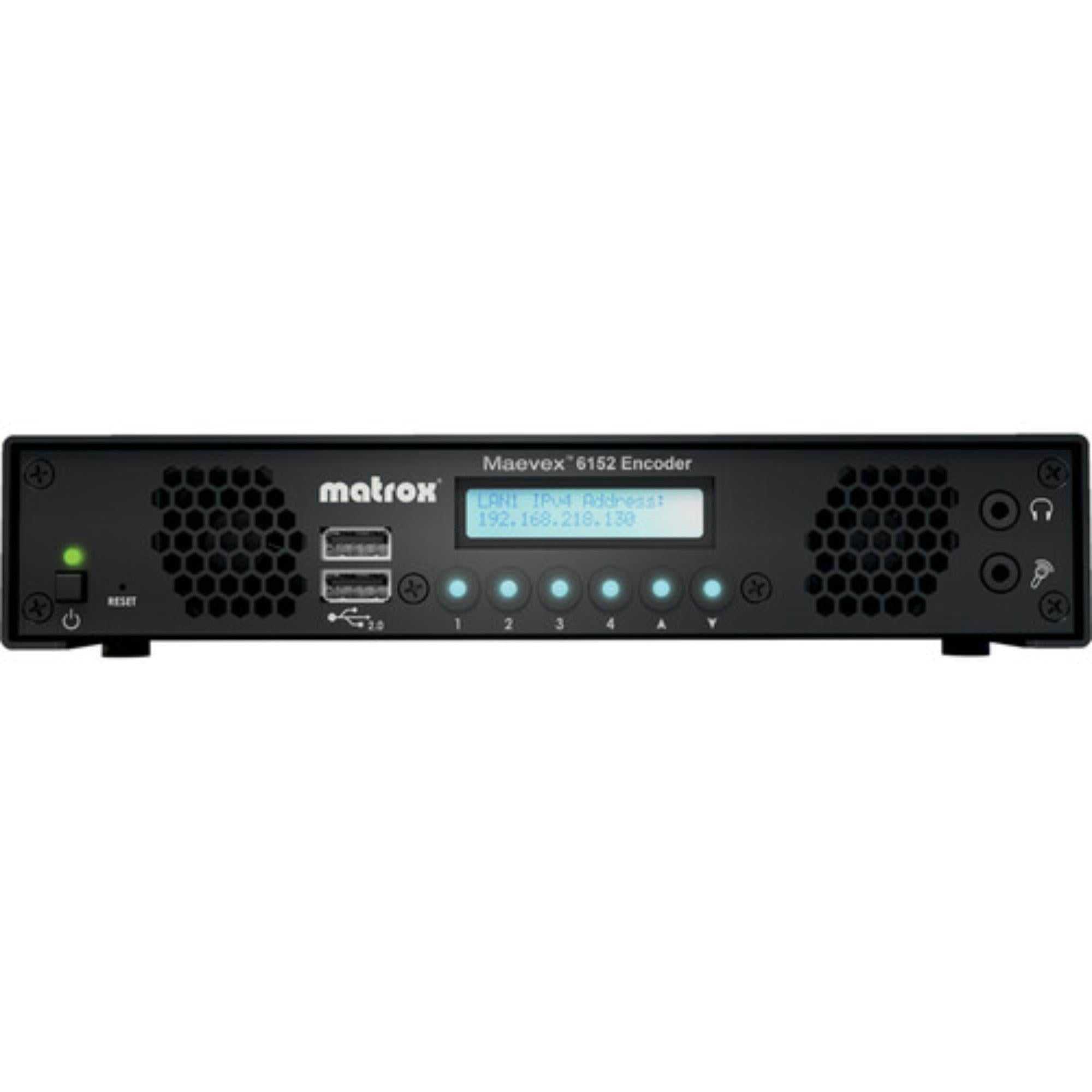

• Control: Integrated LCD and 6 onboard buttons
• Chassis: 1 RU half-rack standalone appliance
• Noise level: 25 dB or less

Why It Helps

When several 4K sources need to be streamed and recorded at the same time, using separate encoders for every channel quickly adds hardware and management overhead. The Maevex 6152 brings four HDMI sources into one appliance, which makes multi-stream deployment easier to keep organized.

The protocol support gives engineers room to choose the transport that fits the network. SRT is useful when links are less predictable, while HLS, MPEG-2 TS, RTP, RTMP, and RTSP cover a wide range of local, cloud, and internet delivery workflows.

Local control is straightforward as well. The integrated LCD shows device, IP, and stream information, while six onboard buttons can be used for setup, troubleshooting, and starting or stopping streaming and recording without needing to open a separate control workstation.

System Characteristics

• Four-channel 4K encoding concentrates several high-resolution feeds into one enterprise appliance
• Zero-latency HDMI passthrough keeps local displays active while streams are being encoded
• Flexible protocol support helps the encoder work across stable LANs, WAN links, cloud services, and public networks
• Adjustable encoding parameters let engineers balance bandwidth, image quality, and latency for different applications
• Local and network recording supports archiving, post-production, and later distribution
• Quiet half-rack design suits control rooms, operations centers, and other environments where acoustic noise matters

What's In The Box

• 1 x Matrox Maevex 6152 Quad 4K Enterprise Encoder
• 1 x Matrox Rackmount Kit for Maevex 6020
• 1 x Set of Secure Cable Solution for HDMI
• 2 x Rack Trays
