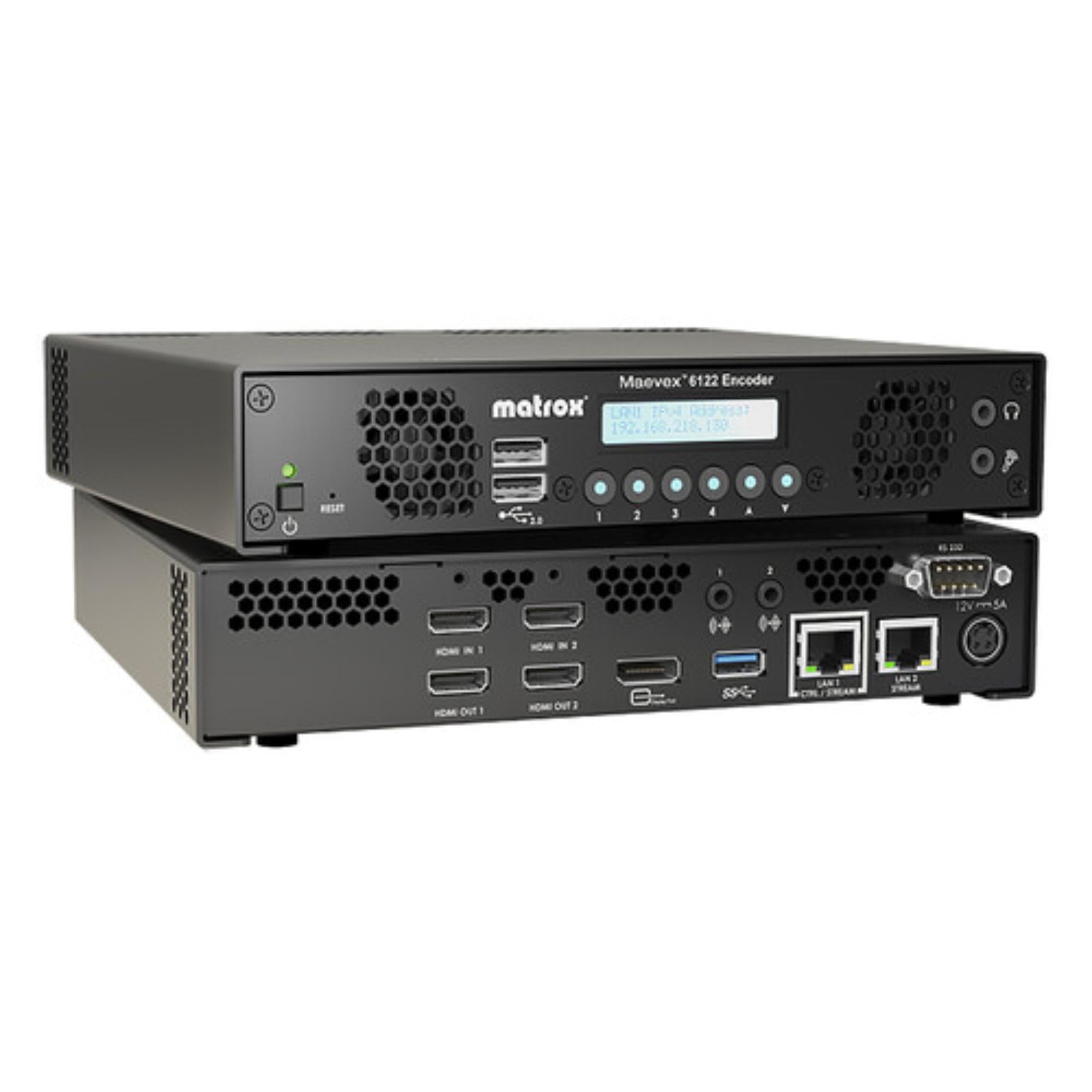

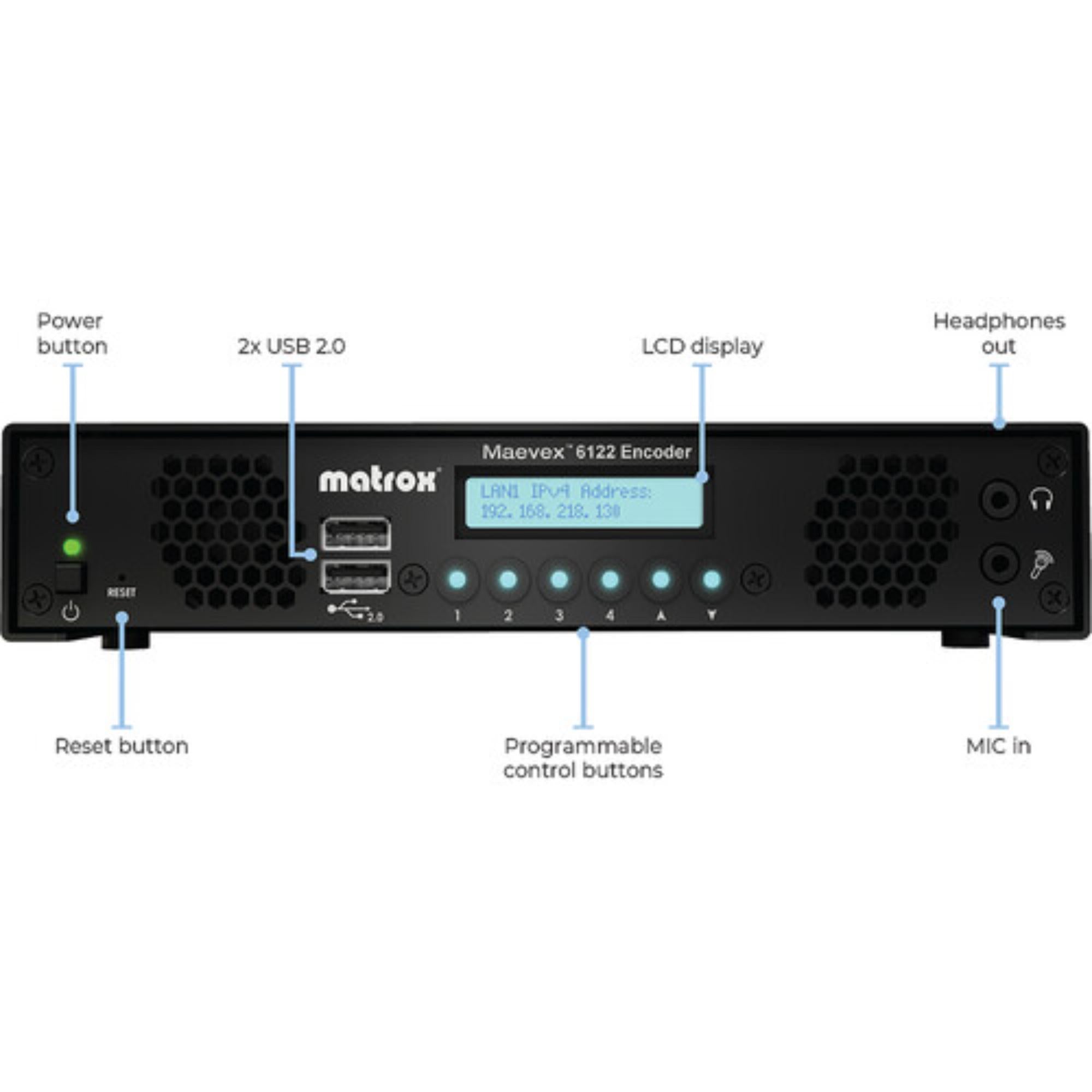

Matrox Maevex 6122 Dual 4K Enterprise Encoder

Matrox Maevex 6122 Dual 4K Enterprise Encoder is built for installations that need two 4K HDMI sources captured, encoded, streamed, and recorded from the same appliance. Zero-latency passthrough keeps the incoming video available locally while the encoder handles network delivery in the background.

The Maevex 6122 supports RTSP, MPEG-2 TS, RTP, SRT, HLS, and RTMP, giving engineers several transport options for LAN, WAN, cloud, and public-internet workflows. Two Gigabit Ethernet ports also let a system use separate networks for video and control or distribute traffic across two network connections.

Highlights

• Dual 4K HDMI encoding – captures and processes two high-resolution HDMI sources from one appliance
• Zero-latency passthrough – keeps real-time local video output available during streaming and recording
• Multiple streaming protocols – supports RTSP, MPEG-2 TS, RTP, SRT, HLS, and RTMP
• 2 Gigabit Ethernet ports – allows separate video and control networks or dual-network operation
• Flexible chroma processing – supports 4:4:4, 4:2:2, 4:2:0, and 4:0:0 options
• Enterprise-grade security – supports Active Directory, HTTPS, 802.1X, SRT, and AES encryption

Quick Specs & Uses

• Product type: Dual 4K HDMI enterprise encoder
• Video workflow: Capture, encode, stream, record, and zero-latency passthrough
• Streaming protocols: RTSP, MPEG-2 TS, RTP, SRT, HLS, RTMP

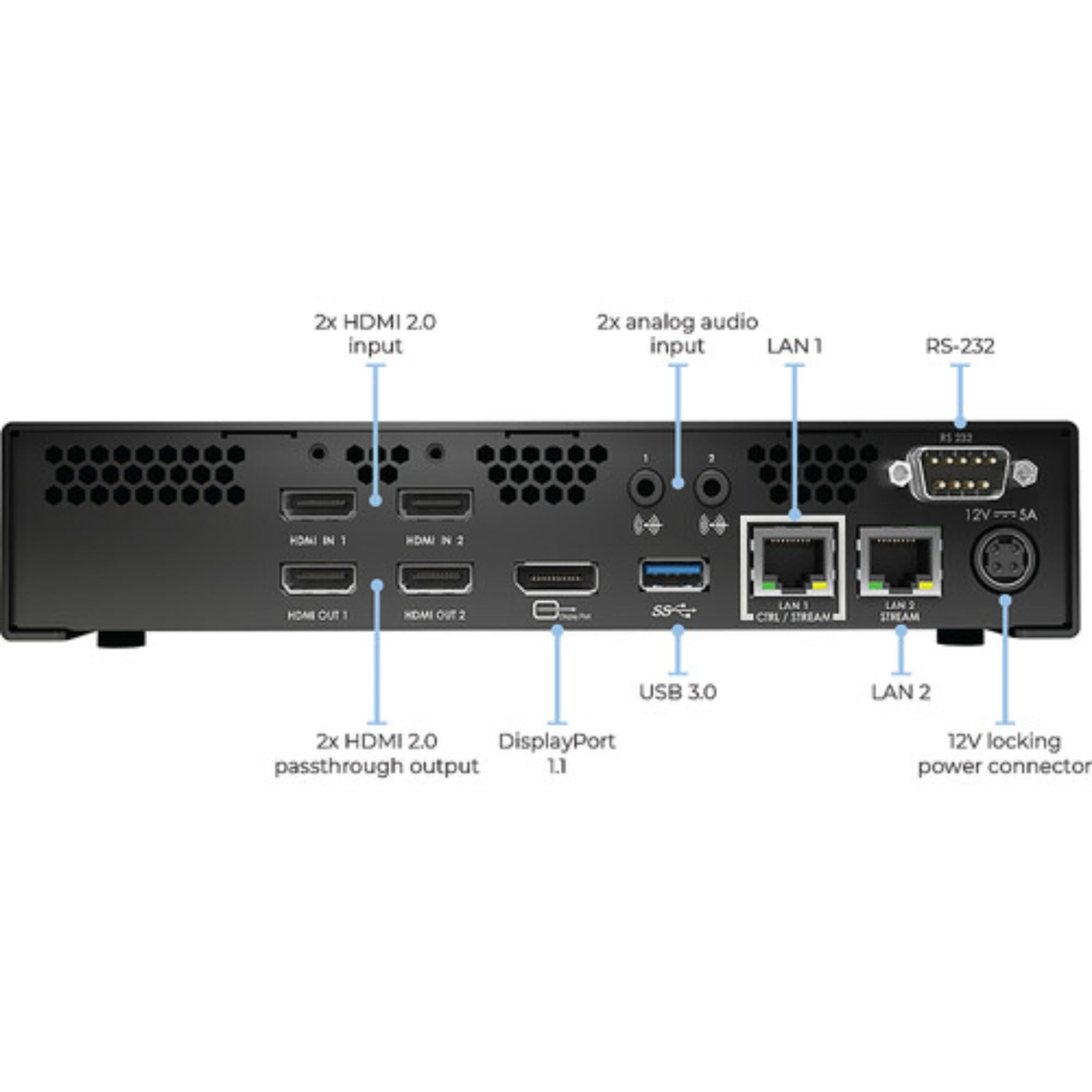

• Network: 2 x Gigabit Ethernet ports
• Chroma subsampling: 4:4:4, 4:2:2, 4:2:0, 4:0:0
• Encoding controls: User-definable bitrates, quantization parameters, and multiple encoding modes
• Passthrough: Zero latency
• Access control: Microsoft Active Directory integration
• Device management security: HTTPS
• Network authentication: 802.1X
• Secure transport: SRT with AES encryption support
• Firmware security: Verified firmware and vulnerability updates
• Form factor: 1 RU rackmount
• Typical uses: Enterprise AV, security and surveillance centers, medical environments, military operations, streaming, and mission-critical video distribution

Why It Helps

When two 4K sources need to be streamed and recorded at the same time, keeping both channels inside one encoder cuts down on separate hardware and network management. The Maevex 6122 handles dual capture and encoding while leaving a zero-latency passthrough available for local monitoring.

The protocol choice makes the unit easier to fit into different networks. RTSP, MPEG-2 TS, and RTP can cover established IP video environments, while SRT is useful when the transport path is less predictable and low-latency delivery over public or constrained networks is required.

Security is treated as part of the installation rather than an afterthought. Active Directory integration, HTTPS management, 802.1X authentication, verified firmware, vulnerability updates, and SRT with AES encryption give IT and AV teams several tools for controlling access and protecting streams.

System Characteristics

• Dual-source 4K processing keeps capture, encoding, streaming, and recording together in one appliance
• Zero-latency video passthrough preserves an immediate local output while network delivery continues
• Flexible chroma options let engineers balance color detail, compression, and available bandwidth
• Multiple transport protocols support deployment across LAN, WAN, cloud, VPN, and public-internet environments
• Dual Gigabit networking allows control and media traffic to be separated when the system design calls for it
• Enterprise security controls help the encoder fit into managed and mission-critical network environments

What's In The Box

• 1 x Matrox Maevex 6122 Dual 4K HDMI Video Encoder
