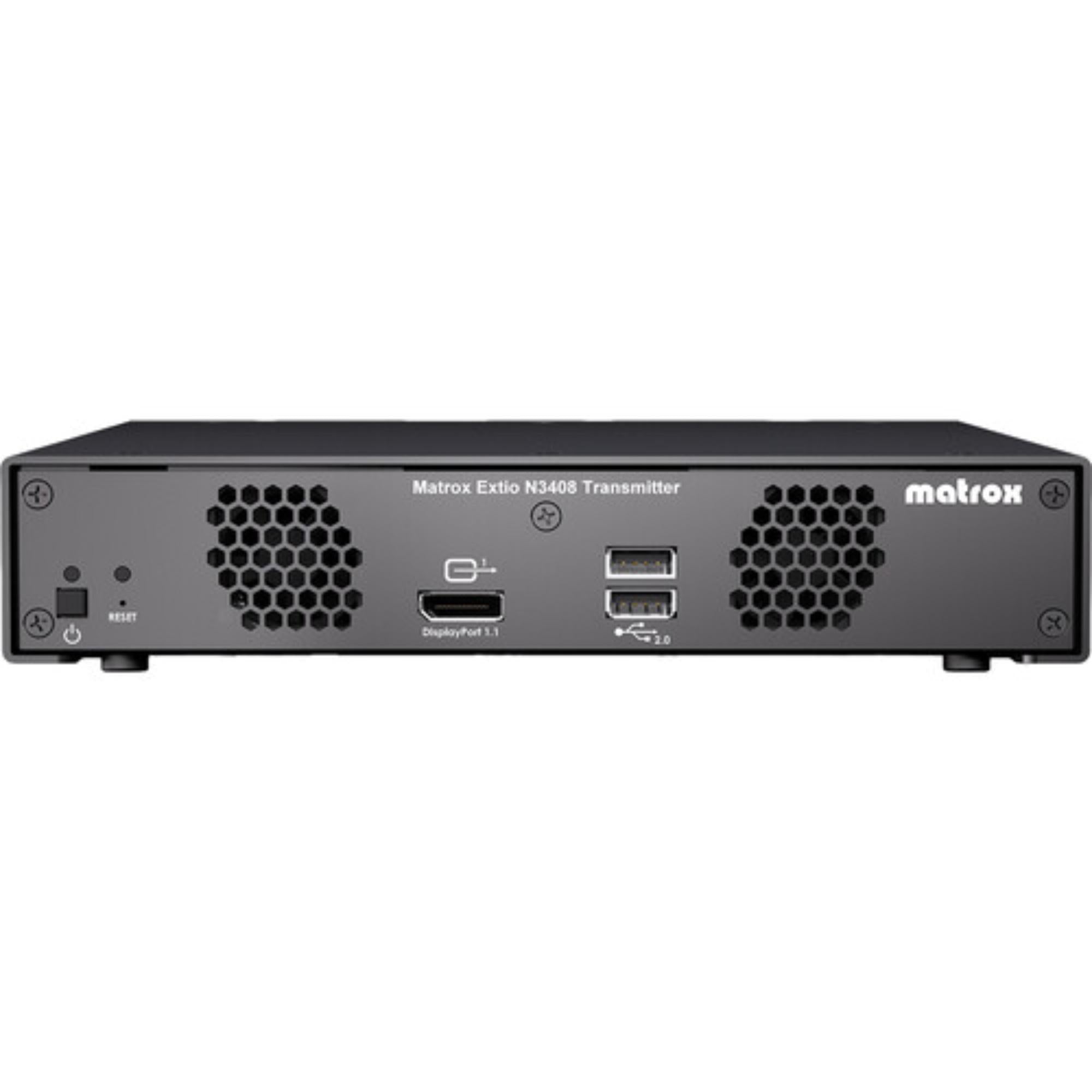

Matrox Extio N3408 IP KVM Transmitter Appliance

Matrox Extio N3408 IP KVM Transmitter Appliance is built for workstation environments where the source computer needs to stay away from the operator position. It sends high-resolution display and control signals across standard 1 Gigabit Ethernet, making it easier to place computers in an equipment room while keeping the working desktop where the operator needs it.

The transmitter supports 4Kp60 4:4:4 UHD operation and multi-display workflows. Its video connections include one DisplayPort 1.2 input and three additional DisplayPort inputs, while analog audio and RS-232 connections give engineers extra options for integrating the source system into a professional KVM setup.

Highlights

• 4Kp60 4:4:4 IP KVM transmission – supports high-resolution professional desktop workflows
• Multi-display operation – provides multiple DisplayPort connections for larger workstation layouts
• 1 Gigabit Ethernet support – carries the KVM workflow over standard network infrastructure
• DisplayPort 1.2 input – supports a high-resolution source connection alongside additional DisplayPort inputs
• Analog audio connectivity – includes 3.5 mm input and output connections
• RS-232 output – adds serial control capability for compatible equipment

Quick Specs & Uses

• Product type: IP KVM transmitter appliance
• System family: Matrox Extio 3 / Extio N3408
• Network support: 1 Gigabit Ethernet
• Video capability: 4Kp60 4:4:4 UHD and multi-display operation
• DisplayPort input: 1 x DisplayPort 1.2
• Additional video inputs: 3 x DisplayPort
• Audio input: 1 x 1/8" / 3.5 mm TRS
• Audio output: 1 x 1/8" / 3.5 mm TS
• Serial output: 1 x DB-9 RS-232
• Power input: 1 x barrel input
• Network switch compatibility: Commercial off-the-shelf Ethernet switches
• Typical uses: Broadcast control rooms, production workstations, multi-display desktops, equipment rooms, and professional IP KVM installations

Why It Helps

Keeping the workstation away from the operator can make a control room quieter and easier to maintain. The N3408 transmitter lets the source computer stay in the equipment area while its desktop is carried across the network to a compatible Extio receiver.

The multi-display connections are useful when one workstation drives several applications at the same time. Operators working with monitoring, graphics, editing, control, or data-heavy software can keep a larger desktop without putting the computer directly at the desk.

Because Extio 3 works over standard Gigabit Ethernet and commercial network switches, the system can be integrated into familiar network infrastructure instead of requiring a dedicated proprietary switching platform.

System Characteristics

• High-resolution KVM extension supports 4Kp60 4:4:4 desktop workflows over IP
• Multi-display source support gives operators room for larger workstation layouts
• Standard Gigabit Ethernet transport allows the system to use conventional network infrastructure
• Analog audio support extends additional workstation audio connections alongside video
• RS-232 connectivity provides a serial control path for compatible production equipment
• Scalable network design makes the transmitter suitable for direct extension or larger Extio KVM installations

What's In The Box

• 1 x Matrox Extio N3408 IP KVM Transmitter
